Fuse Block: Application and ID

Fuse Assignments

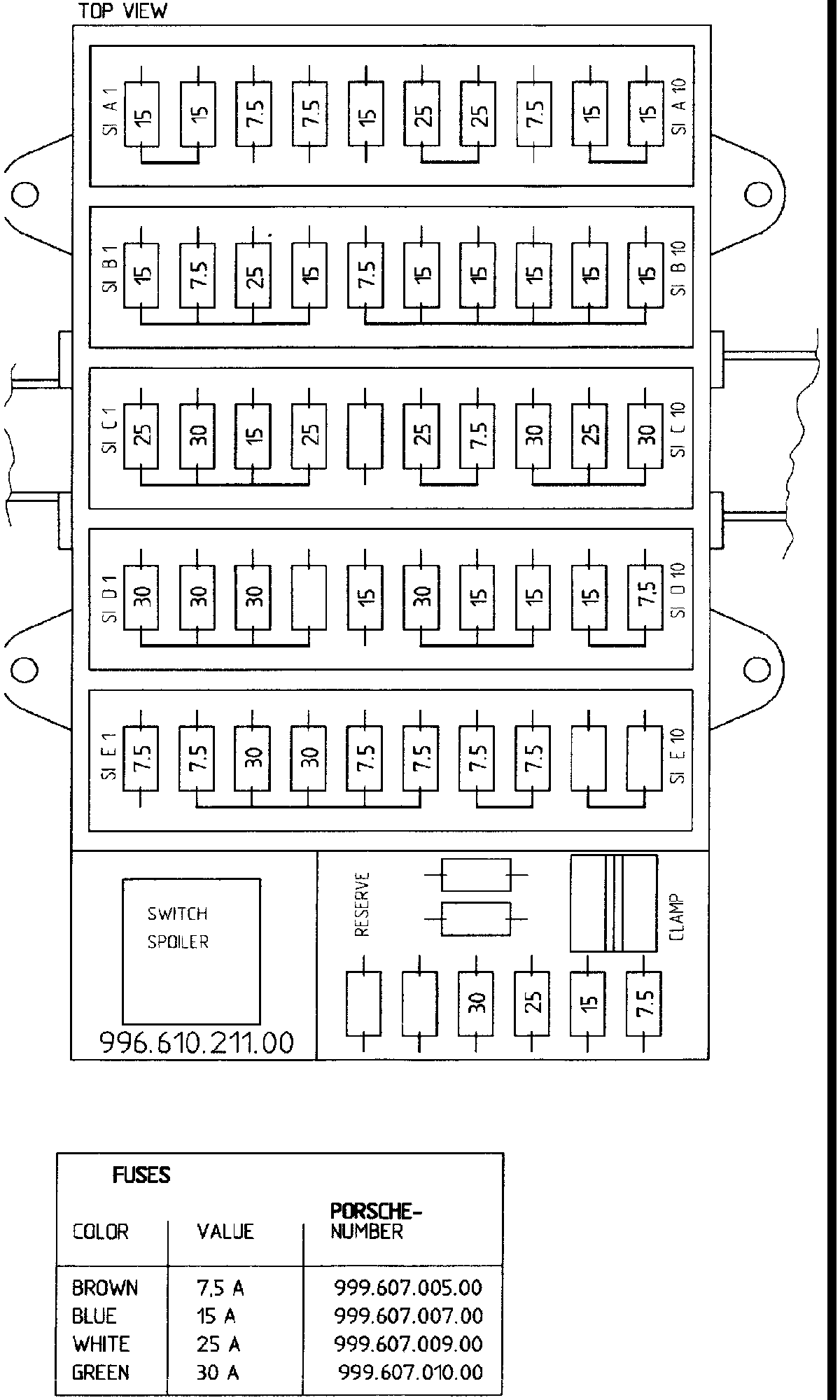

Fuse Block - Top View:

Fuses - Color, Rating, Part Number:

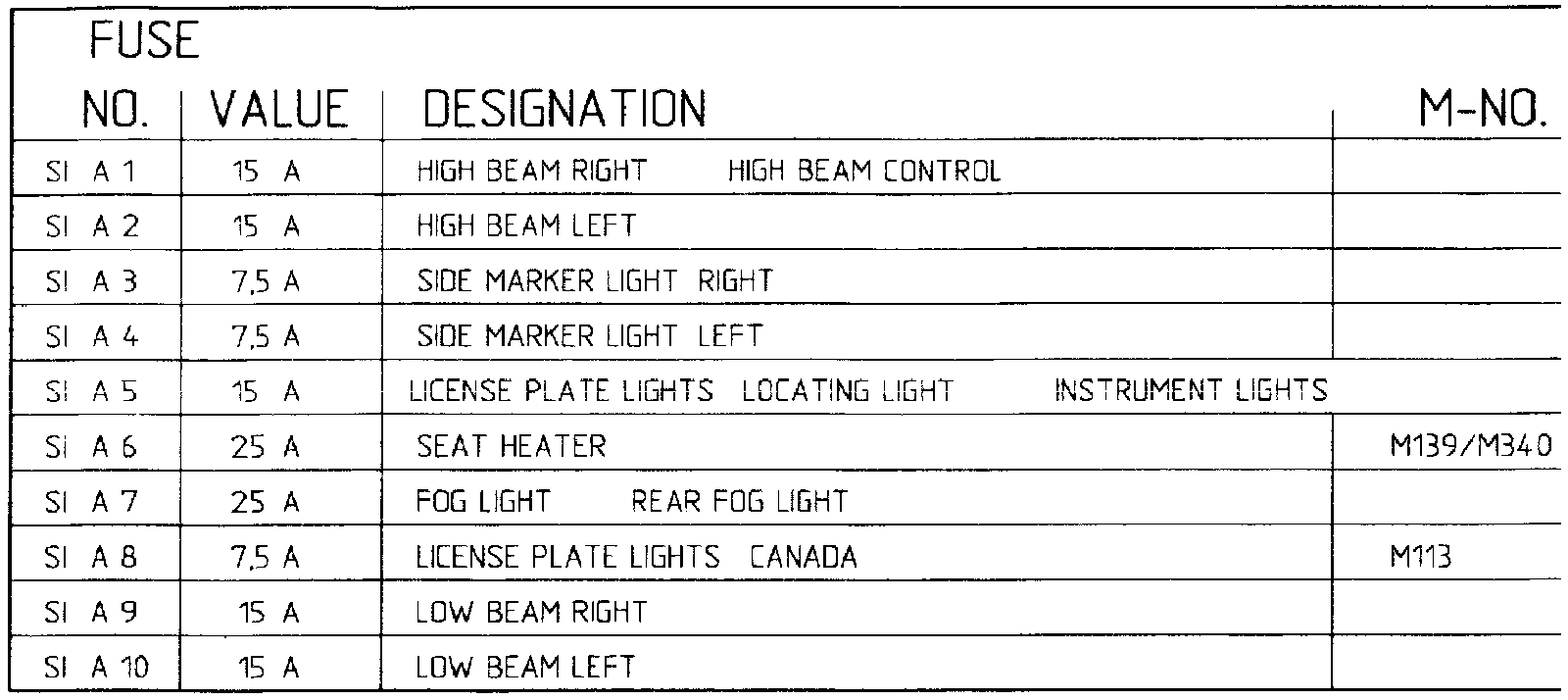

Fuse Holder A:

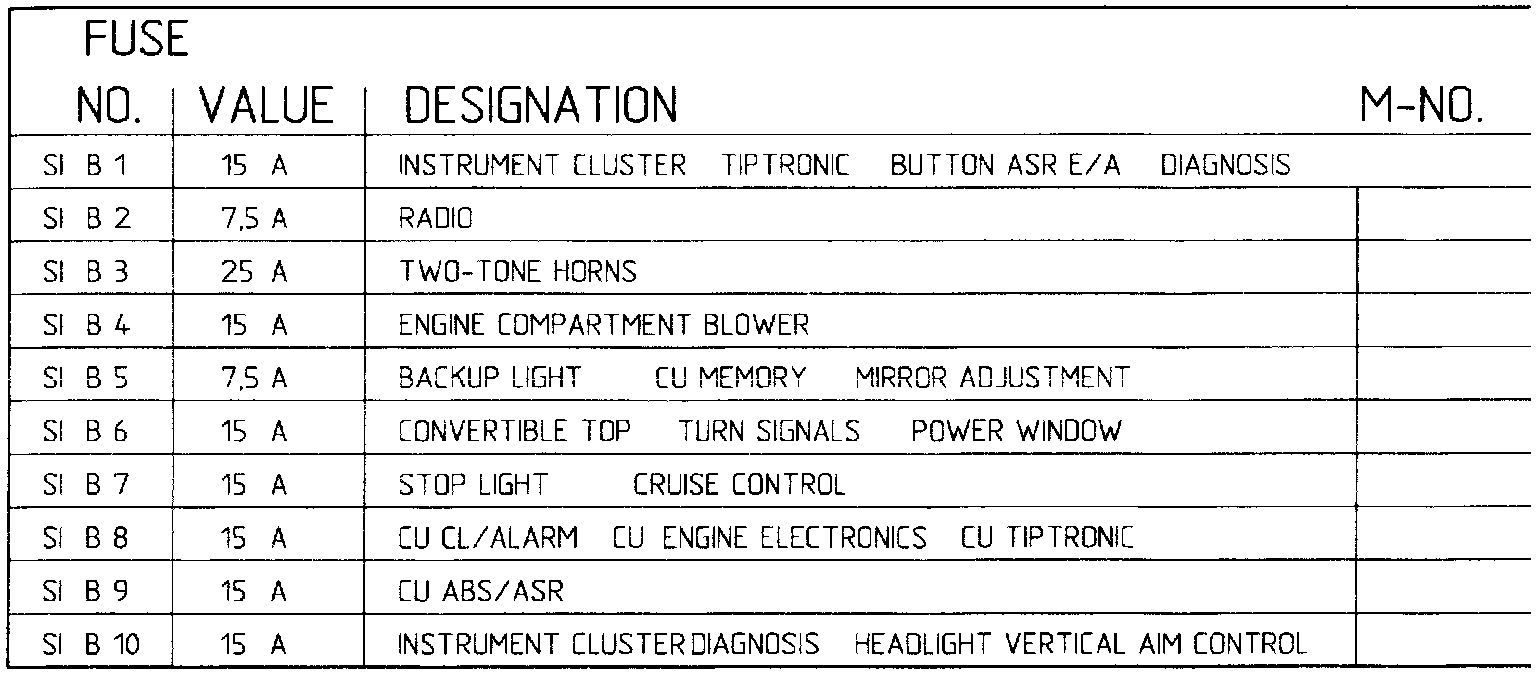

Fuse Holder B:

Fuse Holder C:

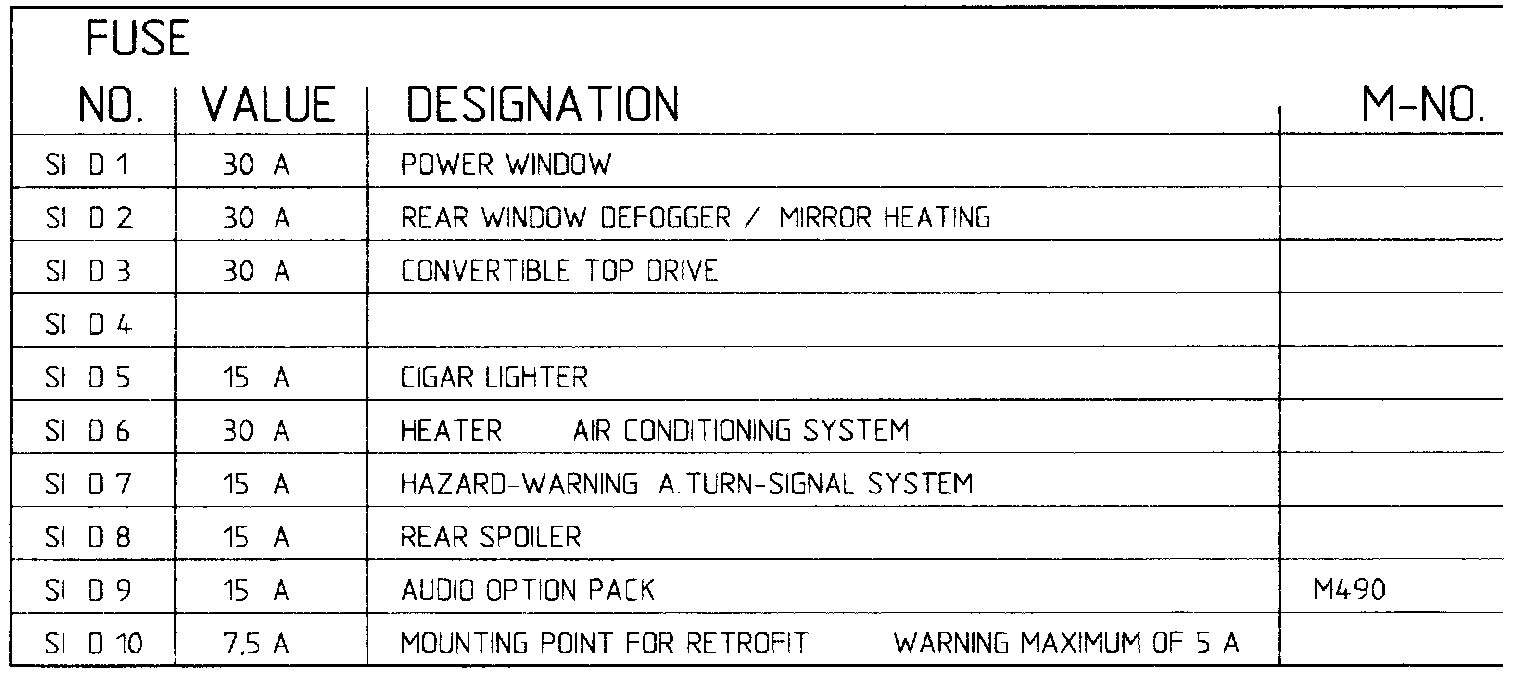

Fuse Holder D:

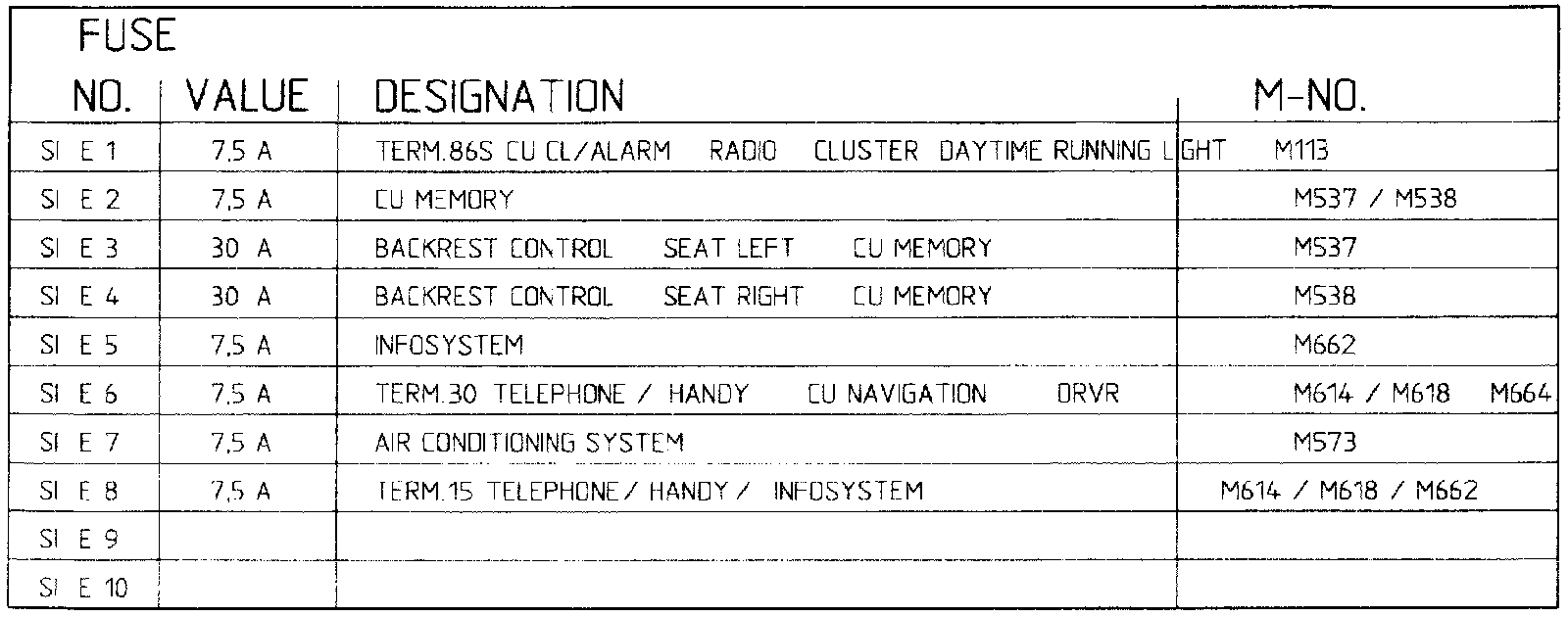

Fuse Holder E:

Fuse Holder - Various:
