Work preparation
The following vehicle data must be provided before programming of the new DME control module can begin:
- Vehicle Ident. No.
- Catalytic converter item No. corresponding to the catalytic converter version used
- DME and immobilizer programming codes (from the Porsche IPAS system)
With the information about the Vehicle Ident. Number and catalytic converter item number, the associated programme can be selected from the allocation table.

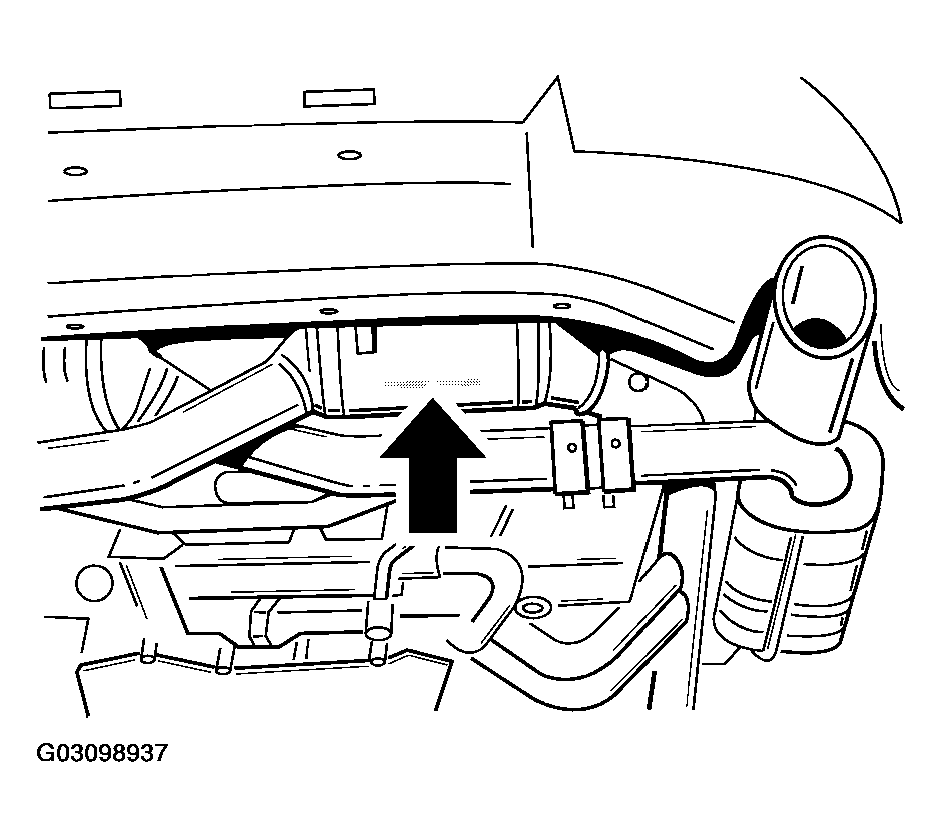

Fig 1 shows where the catalytic converter item number can be found on the vehicle.
