DME Connector Assignment



DME Connector Assignment

NOTE: The DME control module has 134 terminals which are divided between five connectors.

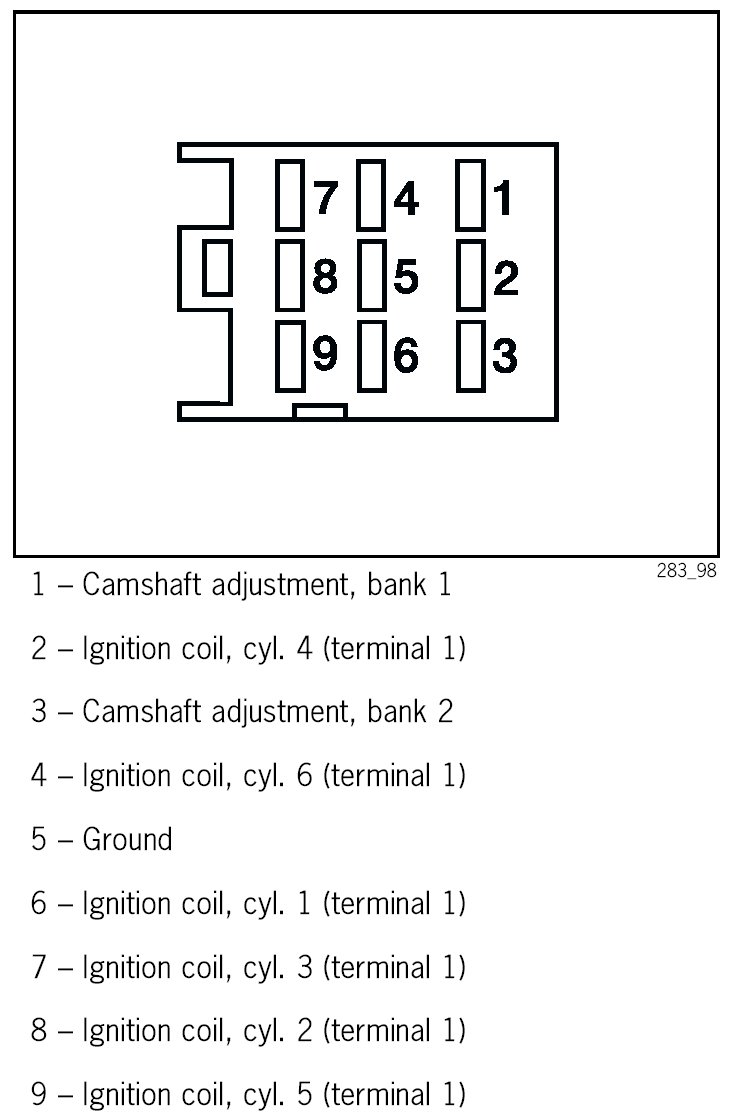

Connector I (9-pole)

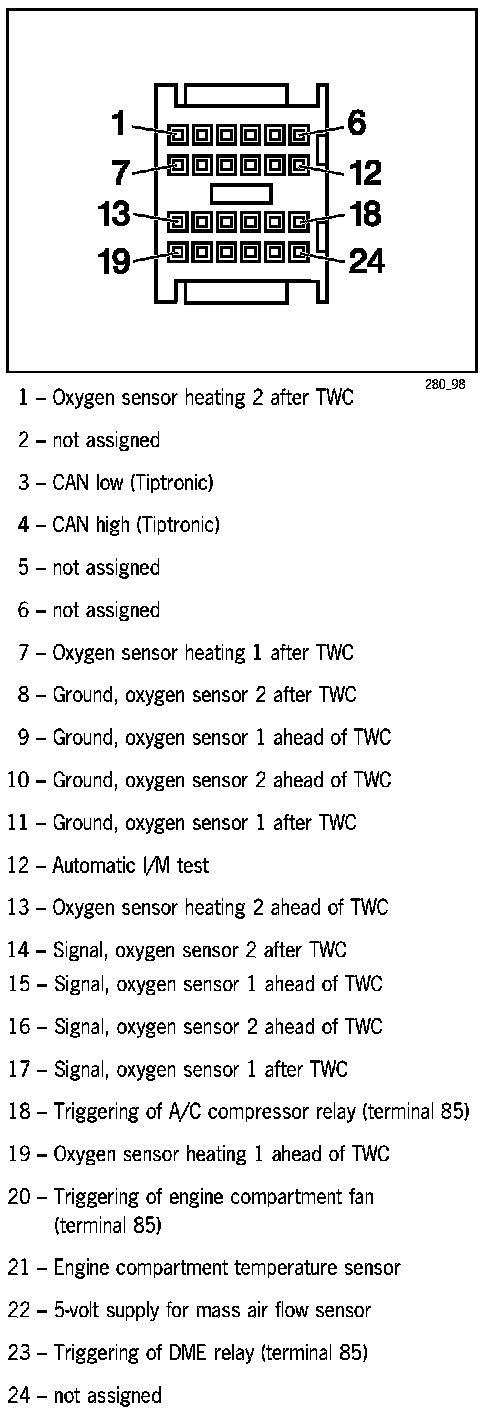

Connector II (24-pole)

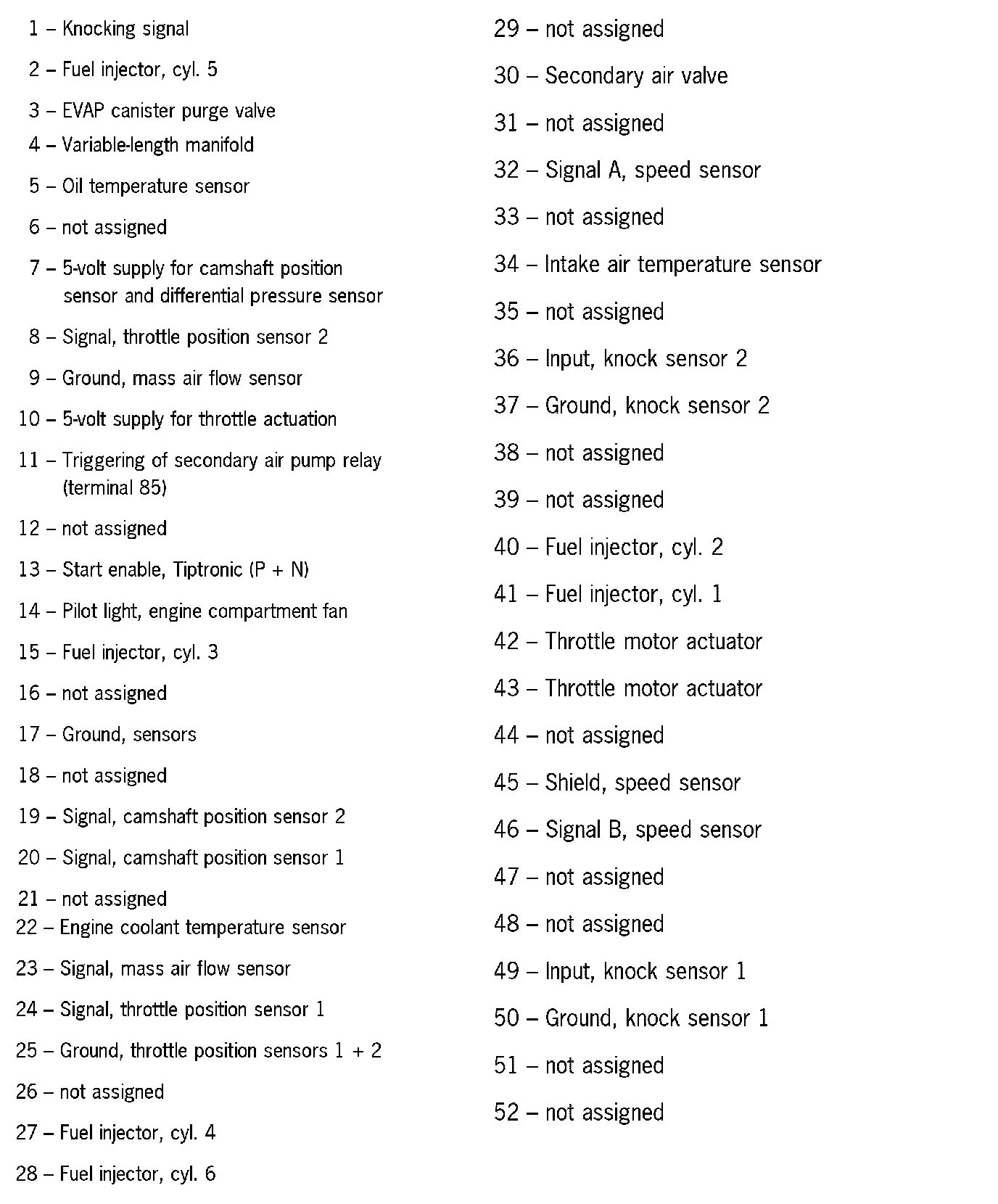

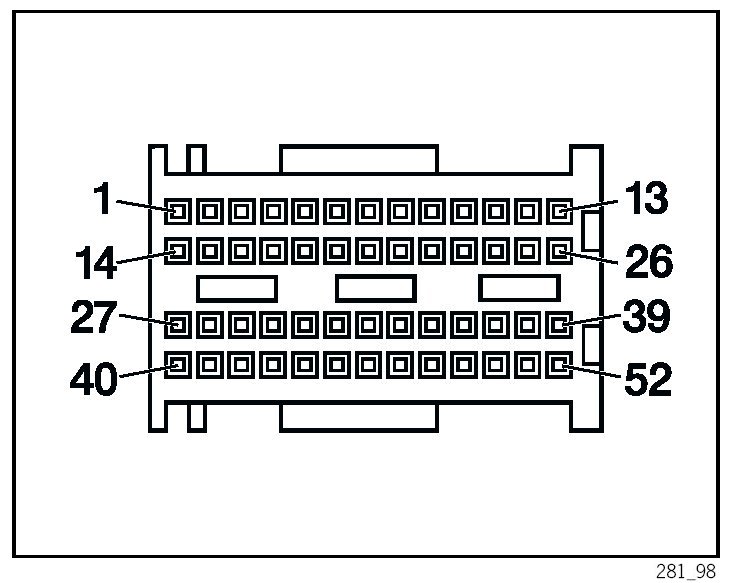

Connector III (52-pole)


Part 1:




Part 2:

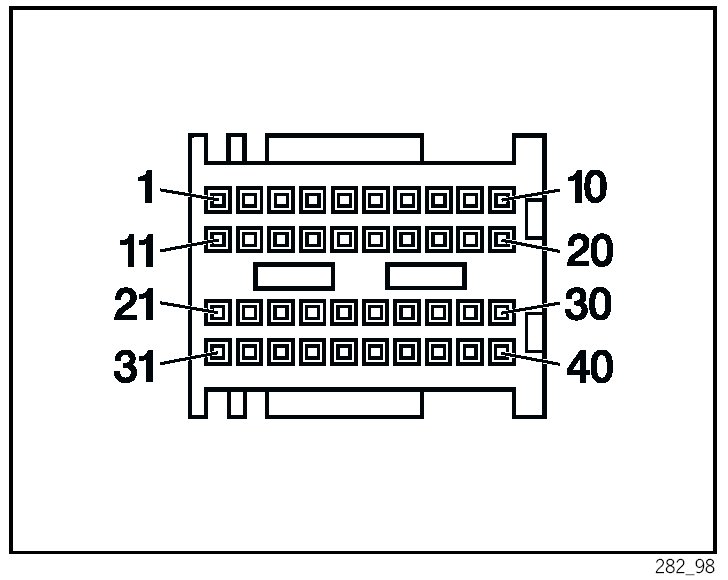

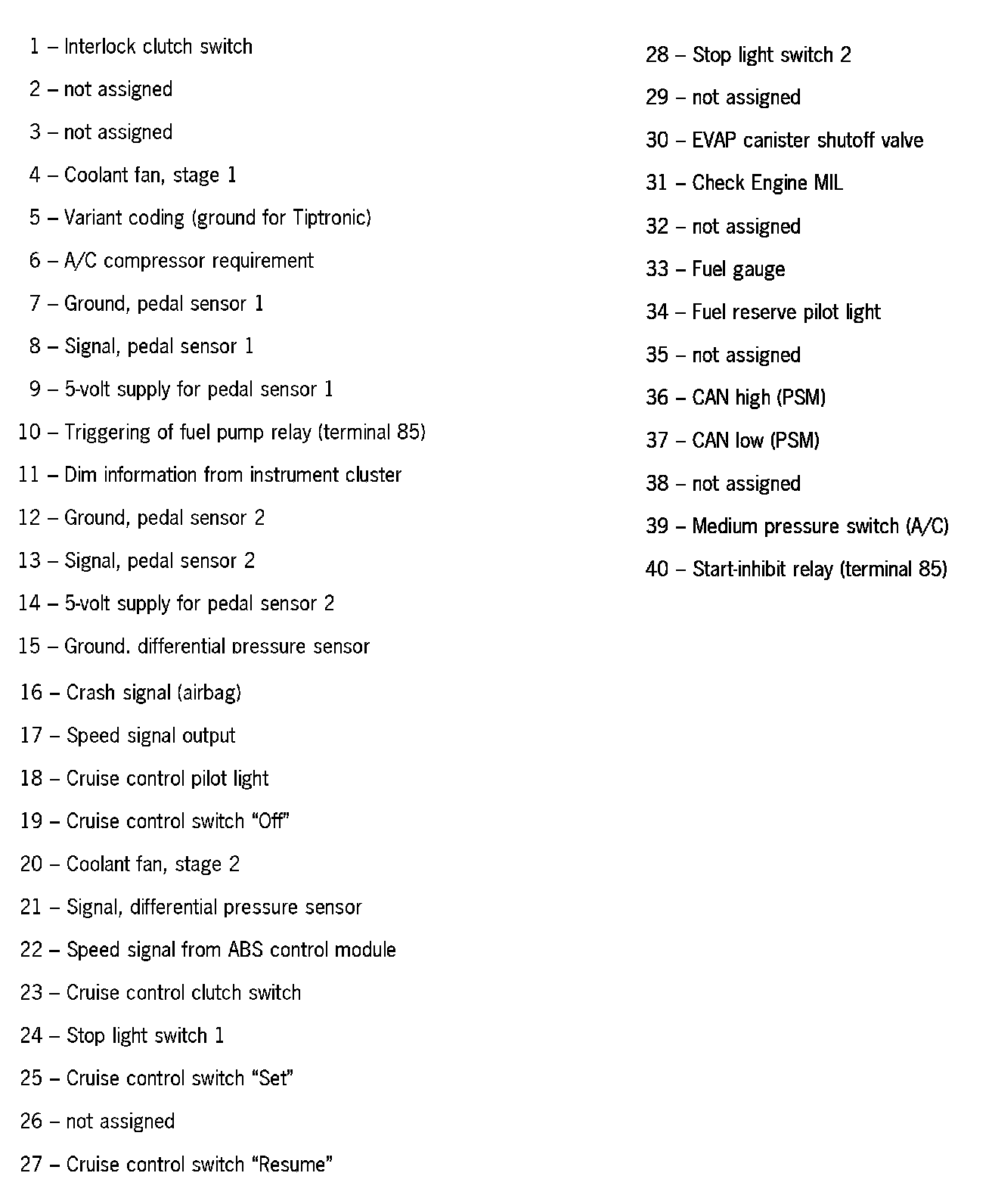

Connector IV (40-pole)


Part 1:




Part 2:

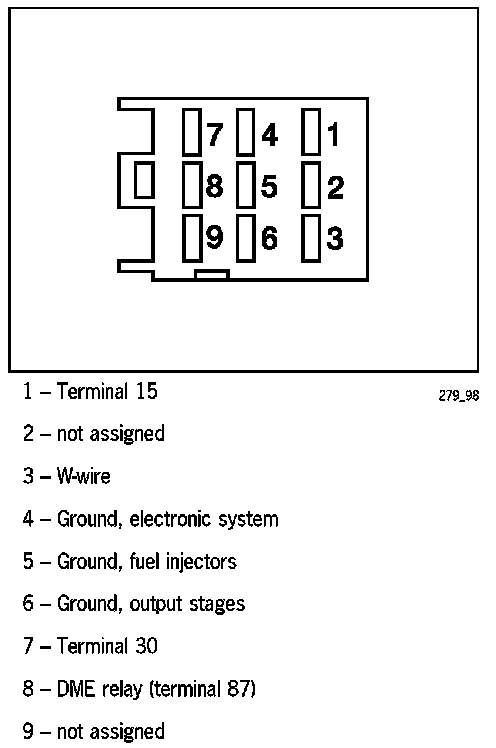

Connector V (9-pole)
