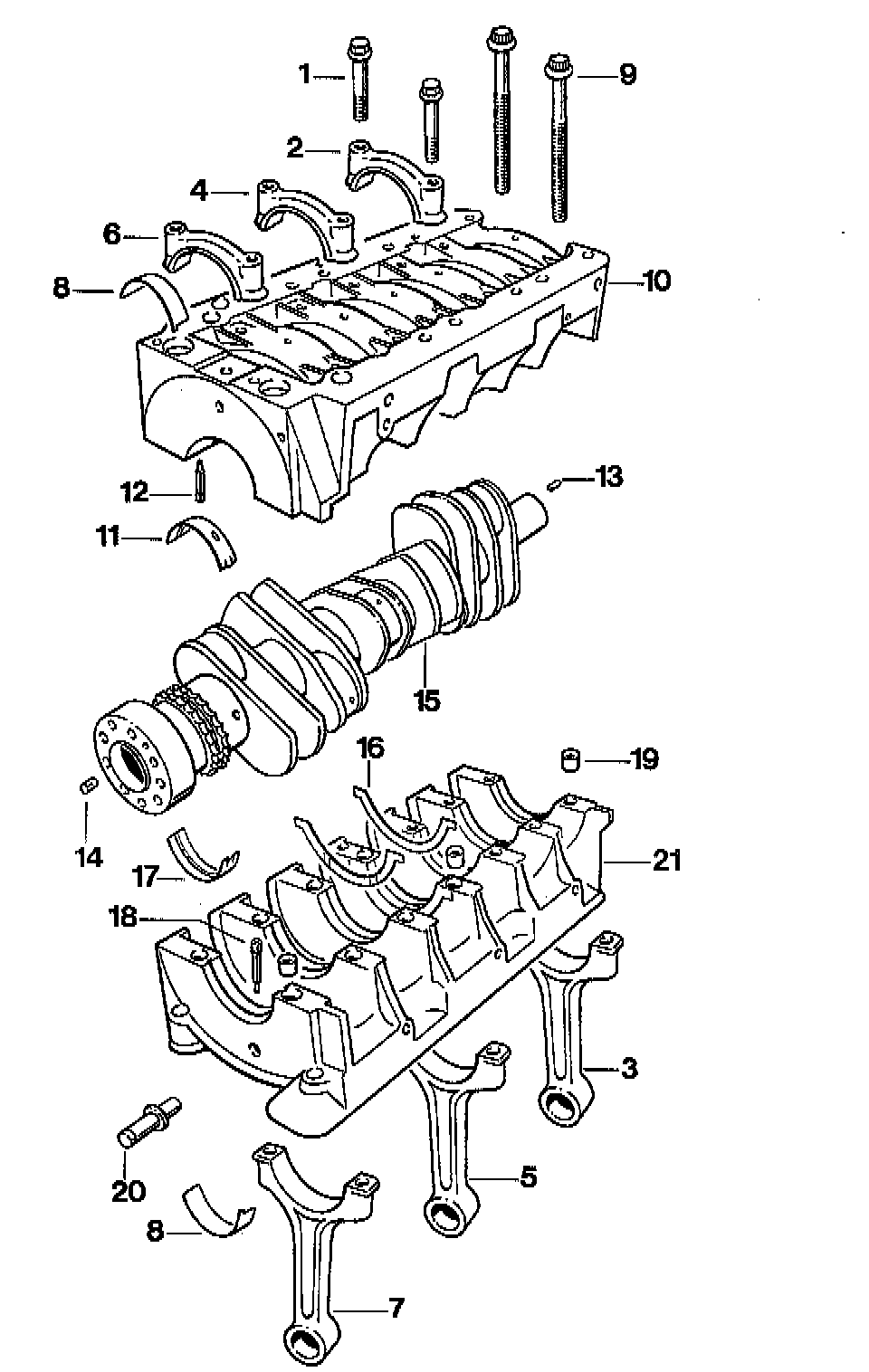

Connecting Rod Bearing

LEGEND
1 Connecting Rod Bolt
2 Connecting Rod Bearing Cap
3 Connecting Rod, Cylinder 4
4 Connecting Rod Bearing Cap
5 Connecting Rod, Cylinder 5
6 Connecting Rod Bearing Cap
7 Connecting Rod, Cylinder 6
8 Connecting Rod Bearing Shell Half
9 Thrust Bearing Screw 9 x 129 mm
10 Bearing Housing Half (Cylinders 1-3)
11 Crankcase Bearing Shell Half
12 Piston Spray Nozzle In Bearing Housing Half (Cylinders 1-3)
13 Cylindrical Pin A4.0 x 10 mm
14 Roll Pin 6.0 x 16 mm
15 Crankshaft
26 Thrust Plate
17 Crankcase Bearing Shell Half
18 Piston Spray Nozzle In Bearing Housing Half (Cylinders 4-6)
19 Dowel Sleeks
20 Pin For Tensioning Rail
21 Bearing Housing Half (Cylinders 4-6)
