Exhaust System

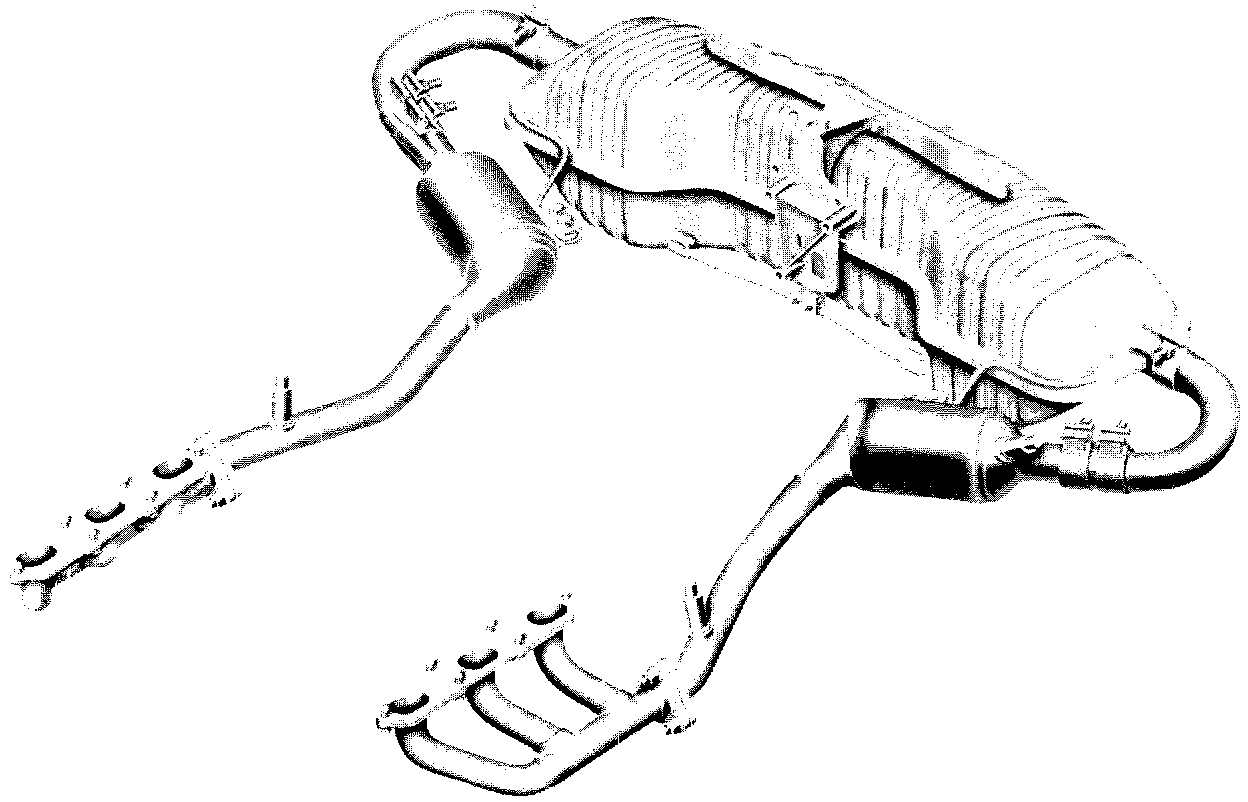

Exhaust System - Assembled View:

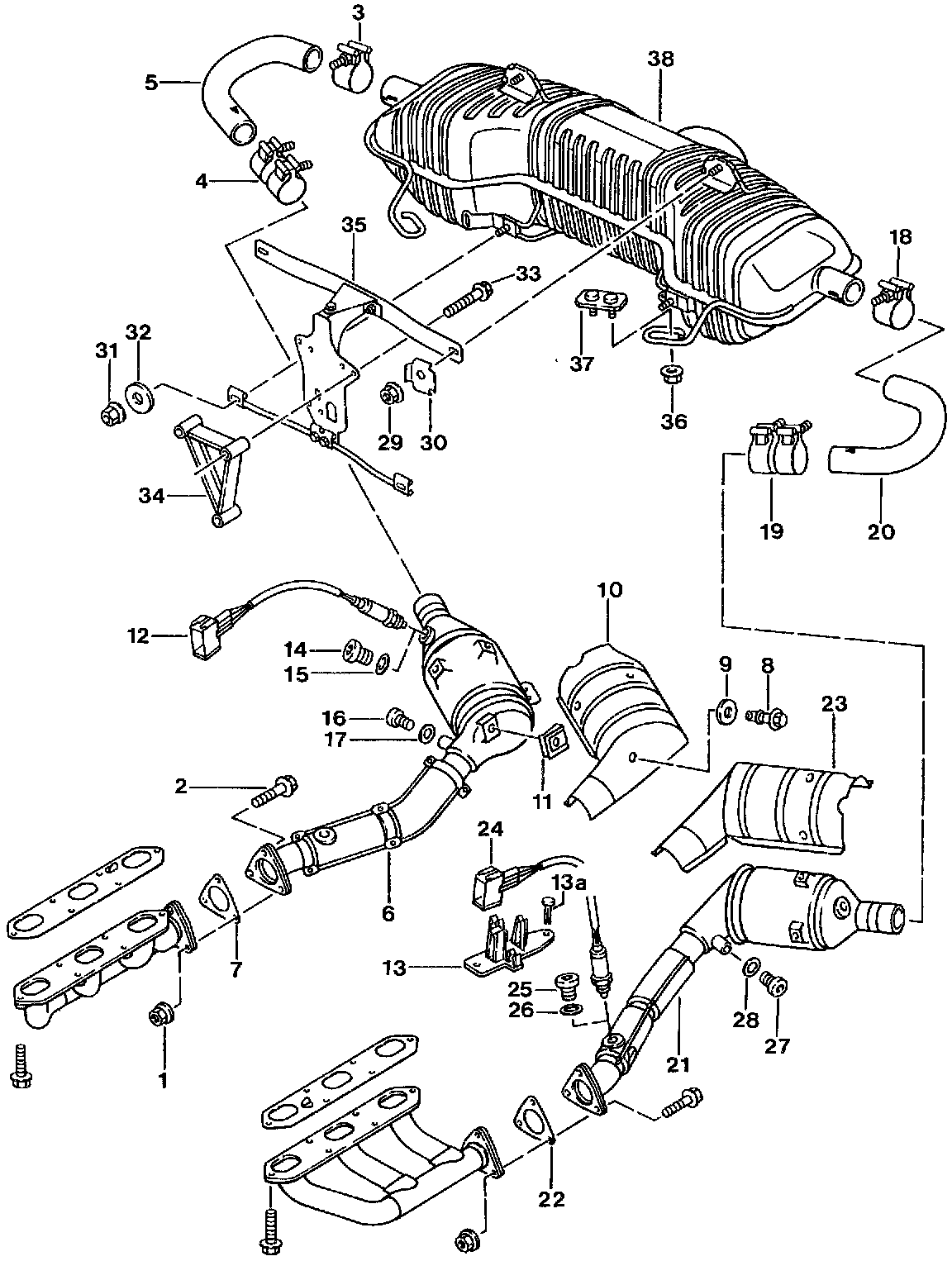

Exhaust System - Exploded View:

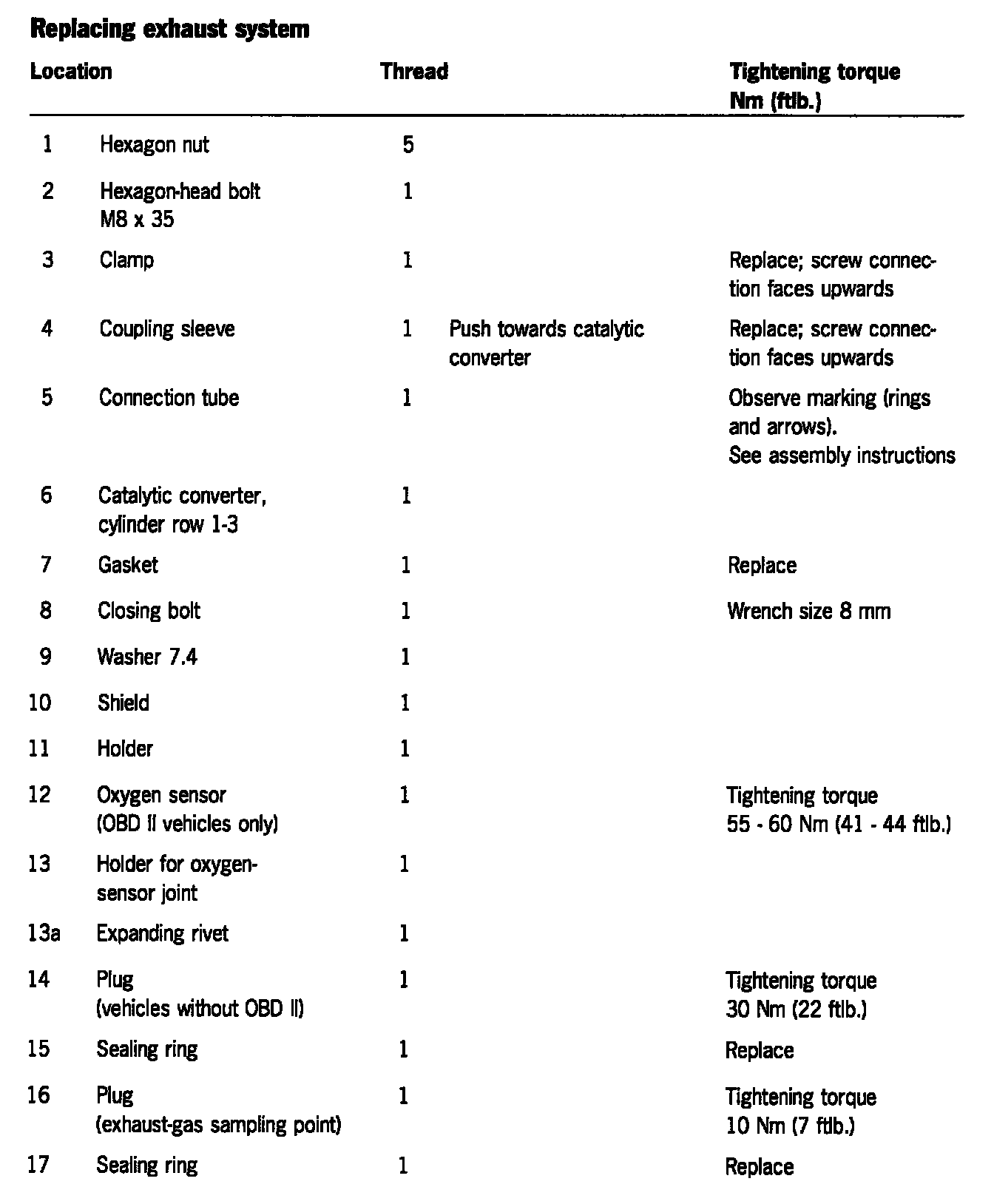

Legend 1 - 17:

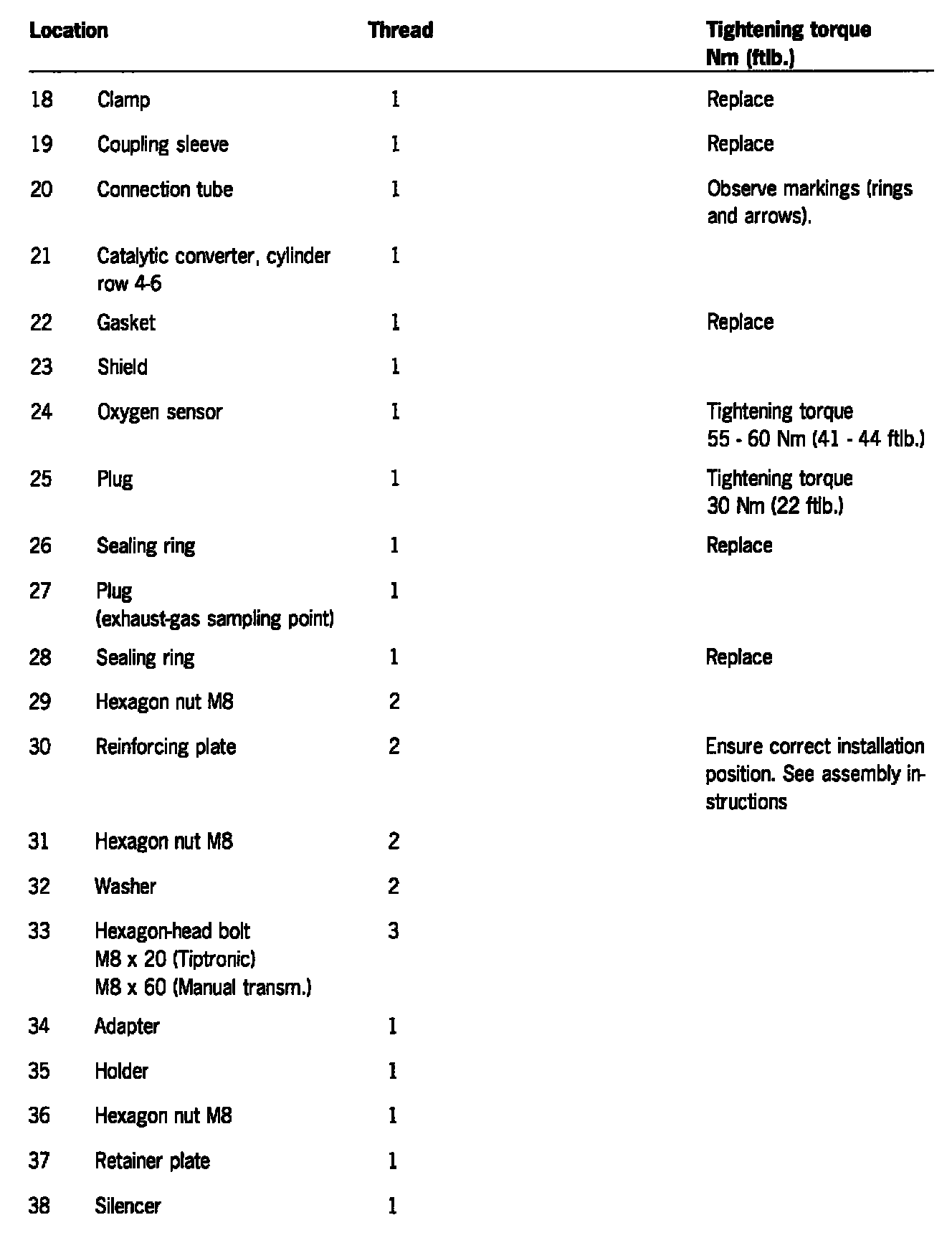

Legend 18 - 38:
