Adjustment Values

Adjustment values for suspension alignment

The following values relate to the empty weight. This means: full fuel tank, vehicle with spare wheel and tools, but without driver and without additional weights.

The vehicle height depends on the wheel size (16, 17 or 18-inch).

Vehicle Height - Boxster And Boxster S:

Vehicle Height-Boxster And Boxster S

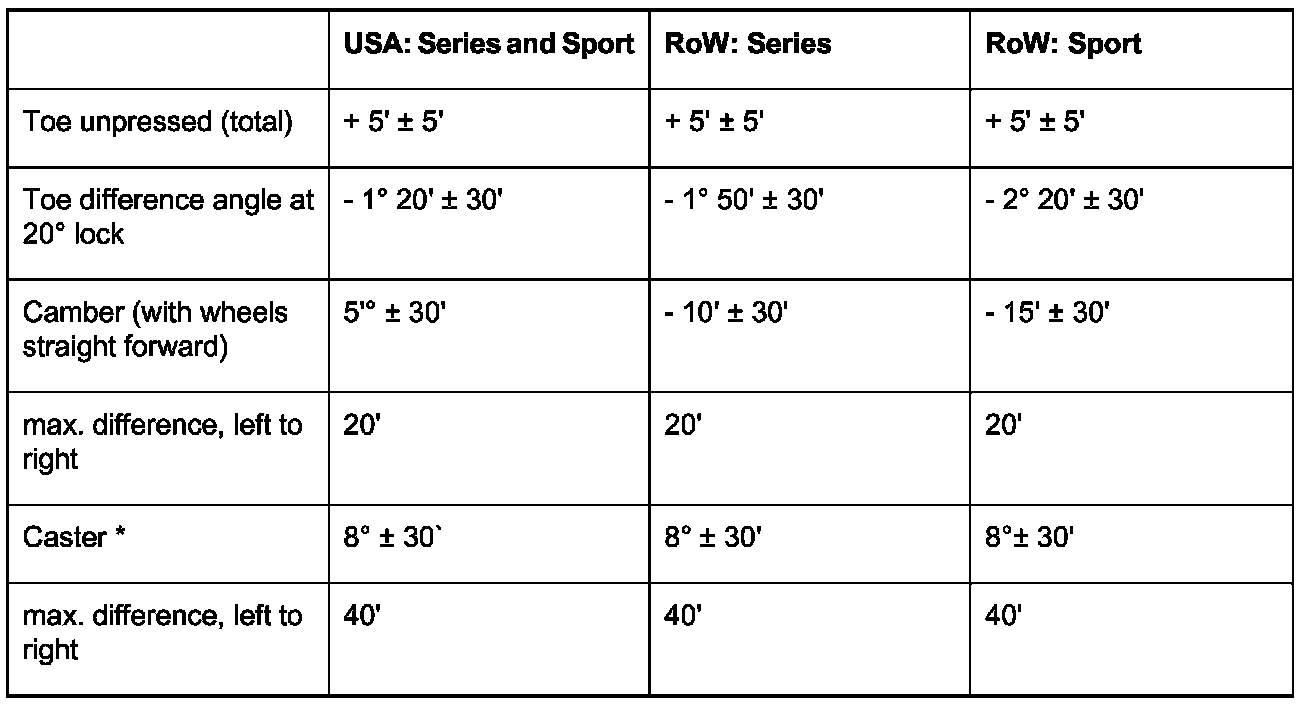

Wheel alignment values, front

Wheel Alignment Values, Front:

The following values relate to the empty weight. This means: full fuel tank, vehicle with spare wheel and tools, but without driver and without additional weights.

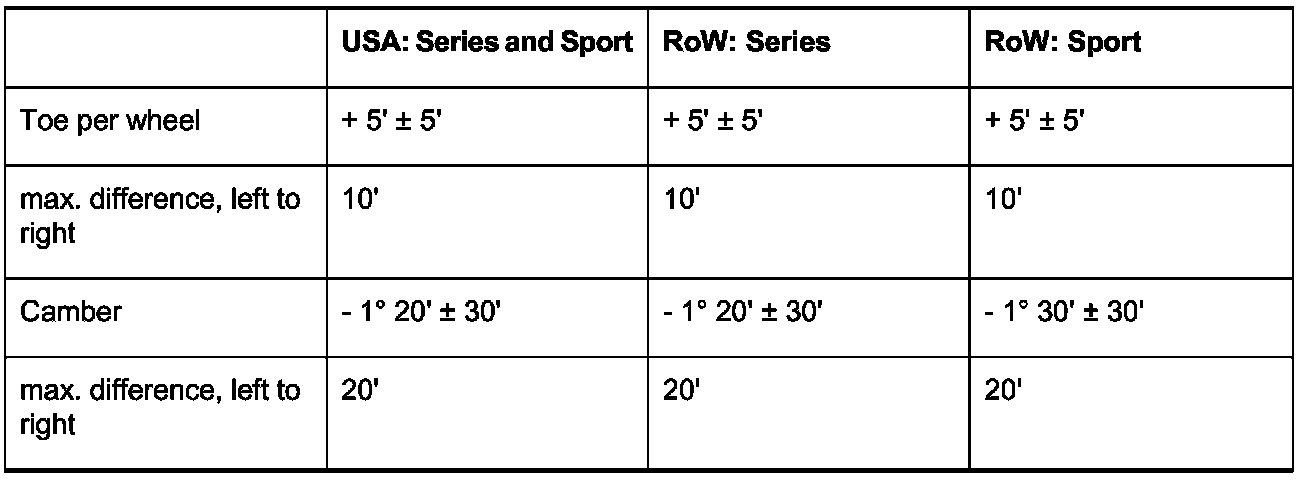

Wheel alignment values, rear

Wheel Alignment Values, Rear:

The following values relate to the empty weight. This means: full fuel tank, vehicle with spare wheel and tools, but without driver and without additional weights.
