Removing and Installing Current Distributor

Removing And Installing Current Distributor

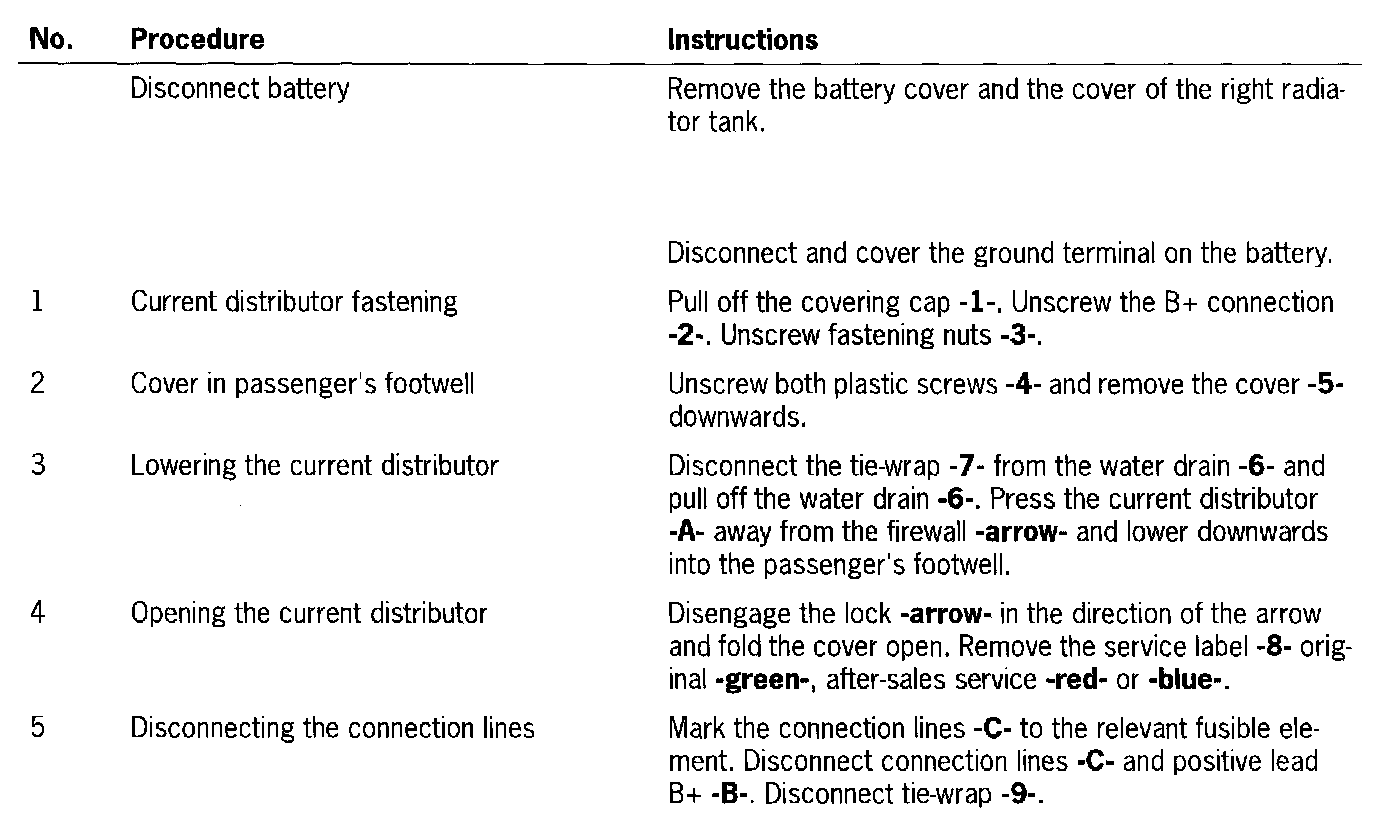

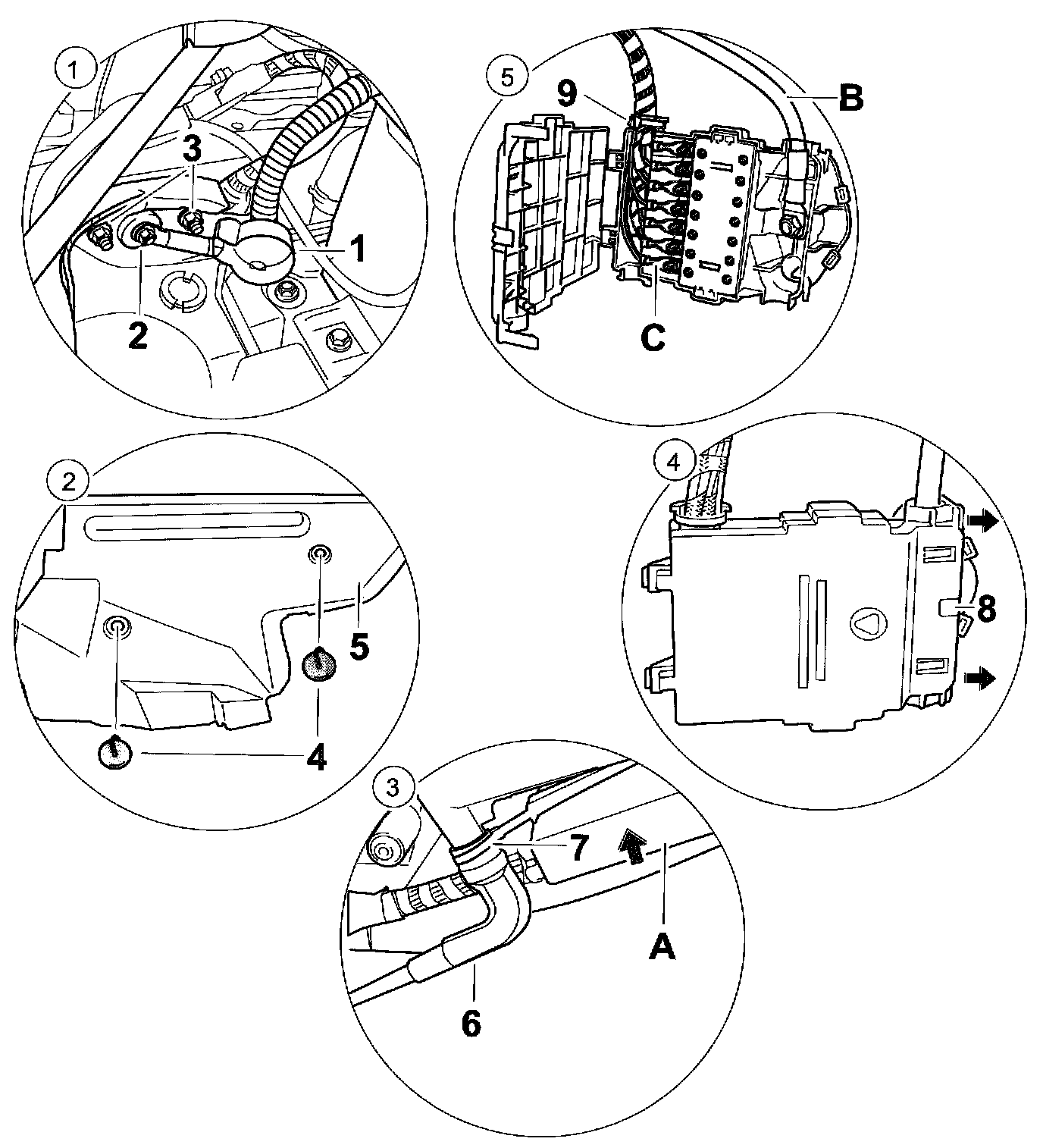

Removing Current Distributor

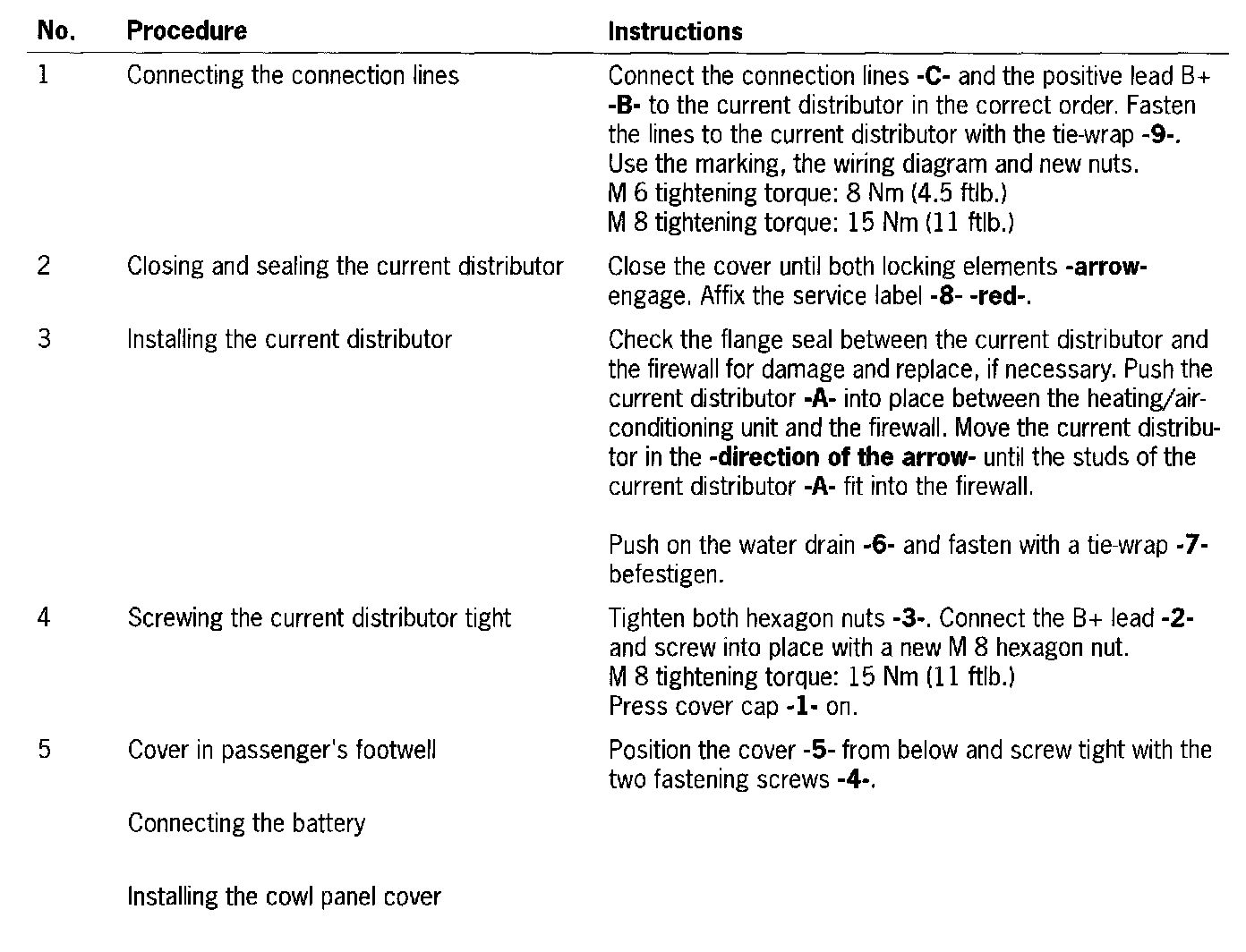

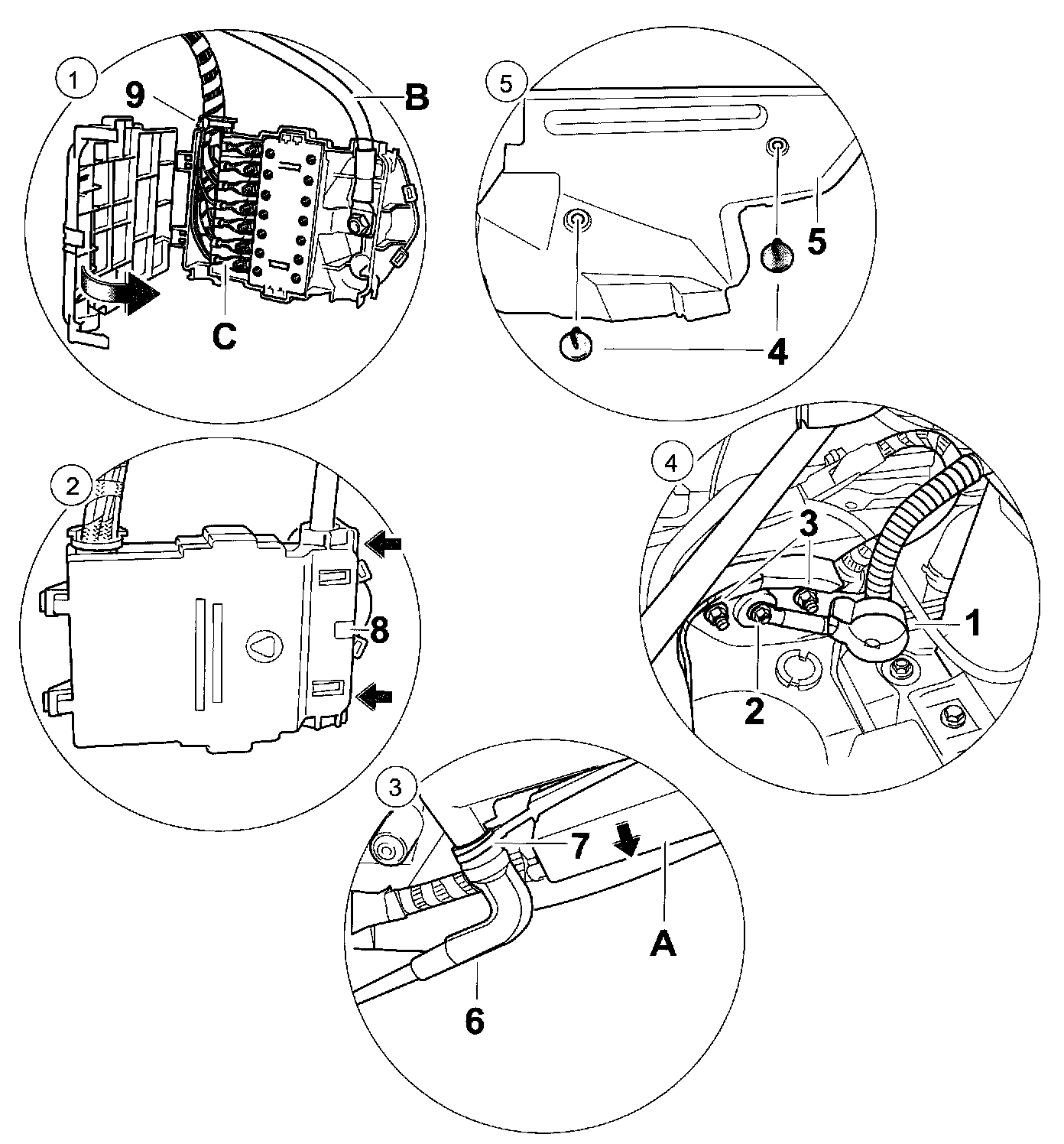

Installing The Current Distributor










NOTE:
The following spare parts must be replaced;
- Hexagon nut M 6, 7 ea.
- Hexagon nut M 8, 2 ea.
- Service label, red
- Depending on condition, flange seal, current distributor/firewall
- Tie-wraps
