Main Relay (Computer/Fuel System): Locations





Relay Support Assignments

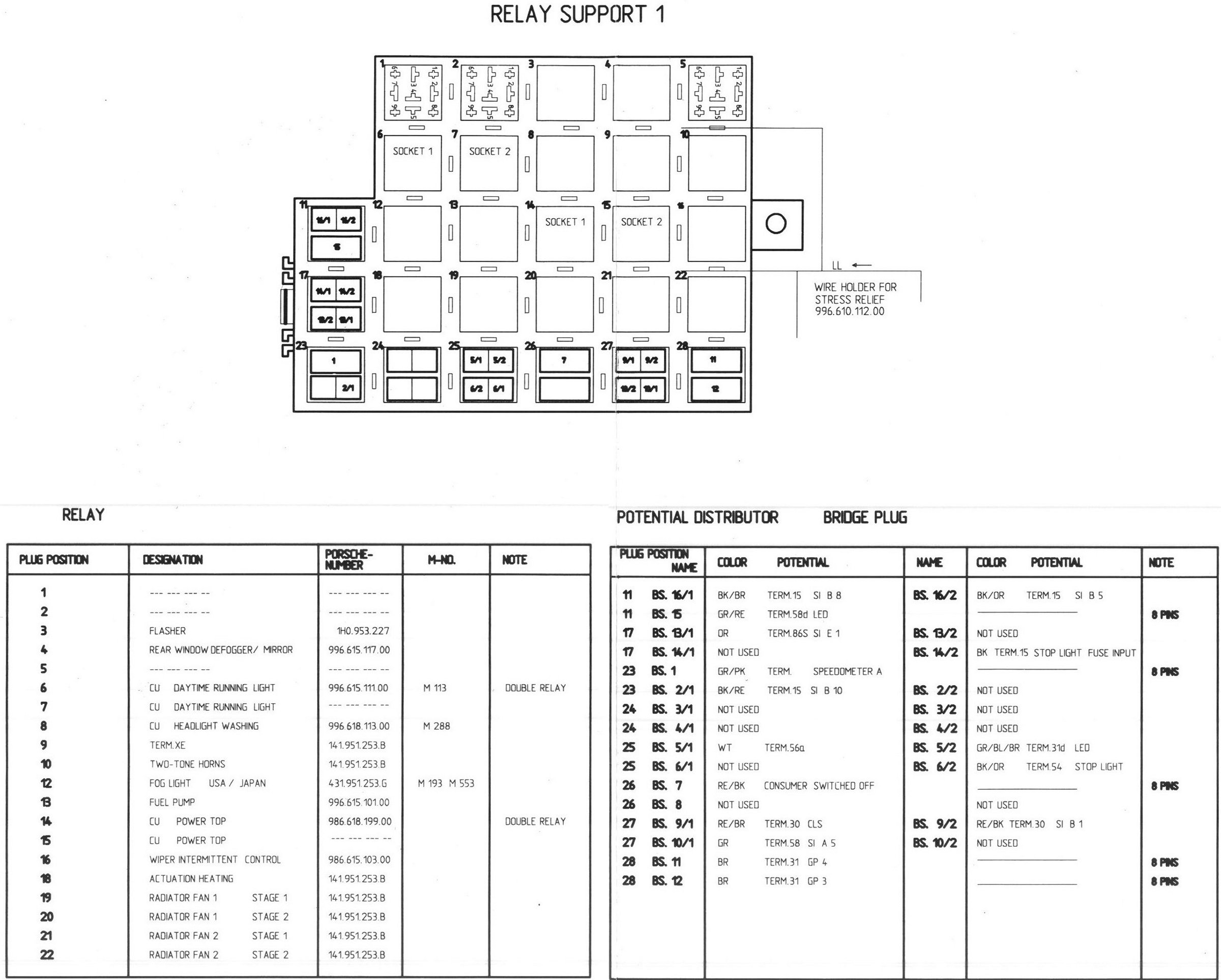

Relay Support 1

Relay Support 1:

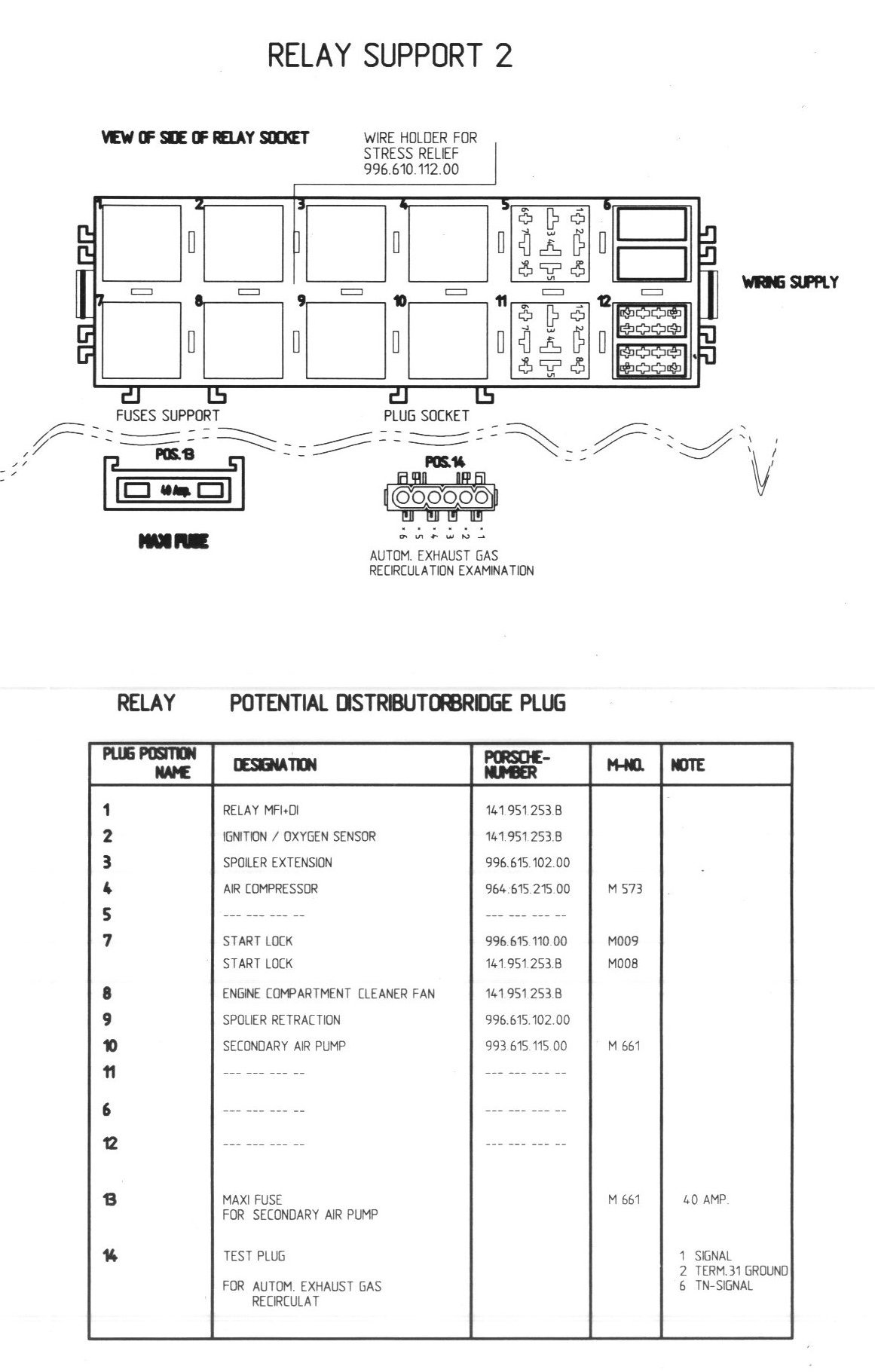

Relay Support 2

Relay Support 2:
