Oxygen Sensor Monitoring

Oxygen Sensor Monitoring

The oxygen sensors are monitored for:

- Operational readiness
- Connectivity
- Short circuit to B+
- Short circuit to ground
- Open circuit
- Aging of oxygen sensors via the control frequency and control position

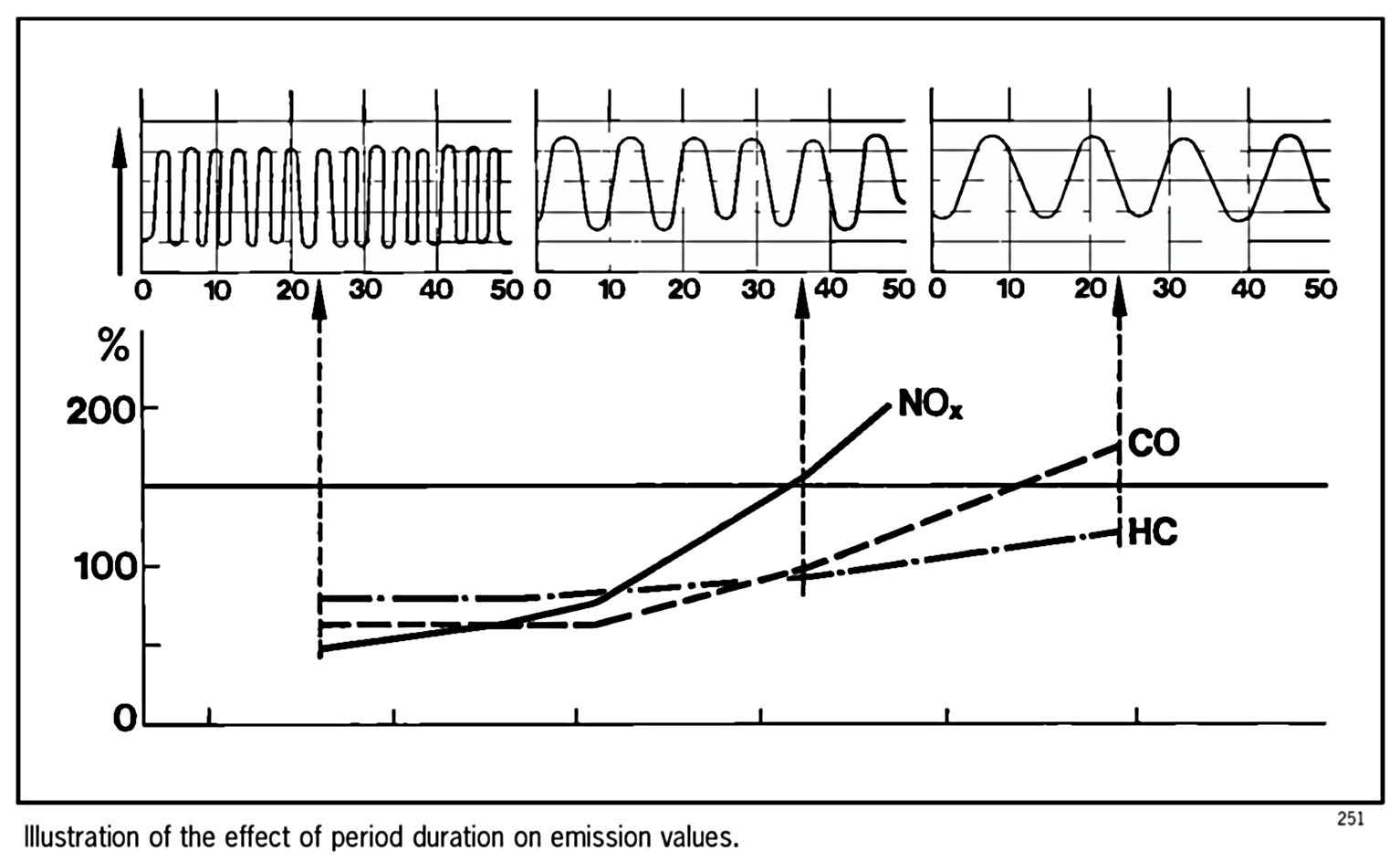

Monitoring of Sensor Aging
Contamination or aging of the oxygen sensor affects the sensor voltage or period duration of the sensor signal and therefore has a negative influence on emission values.
