DME Connector Assignment




NOTE: The DME control module has 134 terminals which are divided between five connectors.

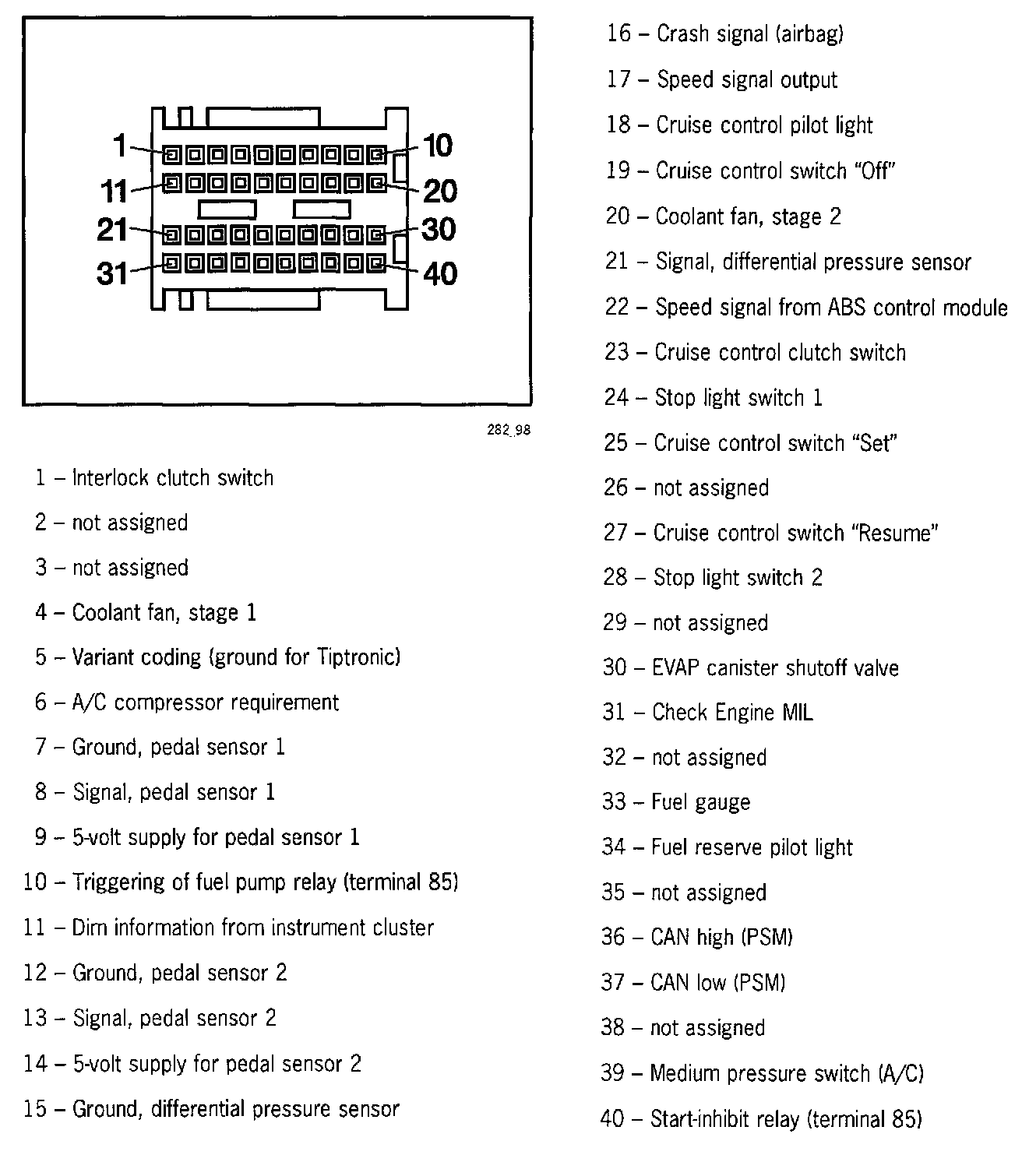

Connector I (9-pole):

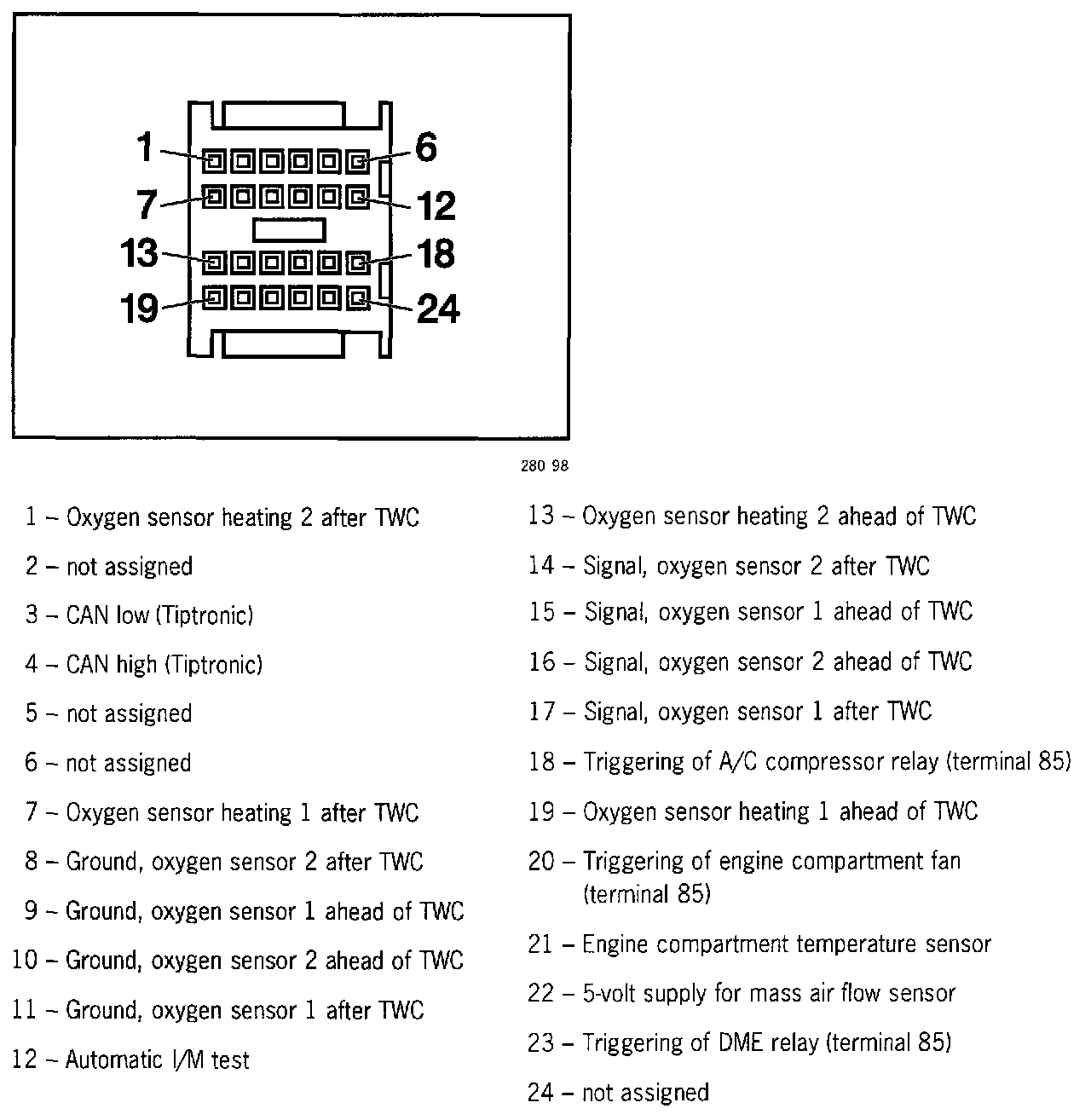

Connector II (24-pole):

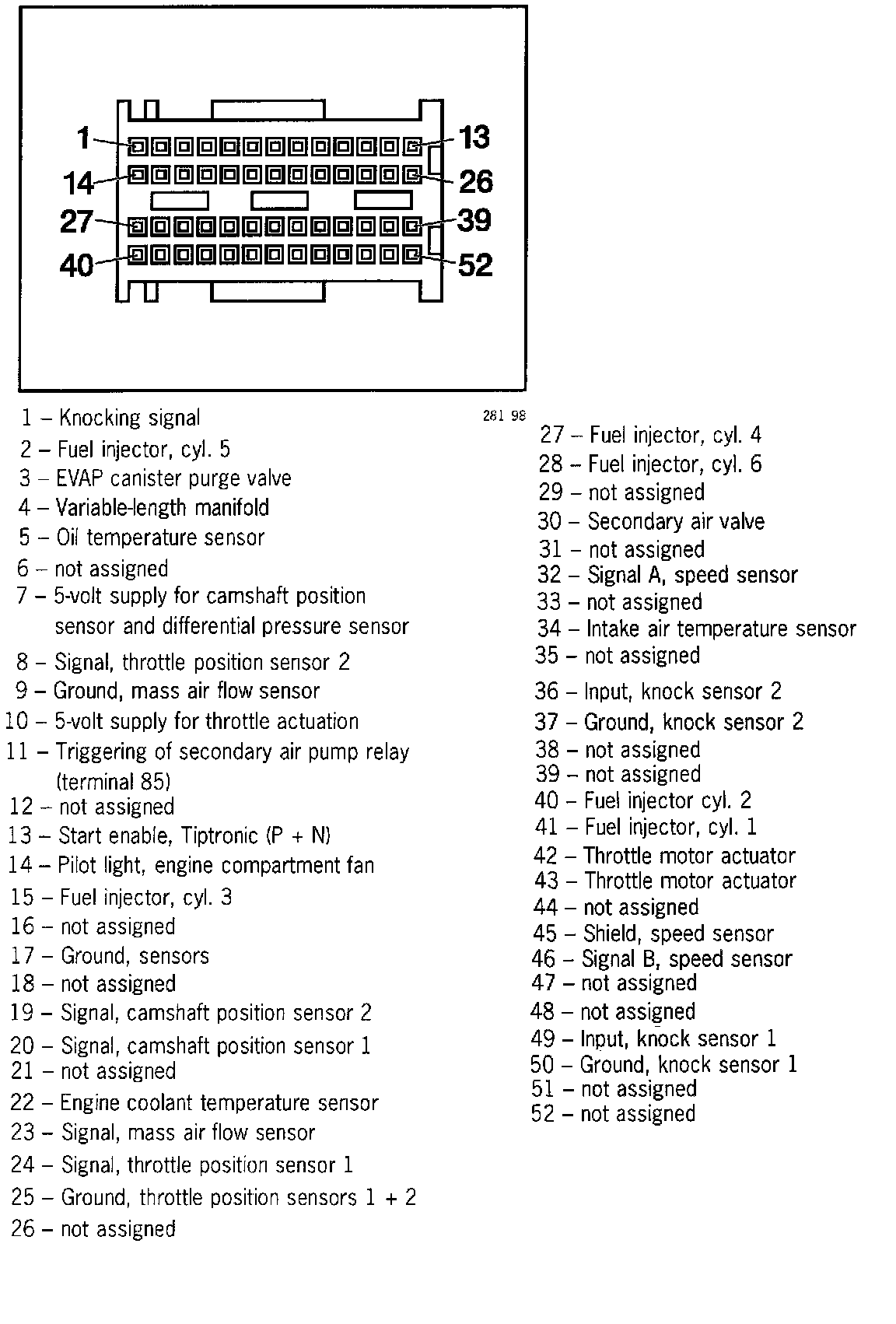

Connector III (52-pole):






Connector IV (40-pole):






Connector V (9-pole):
