On-Board Diagnostic

Tools

The following tools are required for troubleshooting:

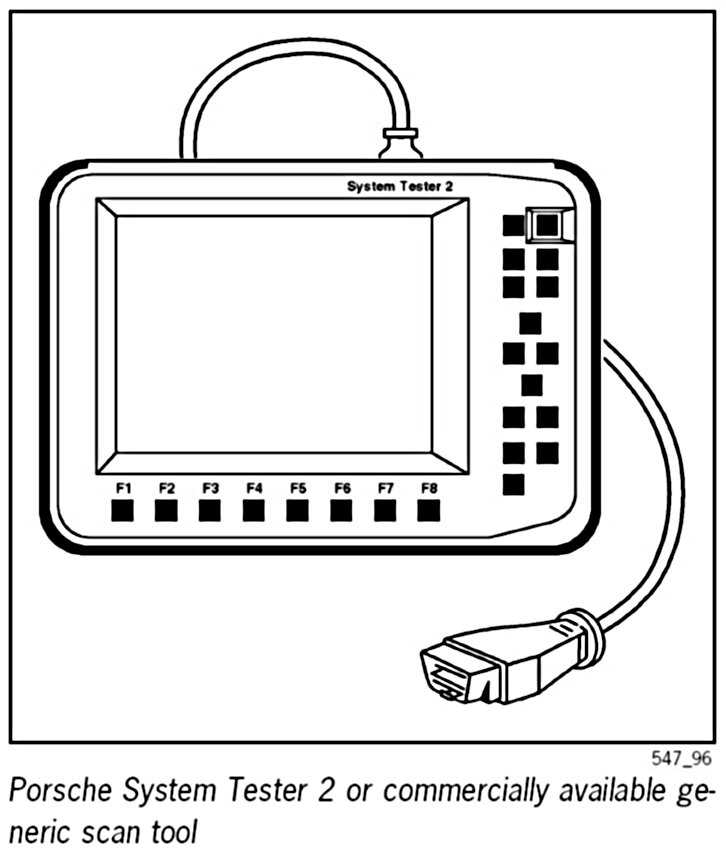

Porsche System Tester 2 or commercially available generic scan tool

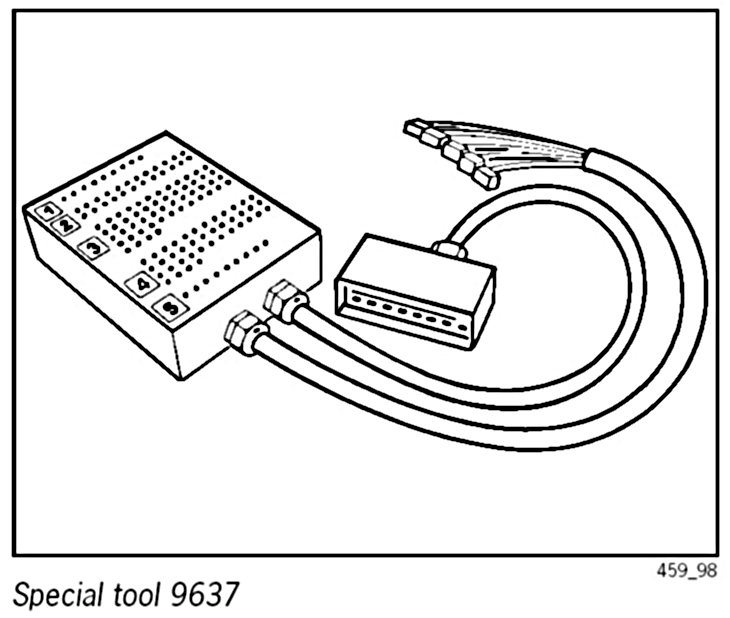

Special tool 9637

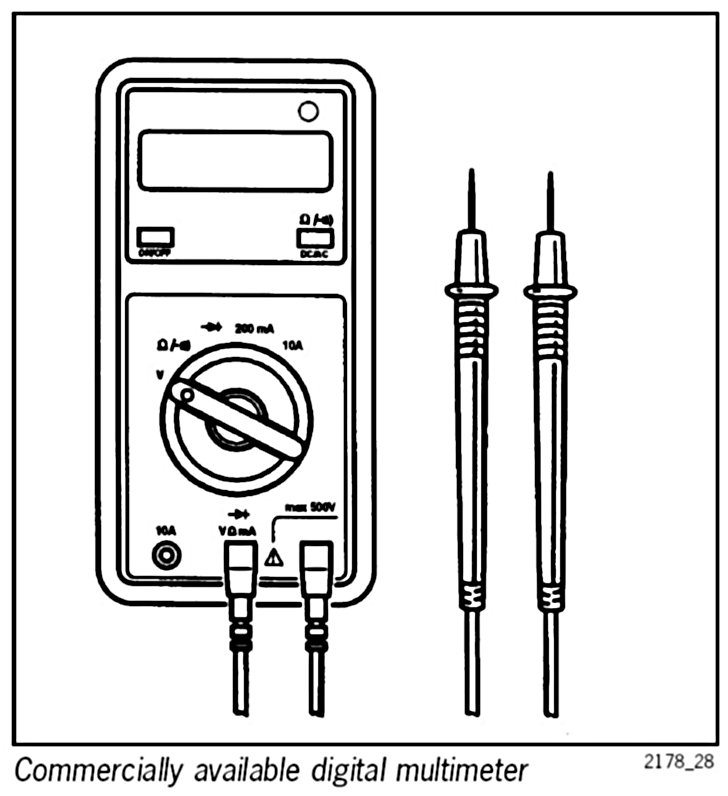

Commercially available digital multimeter

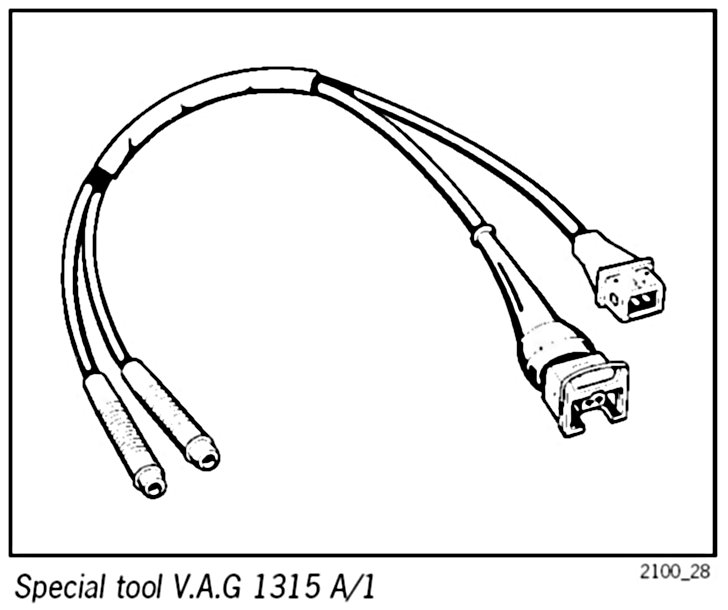

Special tool V.A.G 1315 A/1

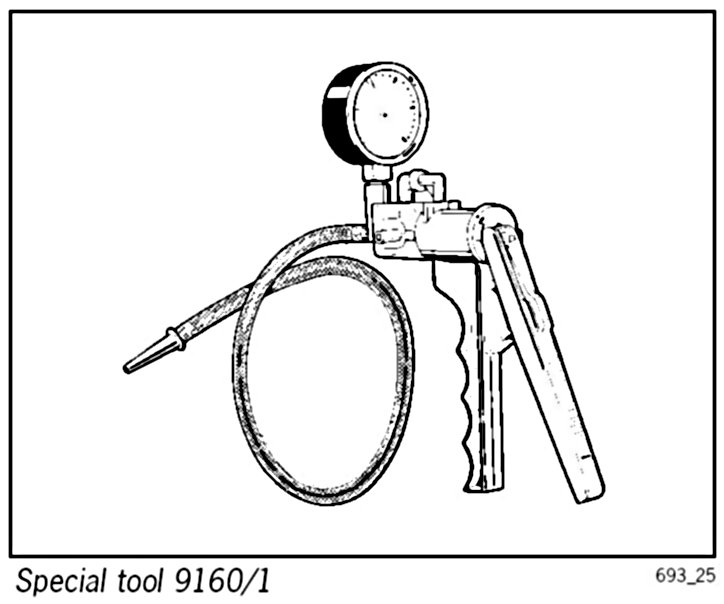

Special tool 9160/1

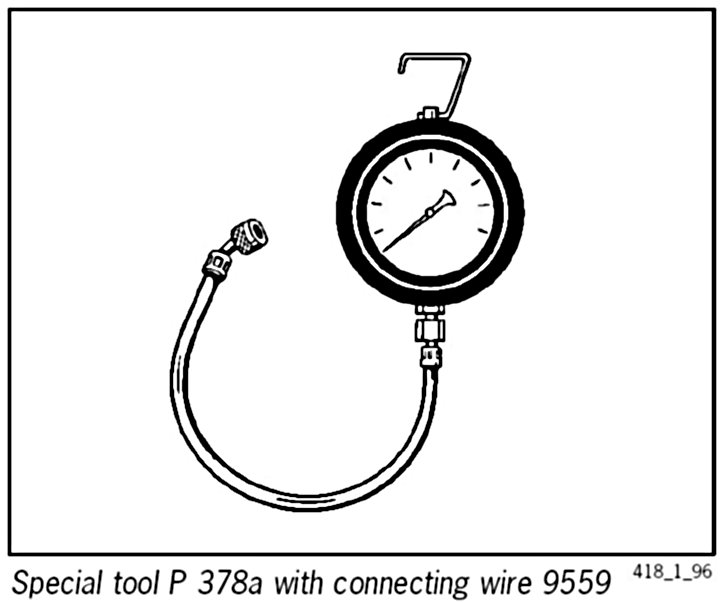

Special tool P 378a with connecting wire 9559

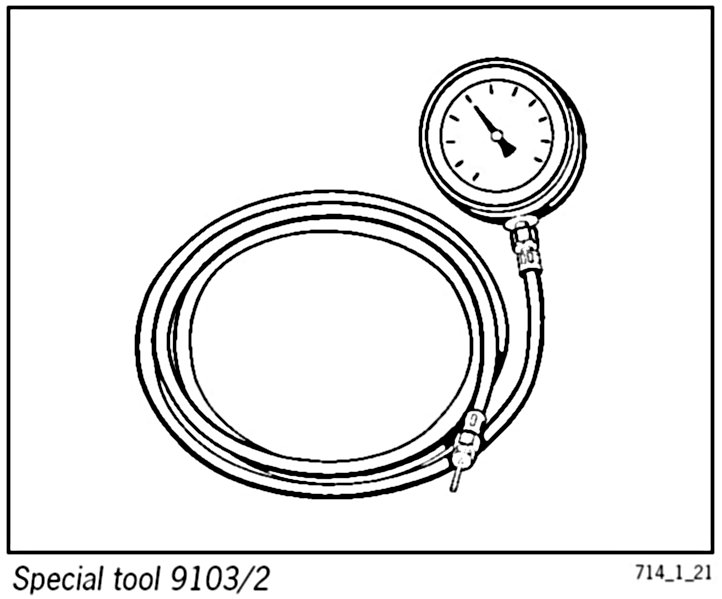

Special tool 9103/2

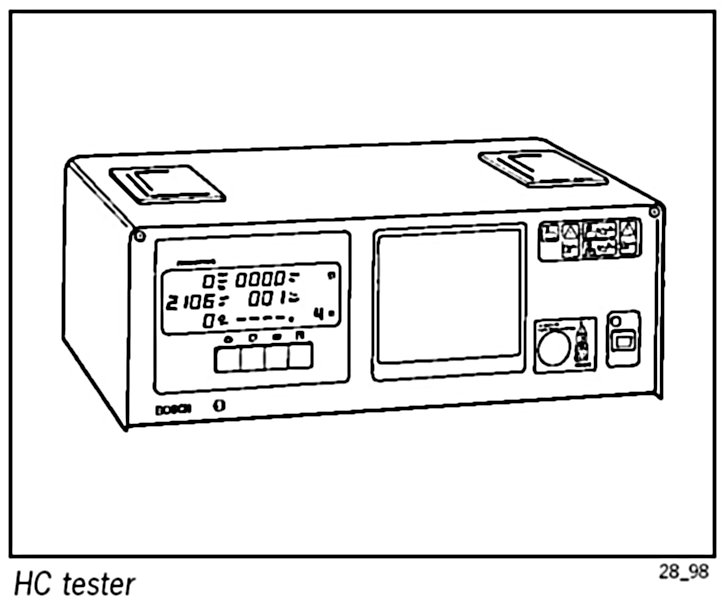

HC tester

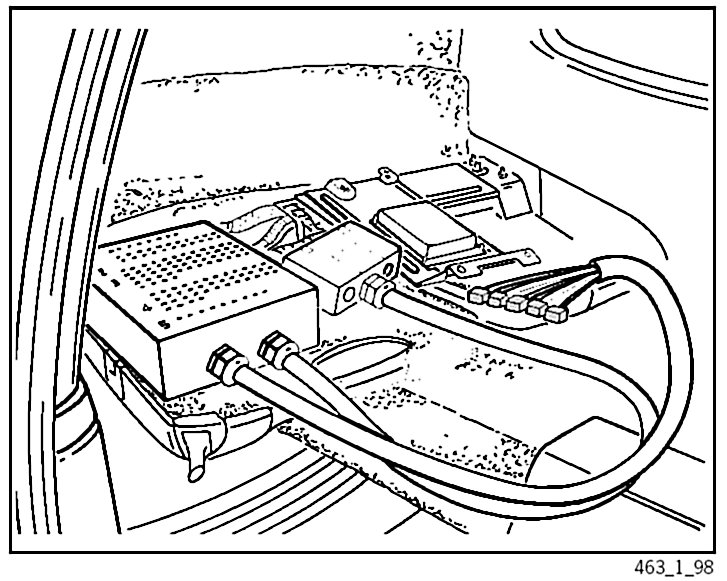

NOTE: For resistance measurements on the components, the special tool 9637 must be connected only to the wiring harness, as the values could otherwise be falsified via the DME control module.
