Vehicle Speed Sensor: Testing and Inspection

Diagnosis Of Vehicle Speed Sensor

Fault recognition of vehicle speed is performed during fuel cut-off.

A signal fault is detected if:
- the condition fuel cut-off is valid for the time period threshold,
- the engine speed is between two given thresholds,
- simultaneously the vehicle speed is lower than threshold and,
- engine temperature is greater than threshold.

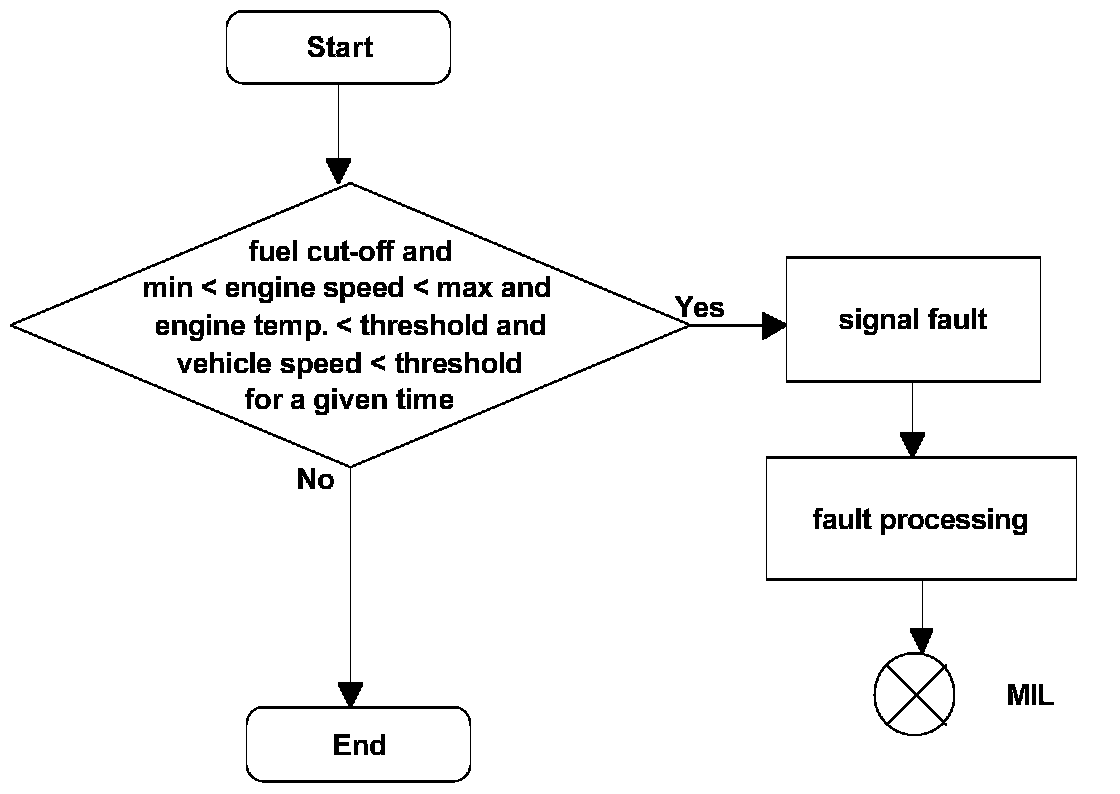

Diagnosis of Vehicle Speed Sensor
