Connector Assignment
Connector Assignment

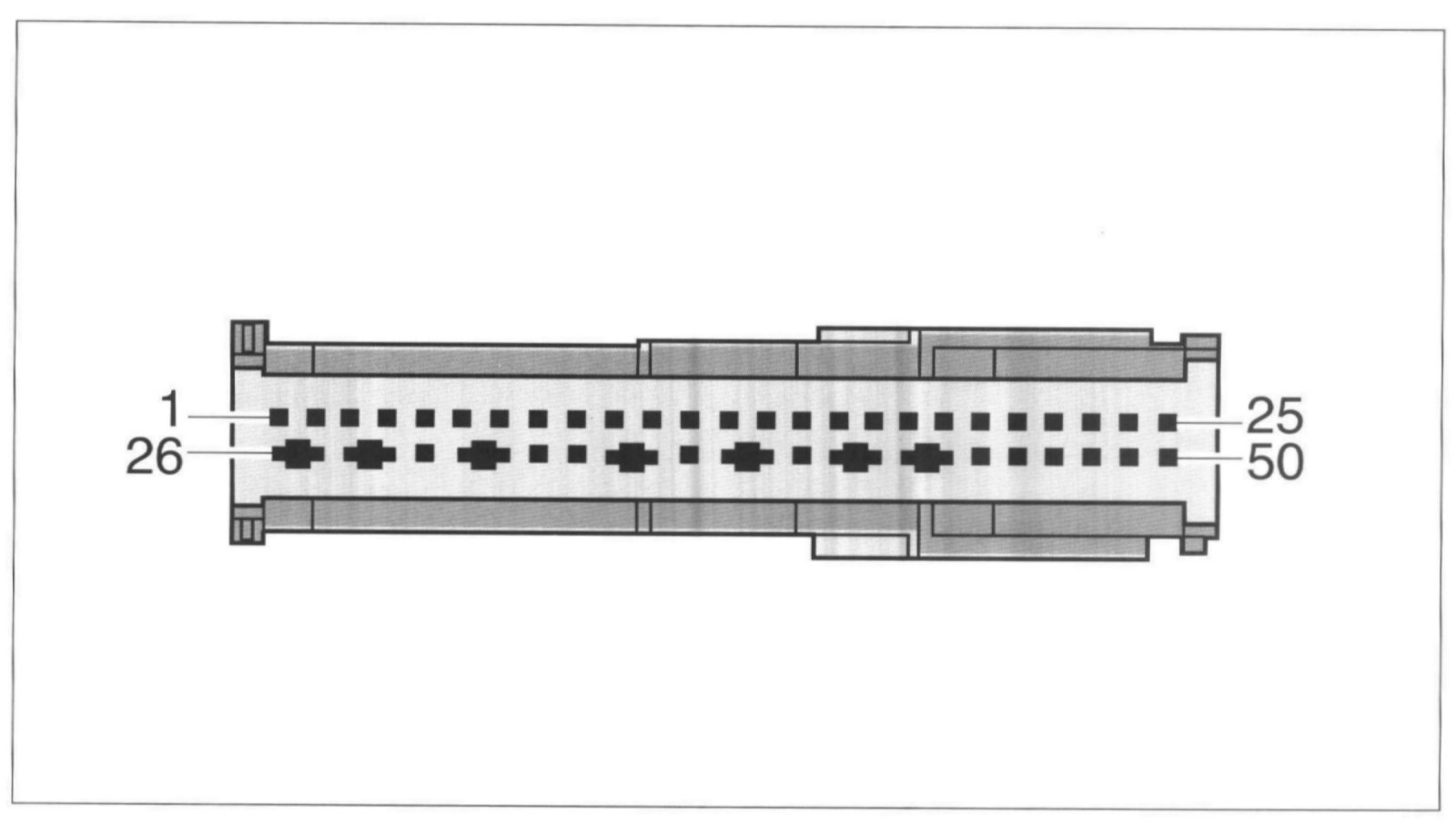

Wiring Harness Plugs For Airbag Triggering Unit

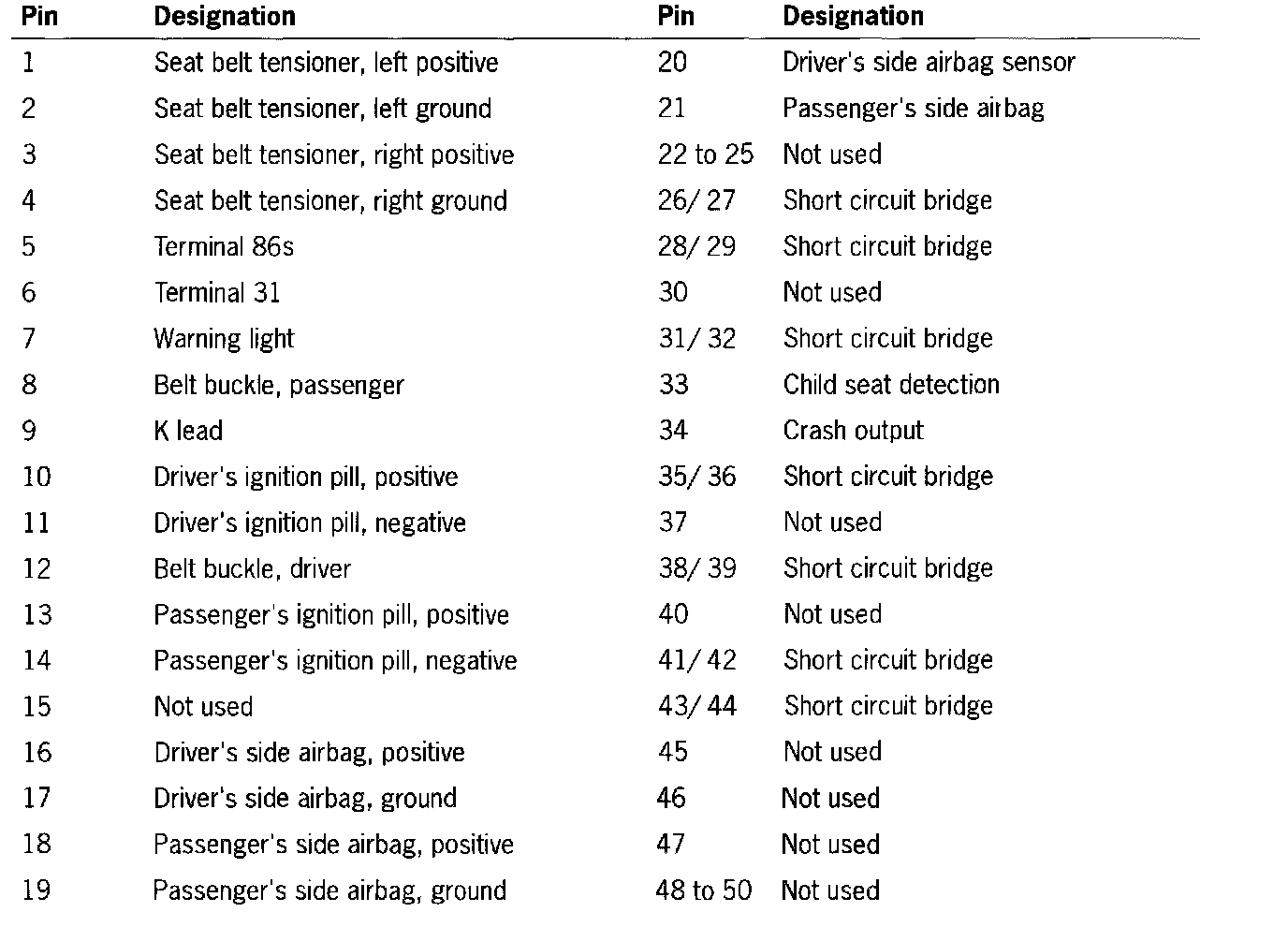

Pin 1 - 50:
