Dimensional

Permissible unevenness of the parting plane: 0.05 mm

Permissible unevenness after machining: 0.03 mm

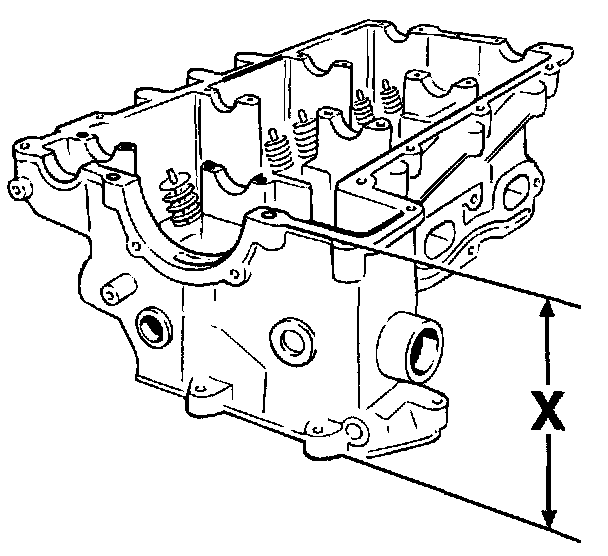

Wear dimension: 141.80 mm

Note on machining the sealing surface:
Peak-to-valley height = 0.015 mm
