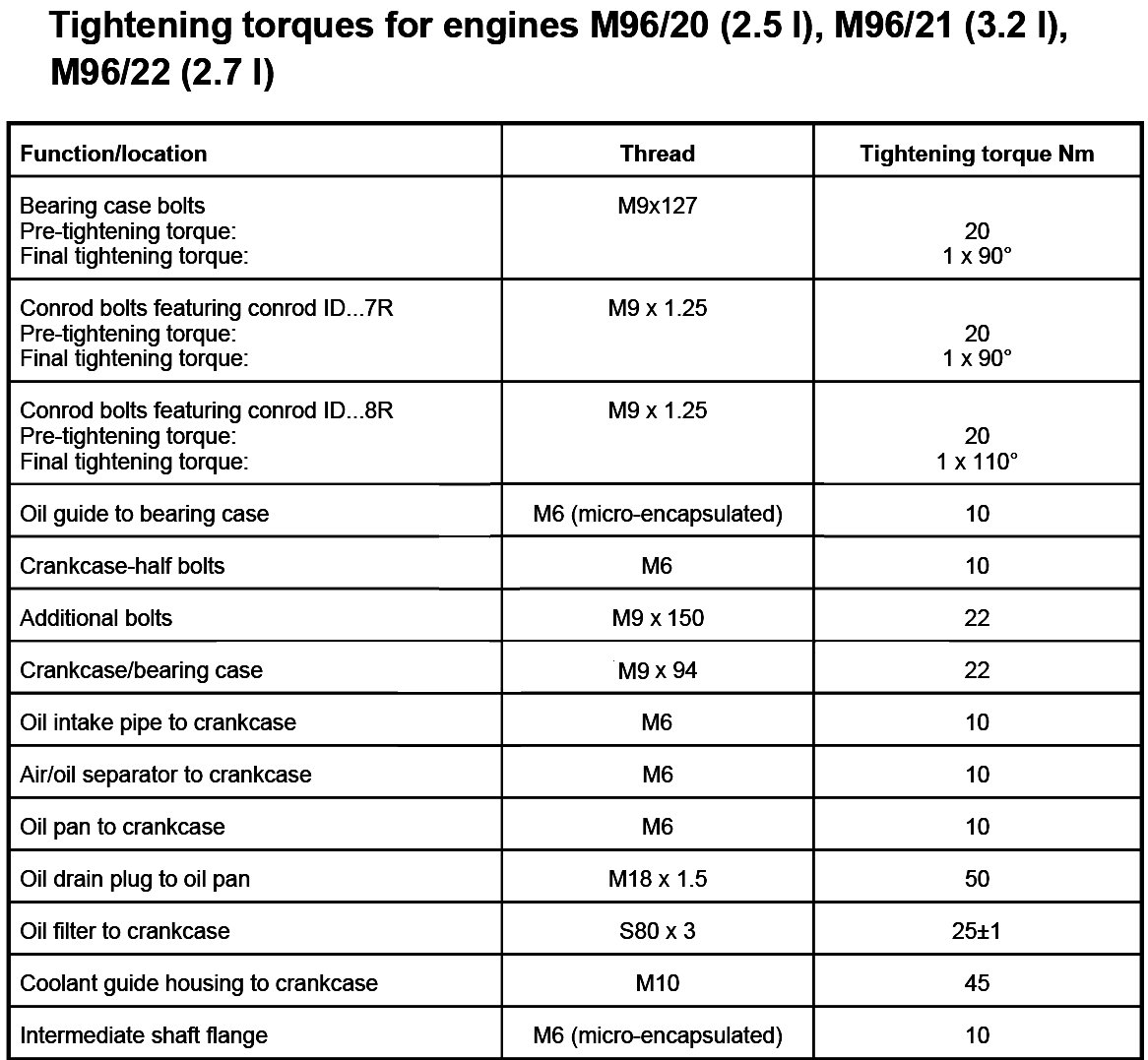

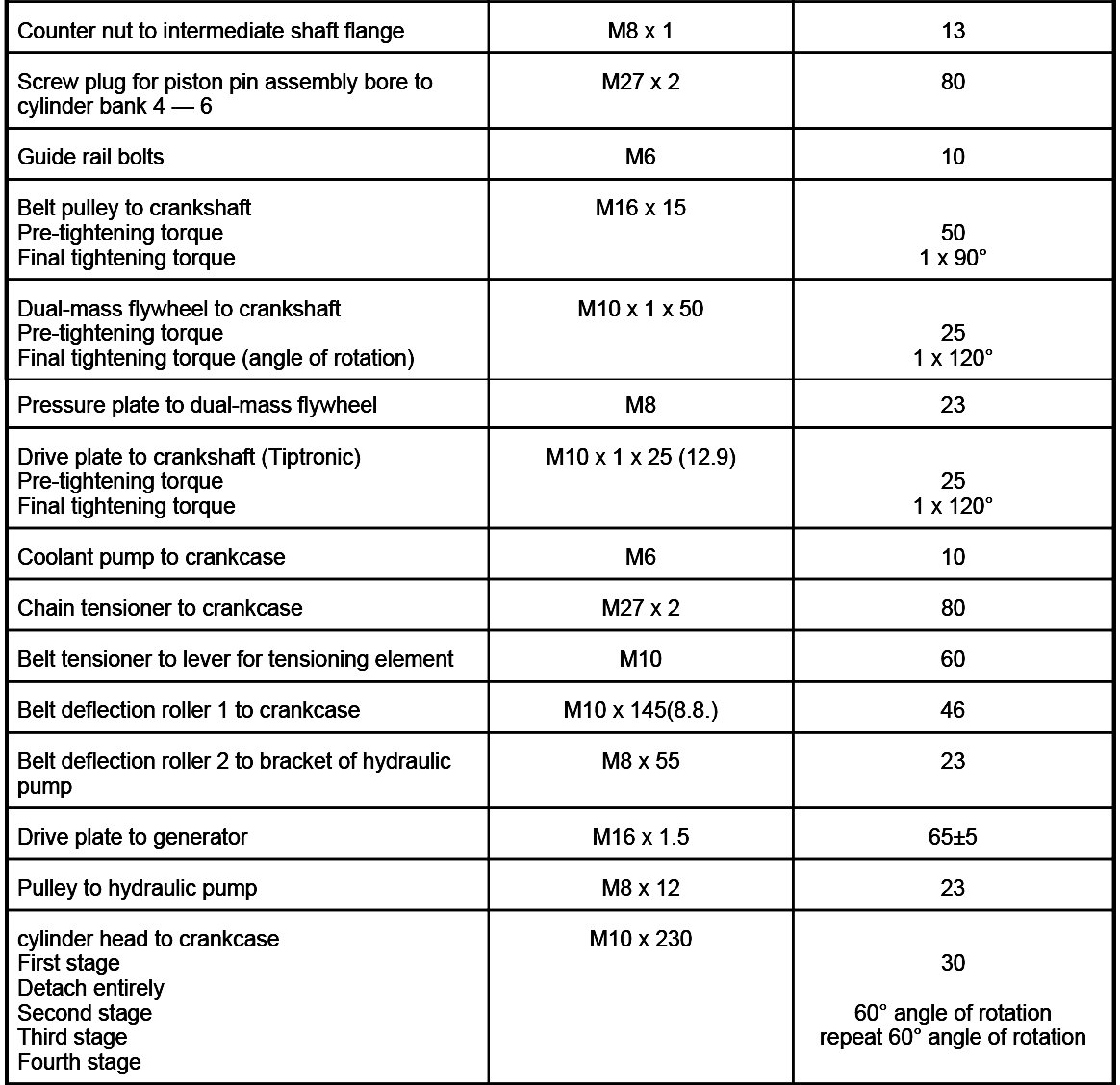

Tightening Torques



















For engine M96/20 (2.5L), M96/21 (3.2L), M96/22 (2.7L)

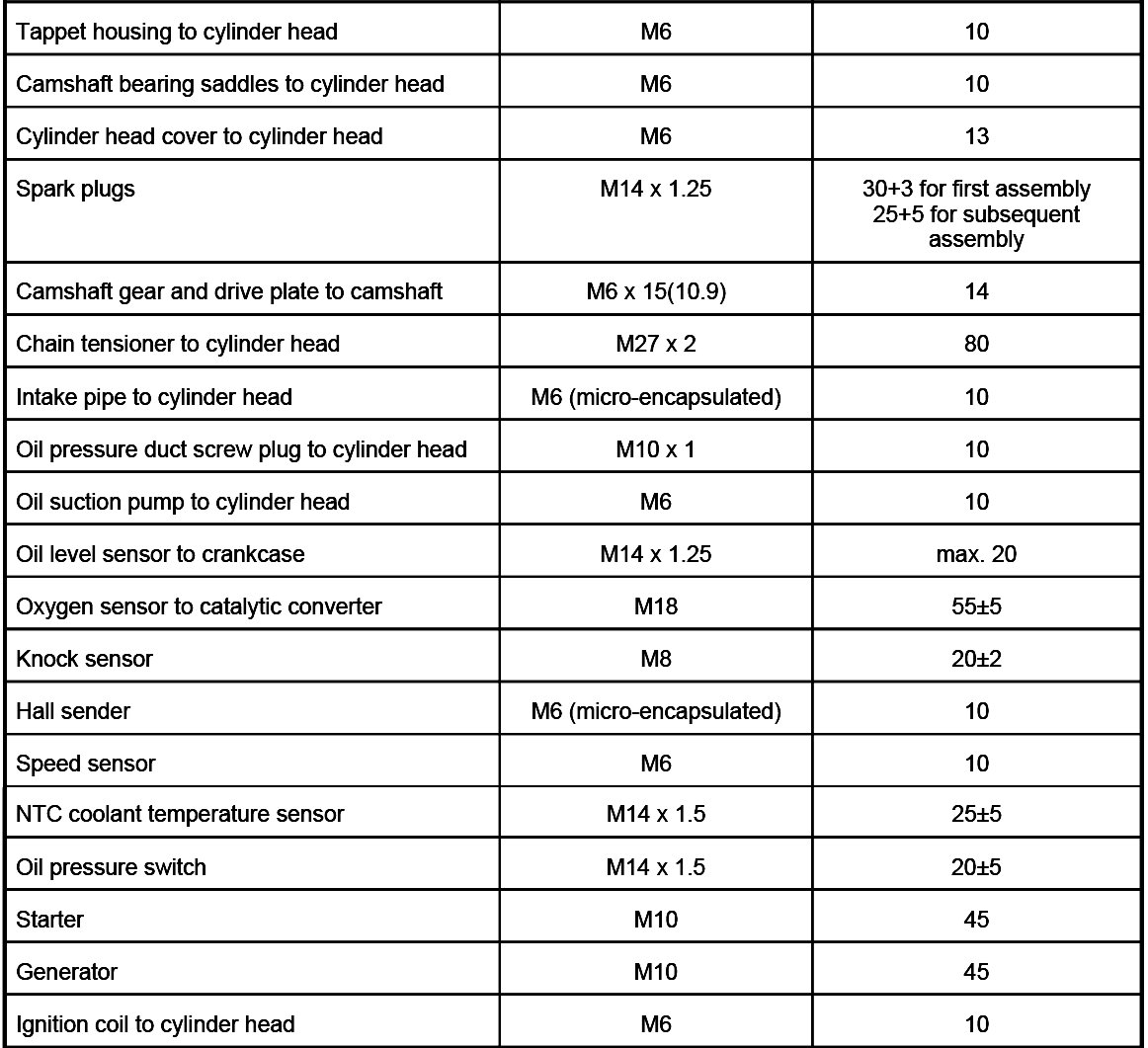

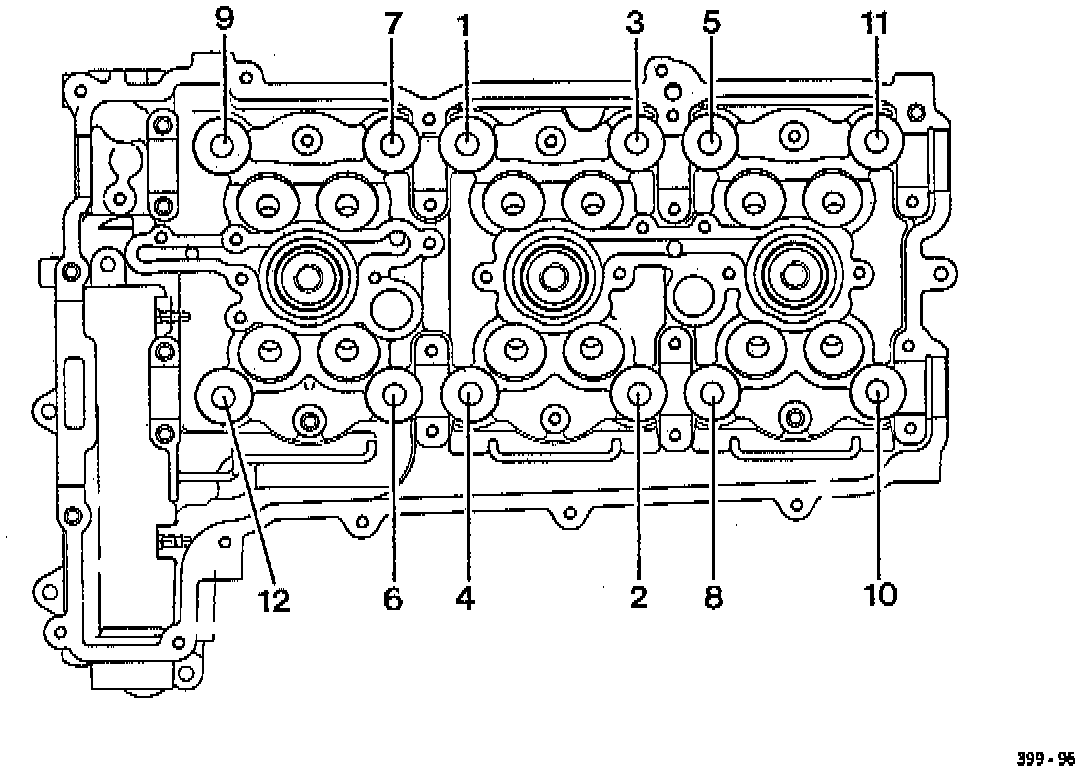

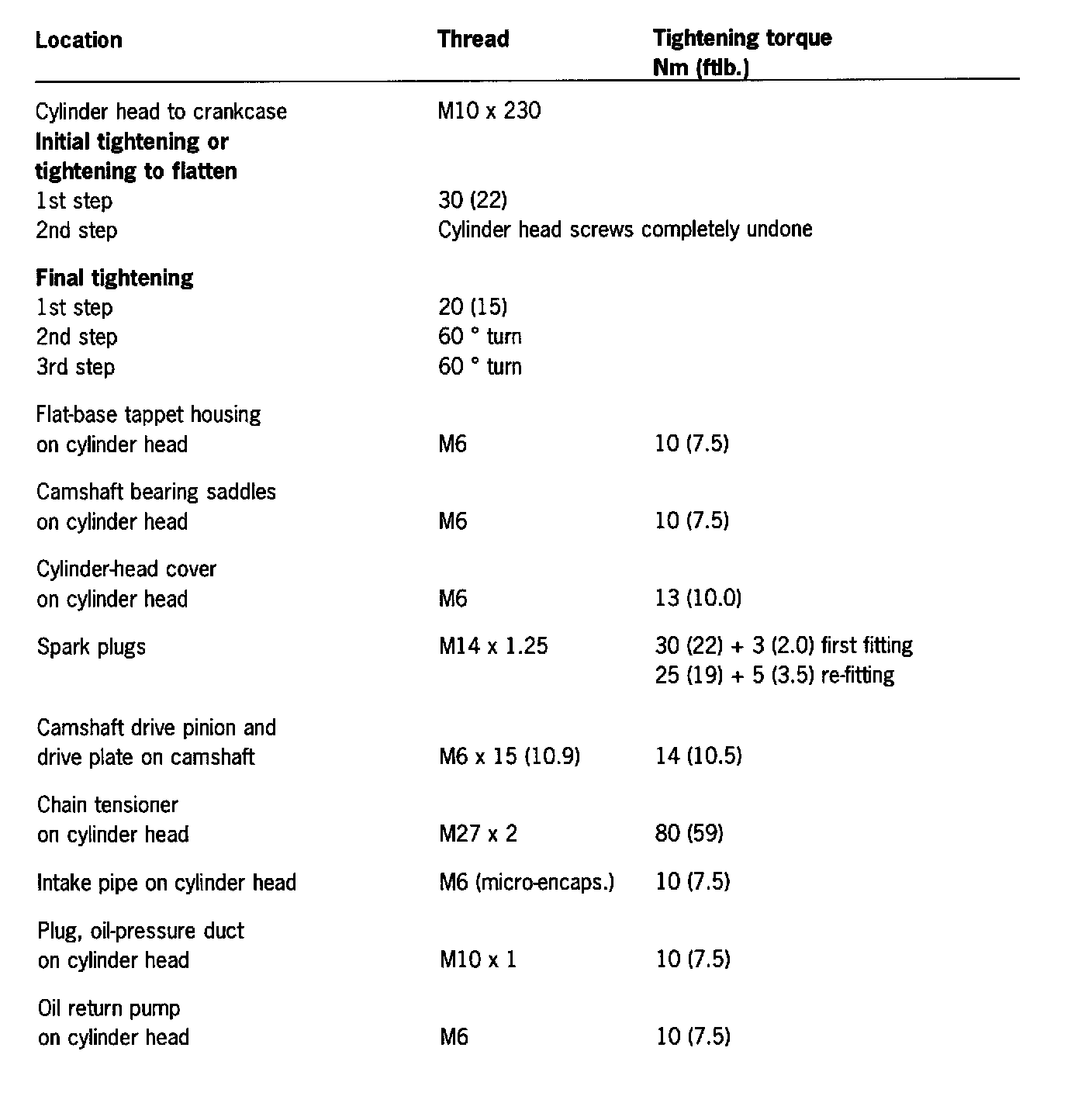

Cylinder head

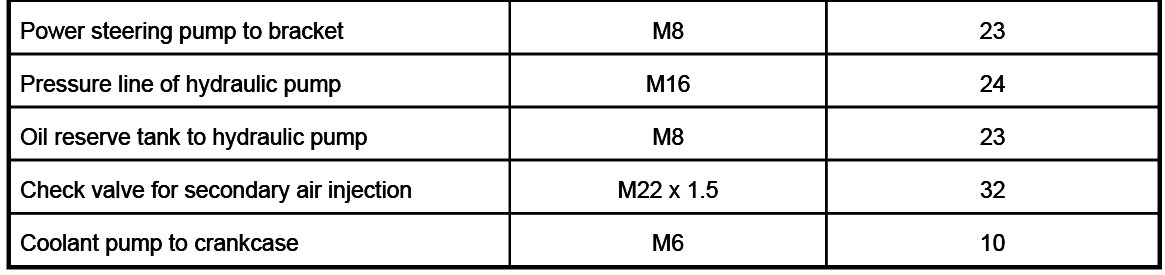

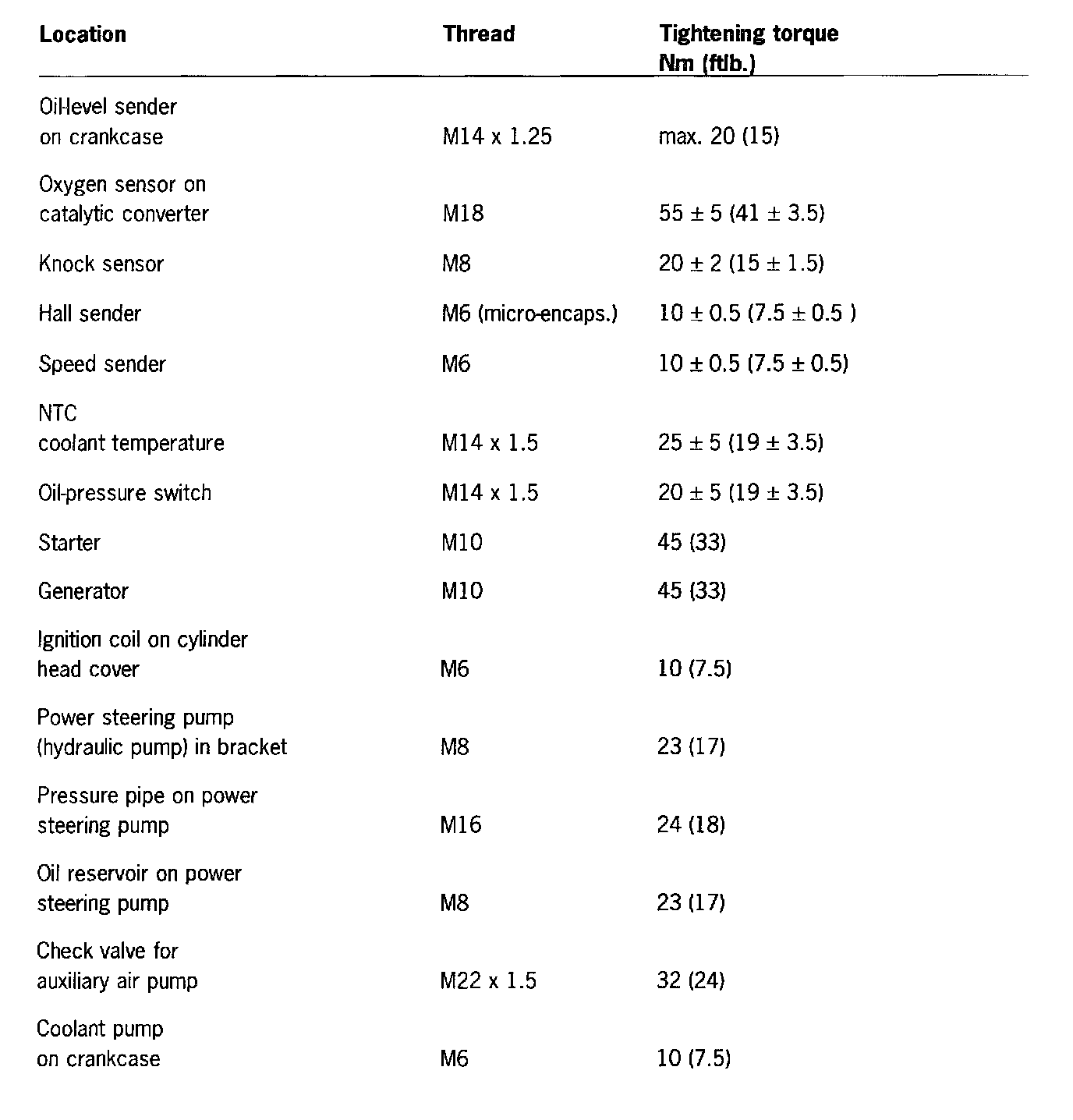

Sensors, sending units, switches and ancilaries

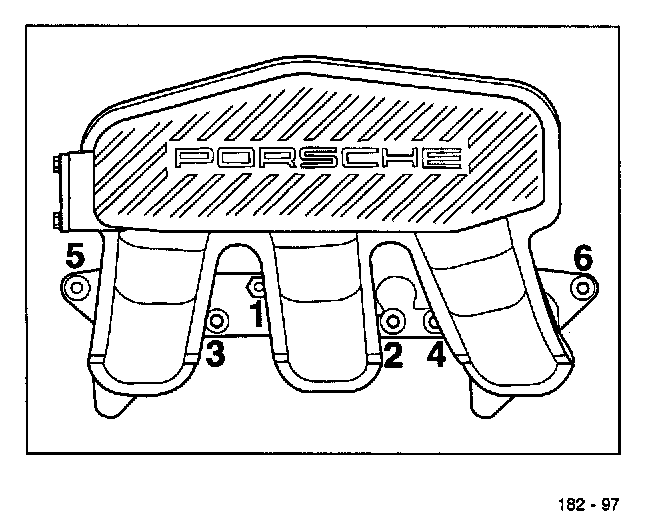

Intake air distributor
Tighten To 10 Nm (7 ft. lbs.)
