Removing And Installing Front Roof Lining: Notes
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC. REMOVAL AND INSTALLATION PROCEDURE FOR FRONT ROOF LINING

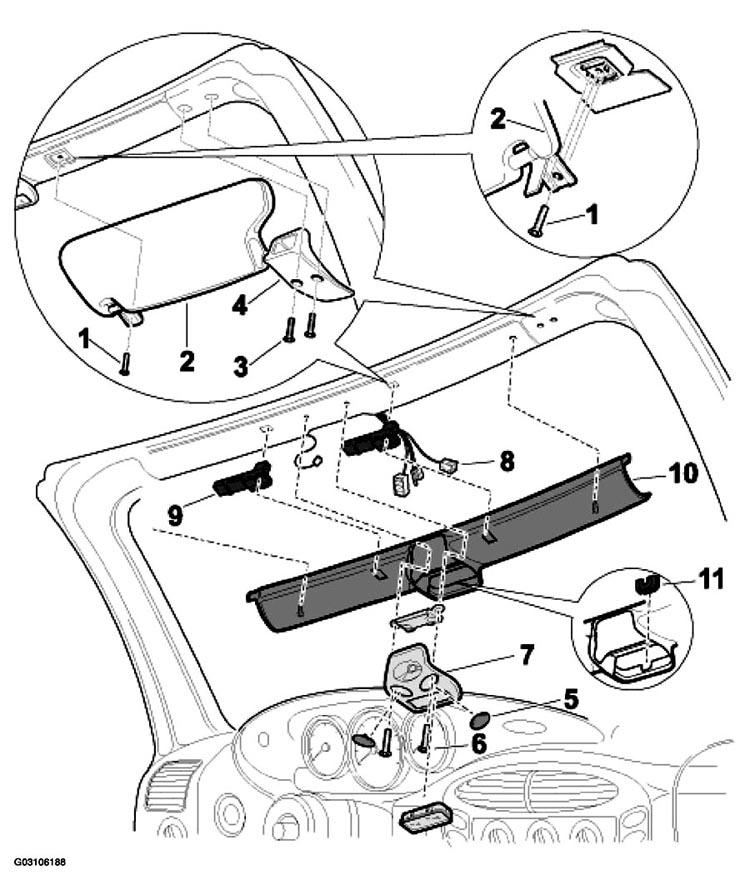

| No. |
Designation |
Qty. |
Removal |
Installation |
| 1 |
Fastening screw |
2 |
Unscrew. |
Screw in. |
| 2 |
Sun visor |
2 |
|
|
| 3 |
Fastening screw |
4 |
|
|
| 4 |
Convertible-top peg housing |
2 |
|
Tighten with the fastening screws -3- |
| 5 |
Cover lenses |
2 |
Unclip. |
Clip in. |
| 6 |
Fastening screw |
2 |
|
|
| 7 |
Latching hook |
1 |
|
Tighten with the fastening screws -6- |
| 8 |
Electrical plug connection |
3 |
Disconnect electrical plug connection -8- |
Plug in electrical plug connection -8- |
| 9 |
Base plate Mating bearing |
2 |
|
Check, replace if necessary. |
| 10 |
Front roof lining |
1 |
|
|
| 11 |
Grommet |
1 |
|
Only on vehicles with electric rain sensor and automatic anti-dazzle mirror. |
