Connector Assignment

See Fig 1 for control module connector assignment.

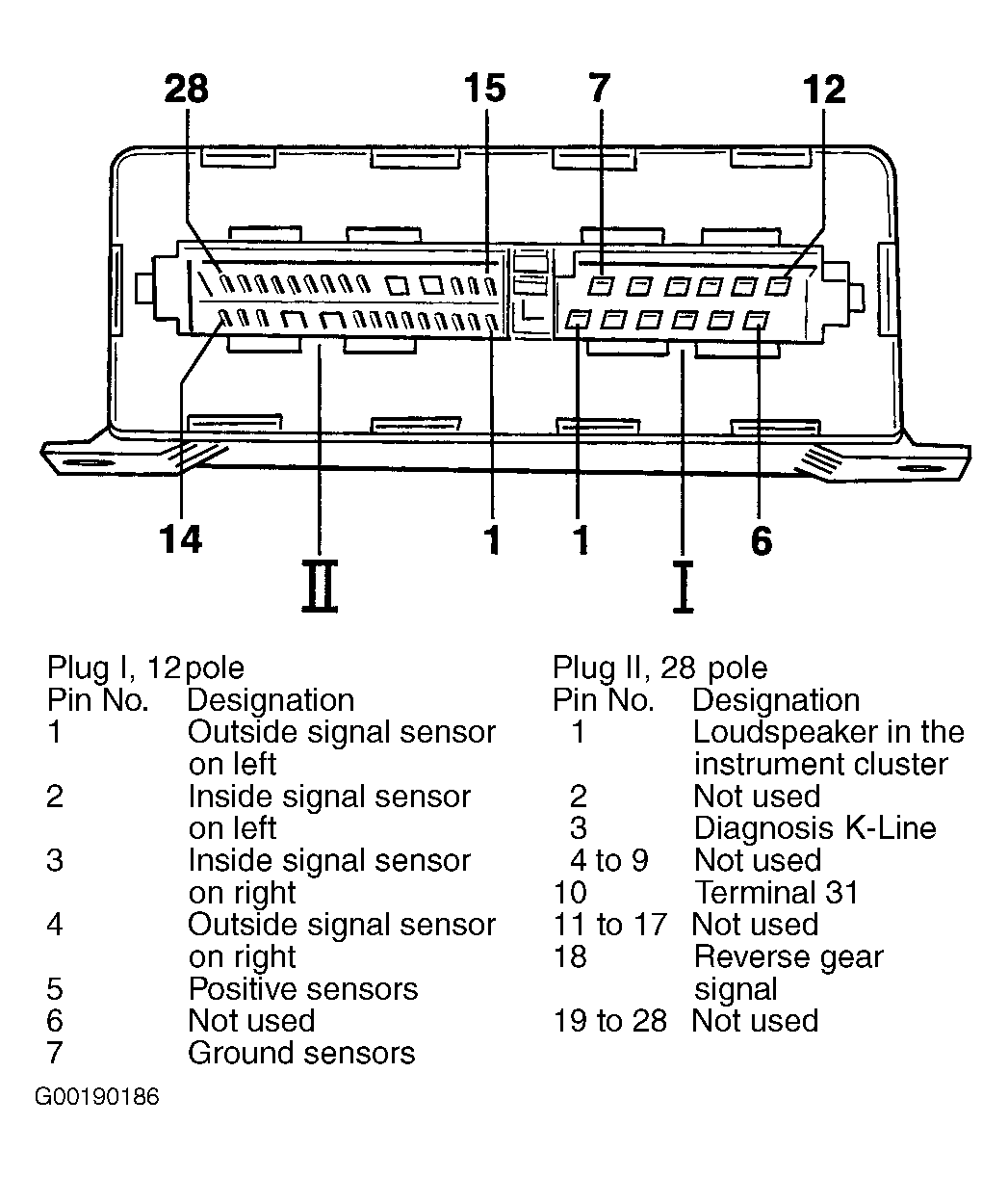

Fig 1: Identifying Parking Assistant Connector Assignment
G00190186Courtesy of PORSCHE OF NORTH AMERICA, INC.
