Parking Assistant Control Module

Remove driver-side front seat. See FRONT SEAT .
Remove both fastening screws from cover of control module. See Fig 1 .
Turn cover over and disconnect both electrical plugs. See Fig 1 .
Unscrew control module from cover.
To install, follow reverse order of removal. Ensure that wires are not pinched when reconnecting harness.

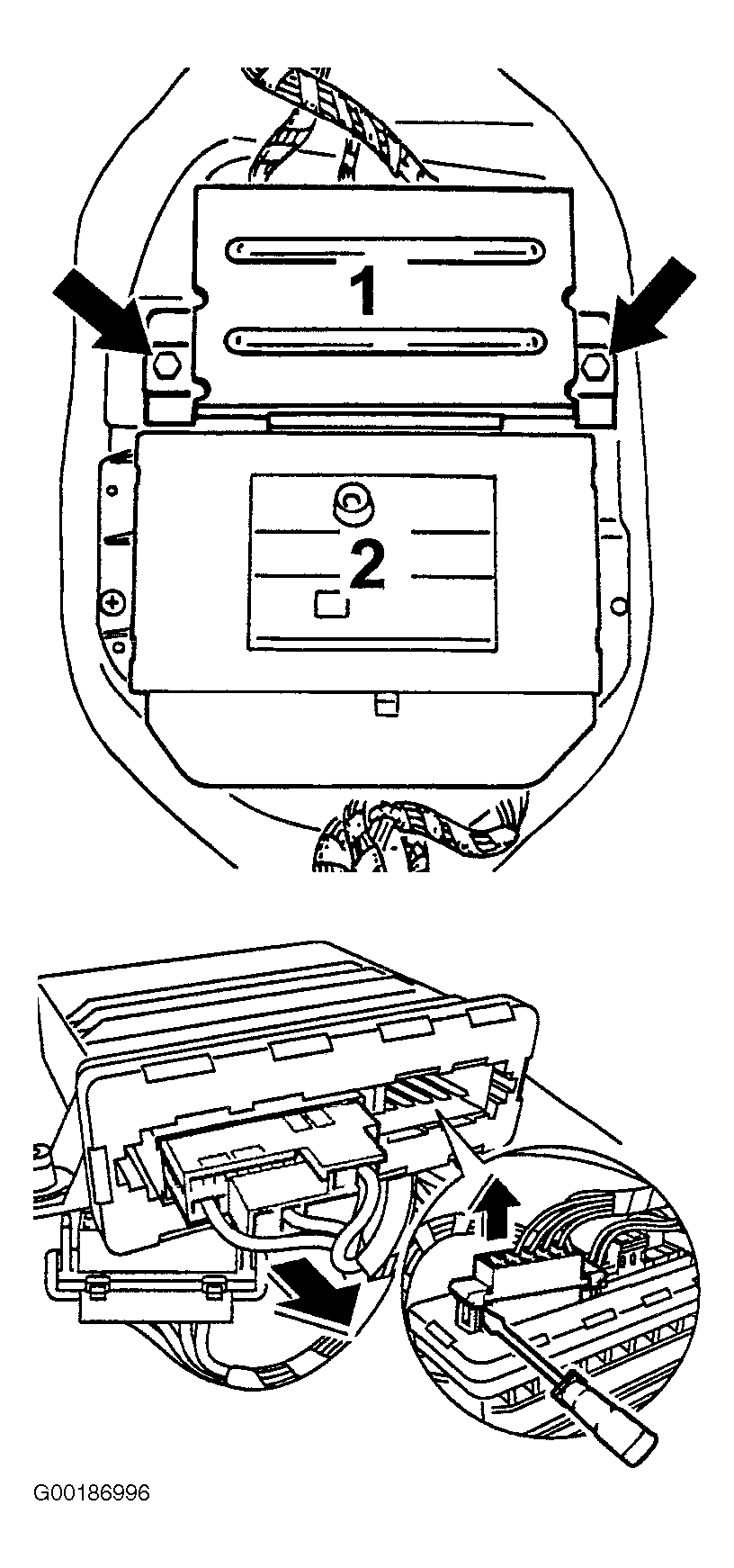

Fig 1: Removing Parking Assistant Control Module

Courtesy of PORSCHE OF NORTH AMERICA, INC.
