Disassembling and assembling centre console - as of MY 1996: Notes

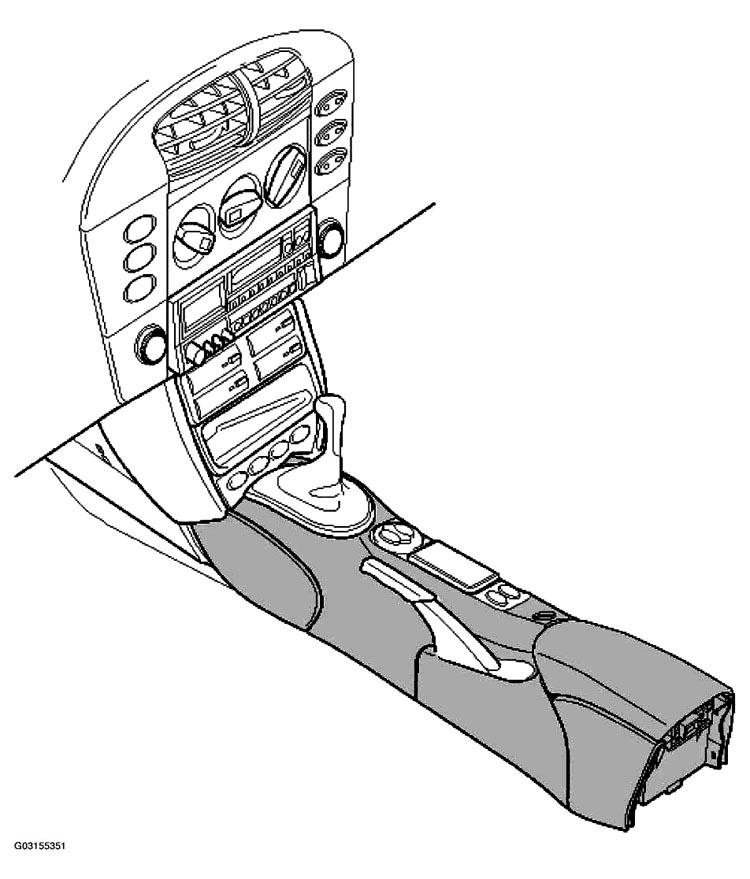

Fig 1: Identifying Centre Console - As Of MY 1996

Courtesy of PORSCHE OF NORTH AMERICA, INC.

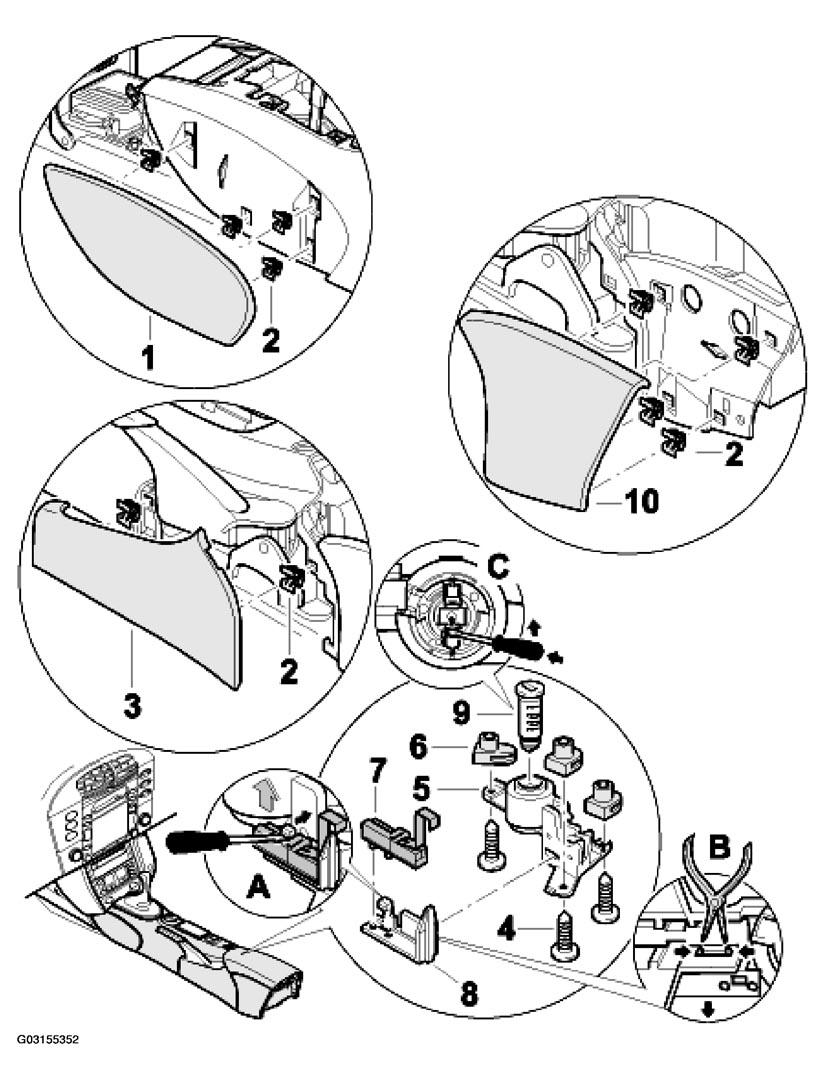

Fig 2: Exploded View Of Centre Console - As Of MY 1996

Courtesy of PORSCHE OF NORTH AMERICA, INC.

DISASSEMBLING & ASSEMBLING CENTRE CONSOLE - AS OF MY 1996

No.	Designation	Qty.	Removal	Installation
1	Cover, front left	1	Unclip.	Clip in.
2	Clip	28		Inspect and replace if necessary
3	Cover, centre left	1	Unclip.	Clip in.
4	Fastening screws	3
5	Lock support	1
6	Plastic nuts	7
7	Microswitch	1	From the console -8-inset A--7-  . See Fig 2 .	Clip the microswitch -7-8-  . See Fig 2 .
8	Console	1	Press the locking tabs of the console -8-inset B--5-  . See Fig 2 .	Position console -8-5-  . See Fig 2 .
9	Lock barrel	1	Press in the locking tabs in -inset C--9-5-  . See Fig 2 .	Press the lock barrel -9-5-  . See Fig 2 .
10	Cover, rear left	1	Unclip.	Clip in.
