Assembling sun visor
ASSEMBLING SUN VISOR INSTRUCTIONS
| No. | Procedure | Instructions |
|---|---|---|

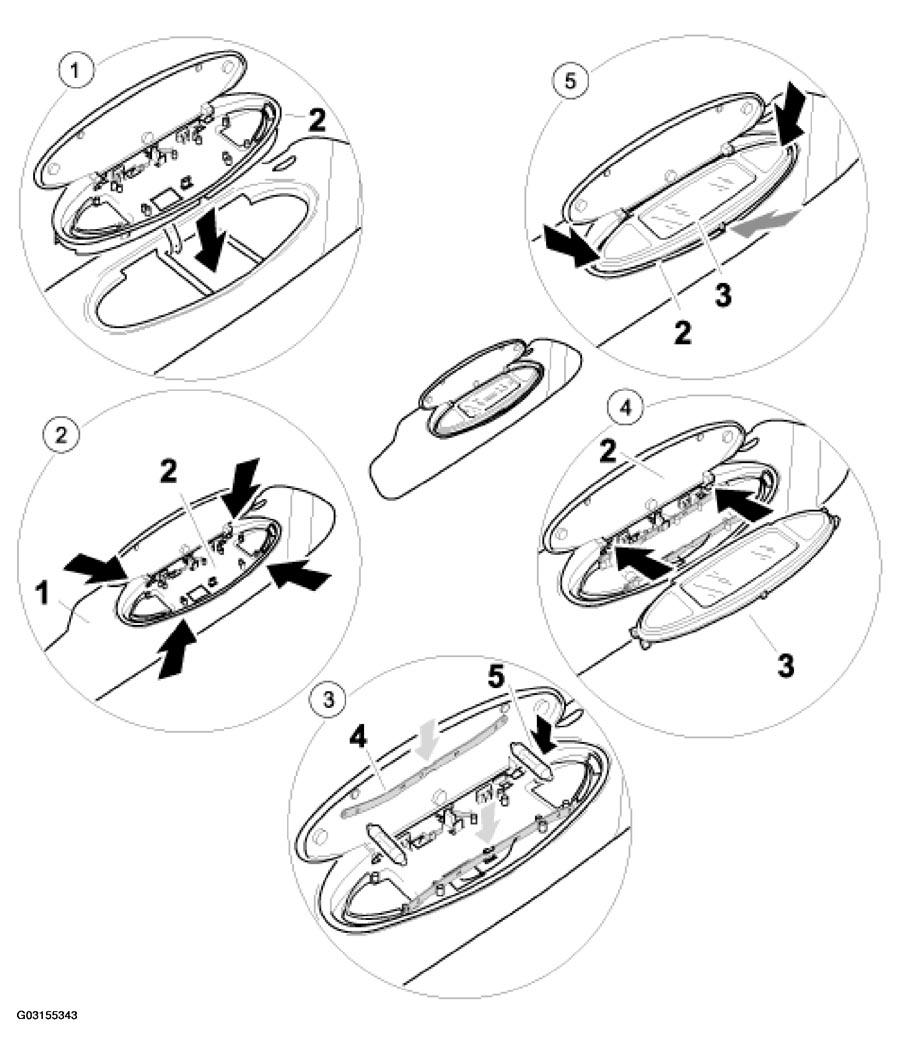

| 1 | Insert mirror housing -2- . See Fig 1 . | Insert electric lead into the mirror housing -2- . See Fig 1 . |
| 2 | Press in mirror housing -2- . See Fig 1 . | Press the mirror housing -2- . See Fig 1 . |
| 3 | Insert contact clips -4-5- . See Fig 1 . | Position the contact clips -4-5- . See Fig 1 . |
| 4 | Position mirror insert -3- . See Fig 1 . | Position the lugs on the left and right of the mirror insert -3-2- . See Fig 1 . |
| 5 | Clip in mirror insert -3- . See Fig 1 . | Clip the mirror insert -3-2- . See Fig 1 . |
