Removing And Installing Floor Covering

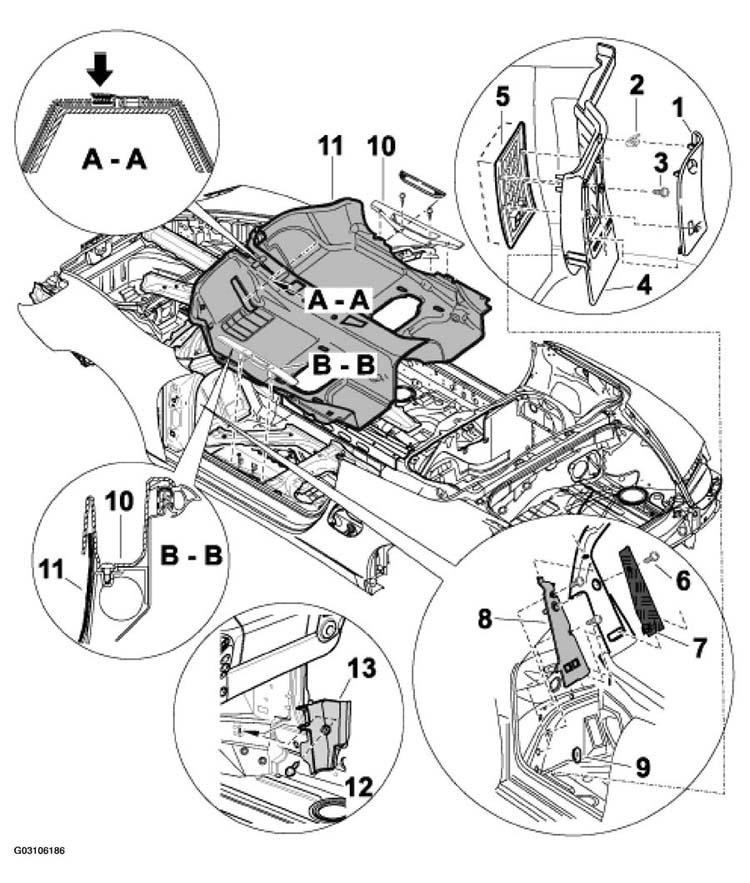

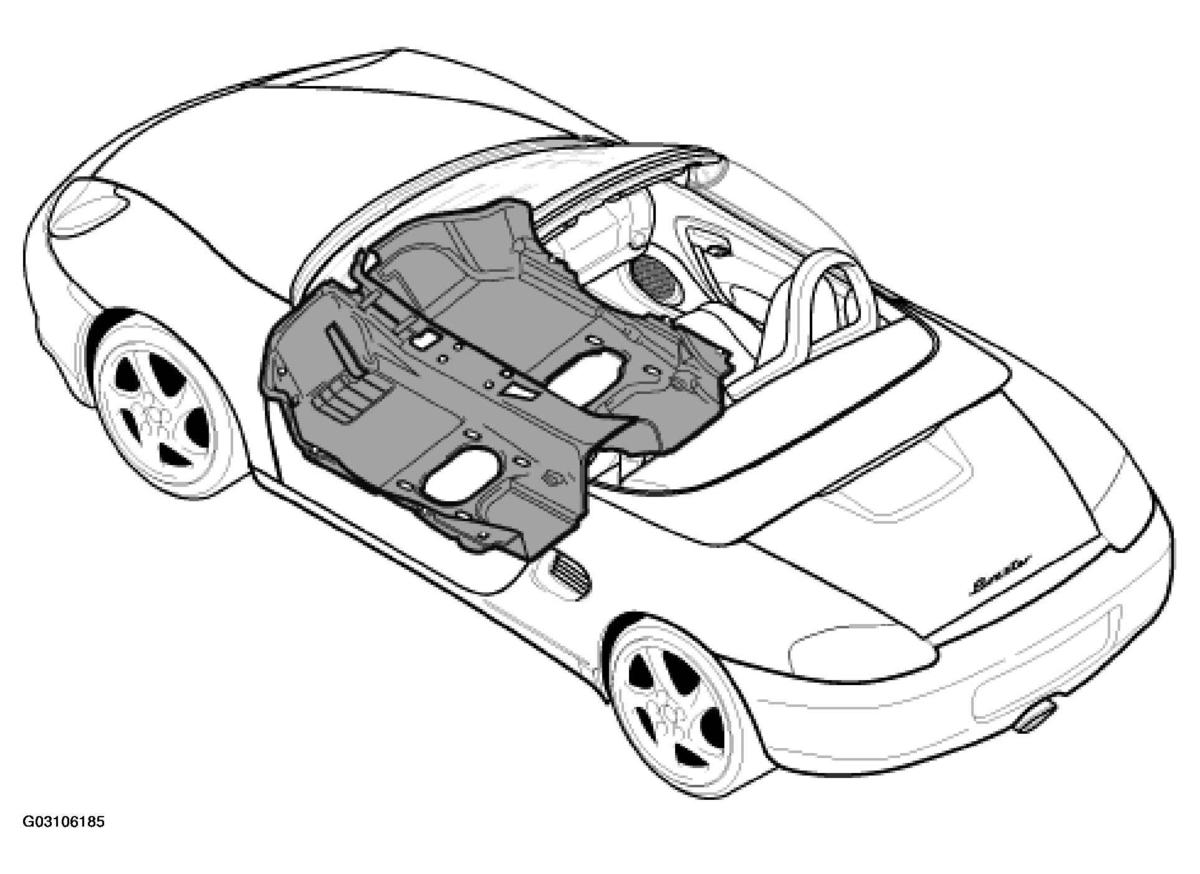

- Before removing the floor covering -11- , the following components must be removed. See Fig 2 .
See REMOVING AND INSTALLING FRONT SEAT .
Refer to REMOVING AND INSTALLING CENTRE CONSOLE .
Refer to REMOVING AND INSTALLING CENTER CONSOLE (FRONT SECTION) .
Refer to REMOVING AND INSTALLING FRONT THREE-POINT BELT .
REMOVING AND INSTALLING PROCEDURE FOR CENTER CONSOLE
| No. | Designation | Qty. | Removal | Installation | ||
|---|---|---|---|---|---|---|
| 1(1) | Plastic cover | 1 | Pull off plastic cover of the handle hole. | Attach plastic cover. | ||
| 2(1) | Plug-in terminal | 1 | ||||
| 3(1) | Fastening screw | 4 | Unscrew. | Screw in. | ||
| 4(1) | Fuse box covering frame | 1 | ||||
| 5(1) | Fuse box | 1 | ||||
| 6(1) | Fastening screw | 3 | ||||
| 7(1) | Foot rest cover | 1 | Unscrew fastening screws -6-7- (1) | Install the foot rest cover -7-11- (1) | ||
| 8(1) | Foot rest | 1 | Install the foot rest -8-11- (1) | |||
| 9(1) | Grommet | 1 | ||||
| 10(1) | Assembling release for lid | Refer toDISASSEMBLING AND ASSEMBLING RELEASE FOR REAR LID
. Refer to REMOVING AND INSTALLING INNER SILL . |
Refer to
Disassembling and assembling release for lid -11-10- (1) Refer to REMOVING AND INSTALLING INNER SILL . Insert floor covering |
|||
| 11(1) | Floor covering | 1 | ||||
| 12(1) | Fastening screw | 1 | ||||
| 13(1) | Holder, floor left | 1 | Install the holder floor left-13-11- (1) | |||
|
||||||
