DME 7.2 - 911 CARRERA & BOXSTER: Tools

The following tools are required for troubleshooting.

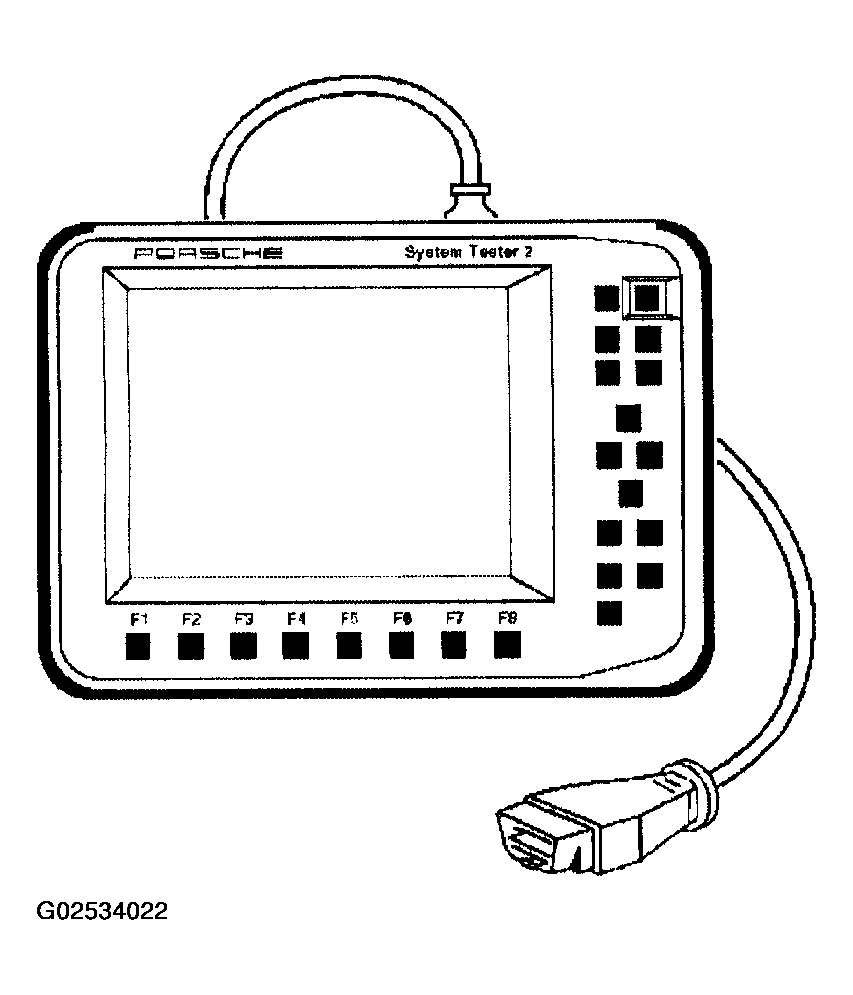

Fig 1: Identifying Porsche System Tester 2

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Porsche System Tester 2 or commercially available generic scan tool

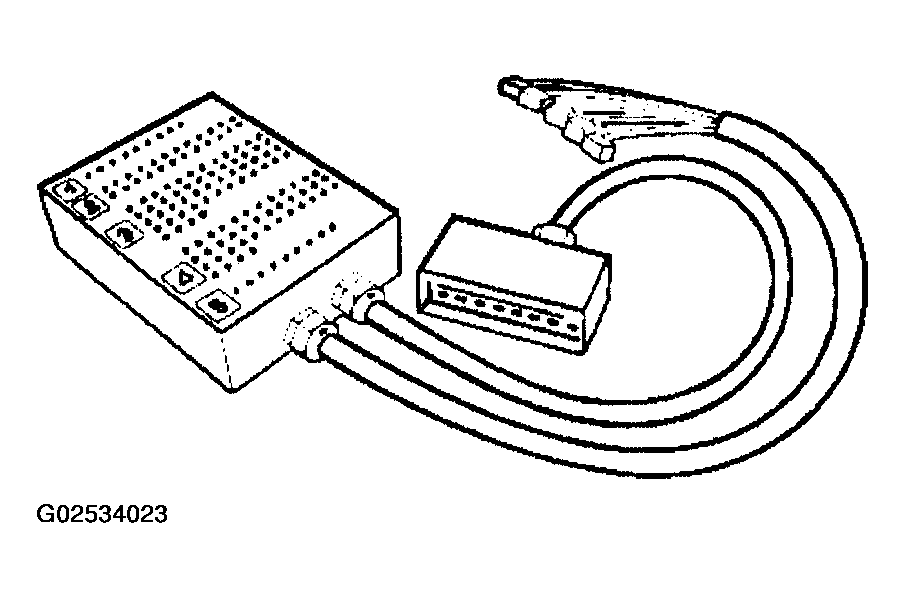

Fig 2: Identifying Special Tool 9637

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Special tool 9637

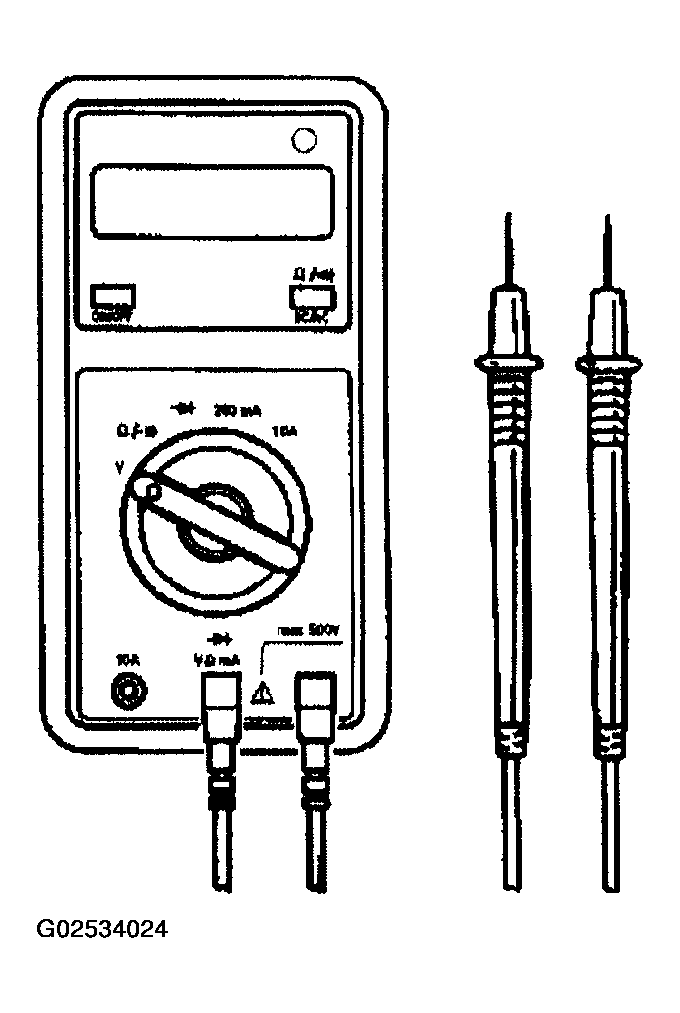

Fig 3: Identifying Digital Multimeter

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Commercially available digital multimeter

Fig 4: Identifying V.A.G. 1315 A/1

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Special tool V.A.G 1315 A/1

Fig 5: Identifying Special Tool P 378a W/Connecting Wire 9559

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Special tool P 378a with connecting wire 9559

Fig 6: Identifying Vacuum Tester Special Tool 9160/1

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Special tool 9160/1

Fig 7: Identifying Pressure Gauge Special Tool 9103/2

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Special tool 9103/2

Fig 8: Identifying Hydrocarbon Tester

Courtesy of PORSCHE OF NORTH AMERICA, INC.

HC tester

NOTE: For resistance measurements on the components, the special tool 9637 must be connected only to the wiring harness, as the values could otherwise be falsified via the DME control module.

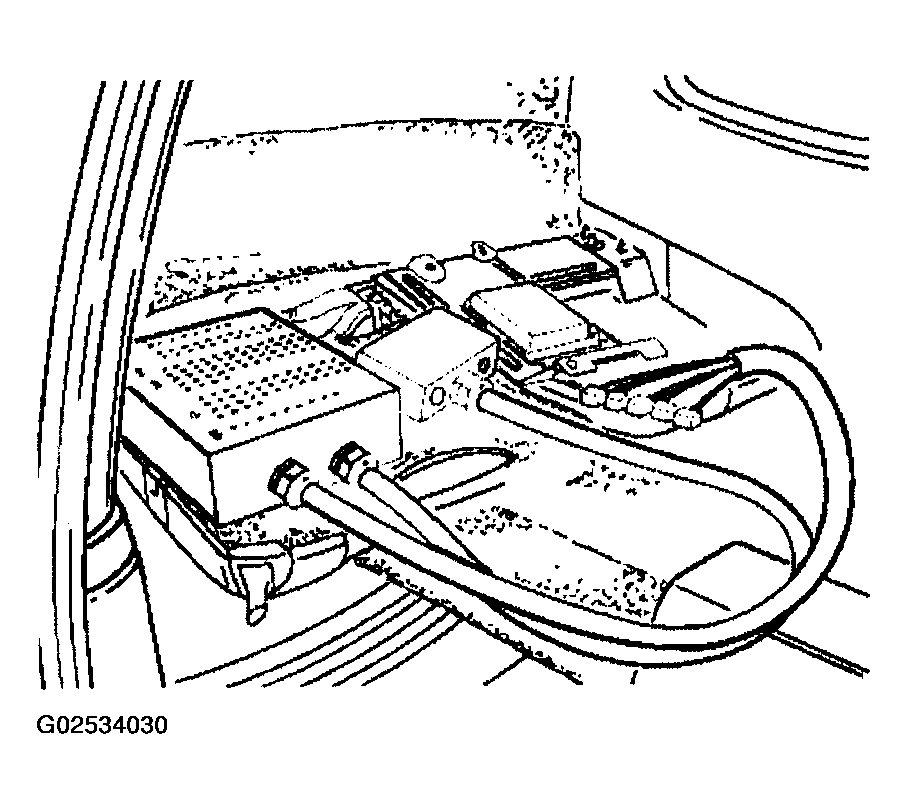

Fig 9: Connecting Special Tool 9637 To DME Control Module

Courtesy of PORSCHE OF NORTH AMERICA, INC.
