Operating instructions Porsche System Tester II 9588: Connections: Notes

1. Ground connection socket
2. Connection sockets for voltage and resistance measurements
3. Connections for current measurements with a clamp-on ammeter.

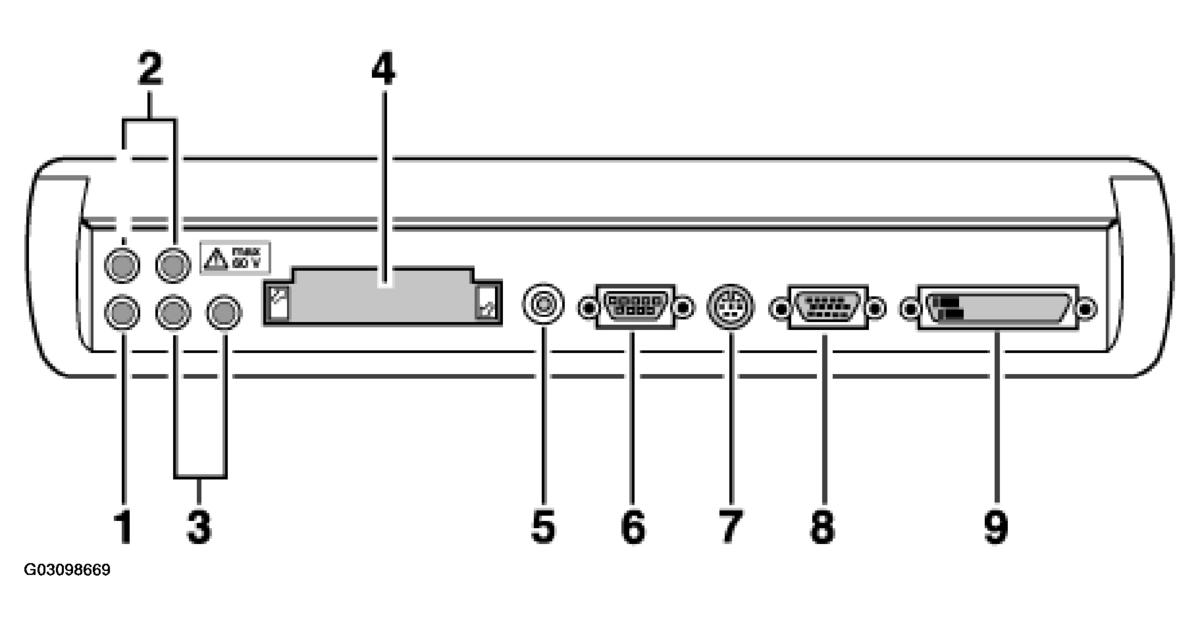

Fig 1: Identifying Connection Terminals Of Tester

Courtesy of PORSCHE OF NORTH AMERICA, INC.
