Removing And Installing Sensor For Park Assistant: Notes

NOTE: Four sensors for the ParkAssistant are installed in the rear spoiler. The rear spoiler must be taken off in order to remove a defective sensor. The sensors are arranged in the order: outer left, inner left, inner right and outer right.

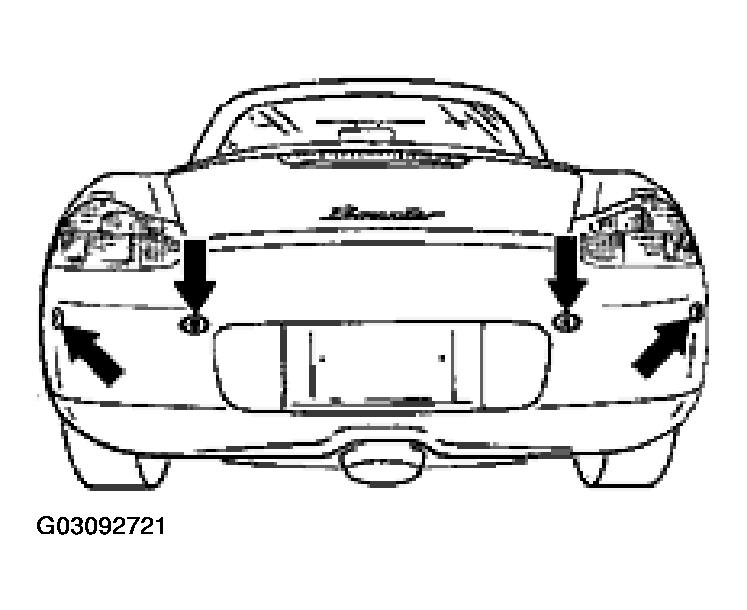

Fig 1: Locating Sensor For Park Assistant In Rear Bumper

Courtesy of PORSCHE OF NORTH AMERICA, INC.

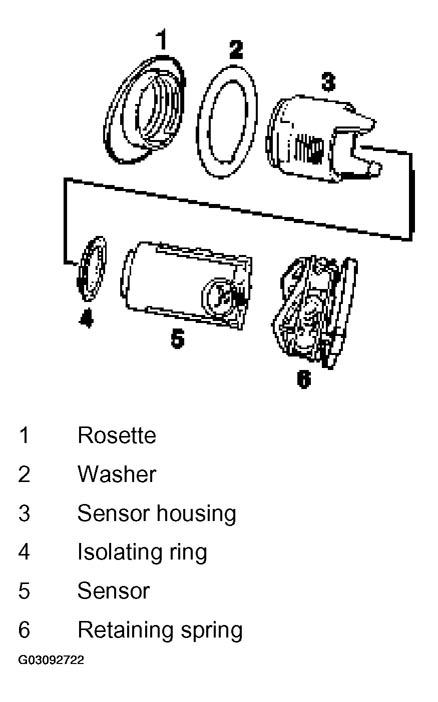

The sensor with holder in the rear spoiler consists of six parts.

Rosette
Washer
Sensor housing
Isolating ring
Sensor
Retaining spring

Fig 2: Identifying Park Assistant Sensor Holder Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

The washer (No. 2, Figure 410 - 97) and retaining spring (No. 6) have been omitted from the inner left and inner right sensors. The holding spring with new support on the rear spoiler must be replaced for these two parts. See Fig 3 .

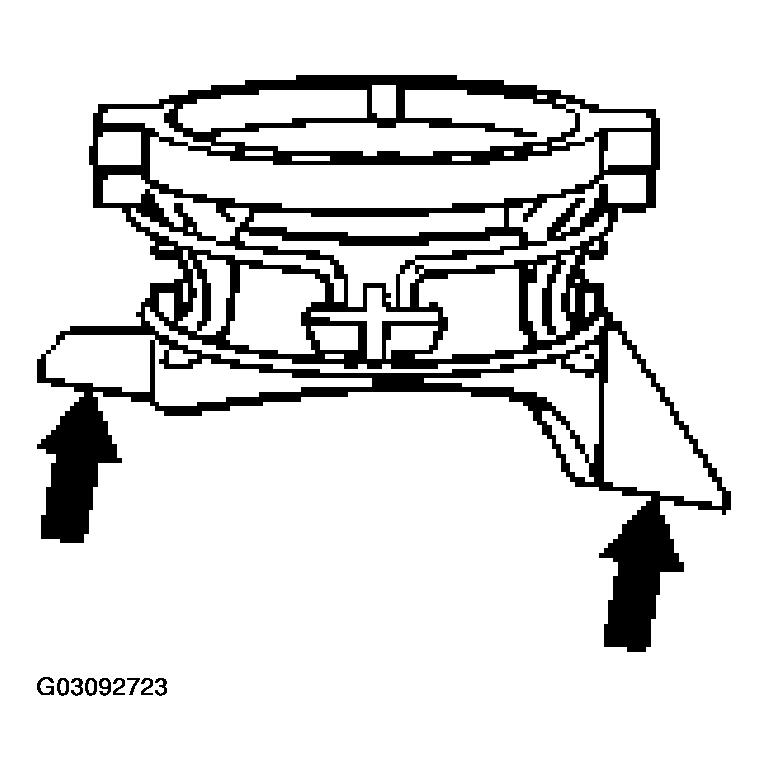

Fig 3: Identifying Park Assistant Sensor Support
