Control Module, A/T

Connector Assignments

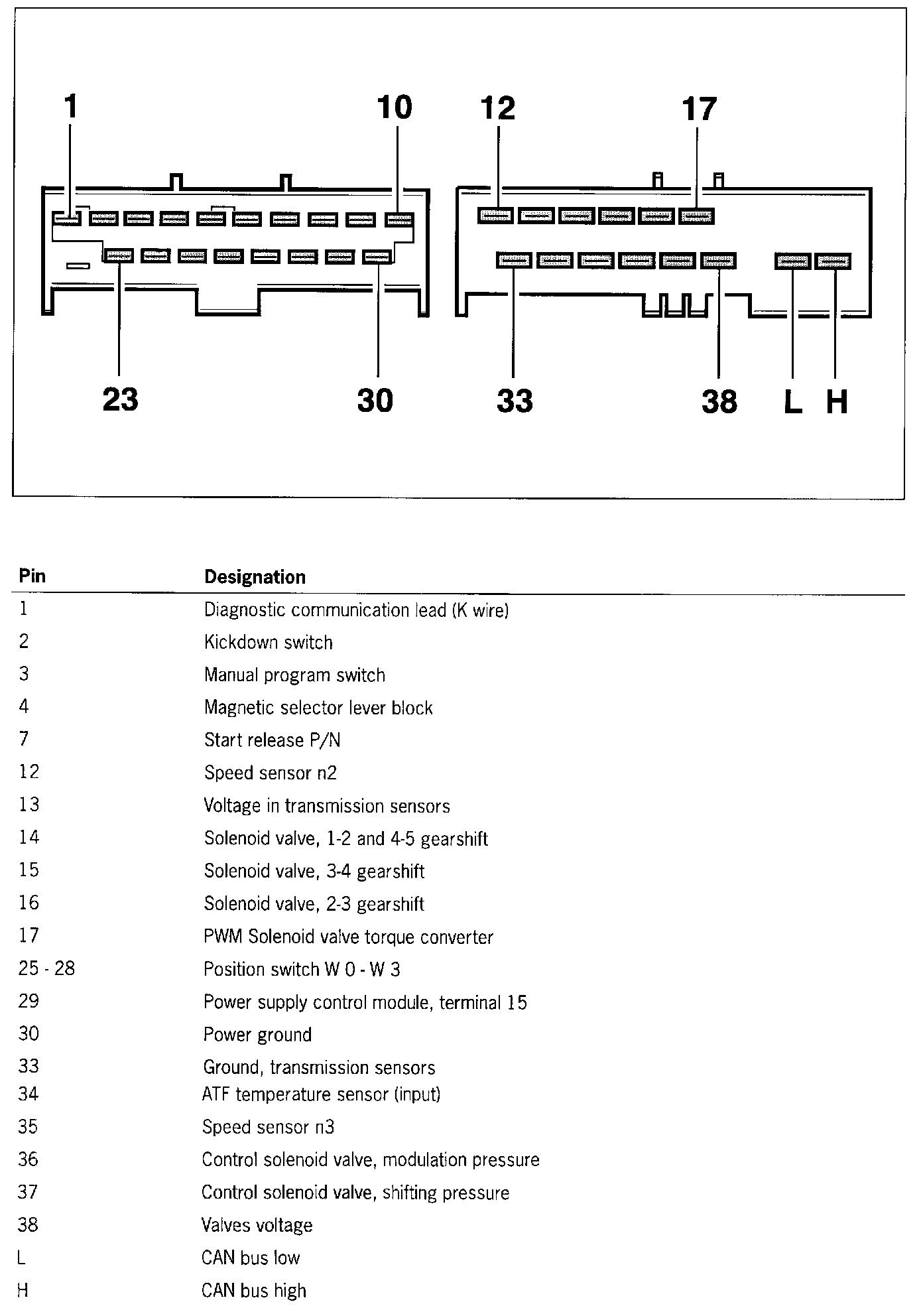

Tiptronic Control Module Connector




Control Module Connector End View


Tiptronic Transmission Connectors

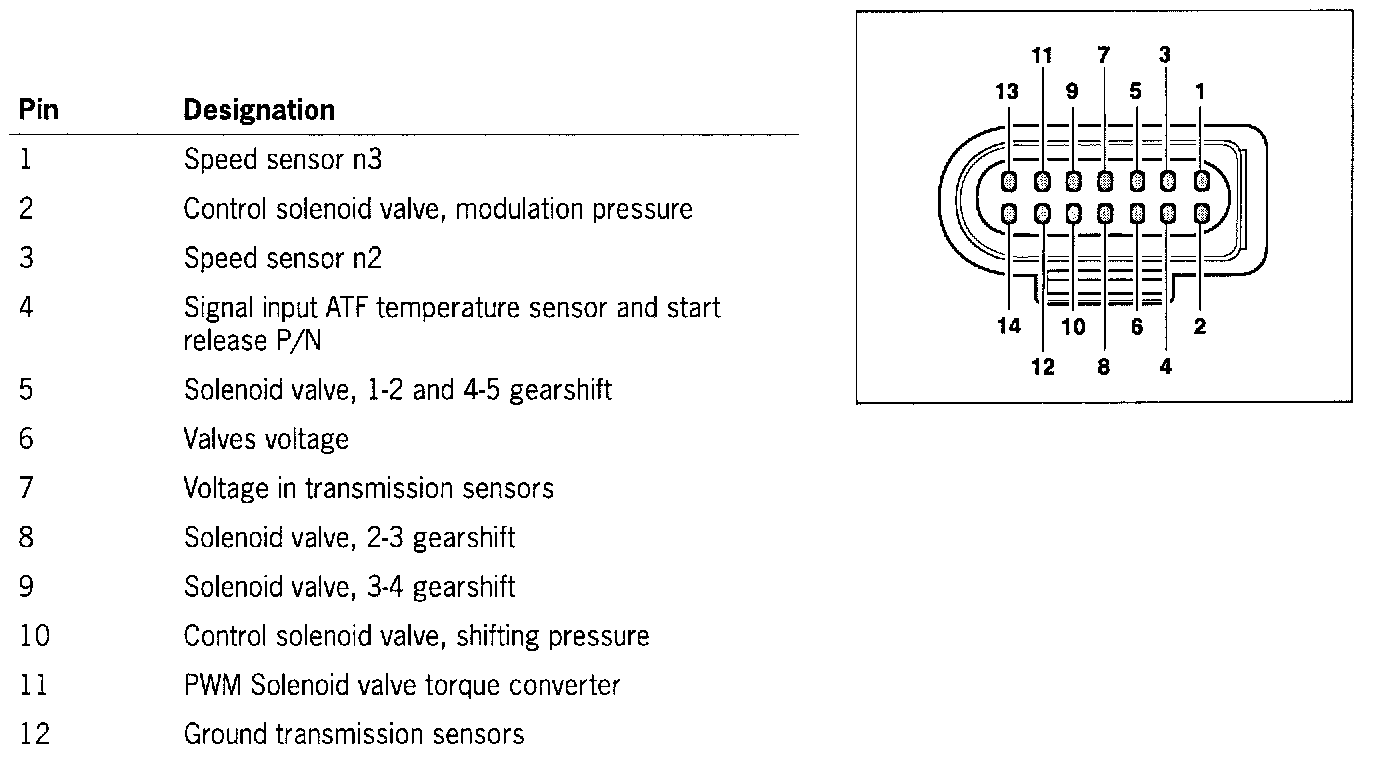

Transmission Connector (Wiring Harness Side)


Connection X60 Rear/Transmission

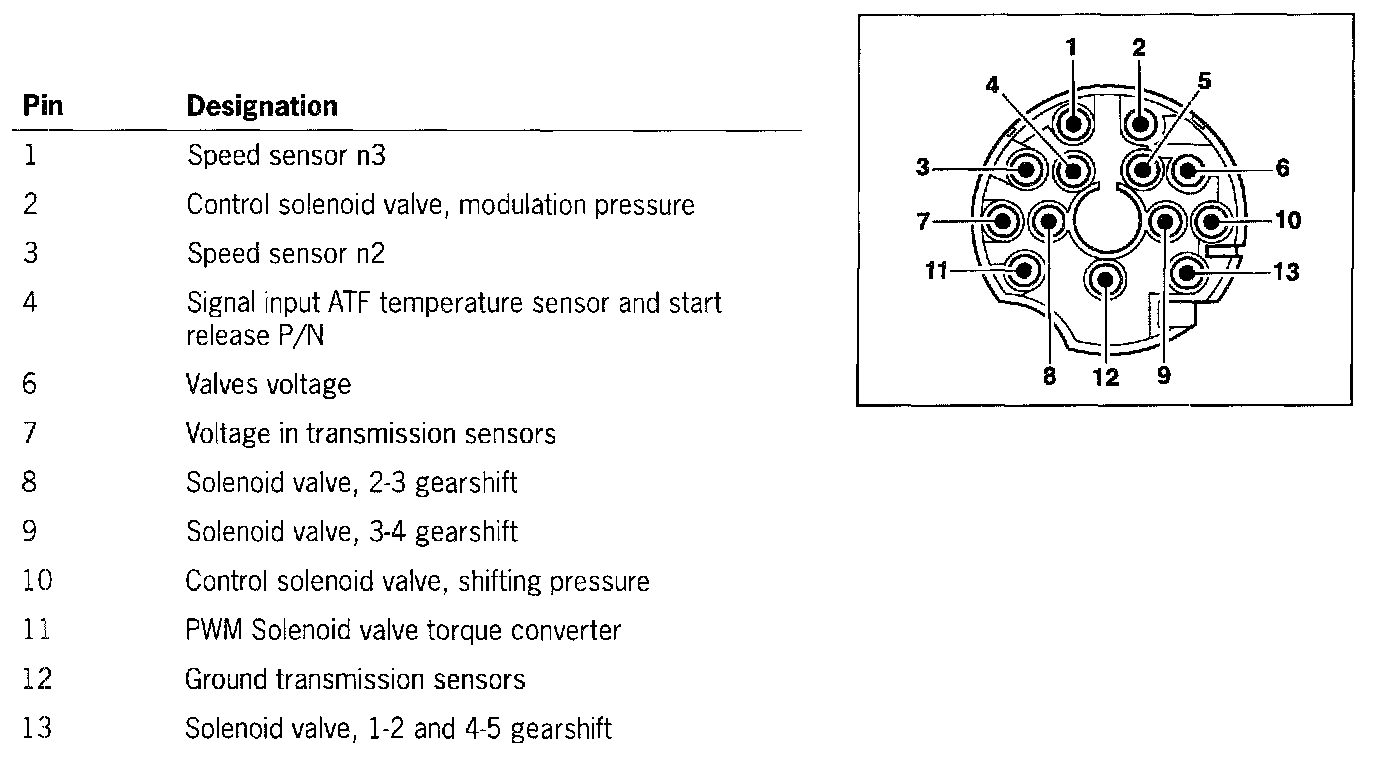

Connection X60

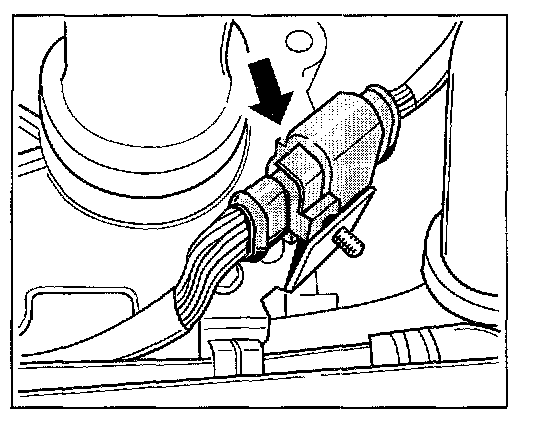

NOTE: The connection X60 rear/transmission is located on the right-hand side of the transmission.


Connection X60 Connector




Connection X60 (Control Module Side)
