CDR23 Connector Assignment

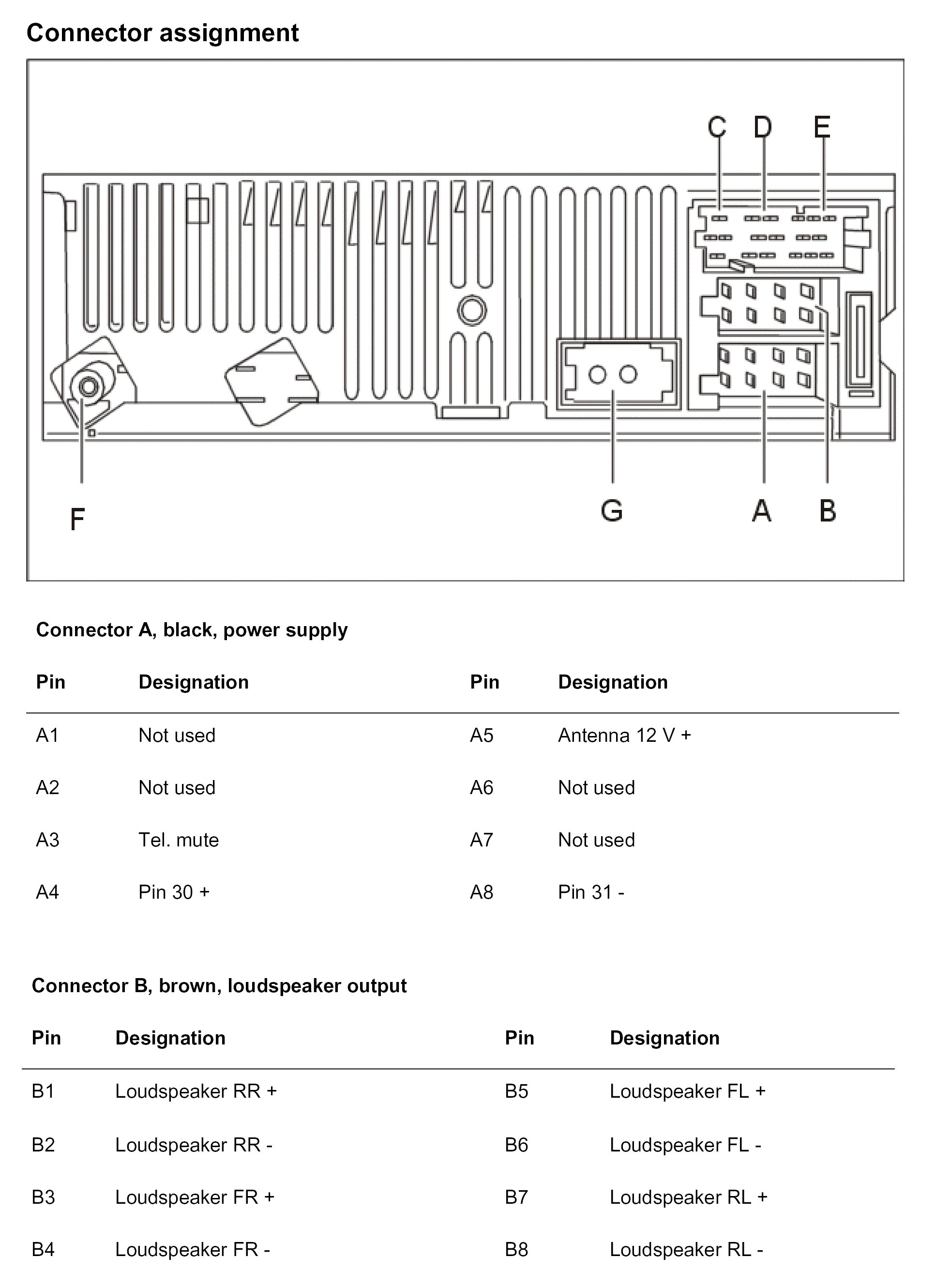

CDR23 Connector Assignment (Part 1):

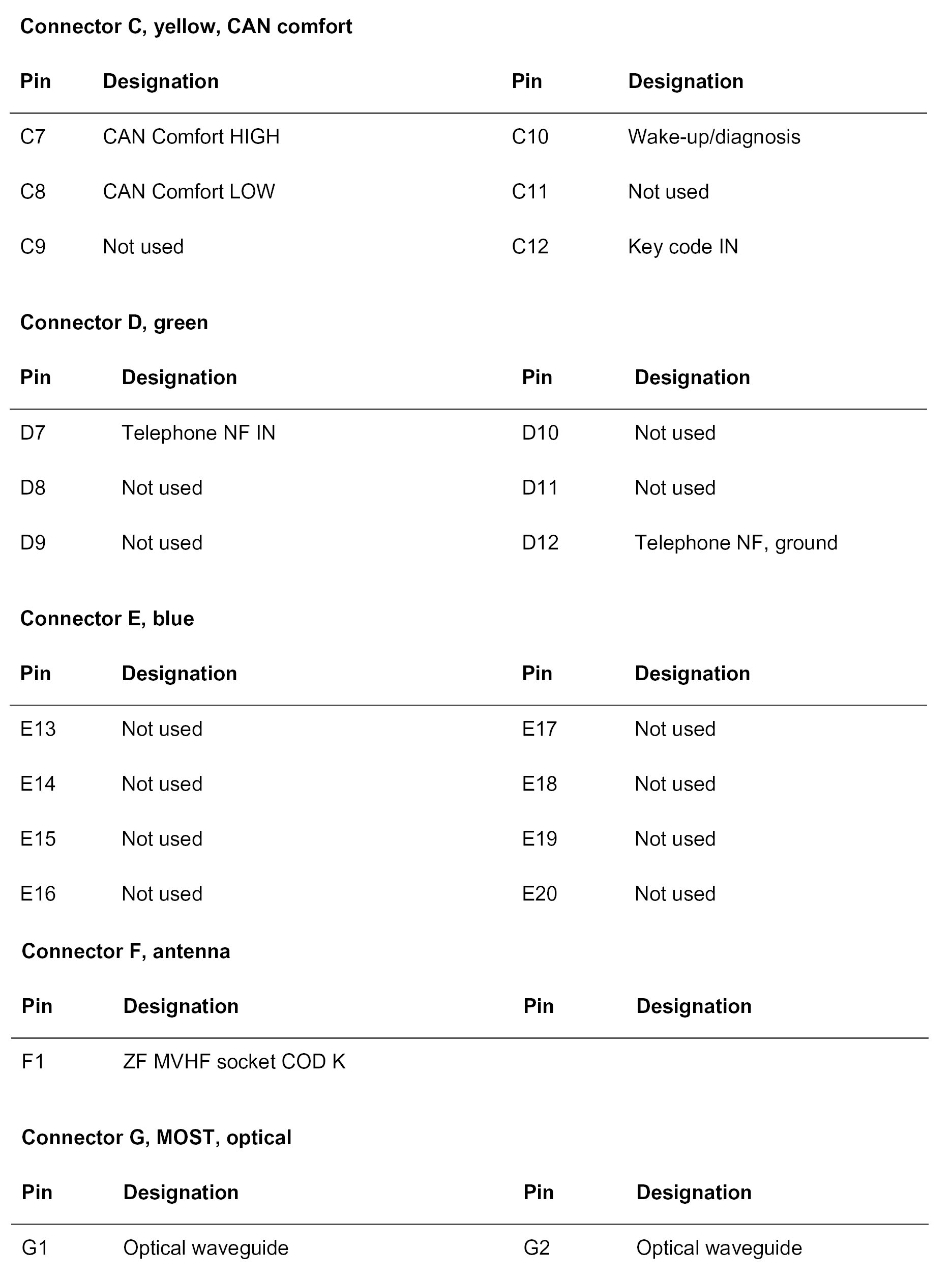

CDR23 Connector Assignment (Part 2):
