PCM2 Gateway Connector Assignment

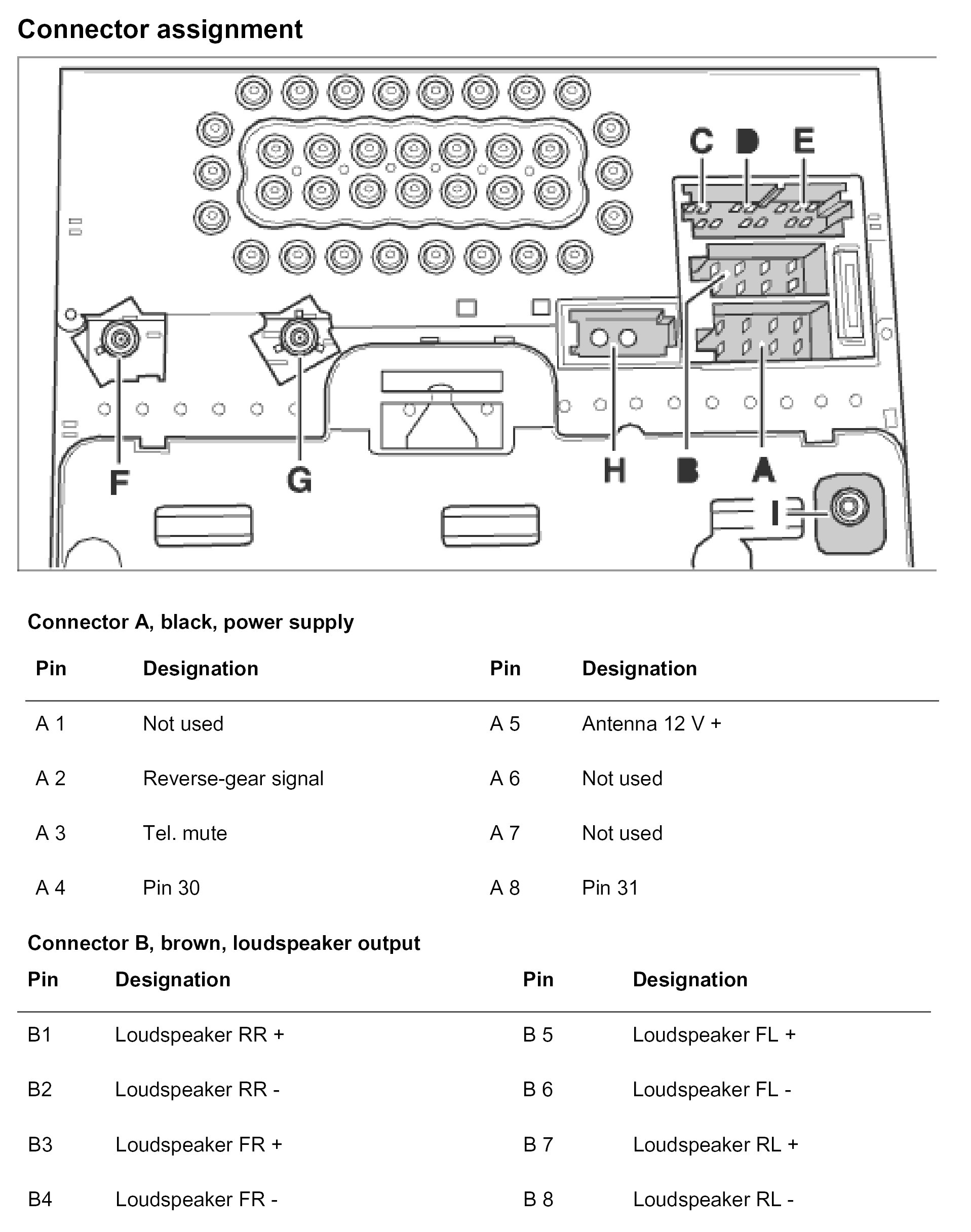

PCM2 Gateway Connector Assignment (Part 1):

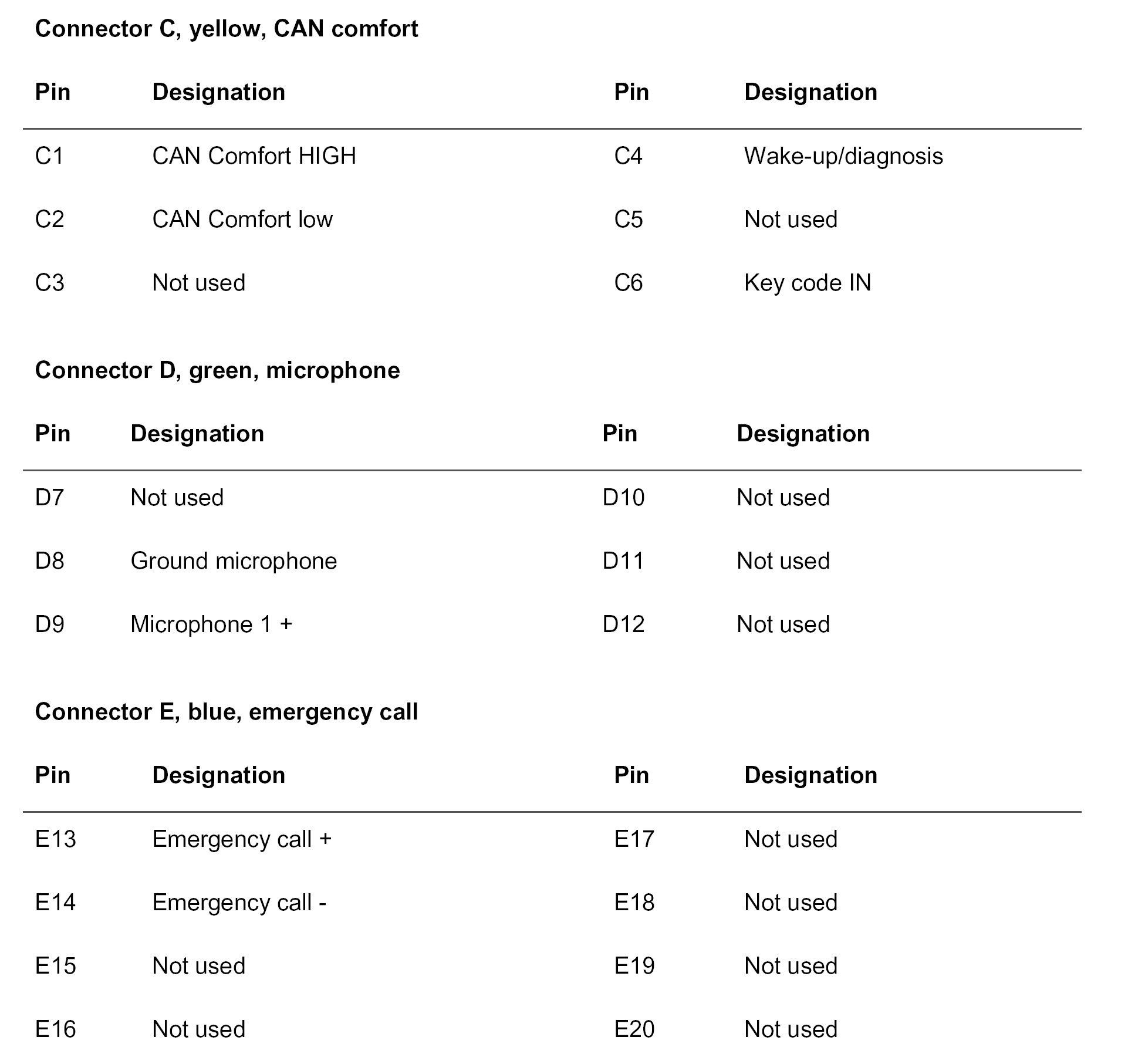

PCM2 Gateway Connector Assignment (Part 2):

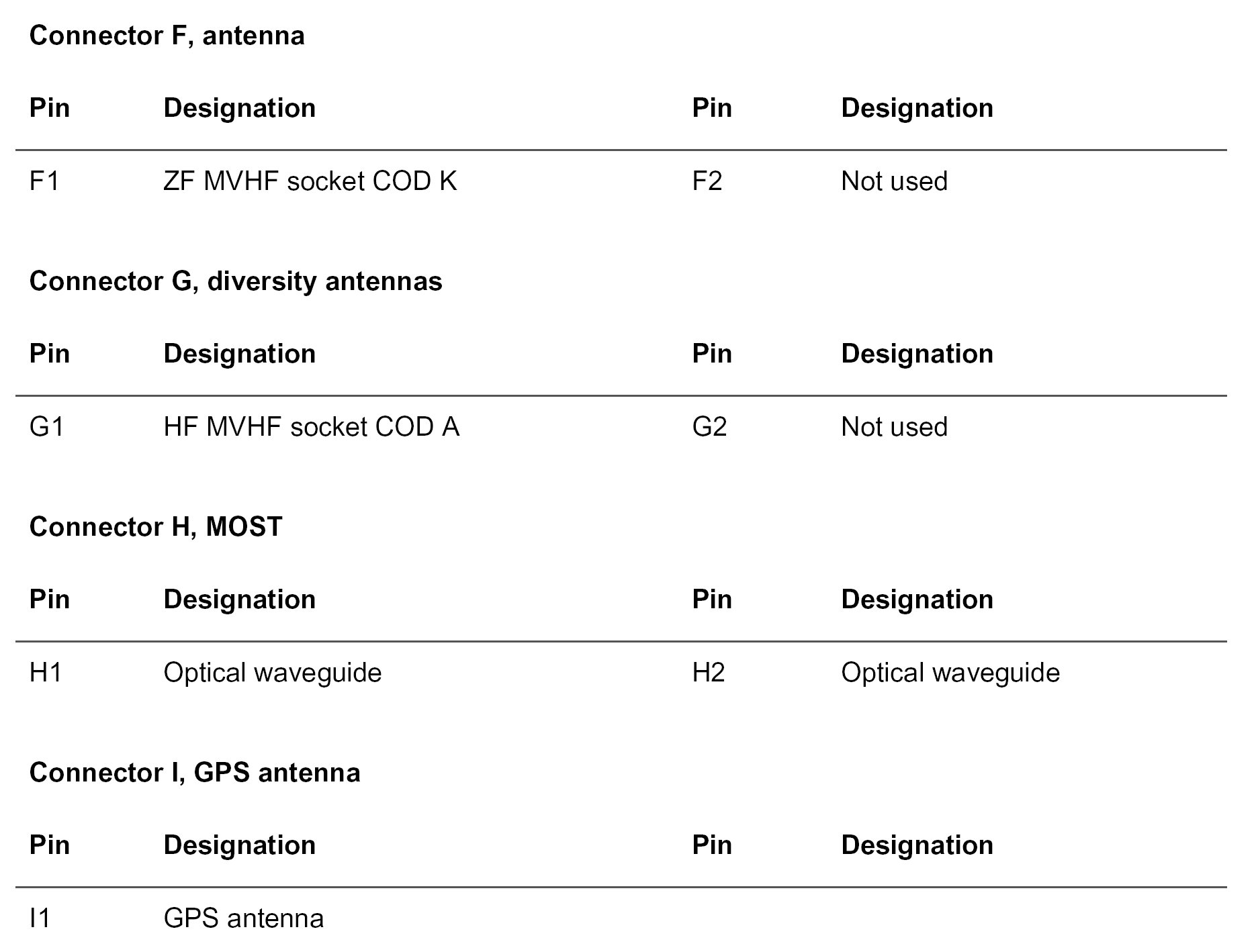

PCM2 Gateway Connector Assignment (Part 3):
