Connector Assignment, Control Module



Connector Assignment, Control Module

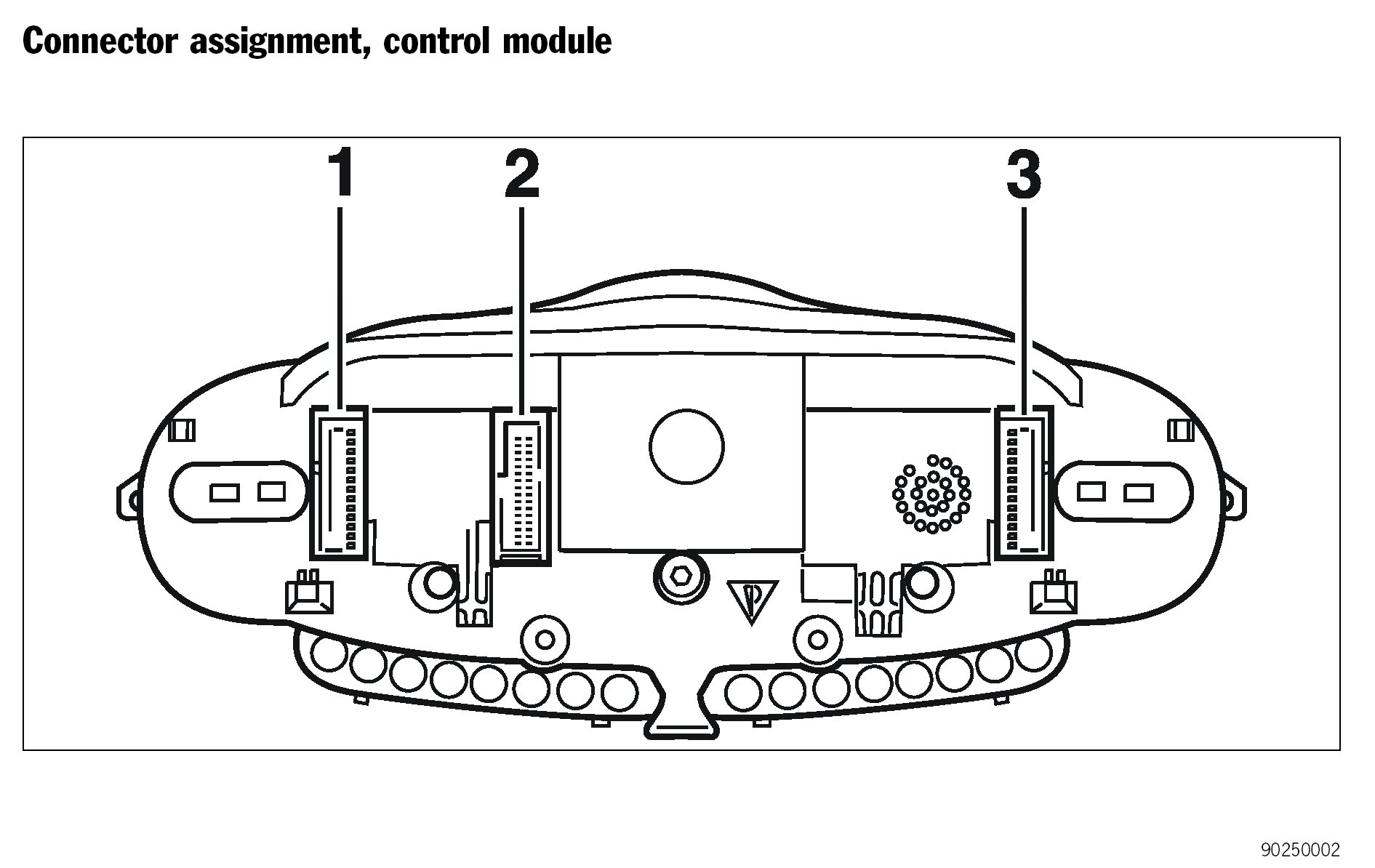

Connector Assignment, Control Module:

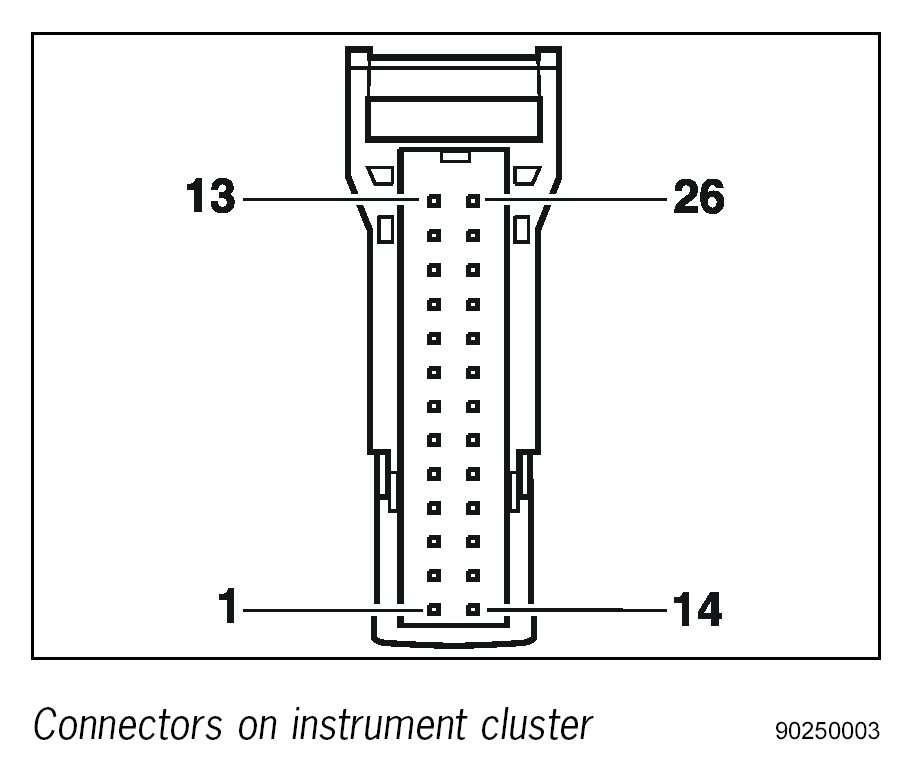

Connectors On Instrument Cluster (Part 1):






Three colour-coded 26-pole connectors are connected to the instrument cluster.

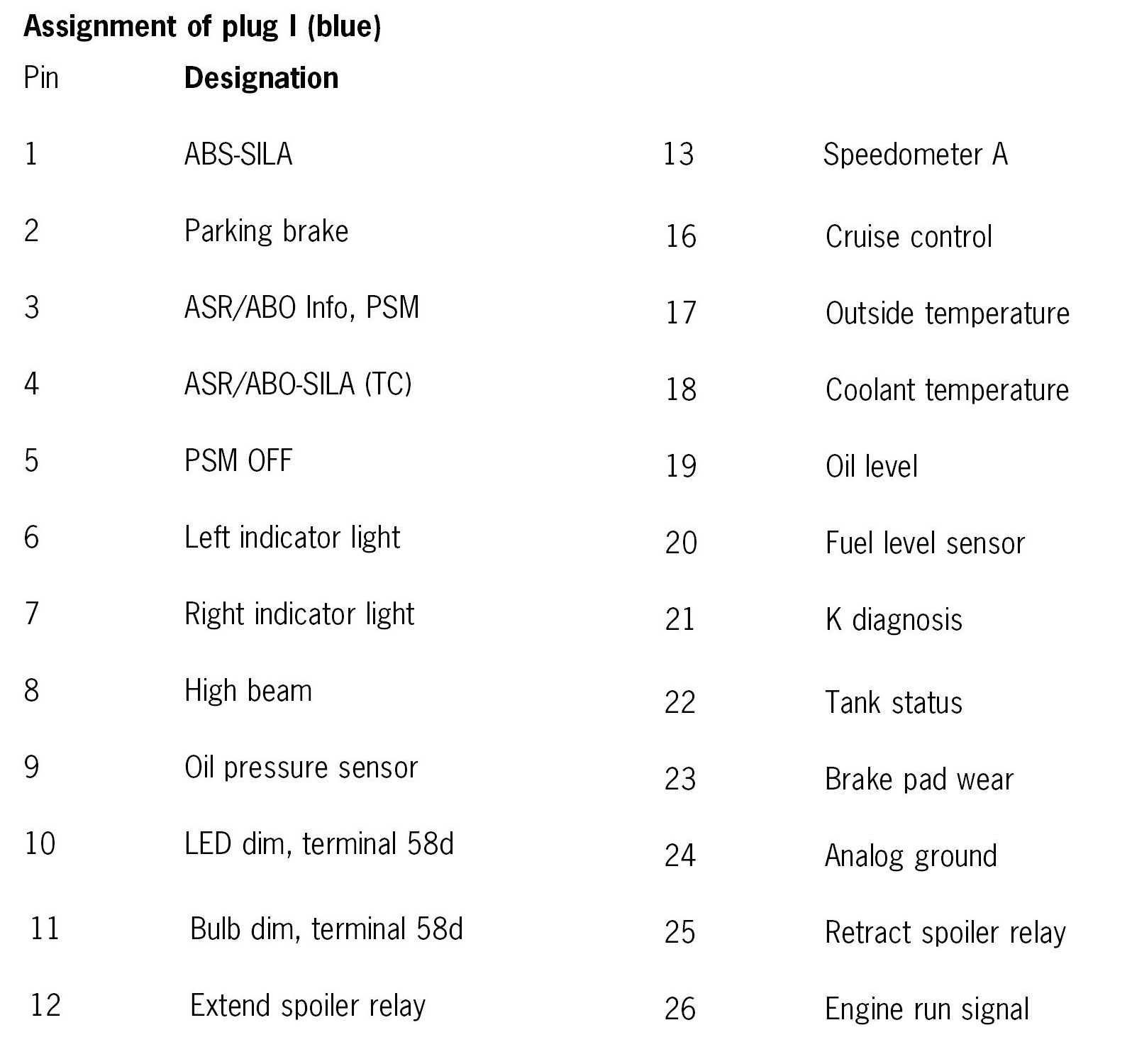

Connectors On Insturment Cluster (Part 2):

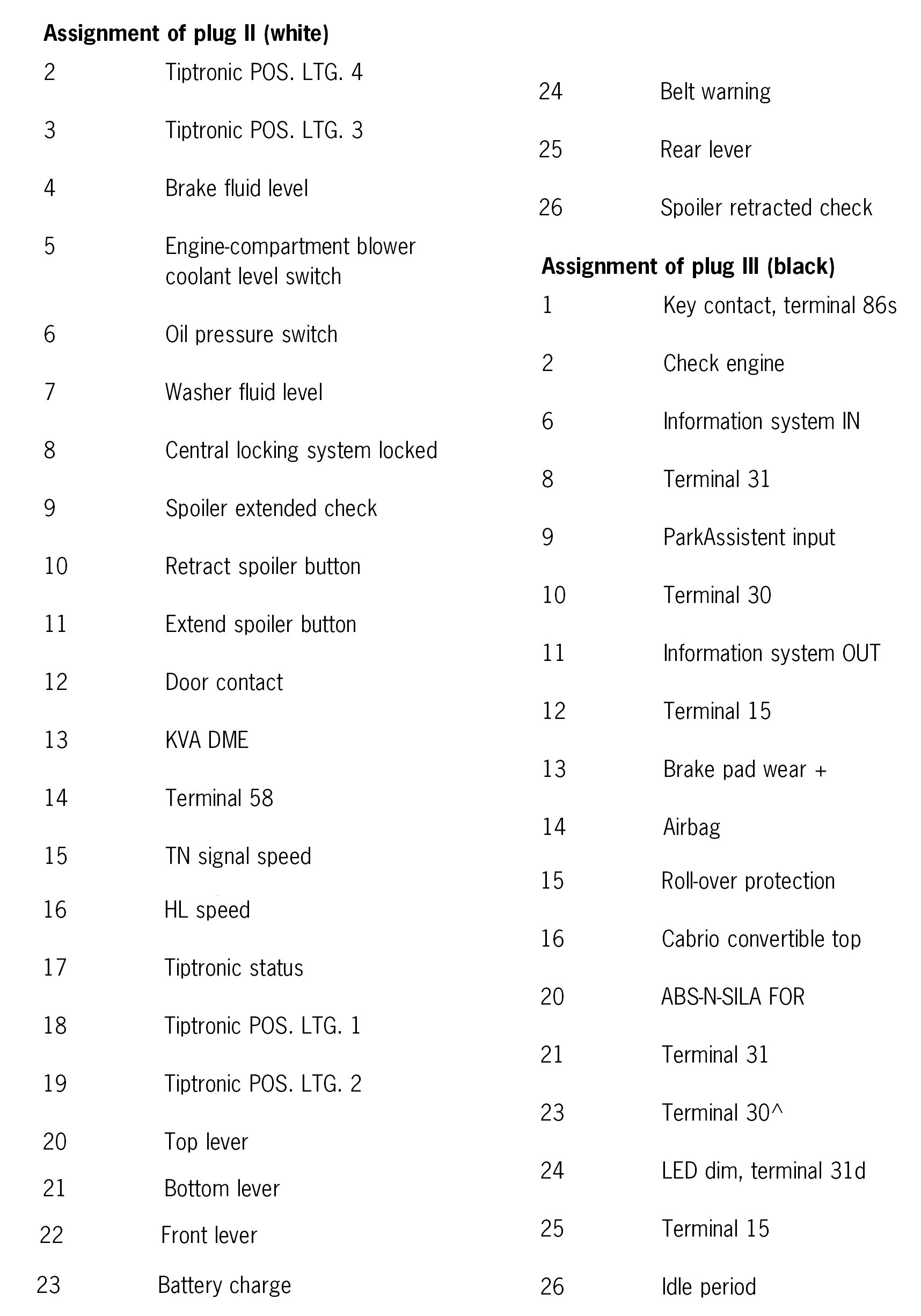

Connectors On Insturment Cluster (Part 3):
