Tiptronic Connector Assignment

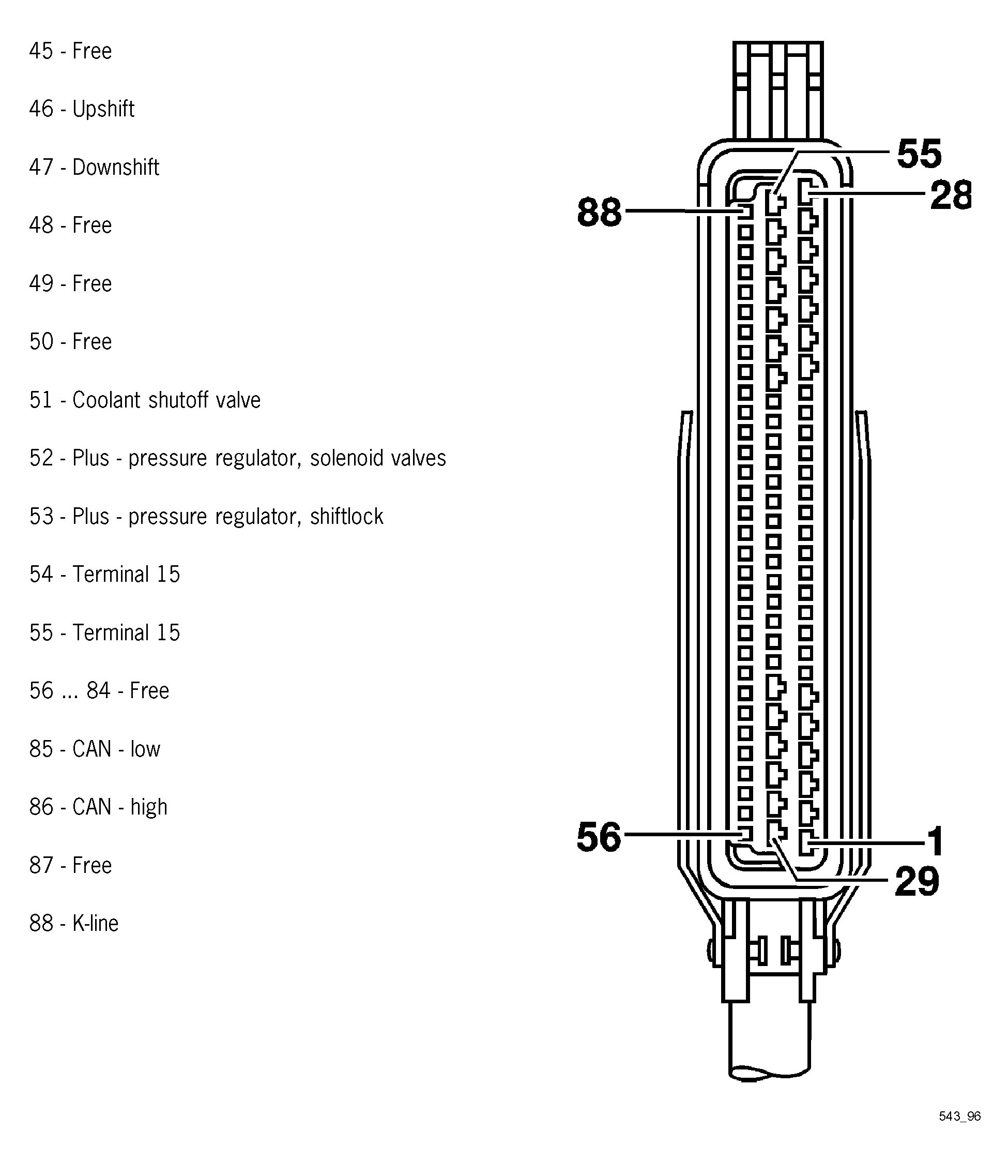

Tiptronic Connector Assignment (Part 1):

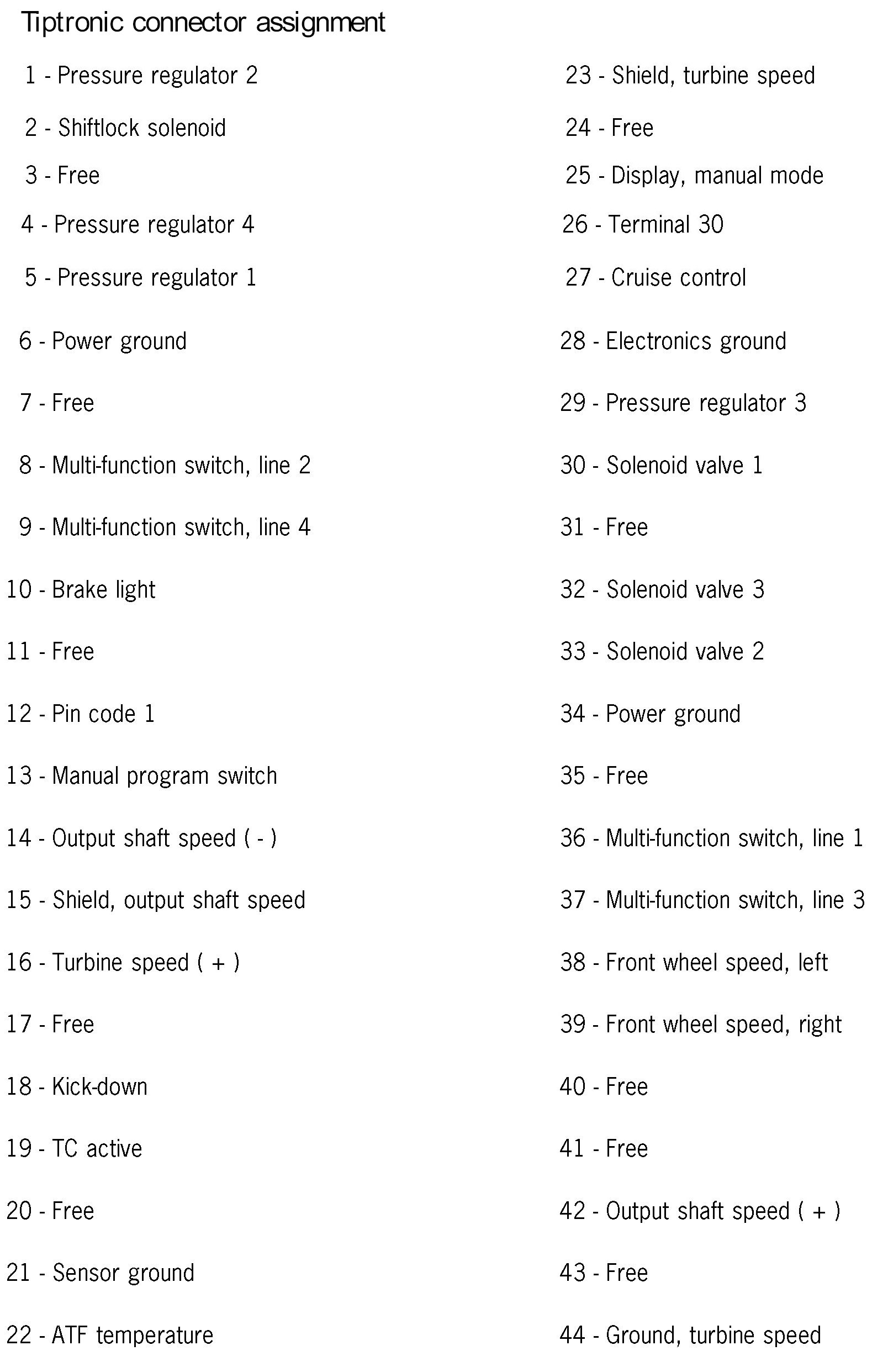

Tiptronic Connector Assignment (Part 2):
