Connector Assignment



Connector Assignment - 911 Carrera (996)

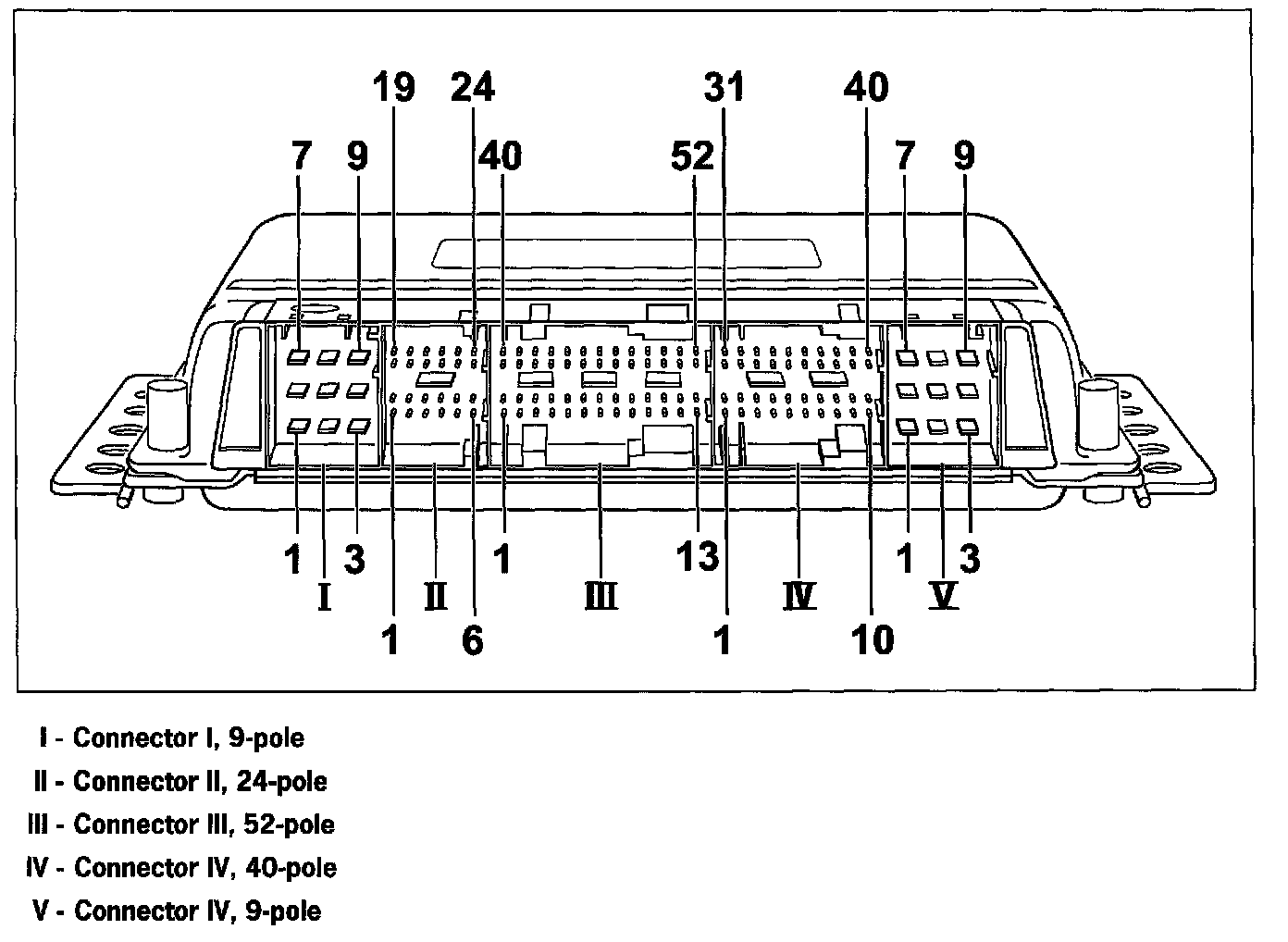

DME control module connector assignment







Connector I, 9-pole


Pin 1 - 9:

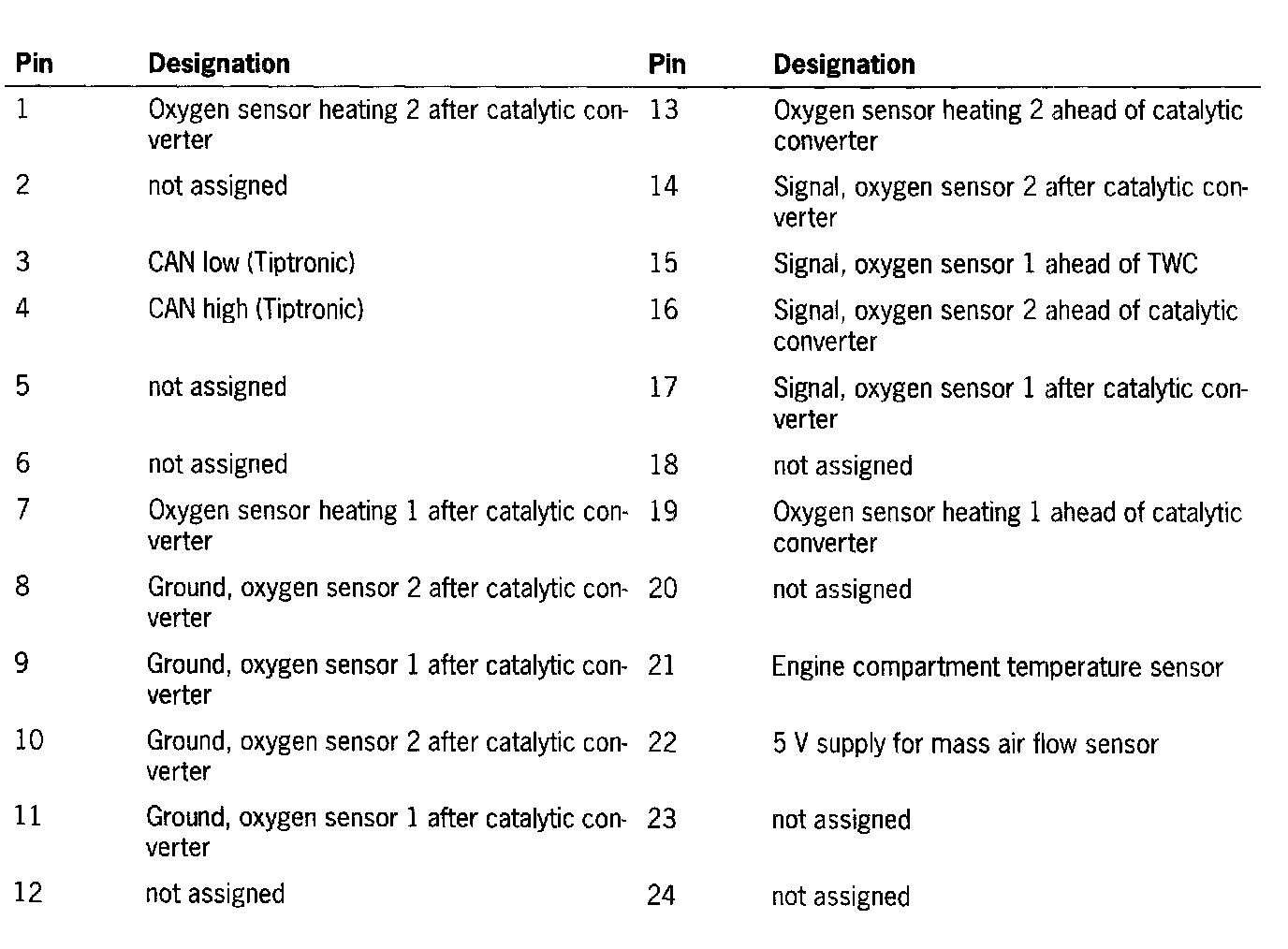

Connector II, 24-pole


Pin 1 - 24:

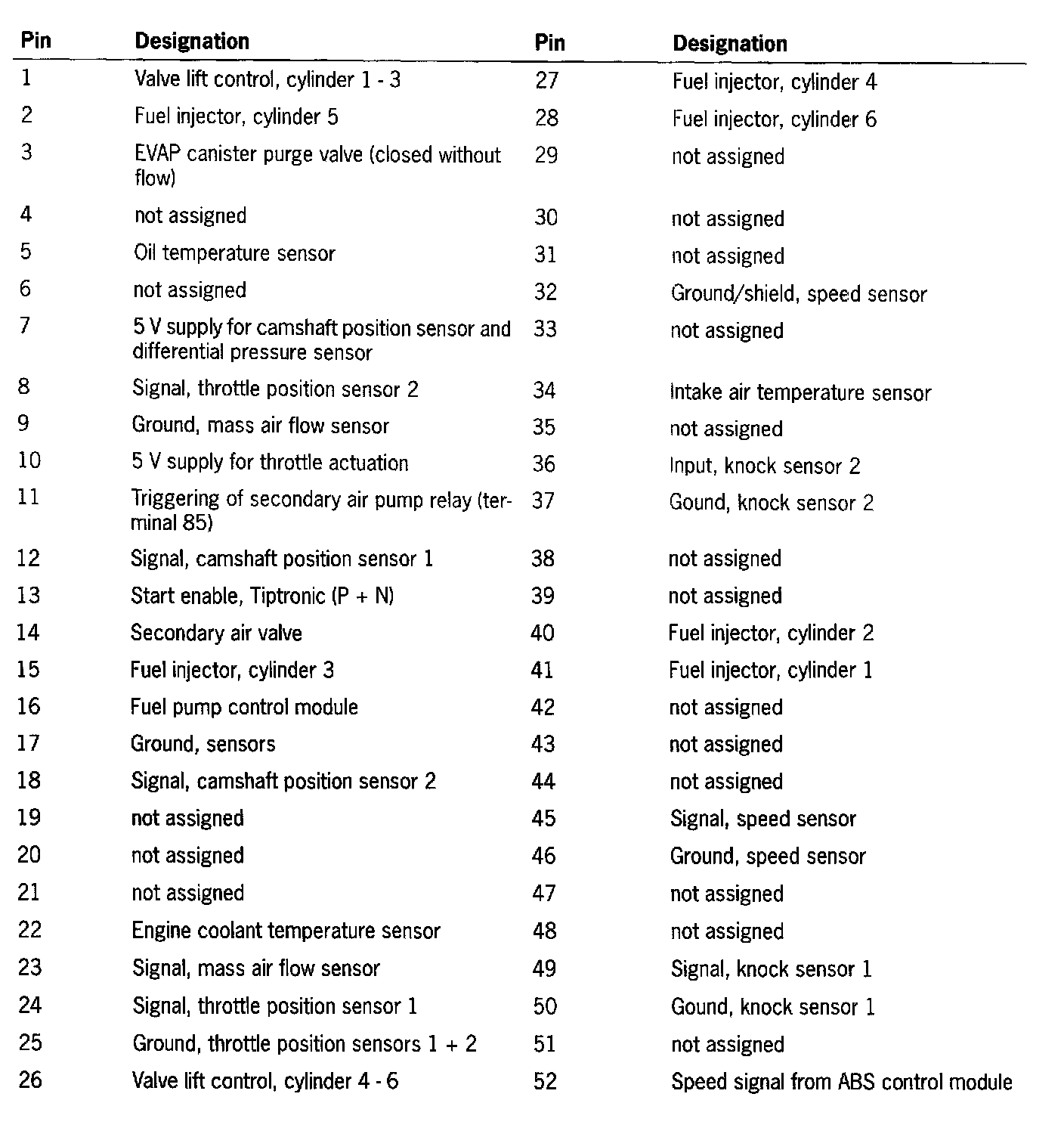

Connector III, 52-pole


Pin 1 - 52:

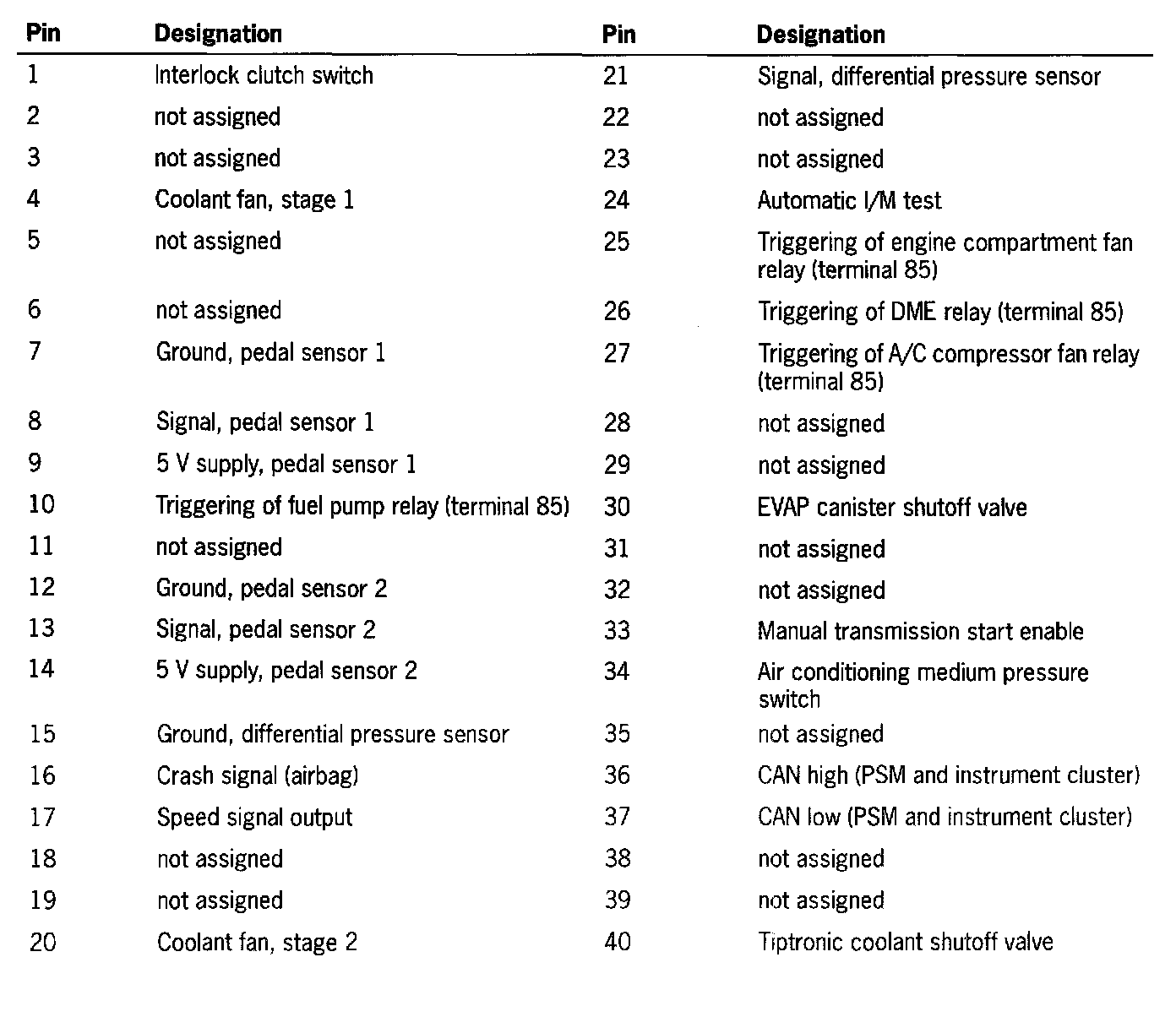

Connector IV, 40-pole


Pin 1 - 40:






Connector V, 9-pole


Pin 1 - 9:
