Transmission Control Systems

Connector Assignments

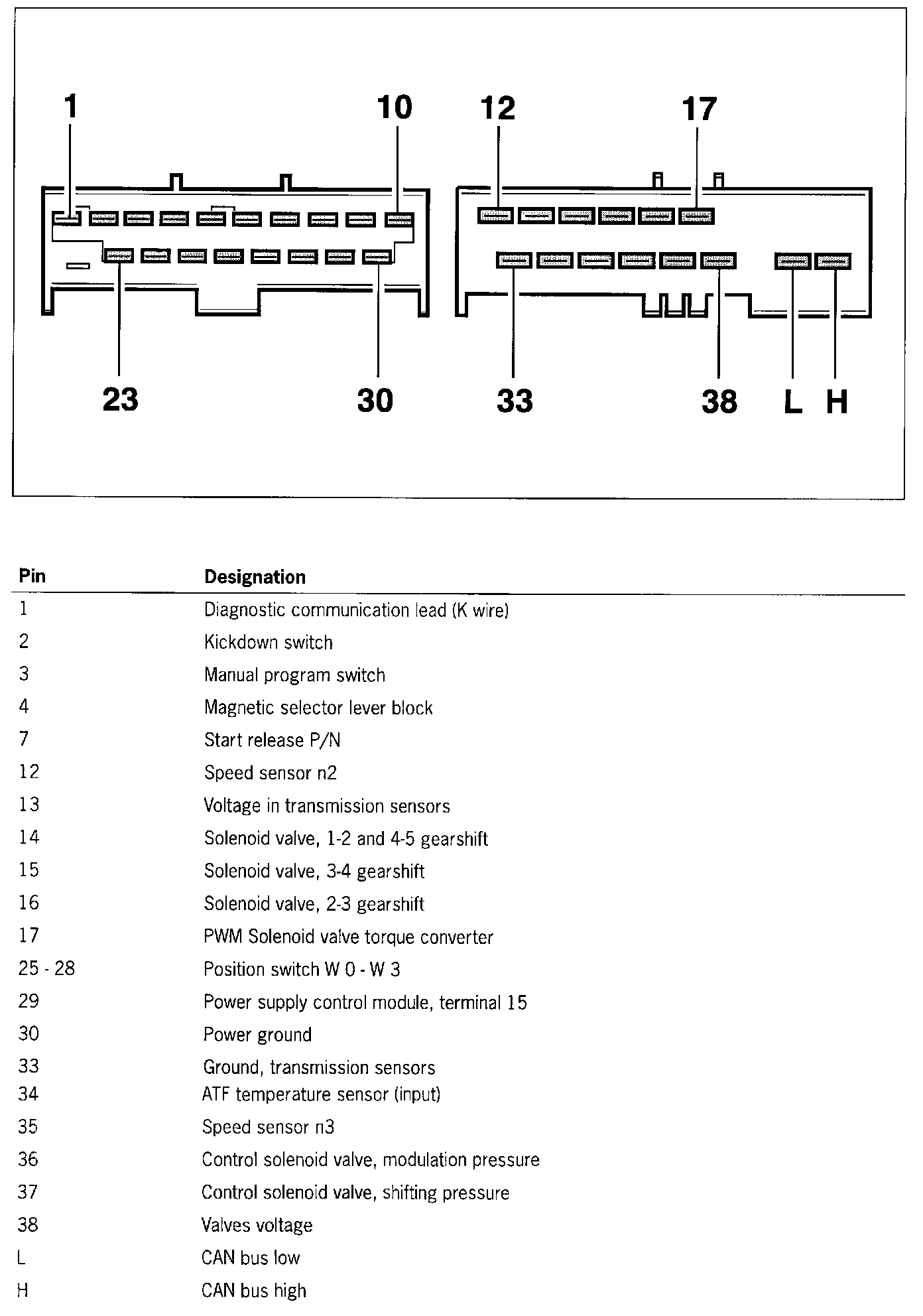

Tiptronic Control Module Connector




Control Module Connector End View

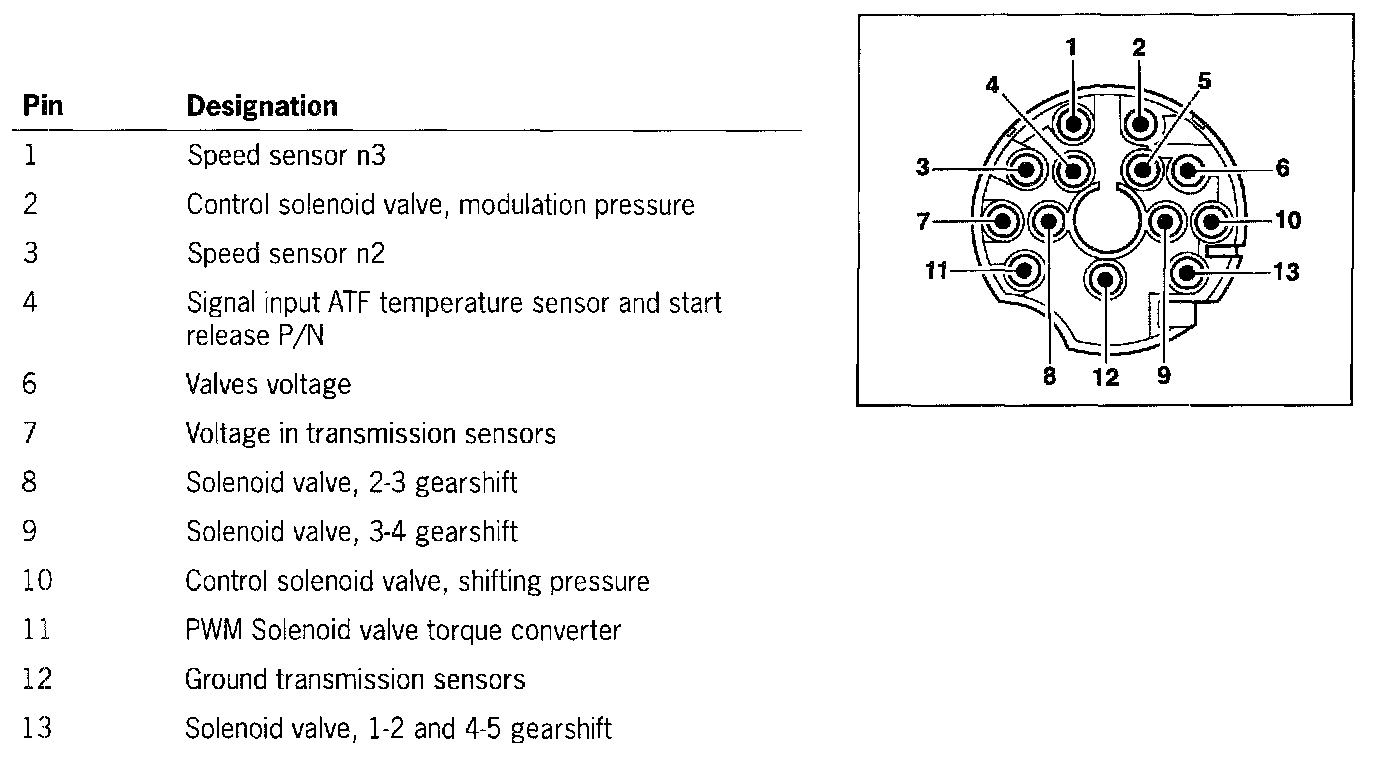

Tiptronic Transmission Connectors




Transmission Connector (Wiring Harness Side)


Connection X60 Rear/Transmission




Connection X60

NOTE: The connection X60 rear/transmission is located on the right-hand side of the transmission.


Connection X60 Connector




Connection X60 (Control Module Side)
