Connector Assignment



Connector Assignment

Control module

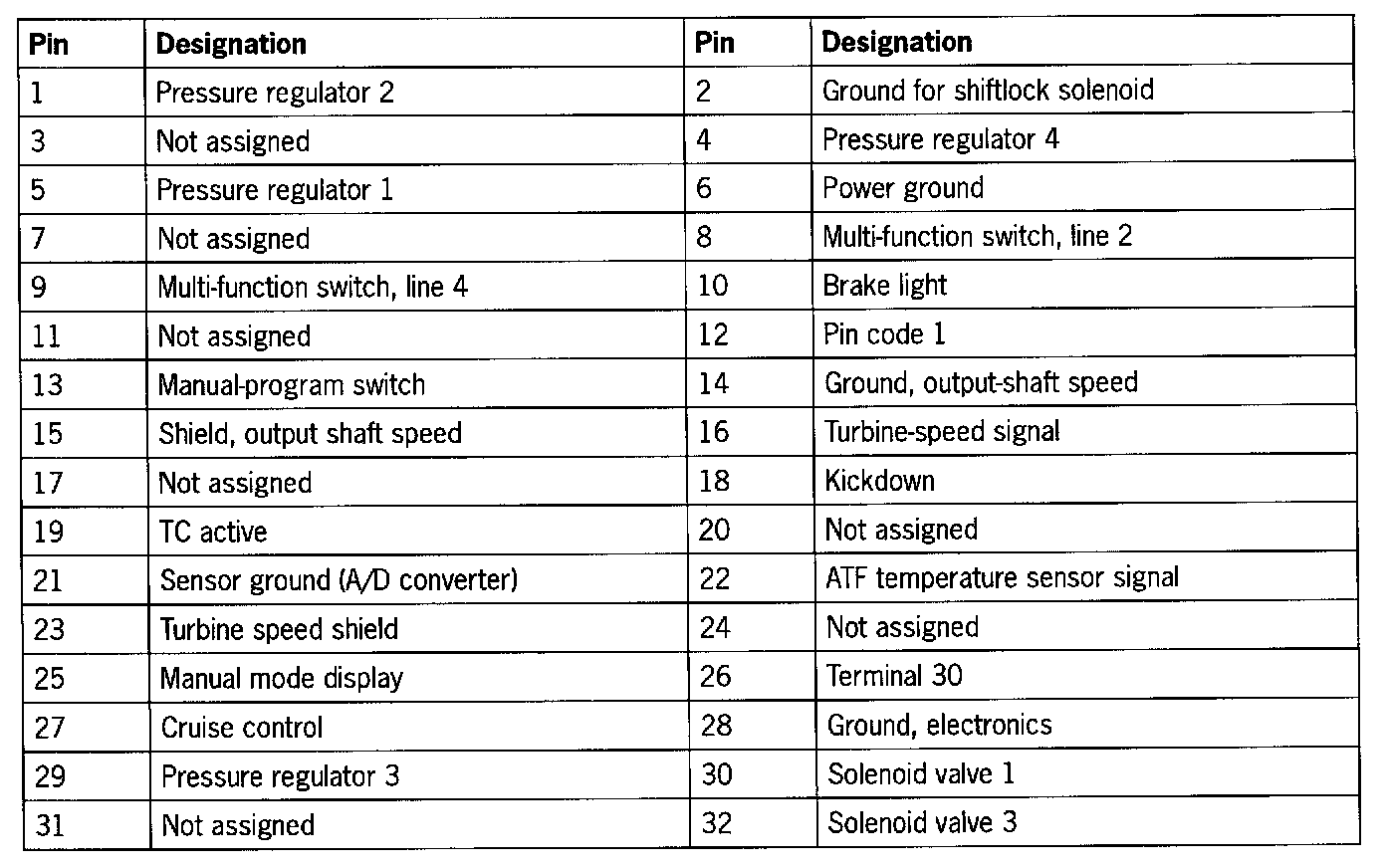

Pin 1 - 32:

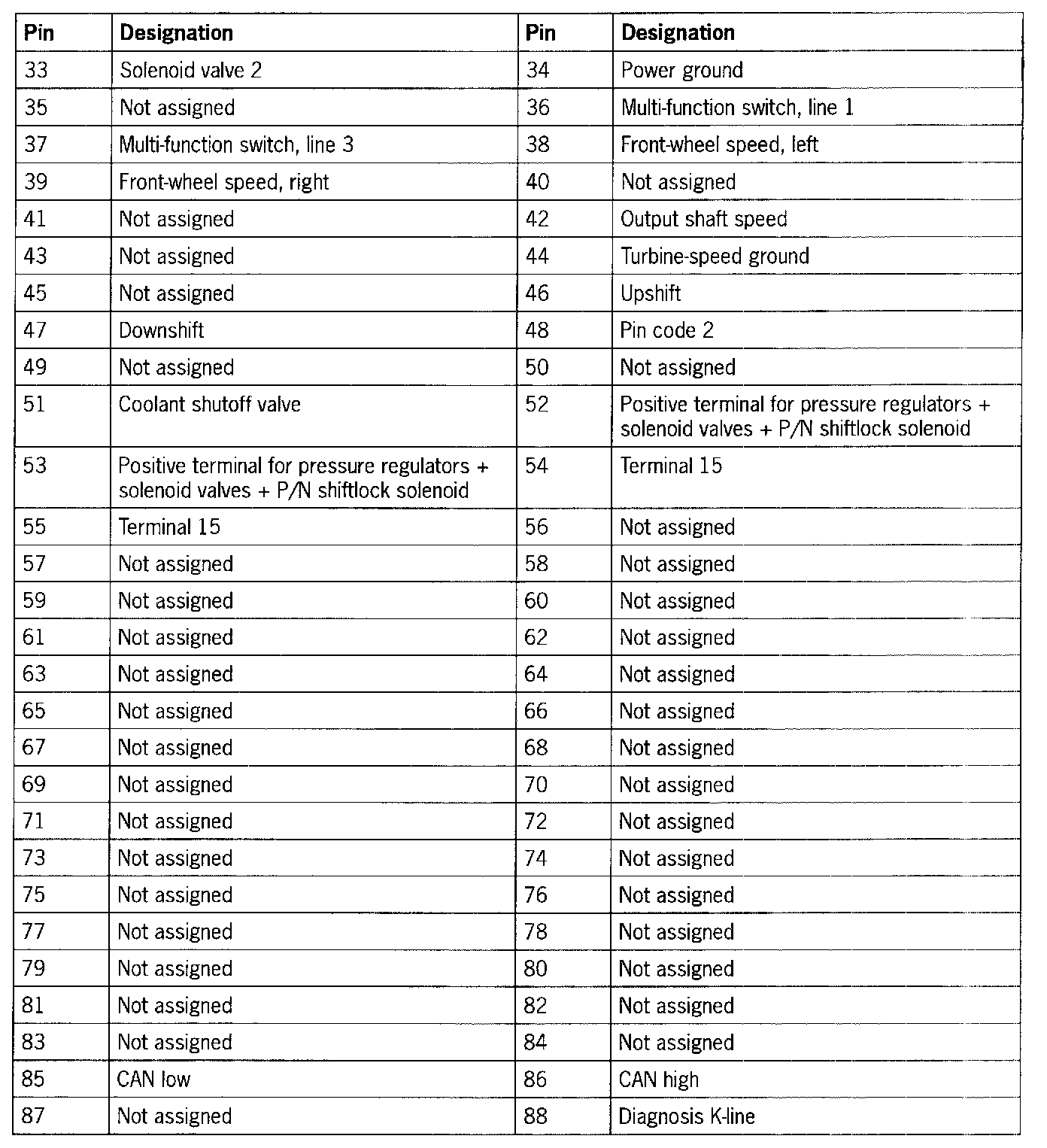

Pin 33 - 88:






Transmission connector







Transmission socket





Pin 1 - 16:
