Air Bag Control Module



Connector Assignment, Airbag

Wiring harness plugs for airbag triggering unit

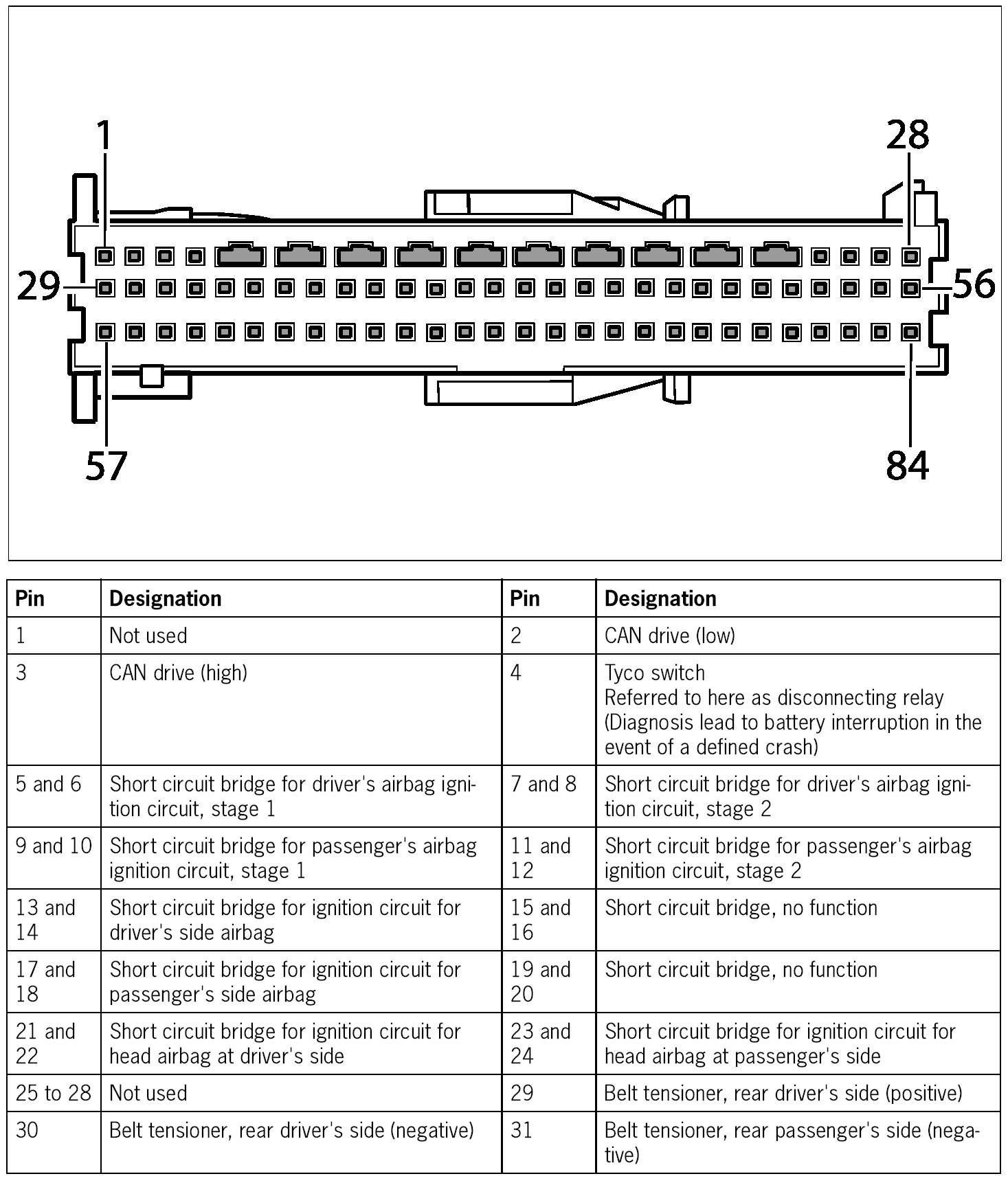

Part 1:

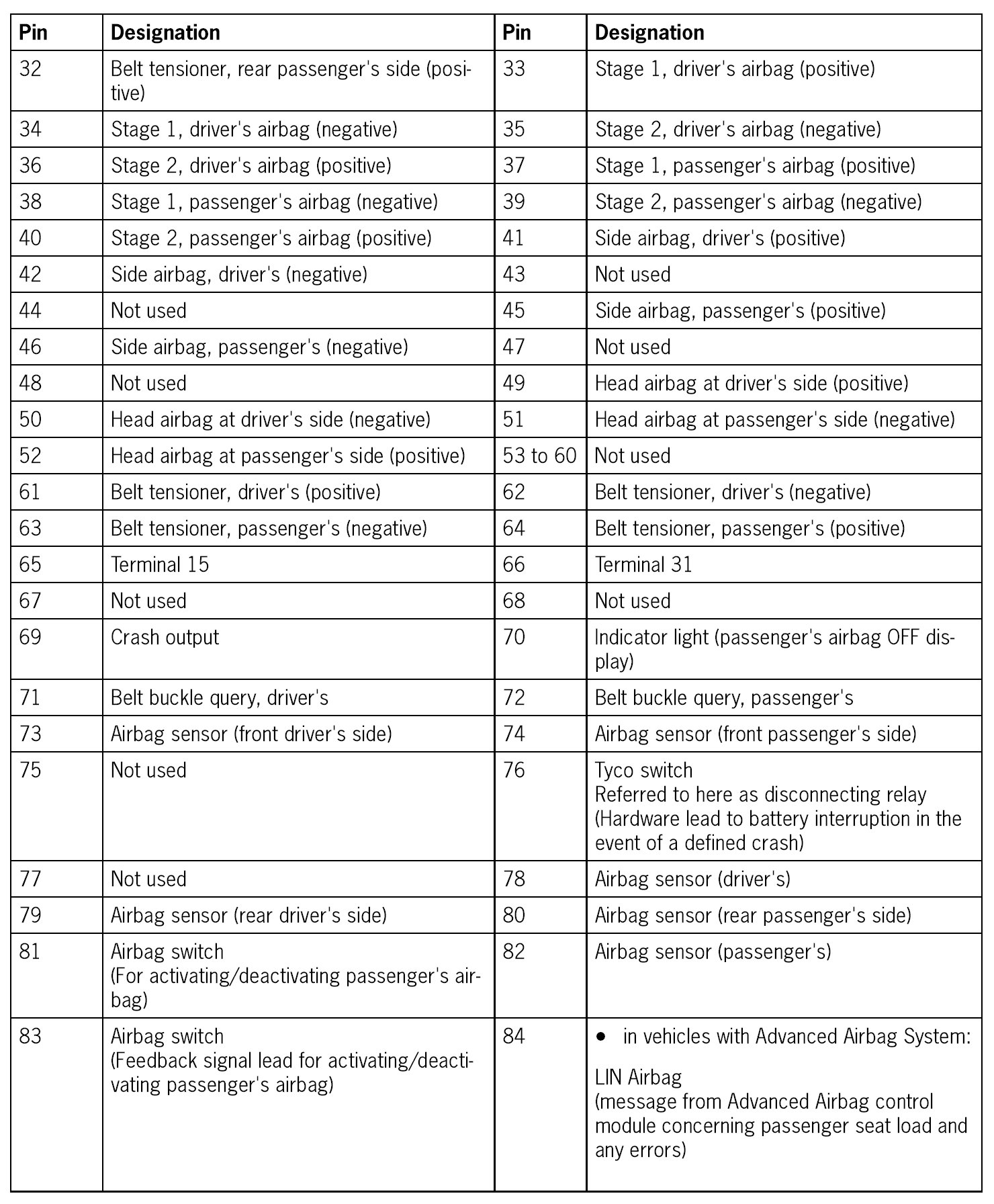

Part 2:
