Control Unit, Differential Lock



Connector Assignment - Transverse Lock Control Unit

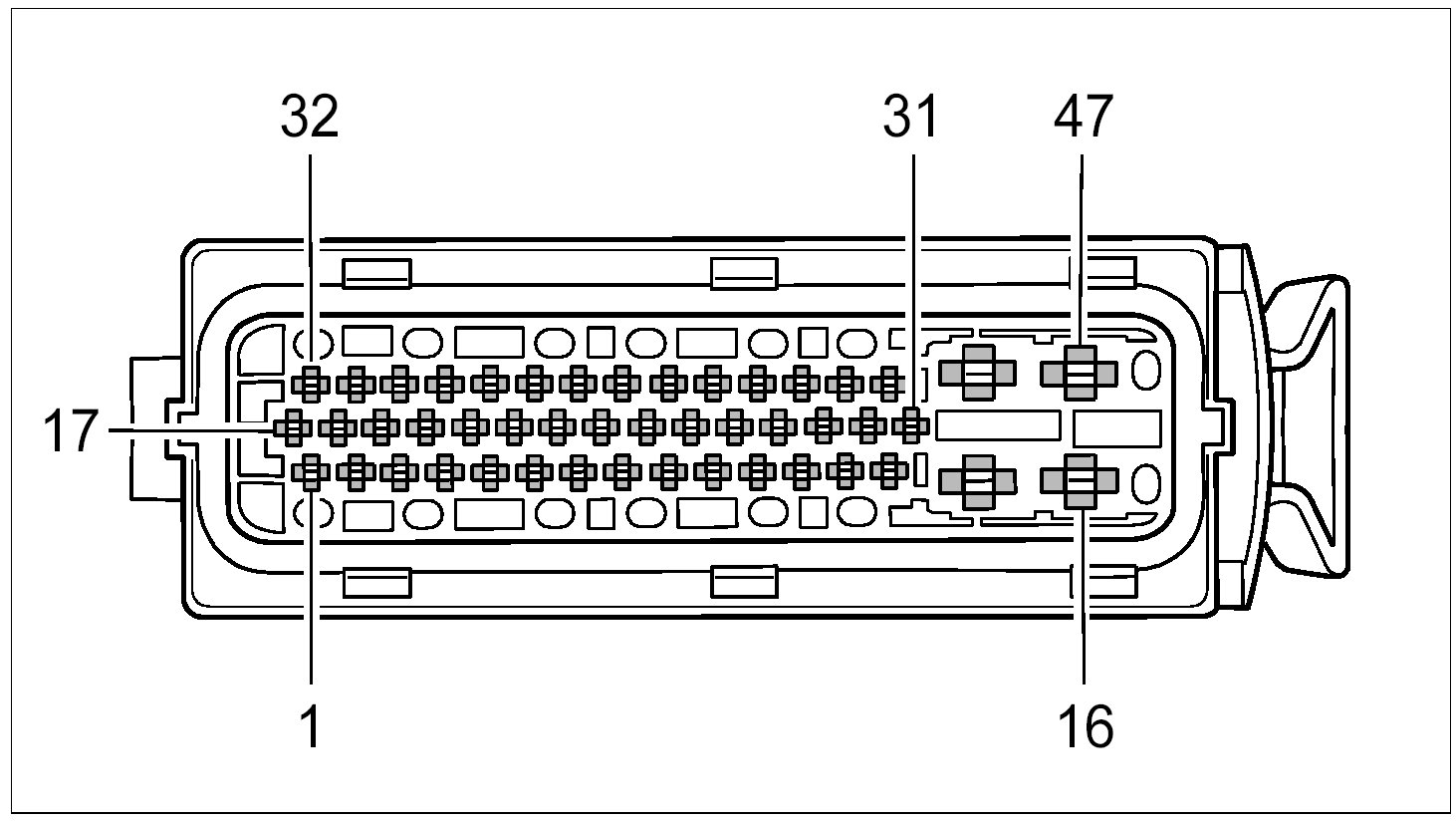

Plug '47-pin'

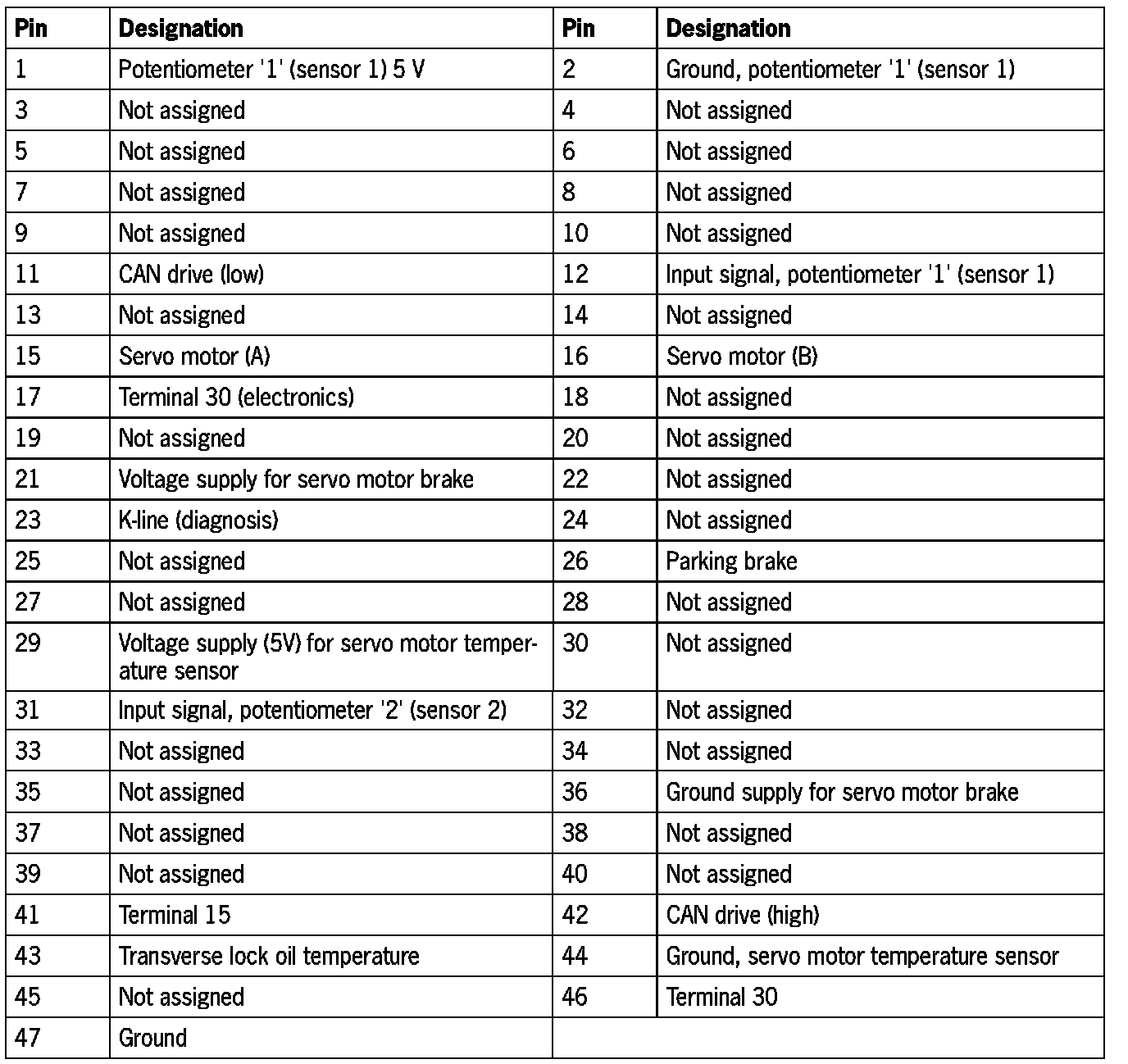

Part 1:




Part 2:

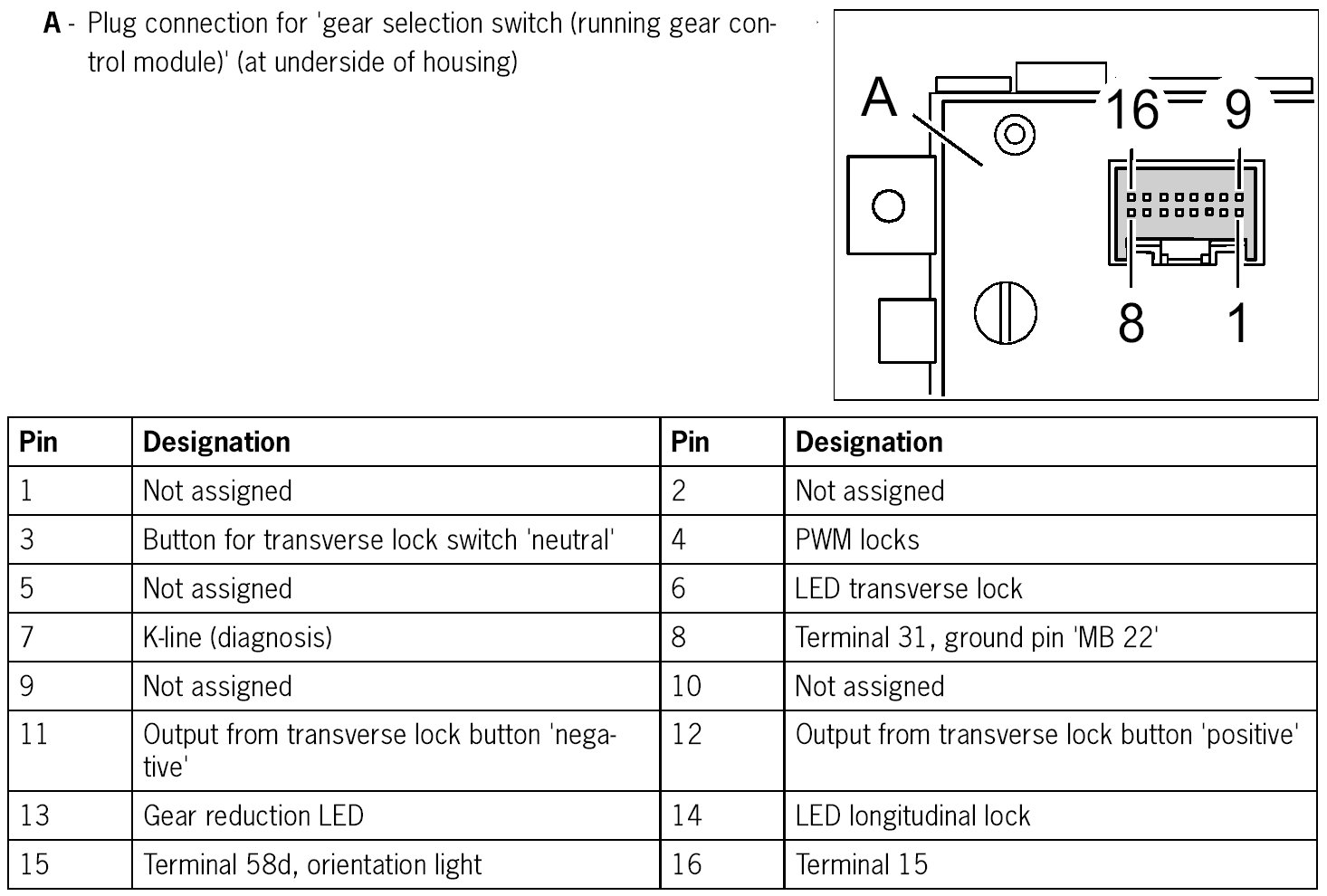

Gear selection switch connector assignment (running gear control module), '16-pin'
