Electronic Brake Control Module

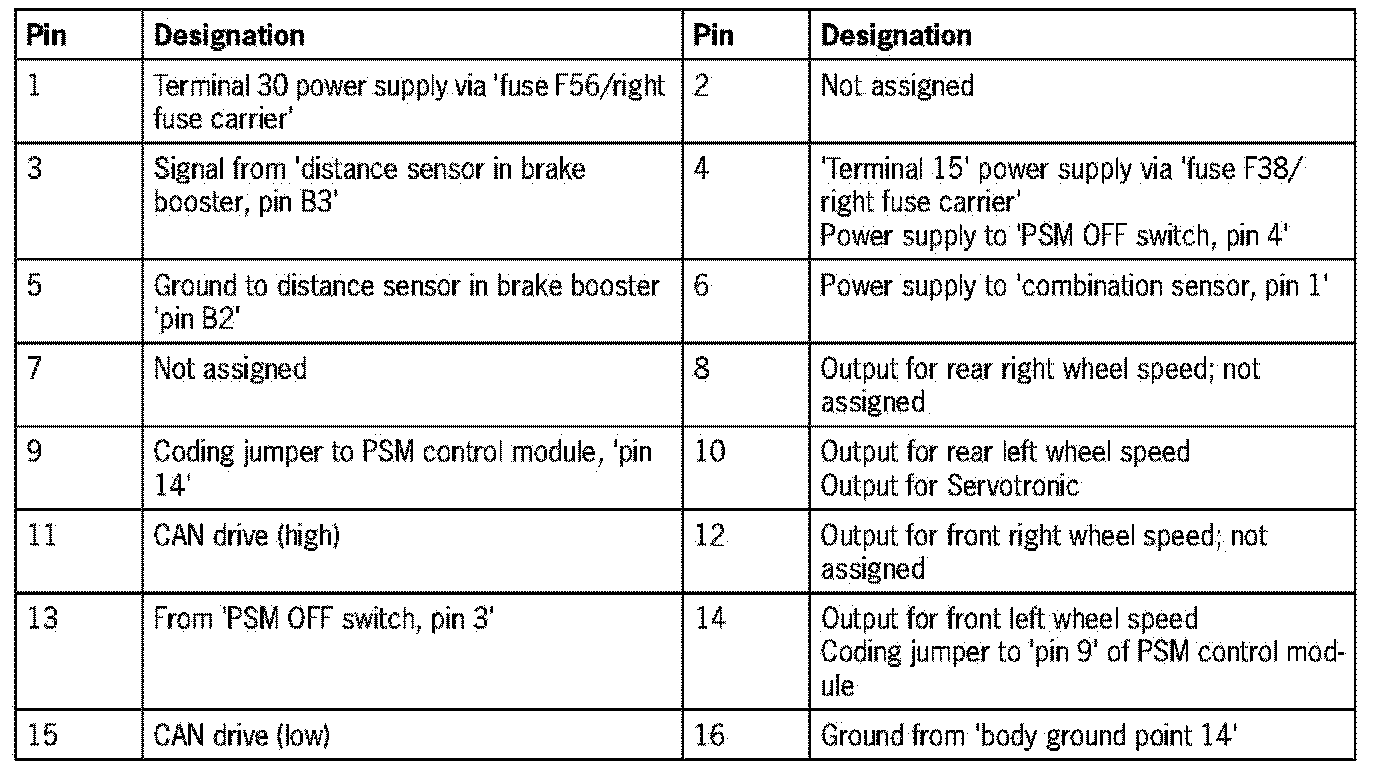

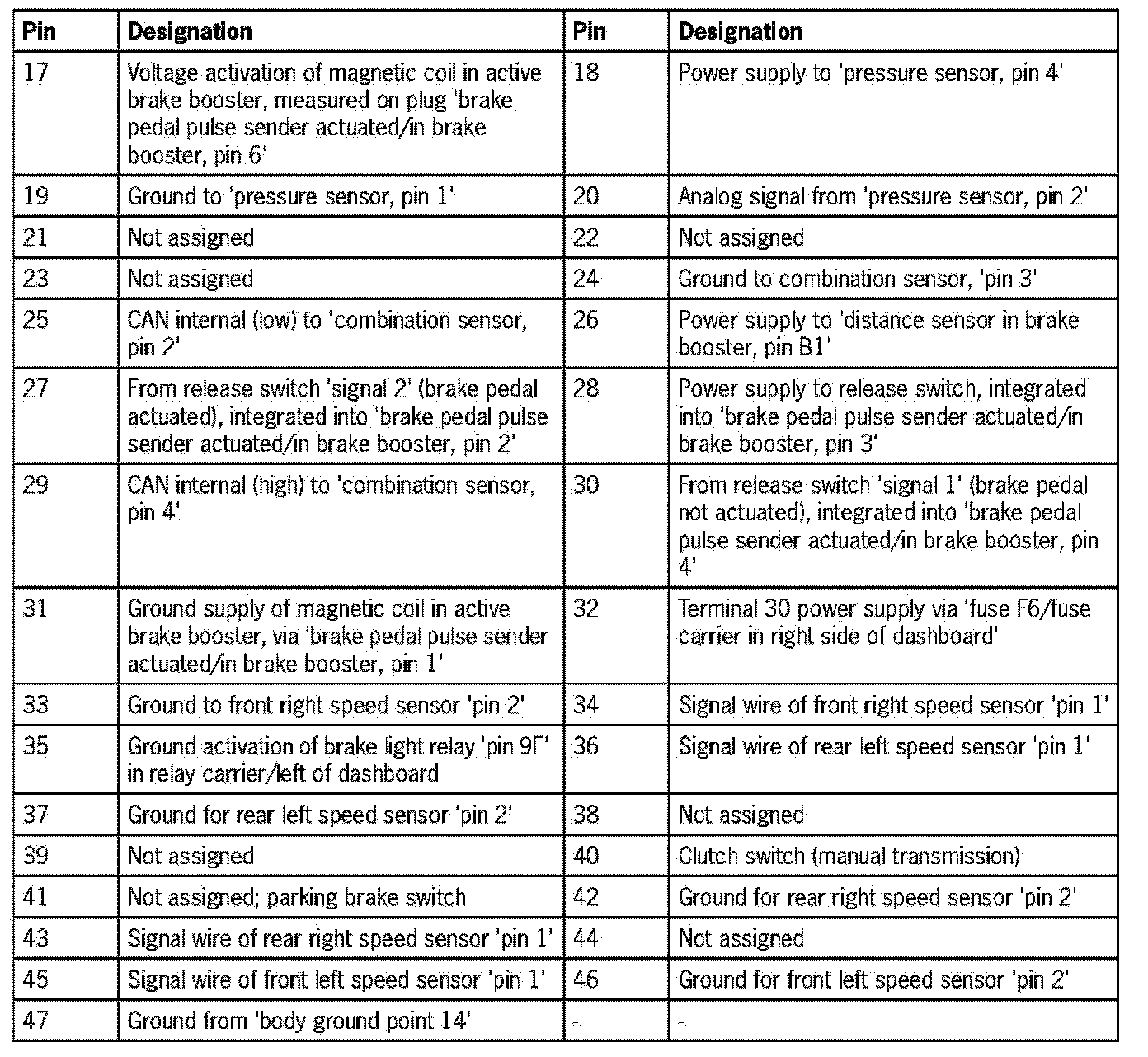

PSM 0101 connector assignment

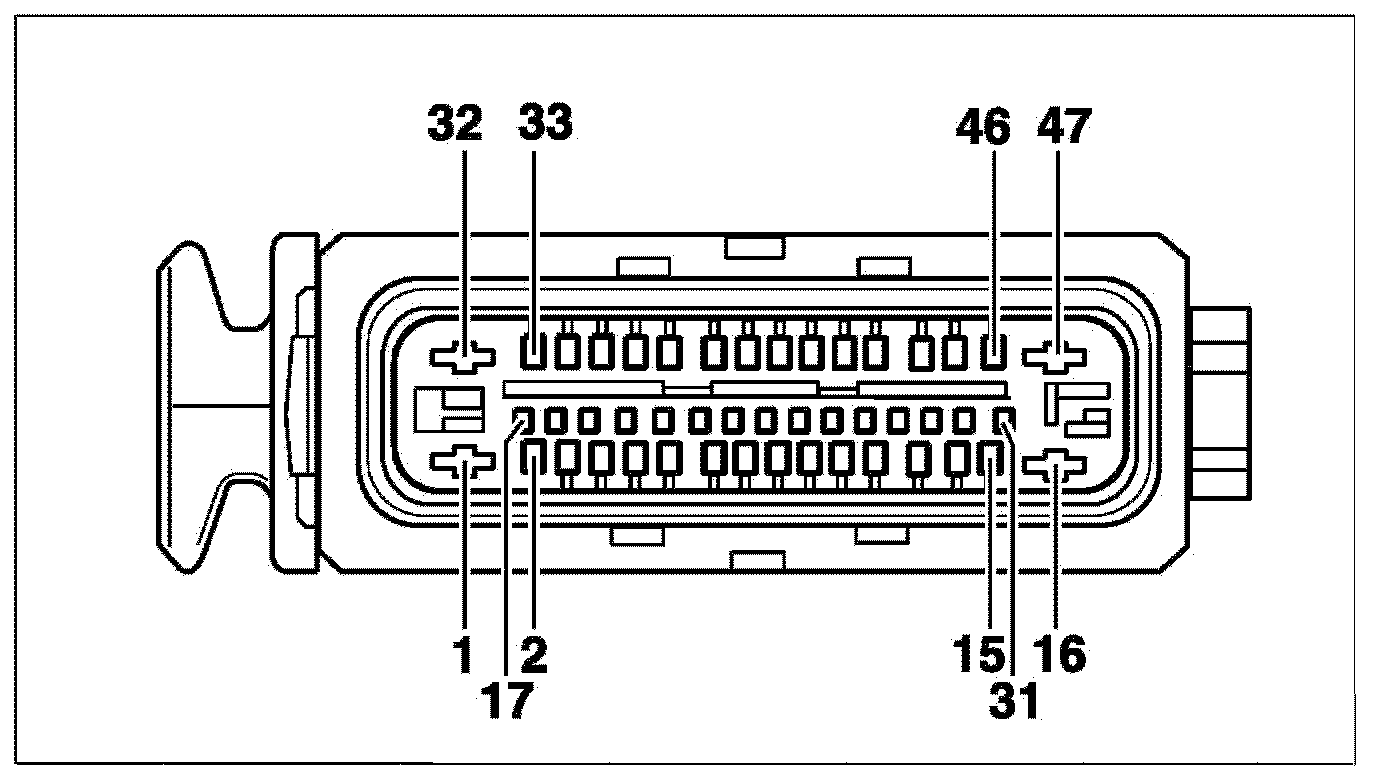

PSM control module plug













Ground points
- Ground point 14
- Ground point 21
- Ground point 22
- Ground point 23
