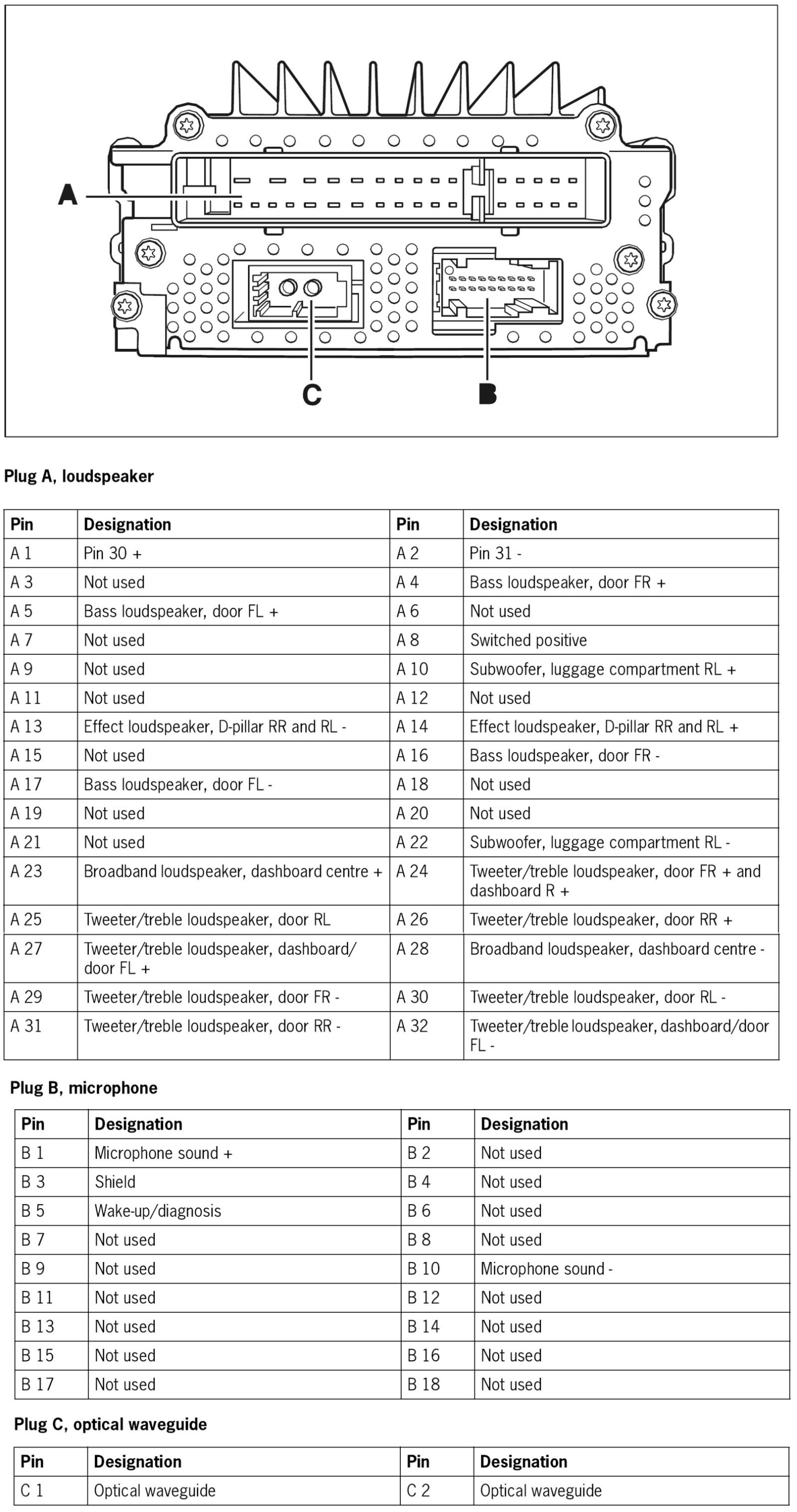

Connector Pin Assignment - External BOSE Amplifier
Connector Pin Assignment - External BOSE Amplifier
Connector pin assignment
