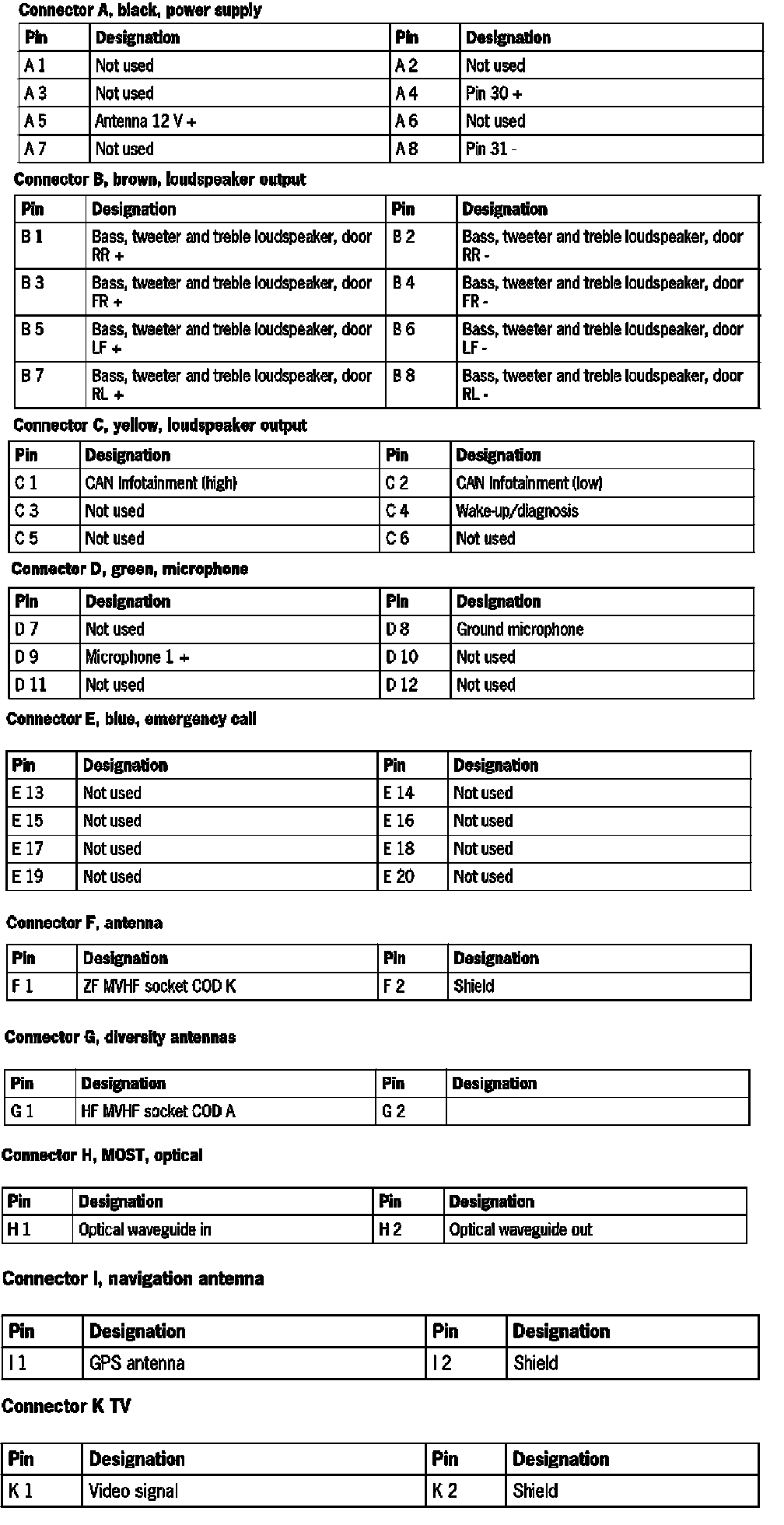

Connector Pin Assignment - PCM2
Connector Pin Assignment - PCM2

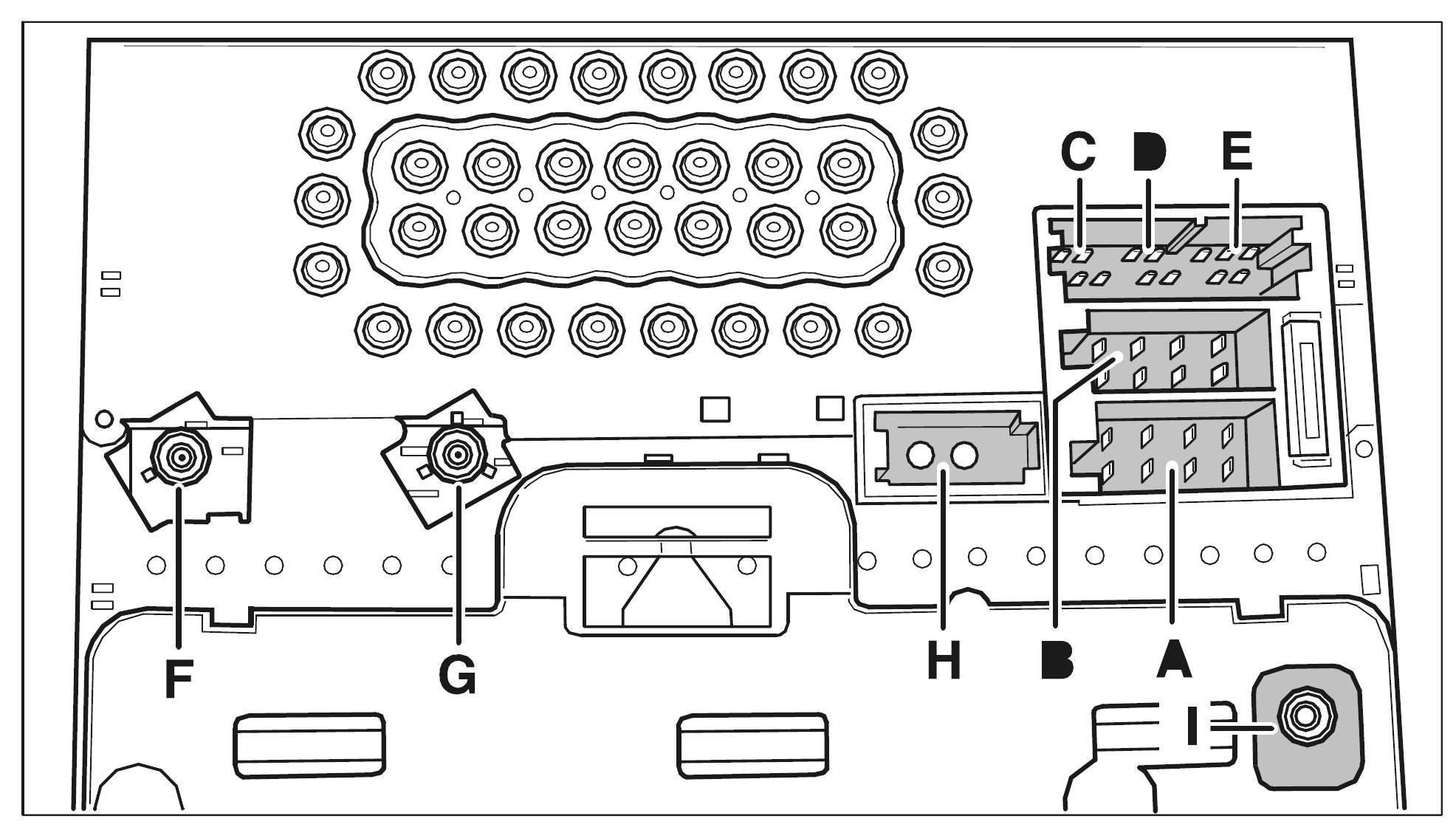

Connector assignment - gateway
Part 1:
Part 2:
Part 3:
