PCM2/CDR23 Connector Assignment



PCM2/CDR23 Connector Assignment

Connector assignments

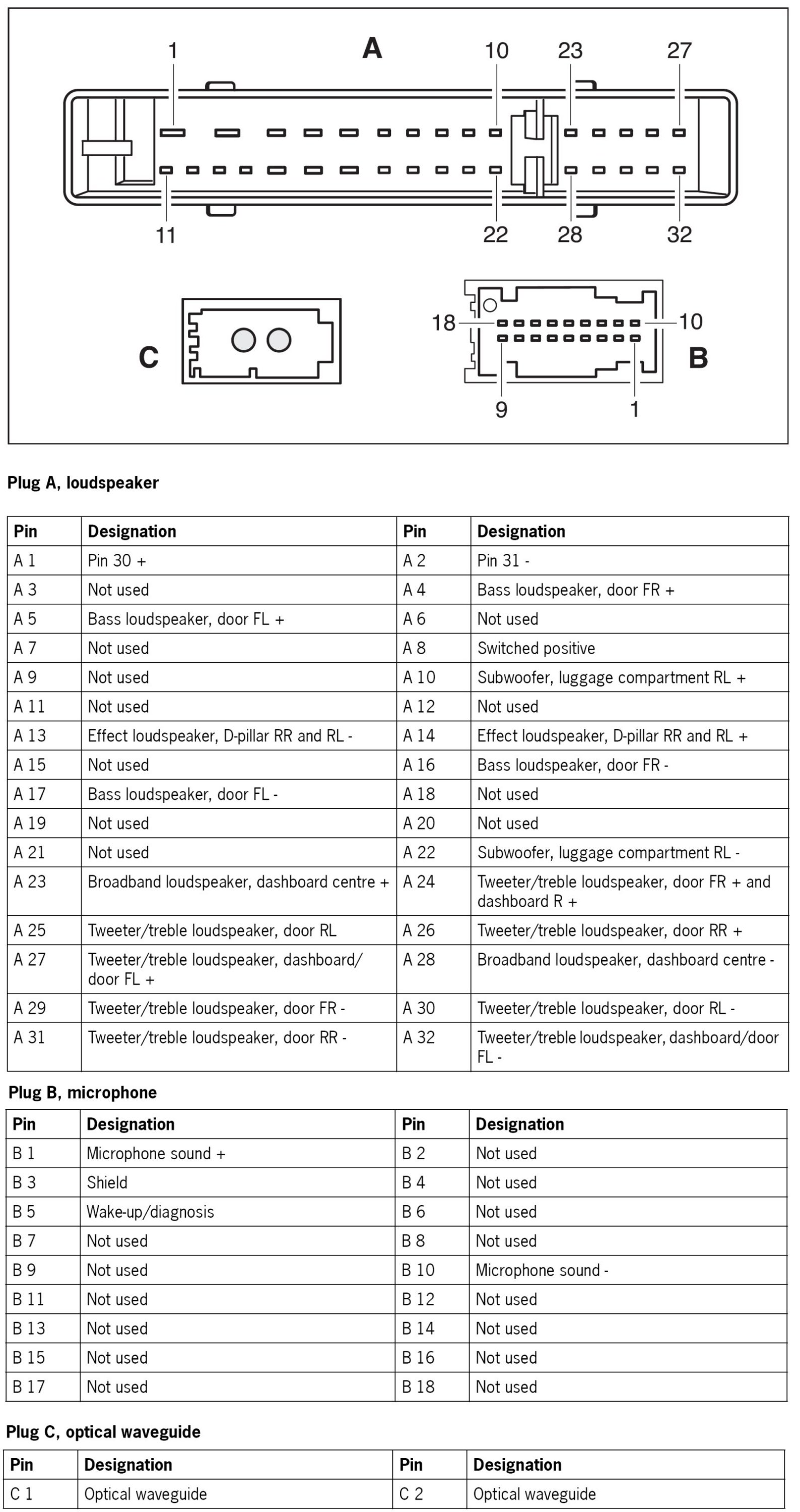

Connector pin assignments - external BOSE amplifier

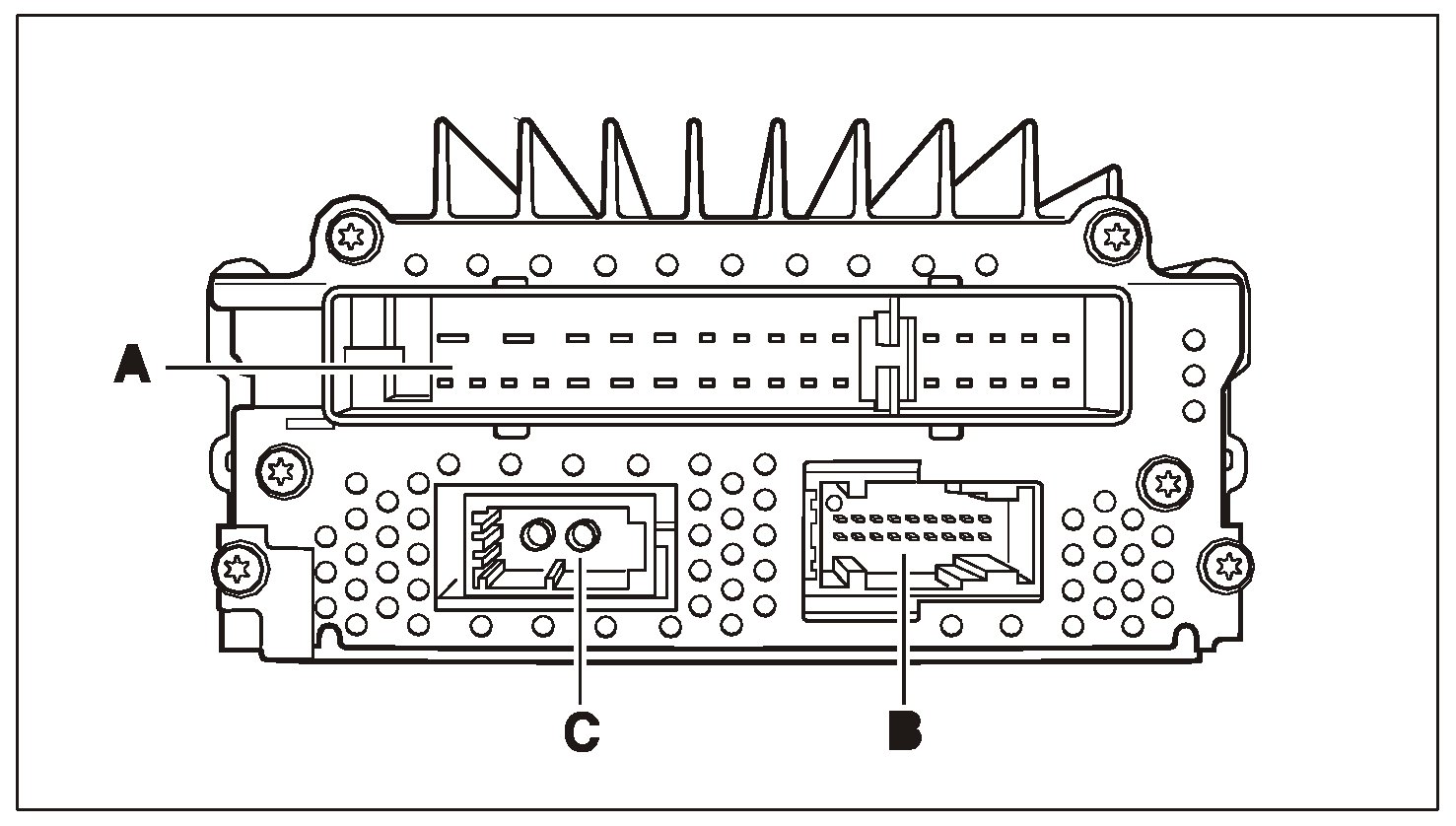

CDR23 connector assignment


Part 1:




Part 2:

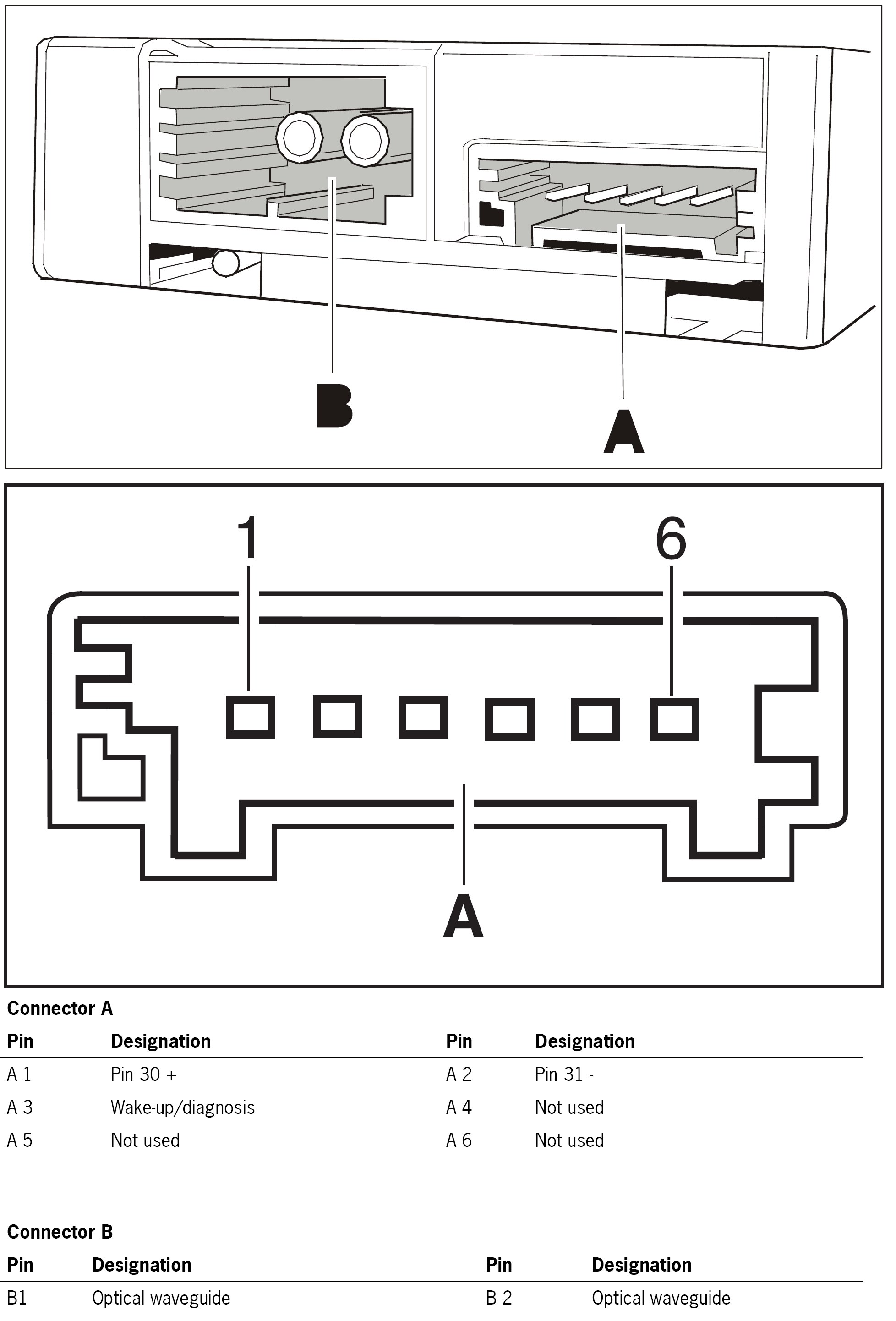

CD changer plug connections

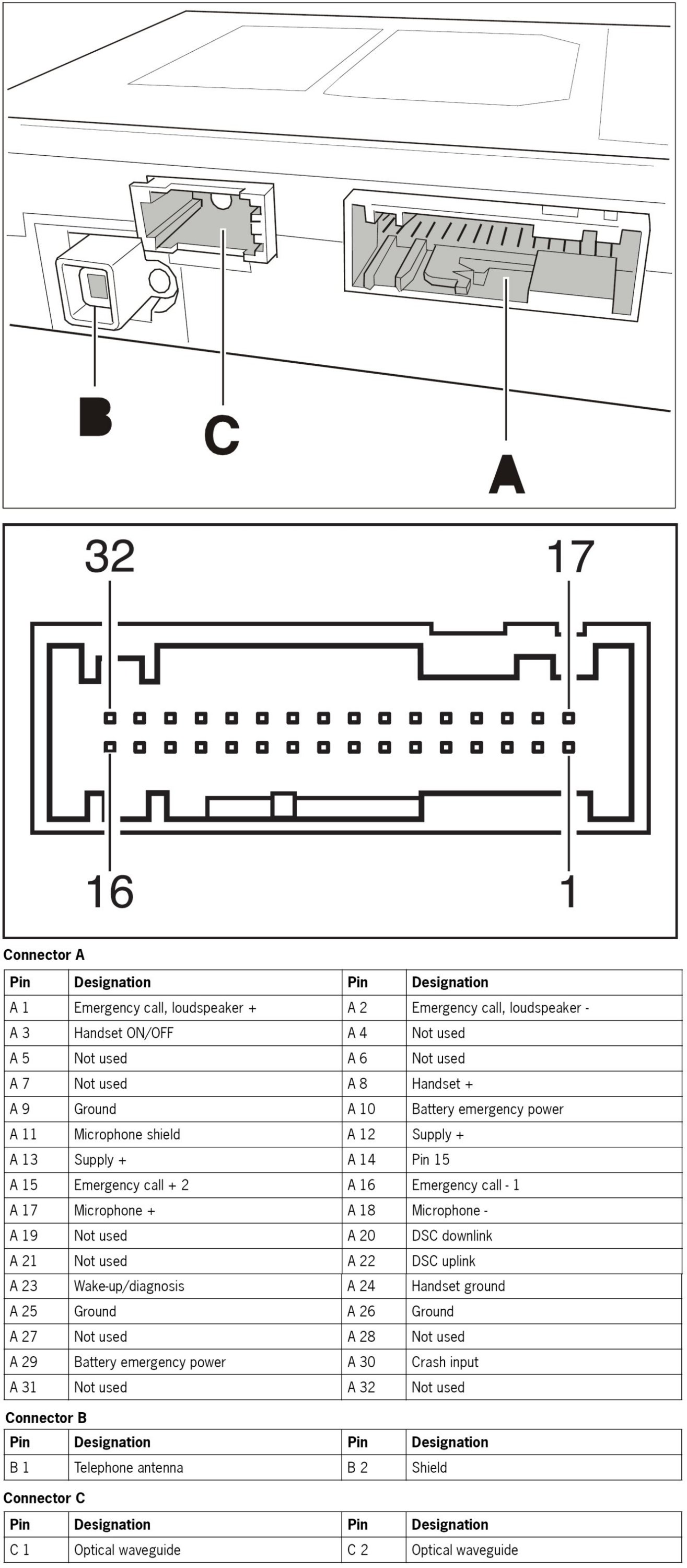

Telephone/telematics connector assignment

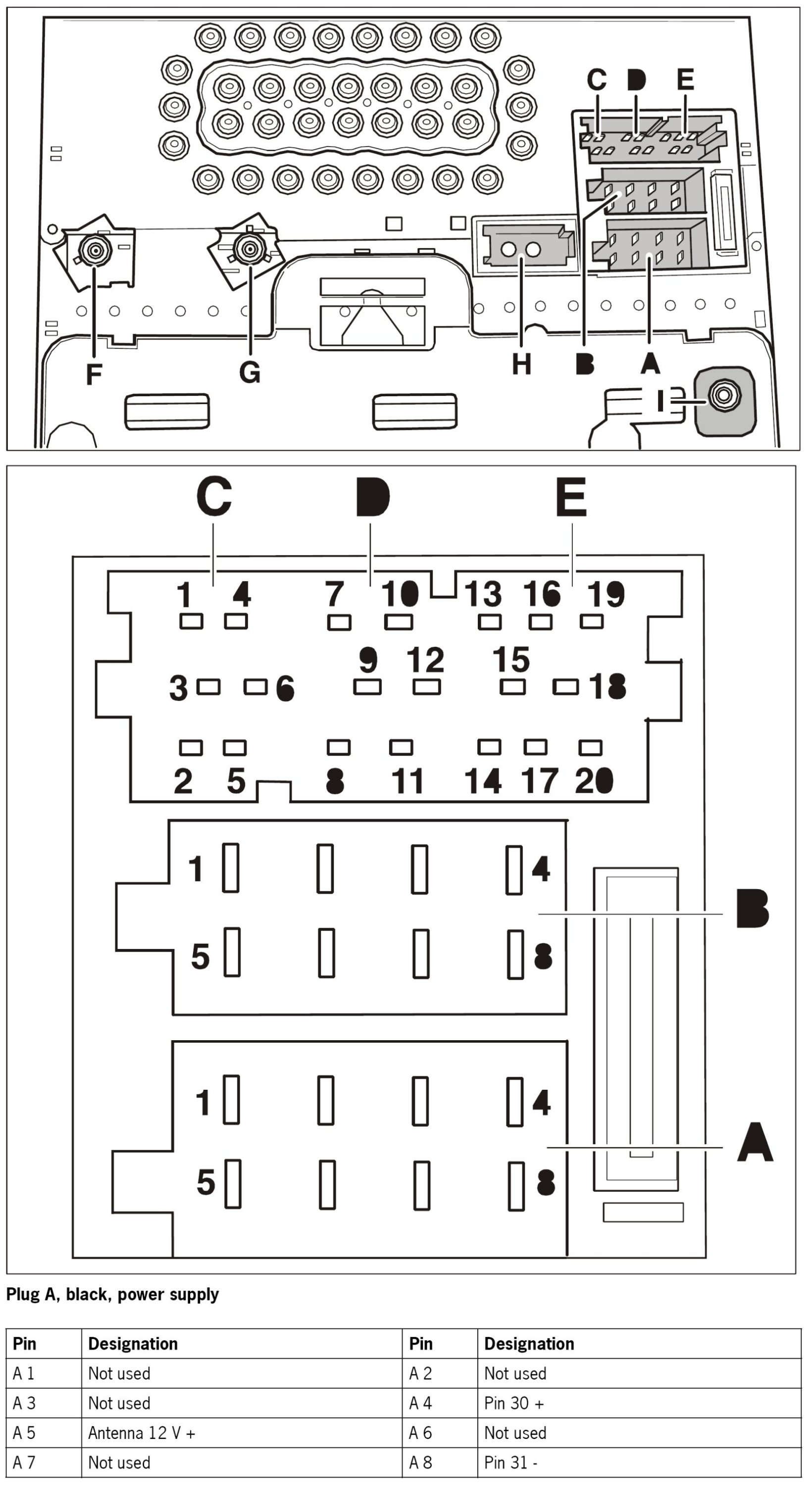

PCM2 plug connection

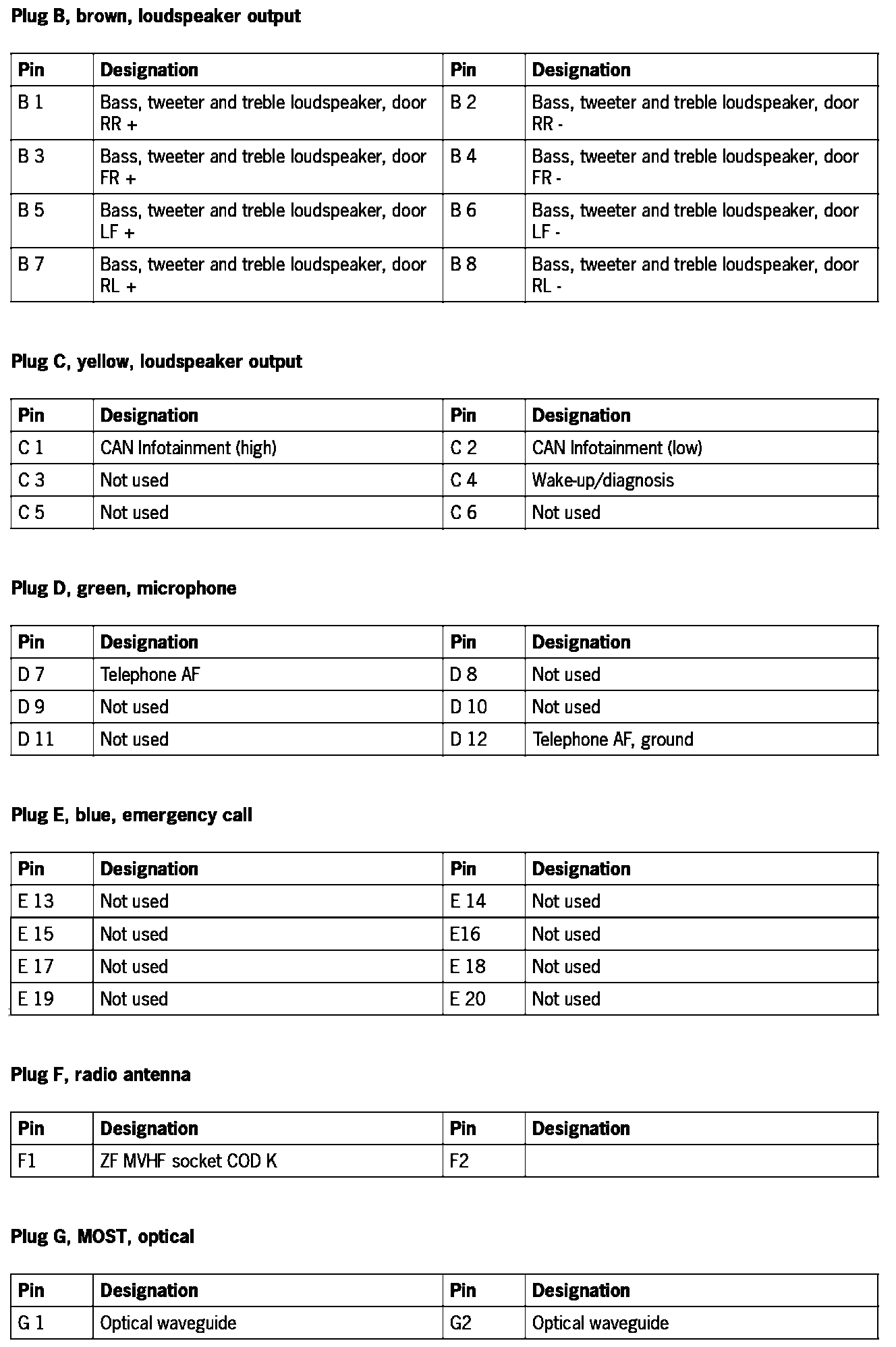

Part 1:

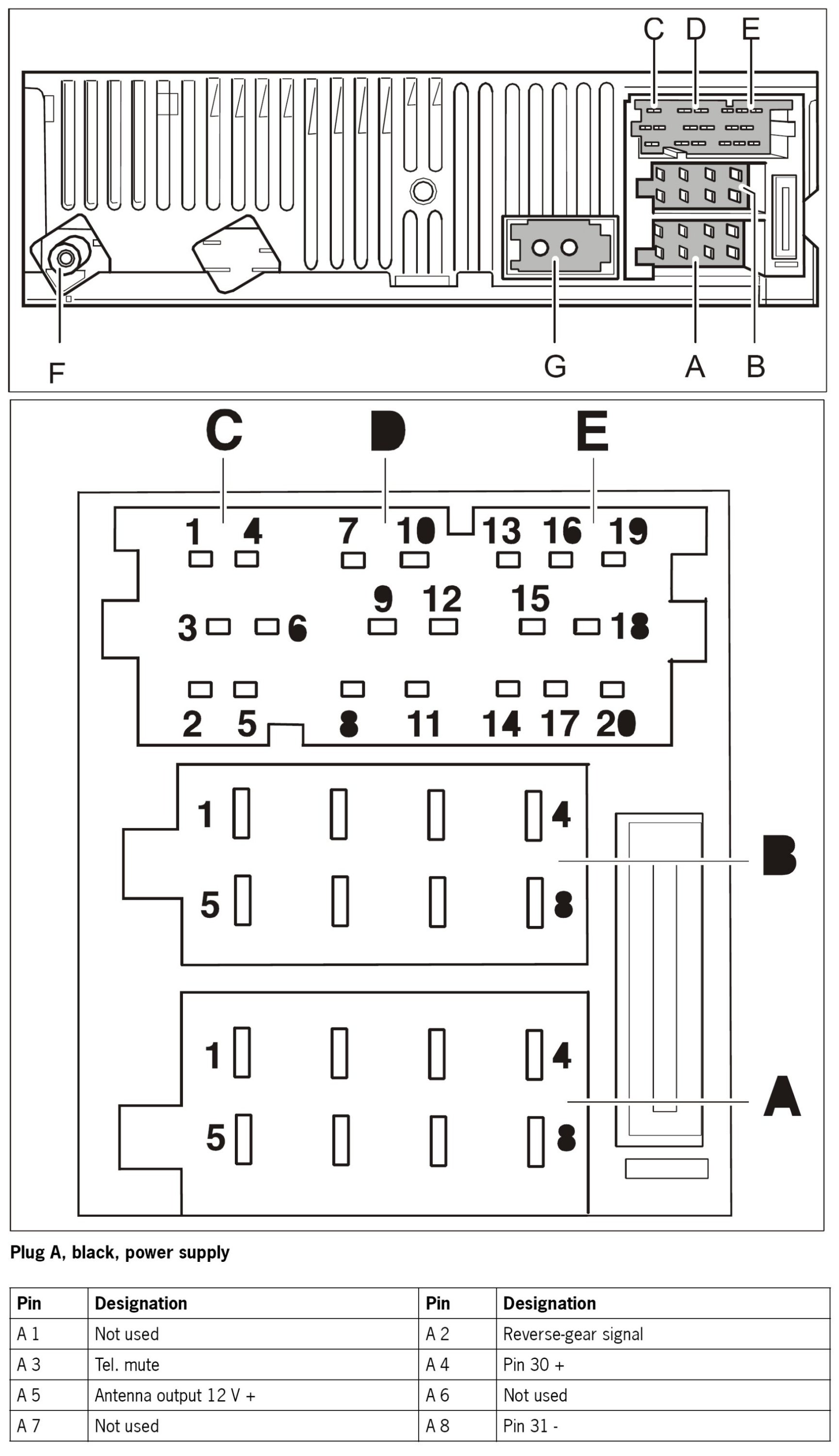

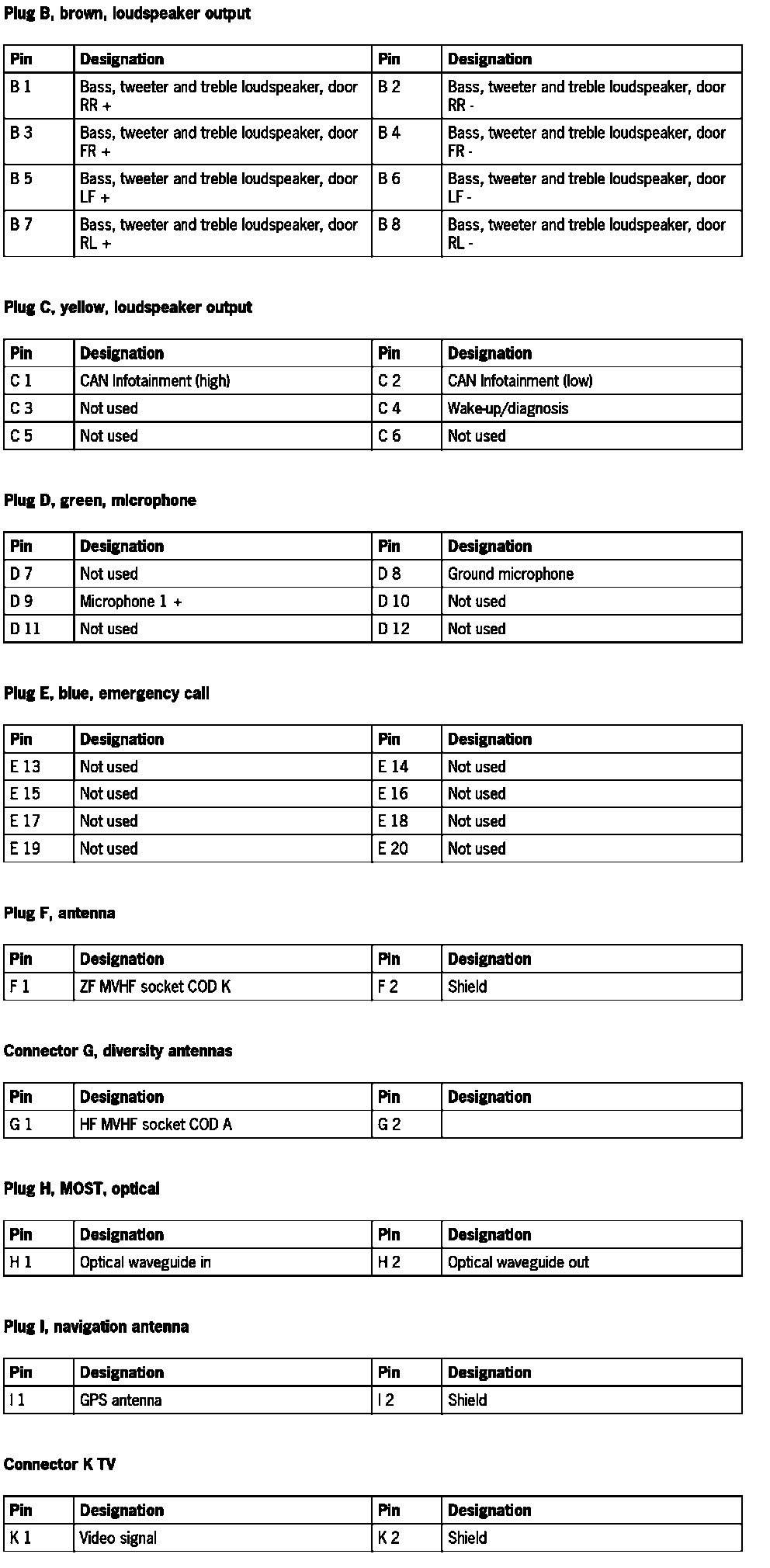

Part 2:
