Level Control Module

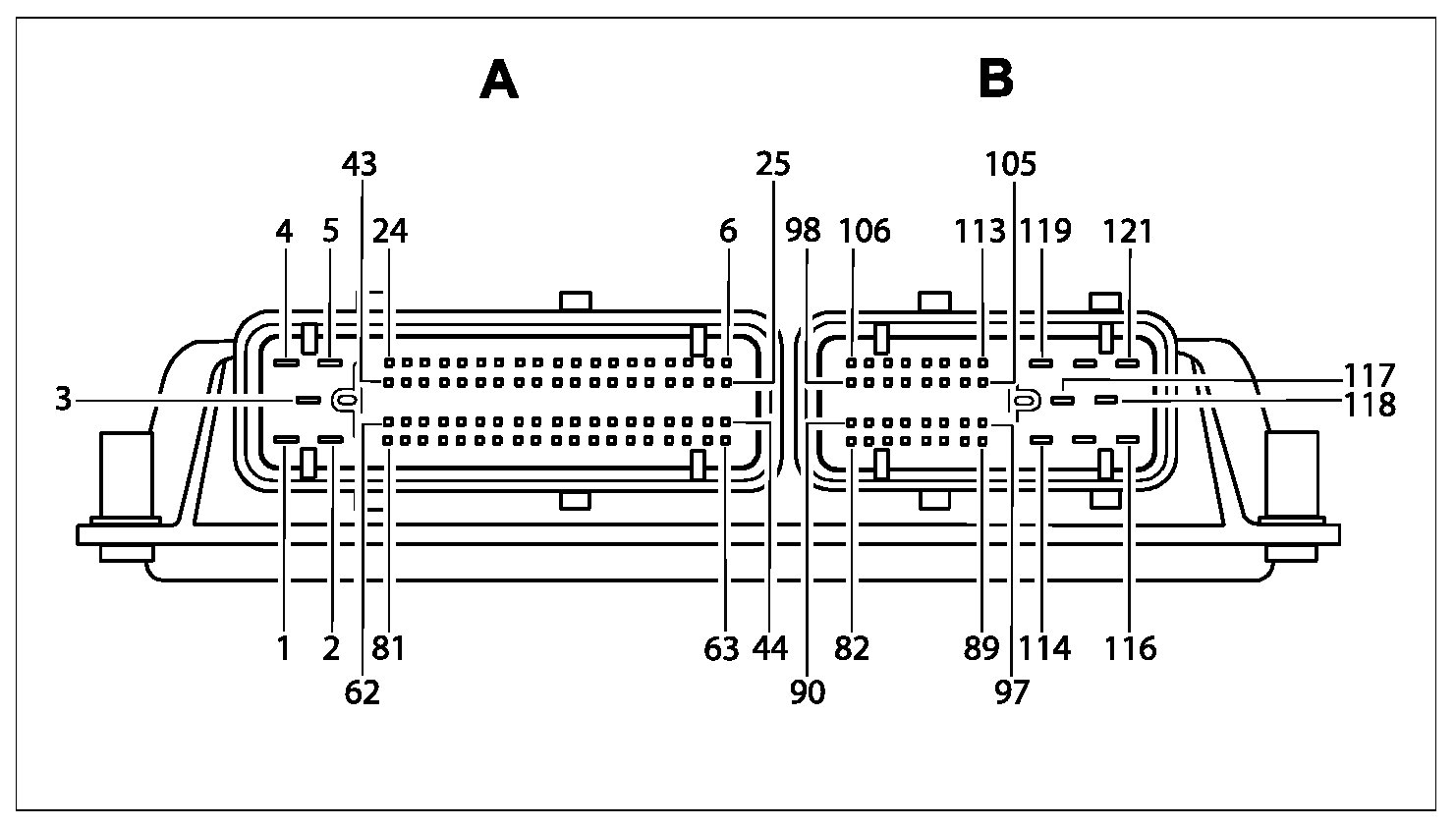

Connector Assignment

Level control module

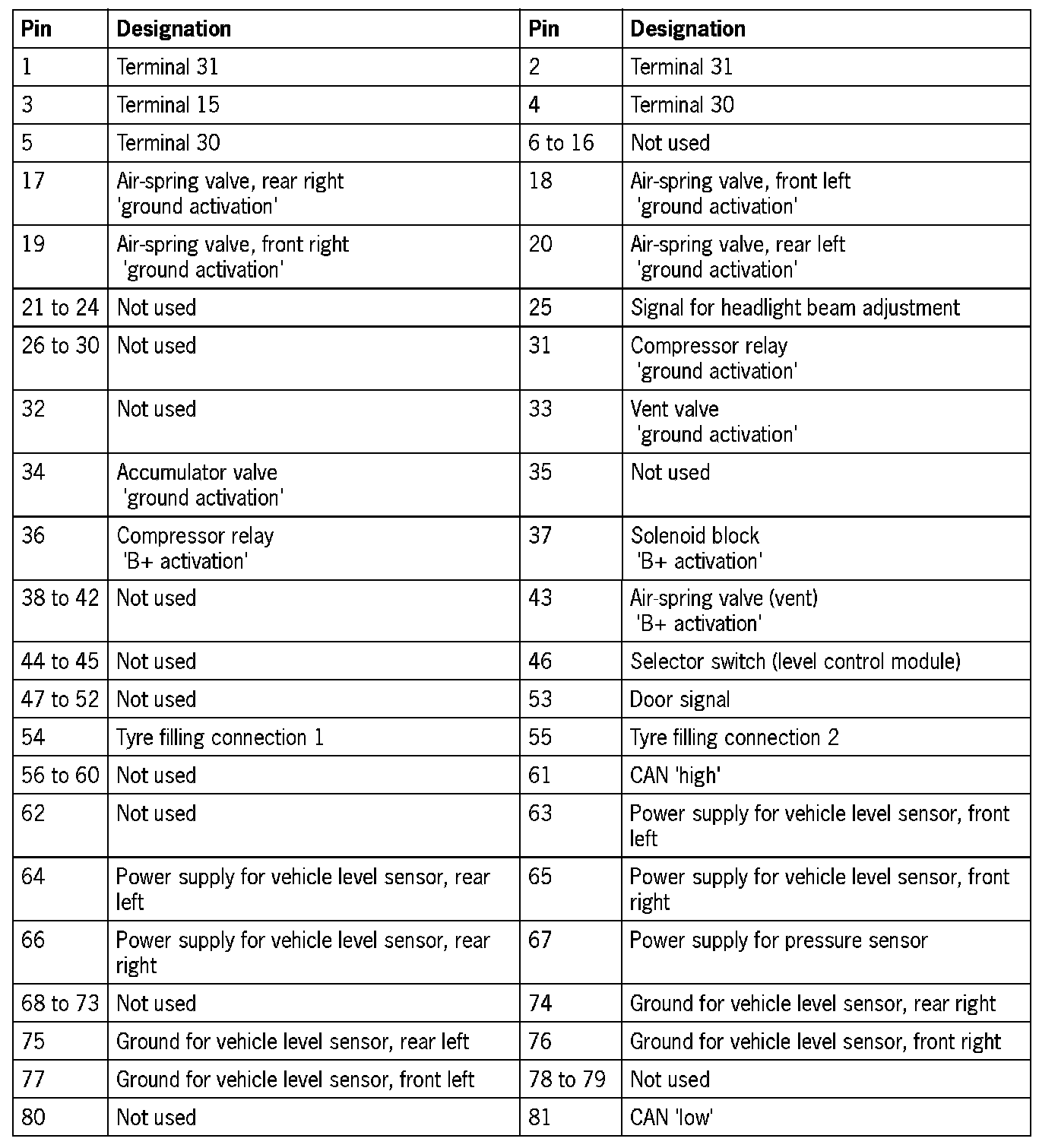

Wiring harness plug A, 81-pin, level control module

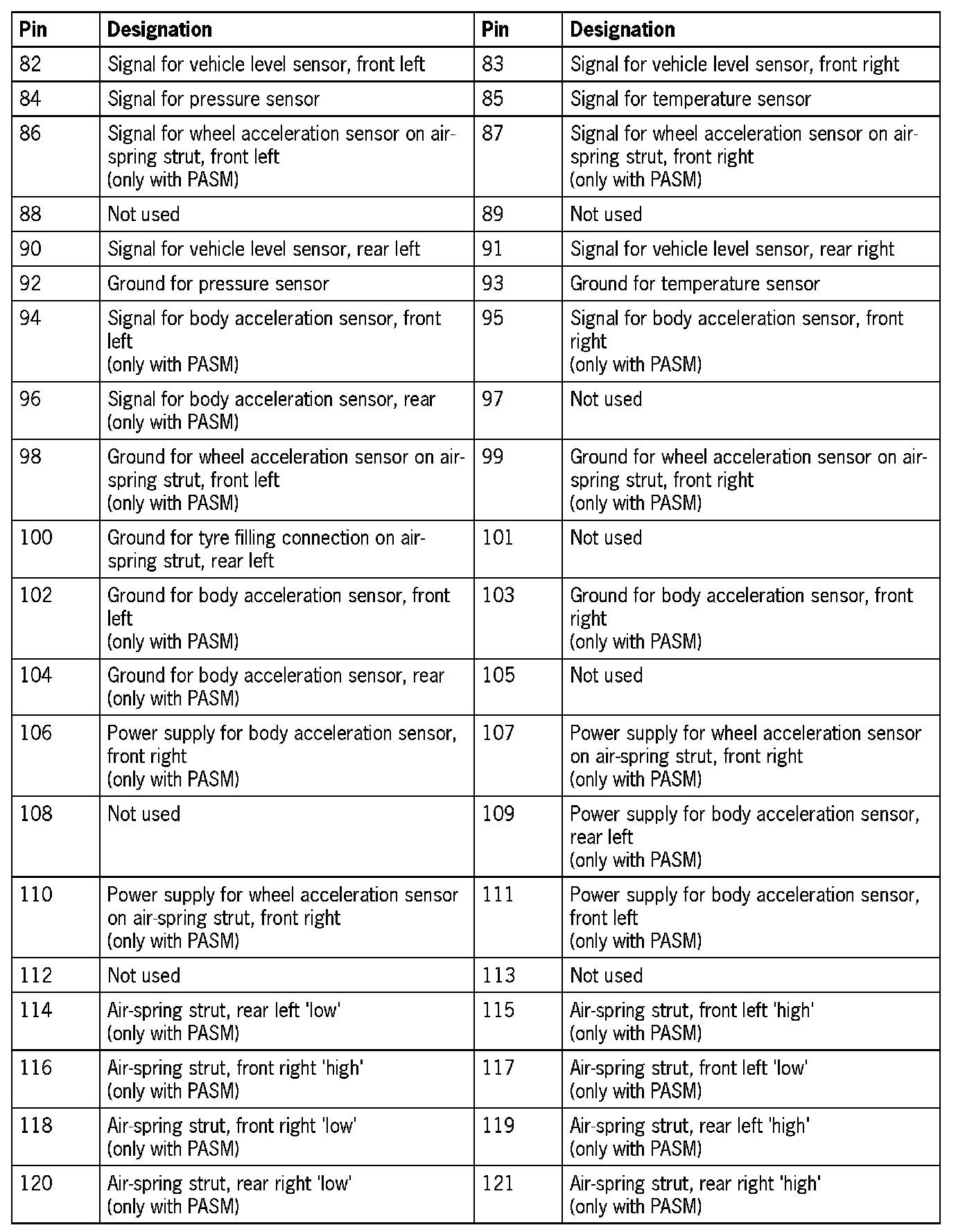

Wiring harness plug B, 40-pin, level control module (pin assignment includes PASM)
