Tire Pressure Module



Connector Assignment

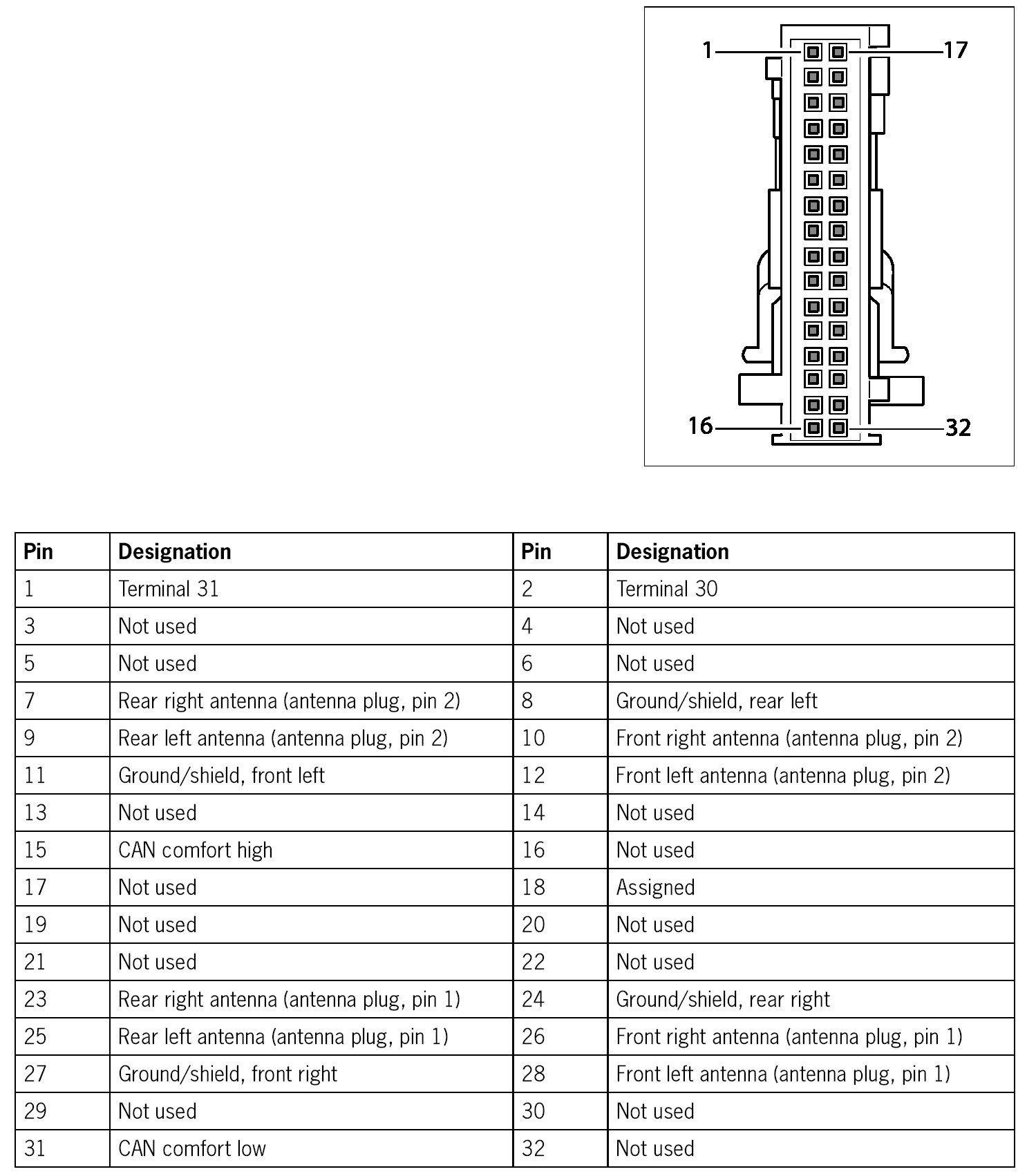

Connector assignment for monitoring tire pressure







Plug for tire pressure monitoring control module, 32-pin
