Engine Control Module

Connector pin assignment of DME 7.1.1

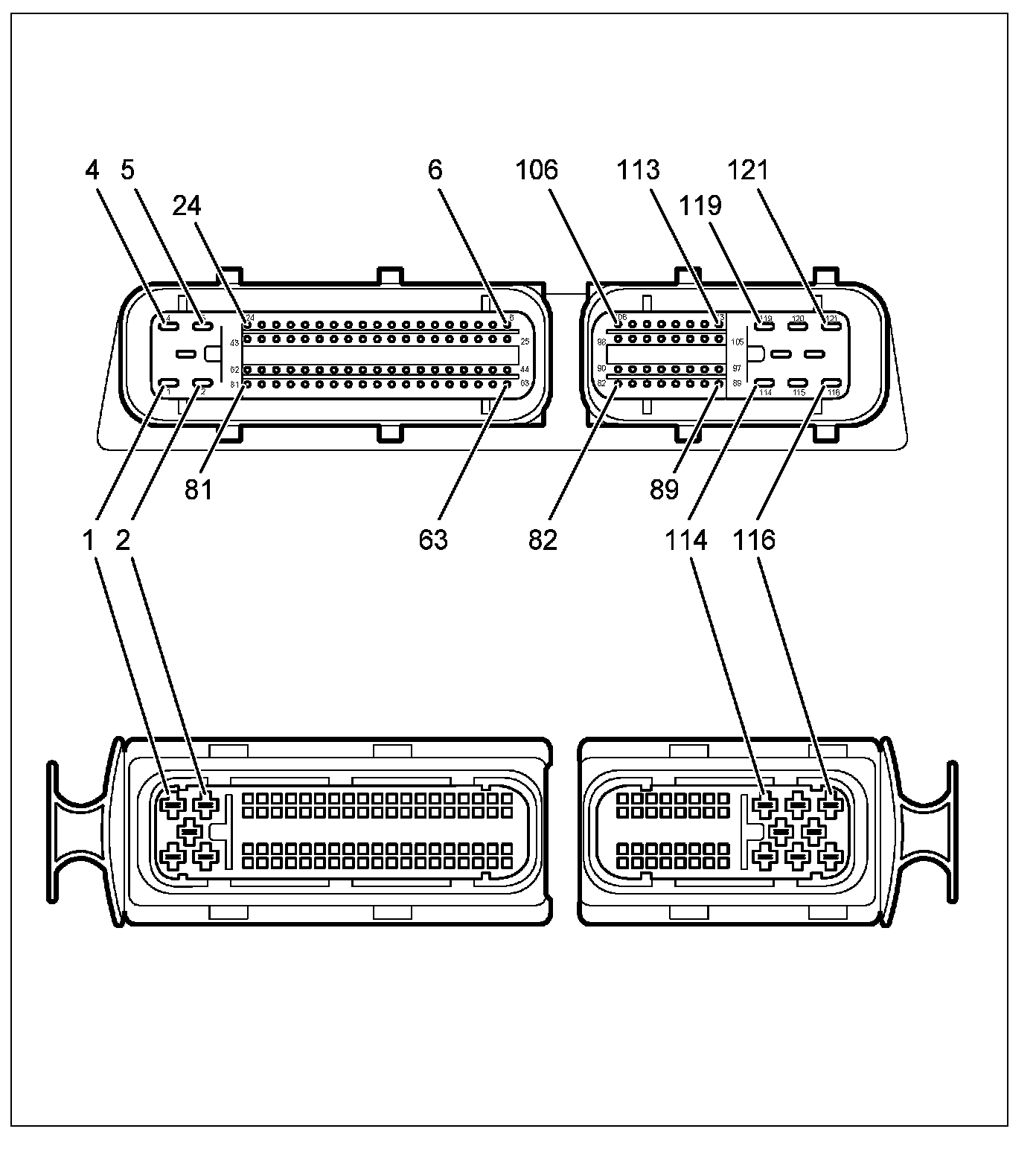

Control module and connectors






Connector assignment - Cayenne V8

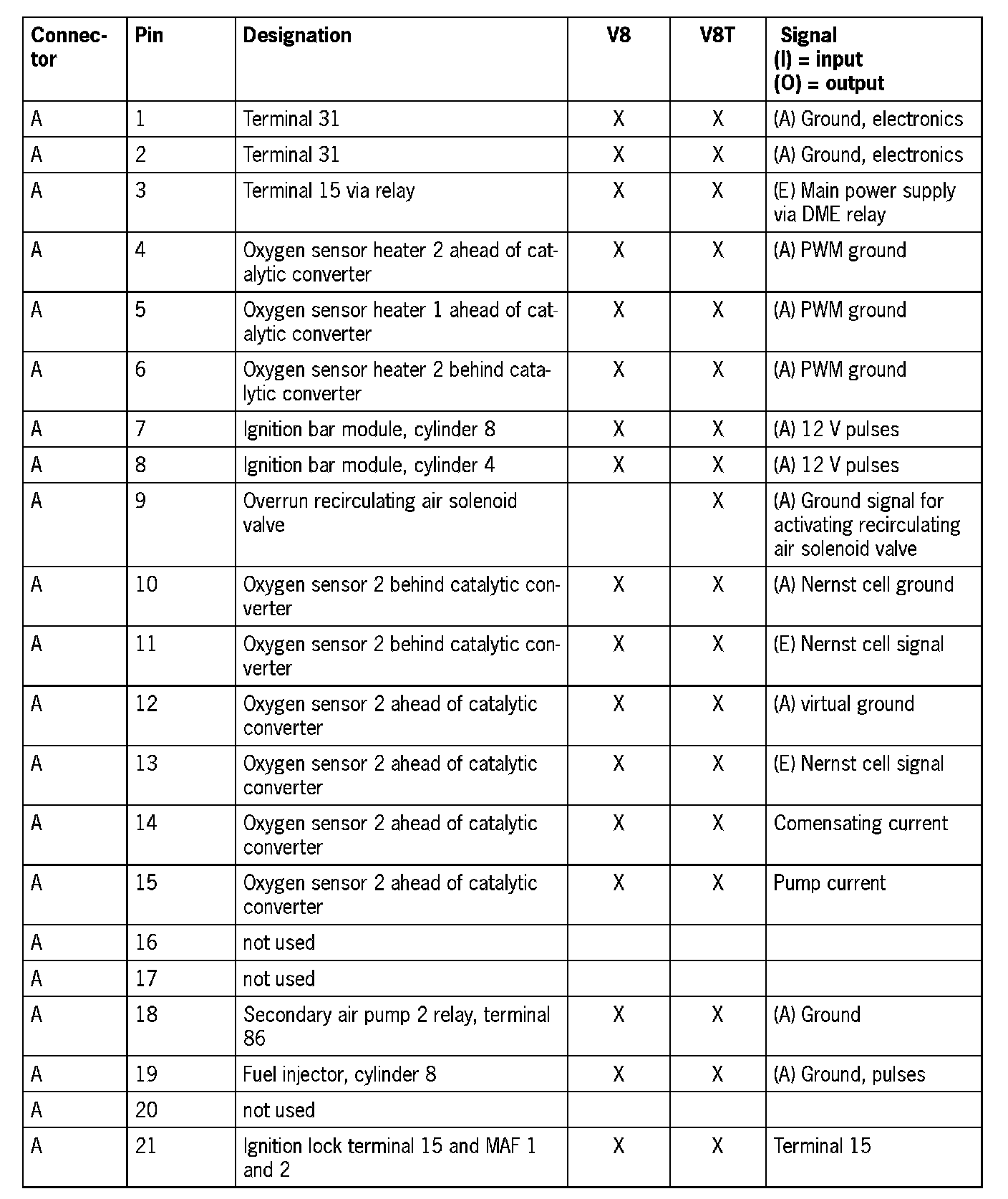

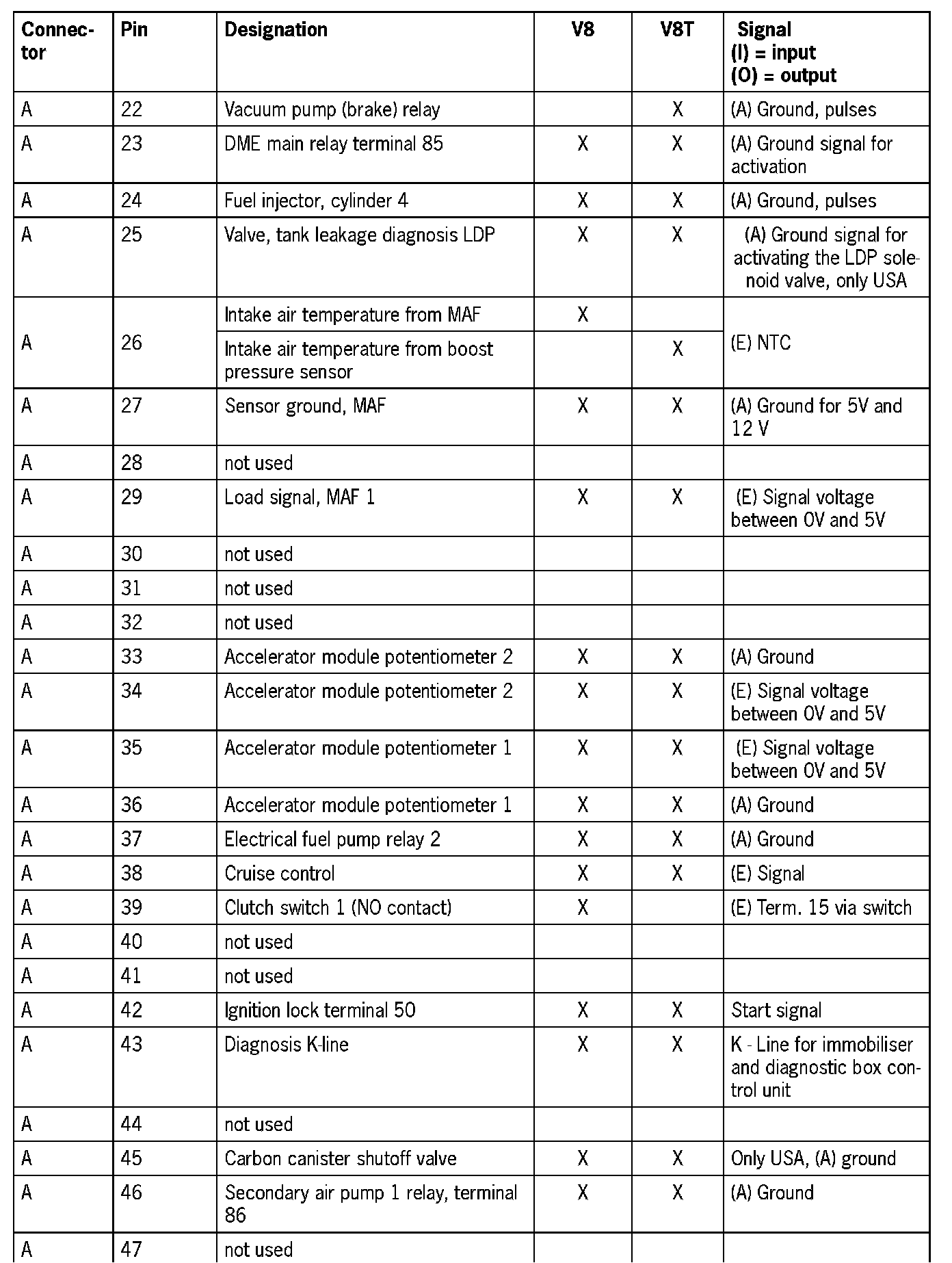

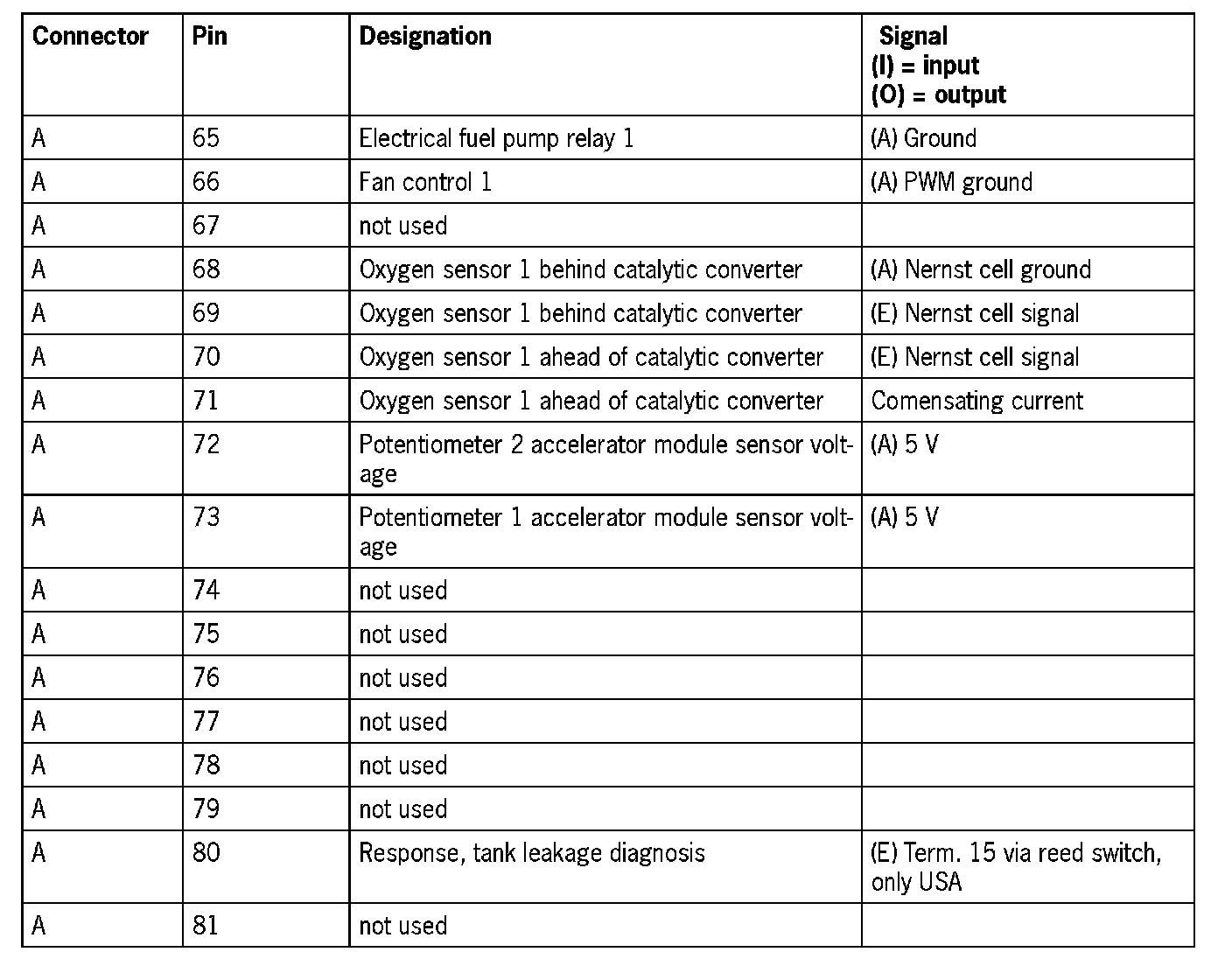

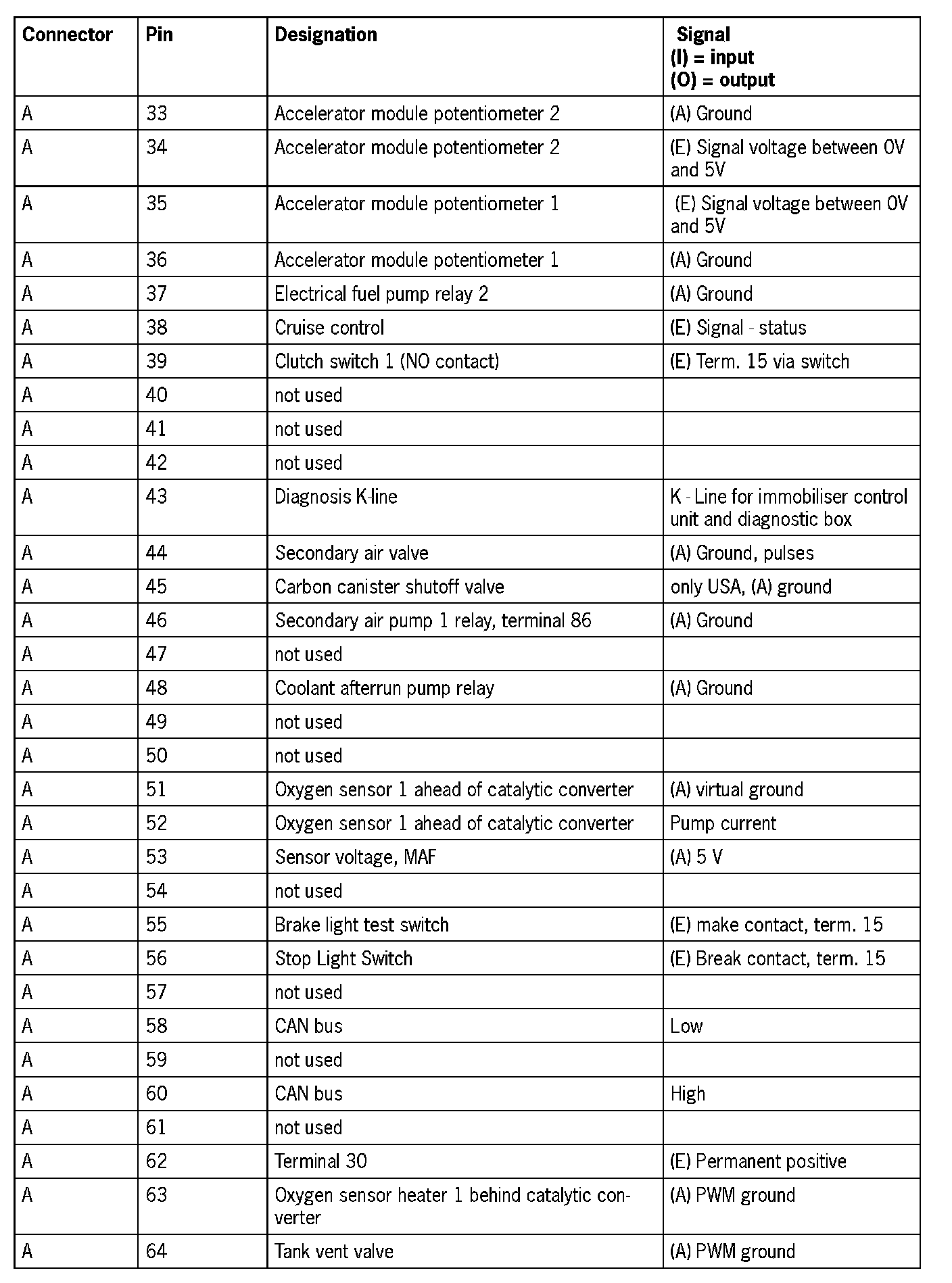

Connector A on control module DME 7.1.1 - 81-pole

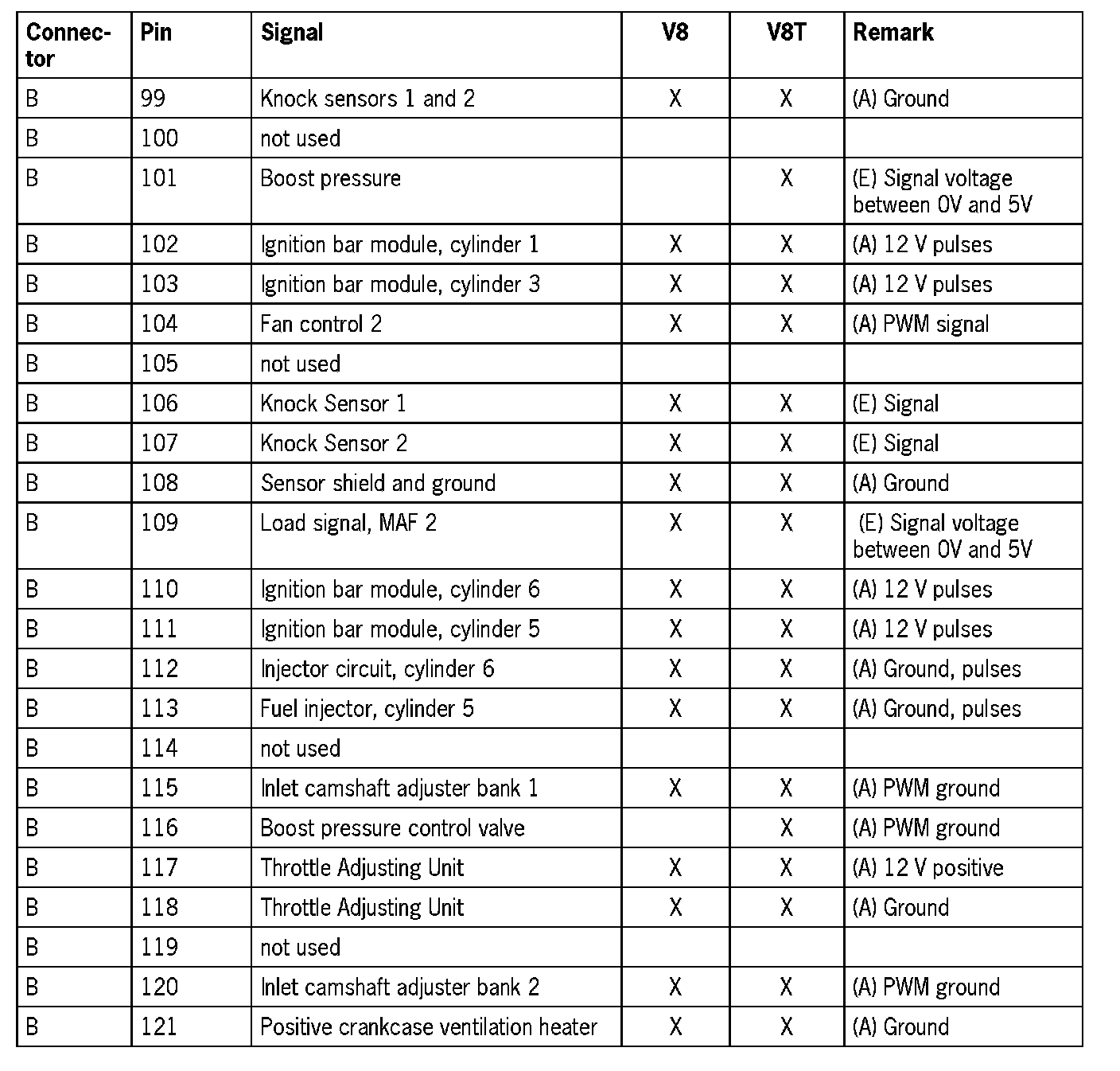

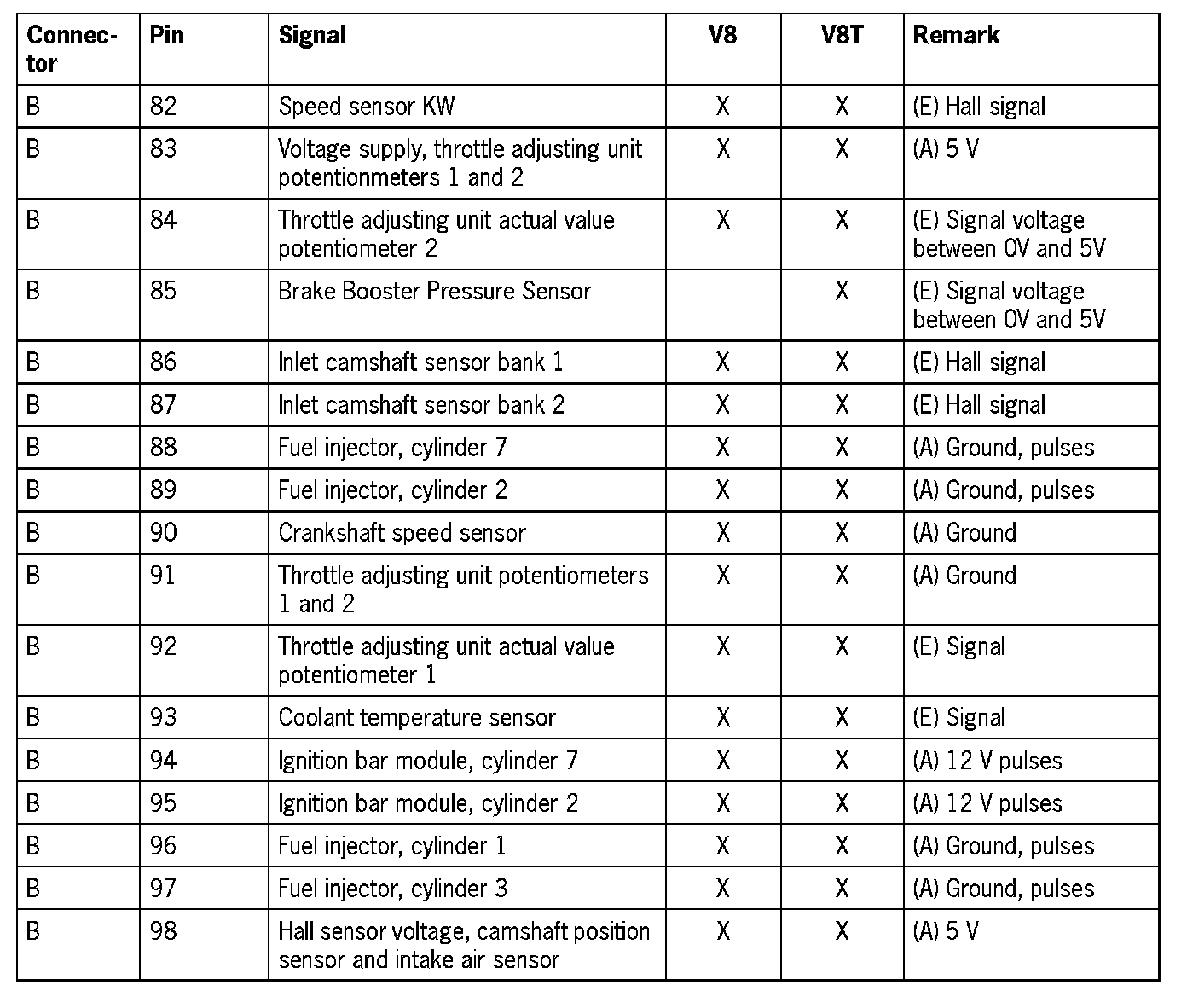

Connector B on control module DME 7.1.1 - 40-pole









Connector assignment - Cayenne V6

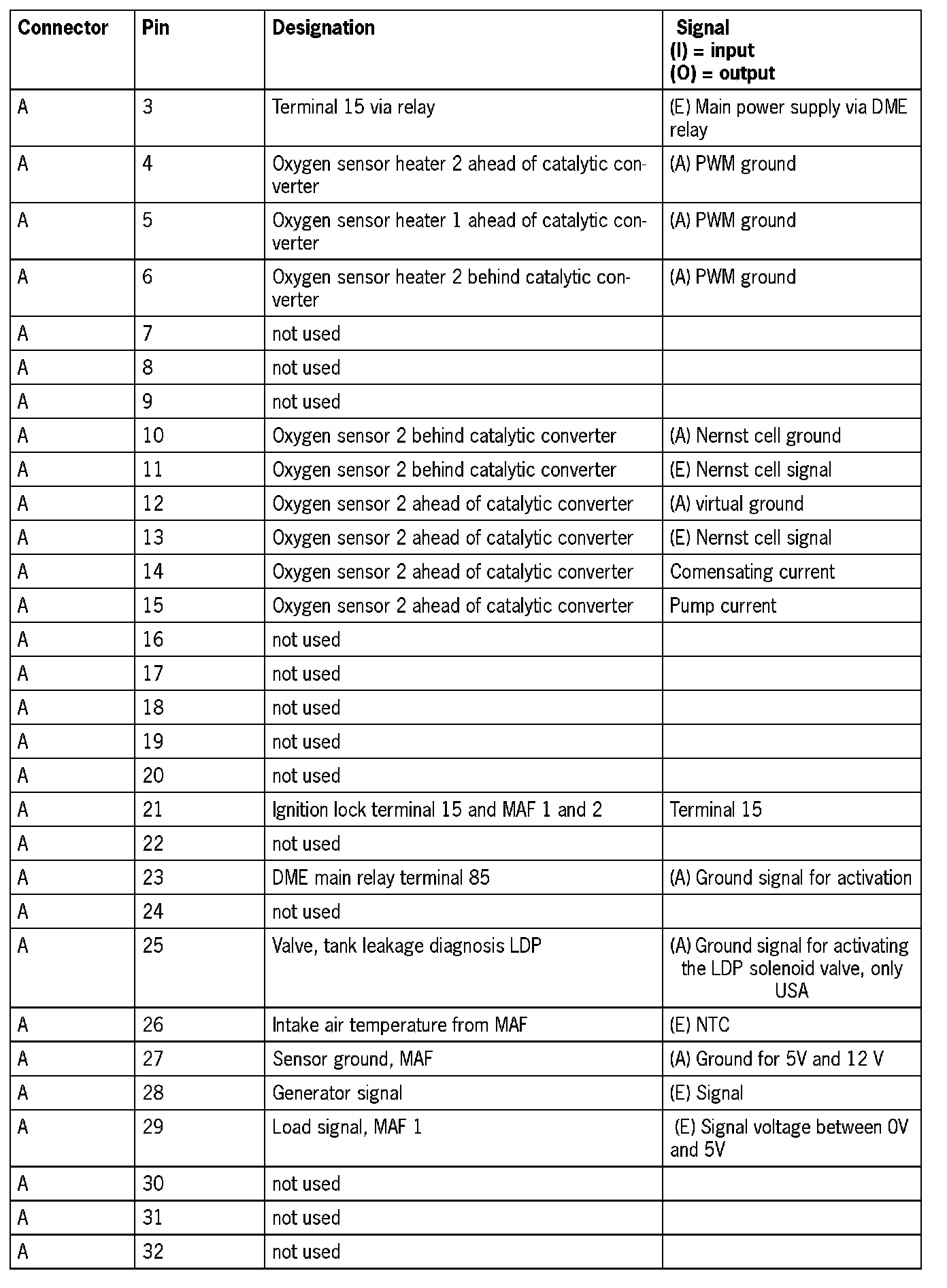

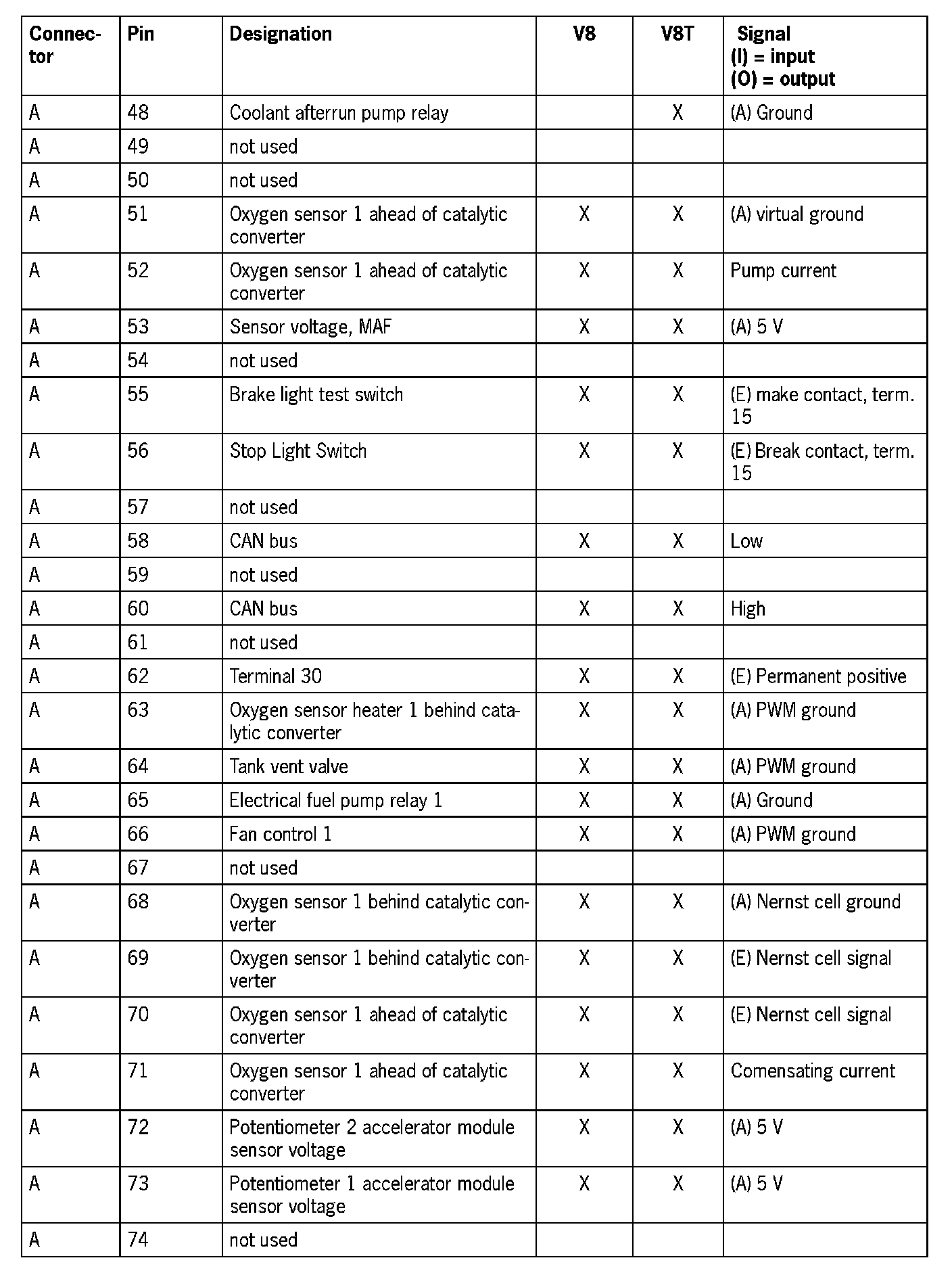

Connector A on control module DME 7.1.1 - 81-pole

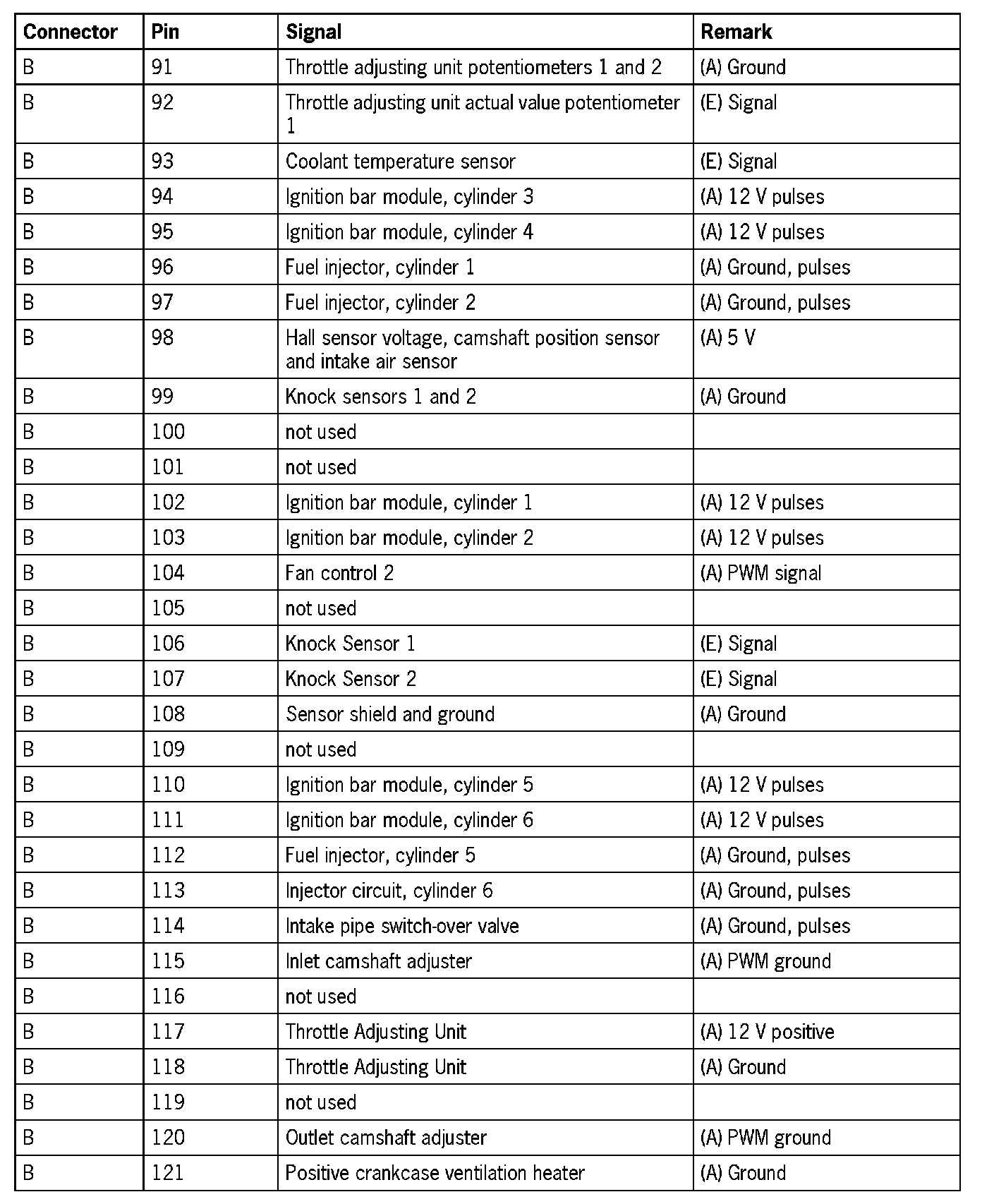

Connector B on control module DME 7.1.1 - 40-pole
