Control Module HVAC: Diagrams



Connector Assignment

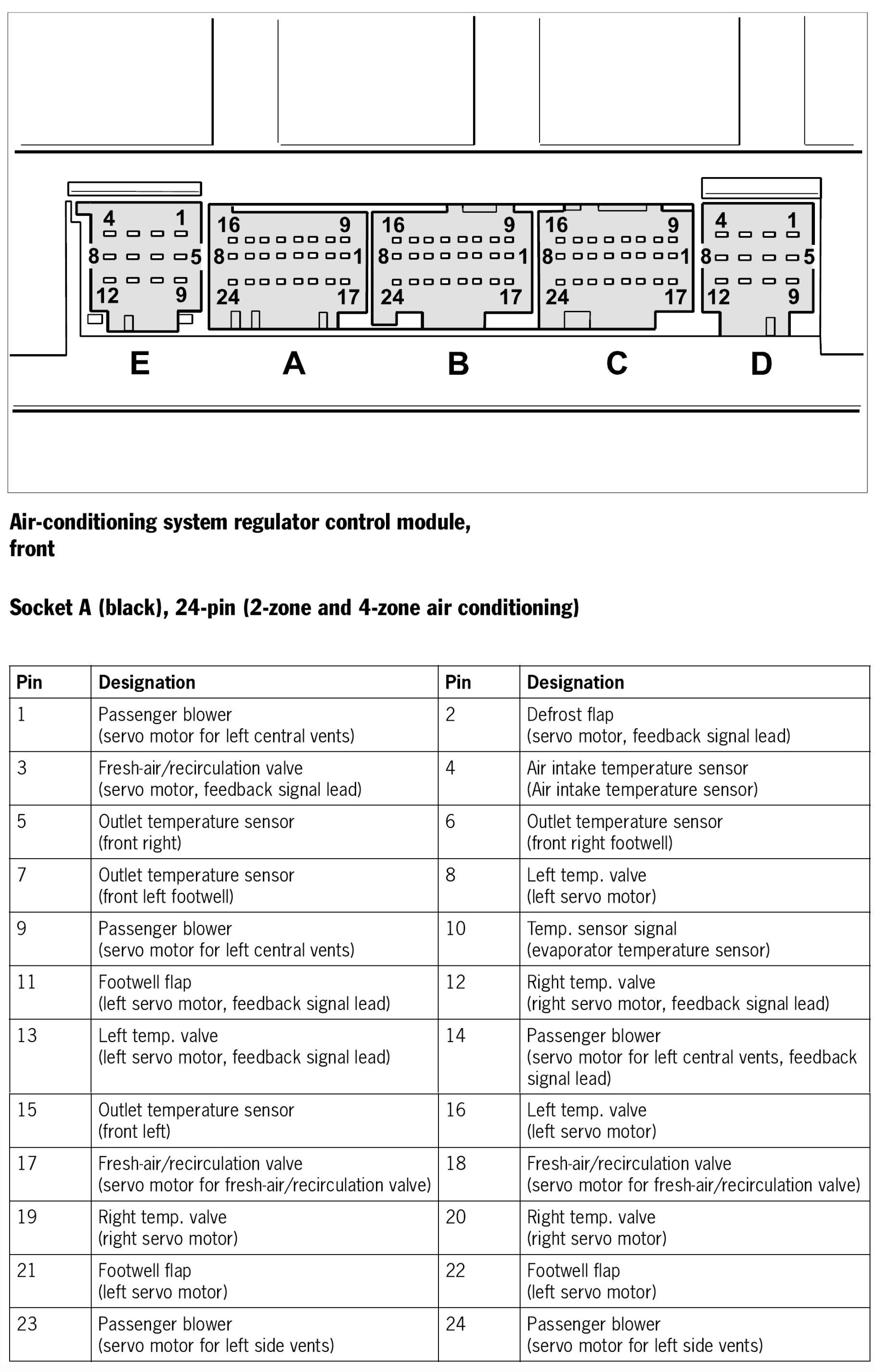

Part 1:

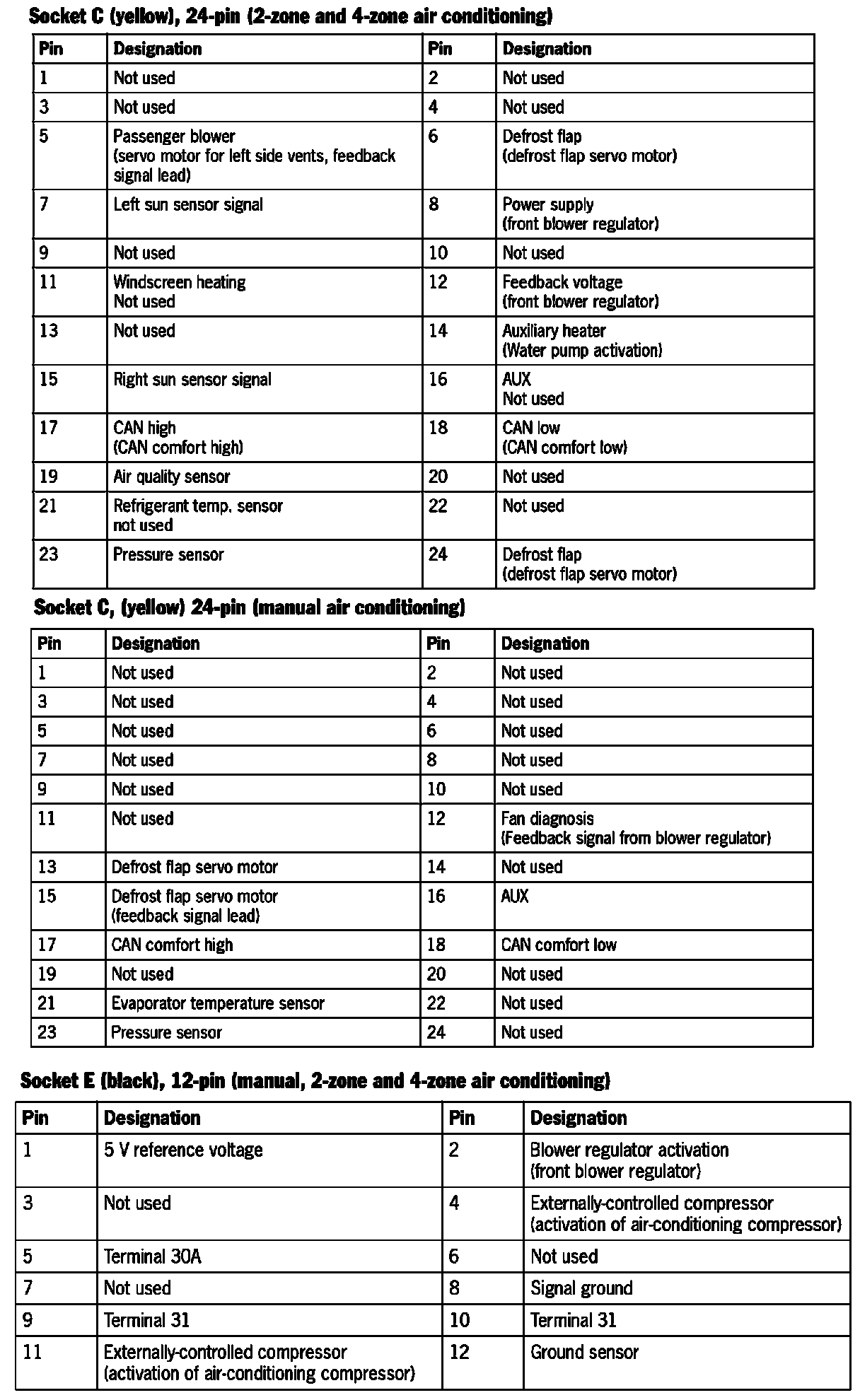

Part 2:

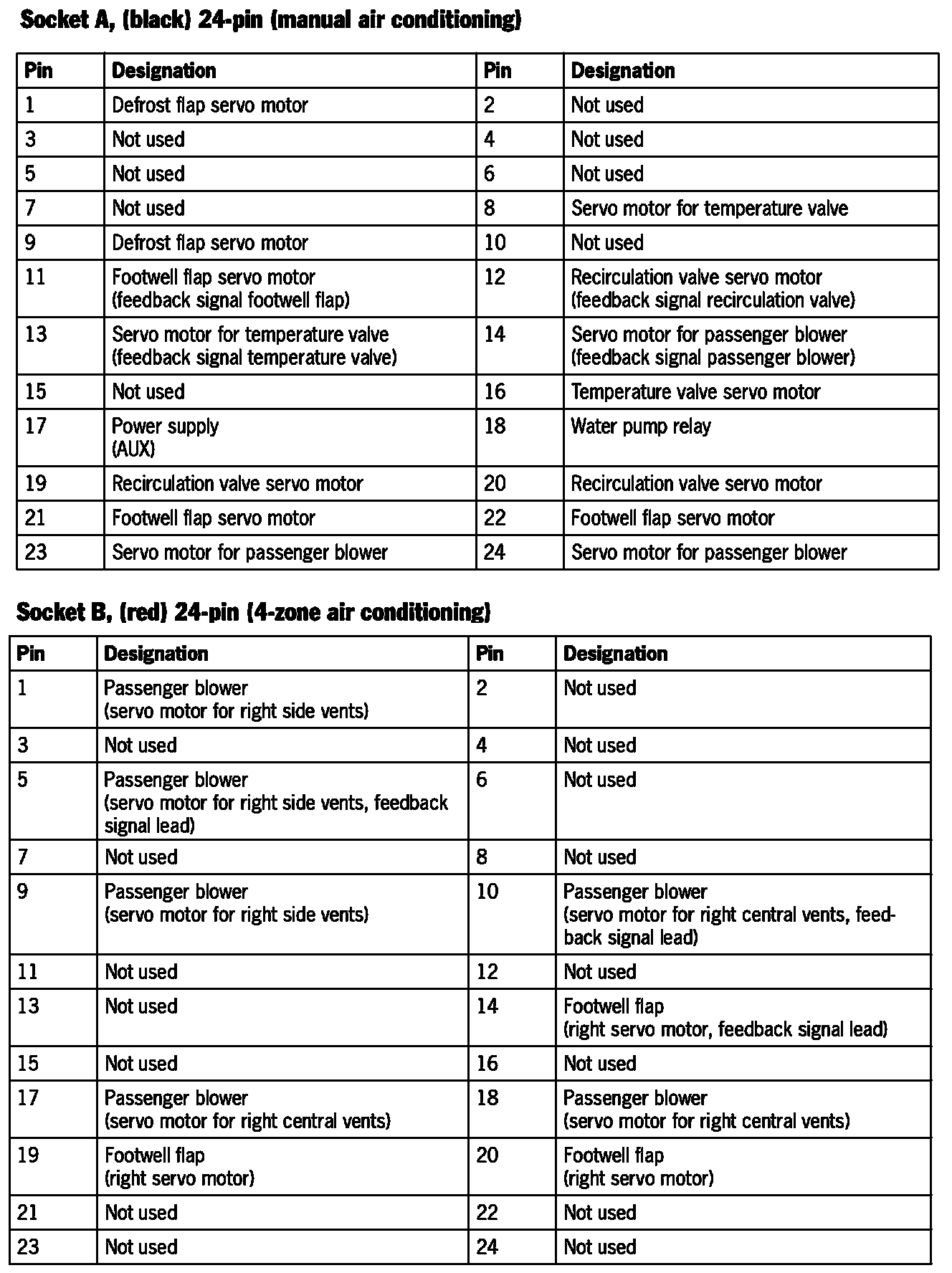

Part 3:

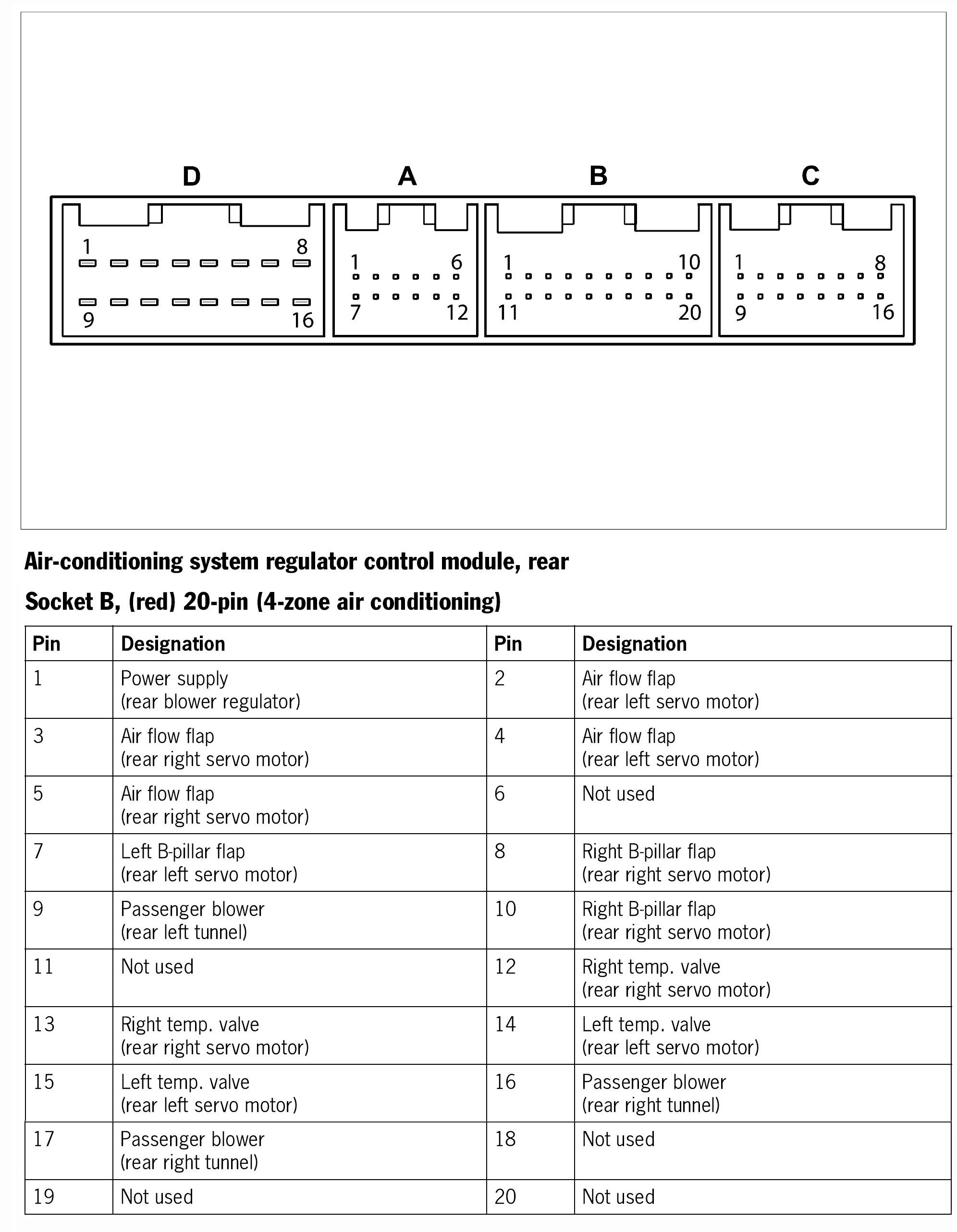

Rear connector assignment

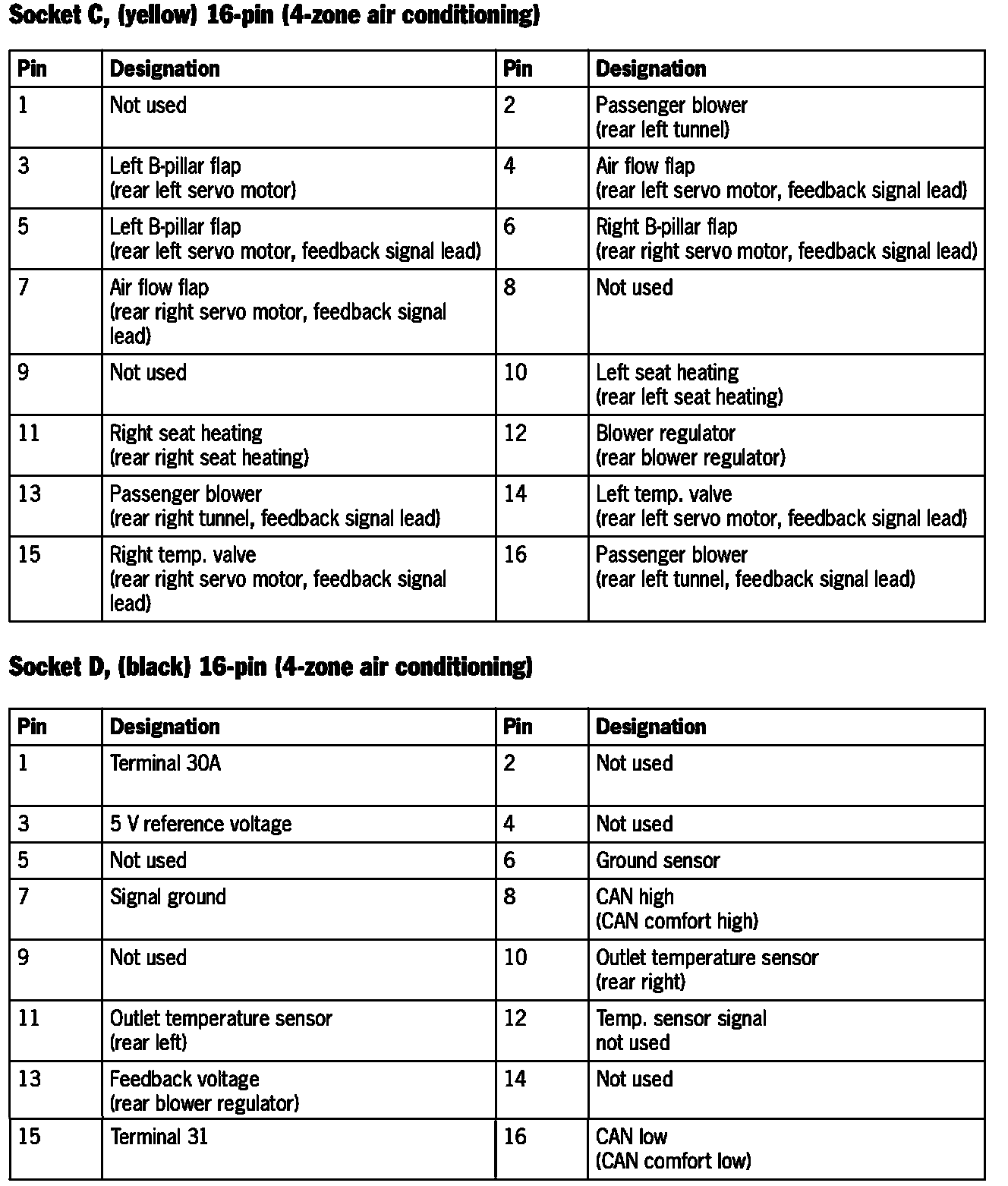

Part 1:




Part 2:
