Solar Sensor: Service and Repair

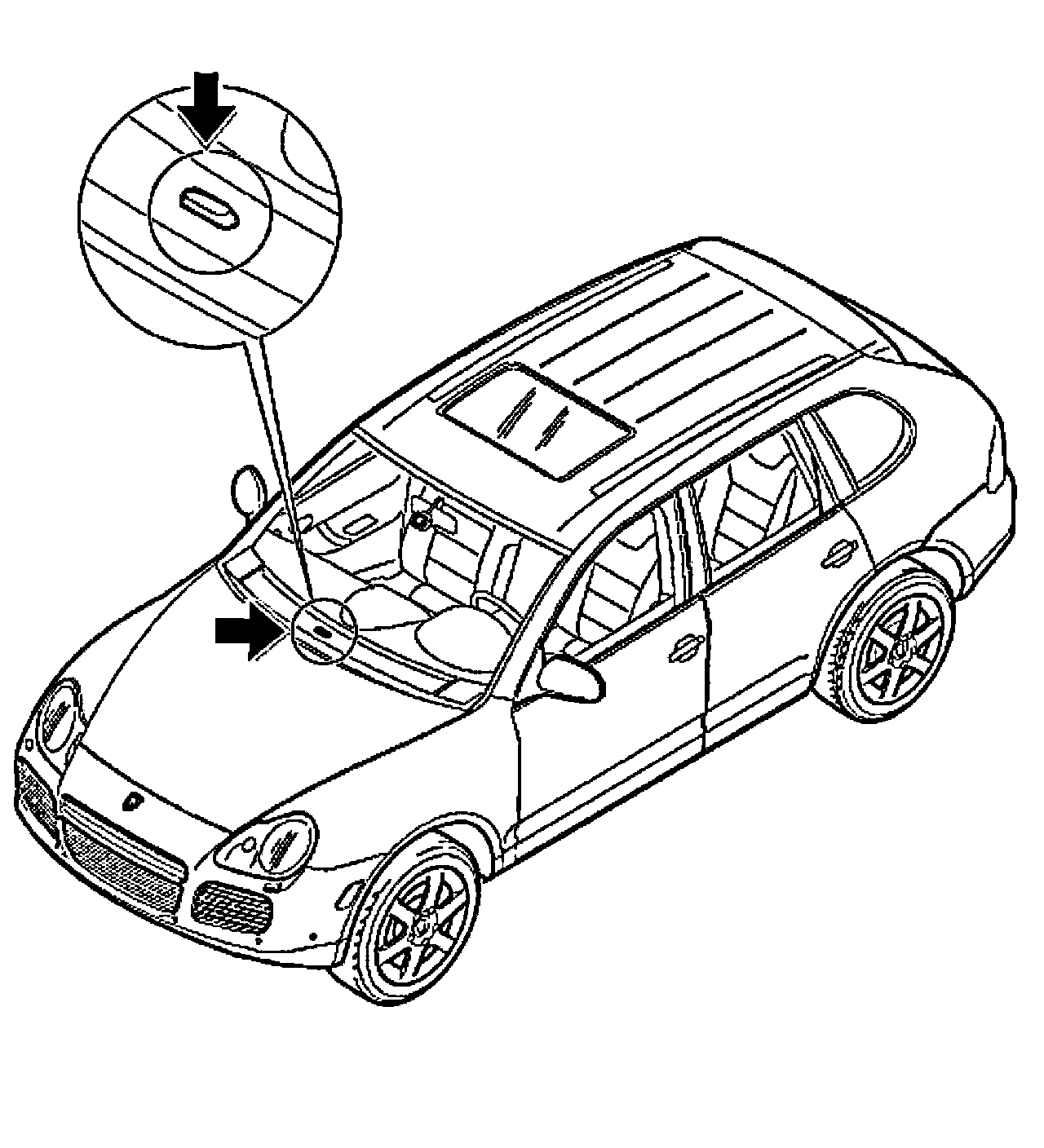

Removing and Installing Sun Sensor







Removing Sun Sensor







1. Lift cover on the instrument panel with a plastic filler and unclip.
2. Disconnect electrical plug connection.







3. Separate support -A- and remove sun sensor -B-.

Installing Sun Sensor







1. Press sensor -B- into the support until the lugs engage in the sensor.







2. Plug in the electrical plug connection.
3. Position cover and clip into the instrument panel.
