Headlamp Alignment Control Module: Locations

Headlight Beam Adjustment (HBA), Xenon

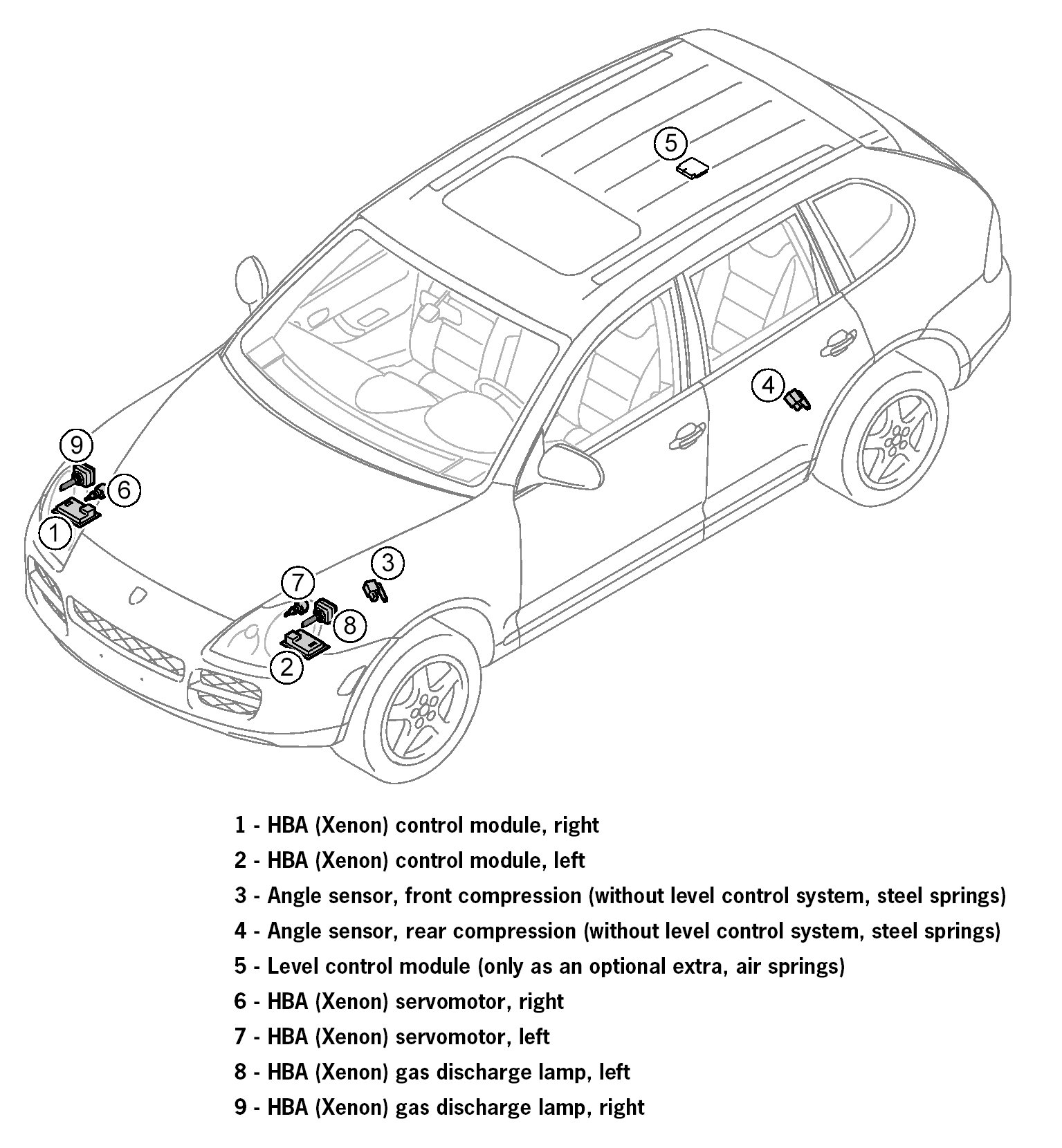

Component Arrangement

Component Arrangement:
