Connector Locations

Connector Assignment

NOTE: The plugs on the vehicle electrical system control module can only be pulled off and re-connected in a certain sequence.







Plug A, 26-pin

Pin 1 - 10:

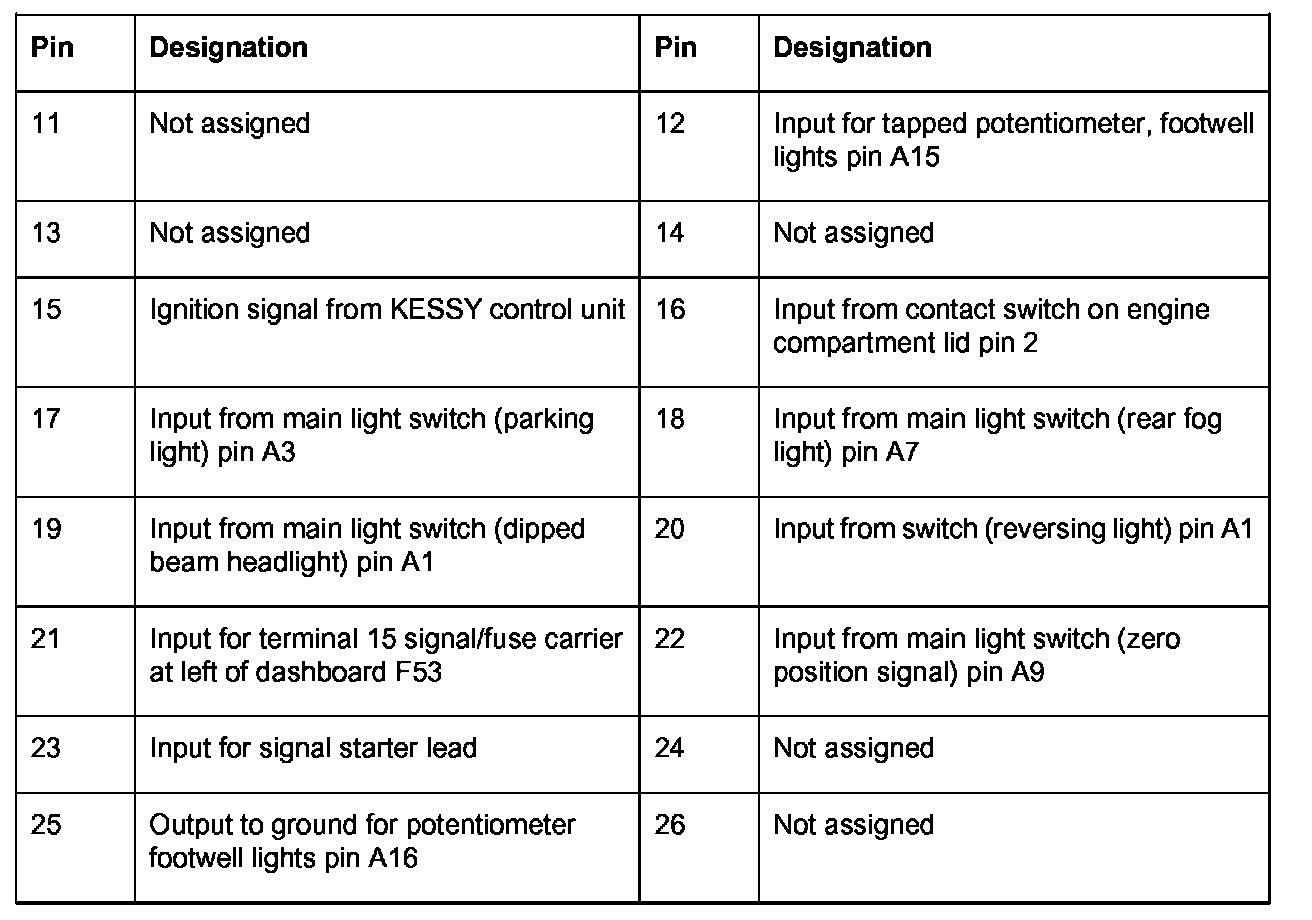

Pin 11 - 26:

Plug B, 6-pin

Pin 1 - 6:

Plug C, 6-pin

Pin 1 - 2:

Pin 3 - 6:

Plug D, 6-pin

Pin 1 - 6:

Plug E, 6-pin

Pin 1 - 6:

Plug F, 6-pin

Pin 1 - 2:

Pin 3 - 6:

Plug G, 6-pin

Pin 1 - 4:

Plug H, 6-pin

Pin 1 - 2:

Plug J, 6-pin

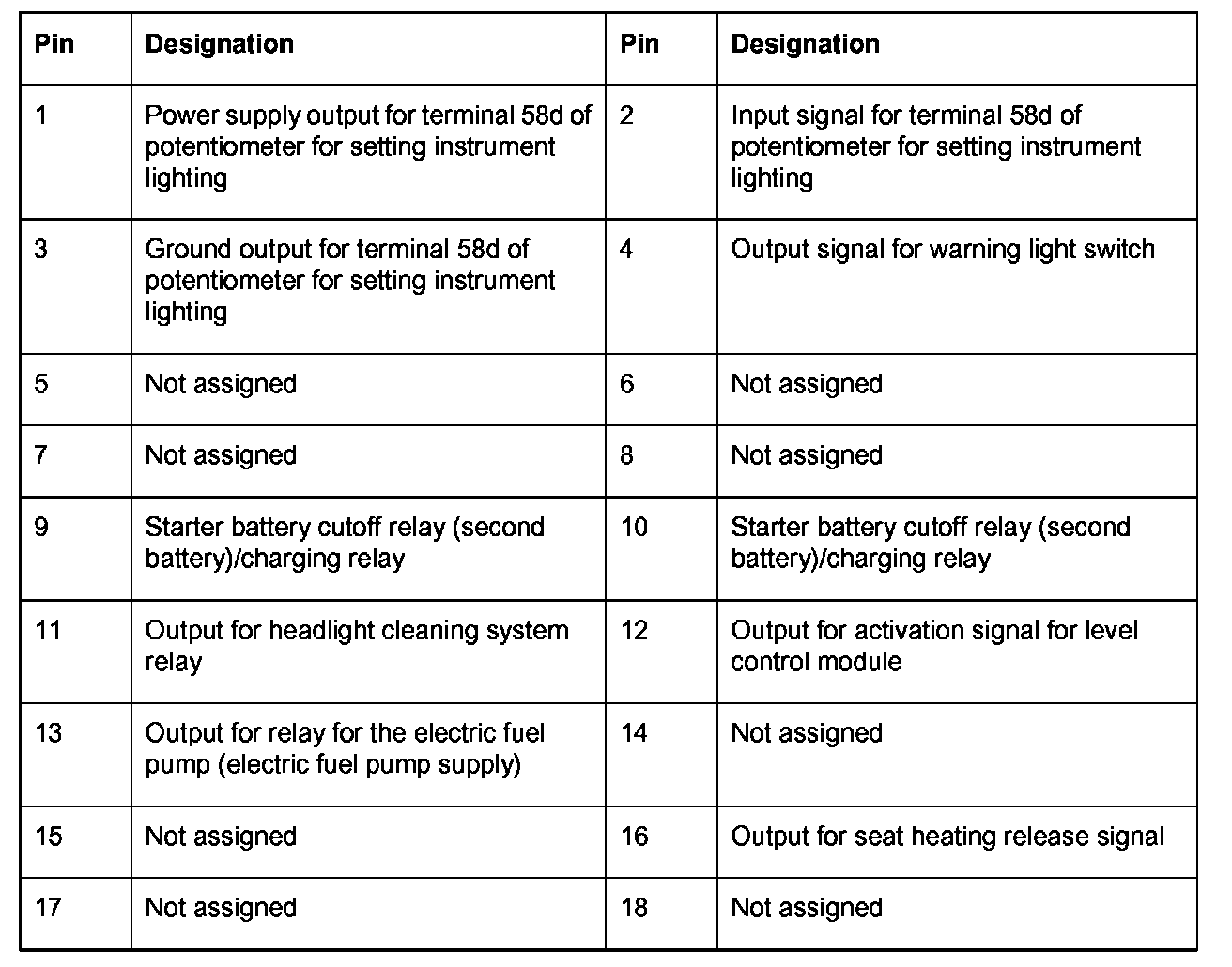

Pin 1 - 18:

Plug K, 6-pin

Pin 1 - 6:

Plug L, 6-pin

Pin 1 - 6:

Plug M, 6-pin

NOTE: Plug M is not used

Plug N, 6-pin

NOTE: Plug N is not used

Plug P, 16-pin

Pin 1 - 12:

Pin 13 - 16:
