Body Control Module: Tools and Equipment

Vehicle electrical system control module tools

WARNING:
Danger of personal injury while driving with special tools
- Never hang the Porsche System Tester II No. 9588 over the steering wheel

NOTE:
- Before starting the diagnosis a suitable charging device must be connected to maintain battery capacity.
- Plug contacts are optimally designed to suit the plug system. Operations on pins can cause contact problems. Always use suitable measurement tools for adapter plugs and test cables.

Battery charging device






Porsche System Tester II No. 9588






Commercially available digital multimeter

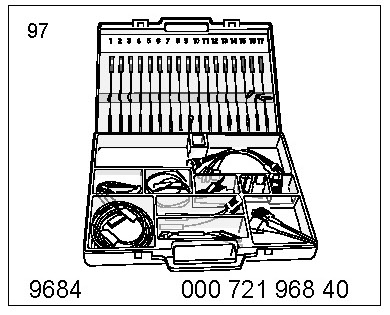

Measurement tool set No. 9684
