Main Relay (Computer/Fuel System): Locations

Relay Assignments

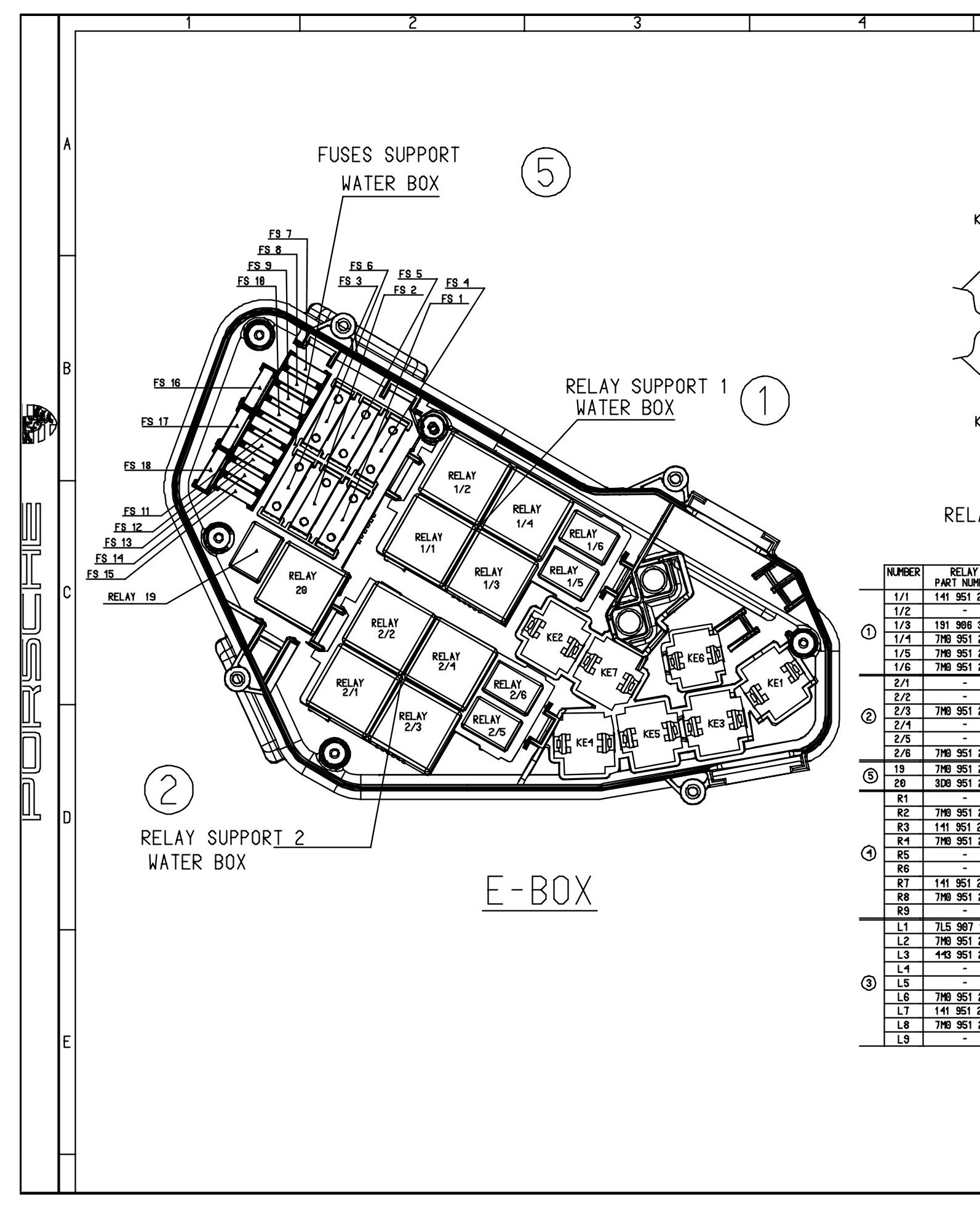

Relay Support / Fuses E-Box - Sheet 26 (Part 1):

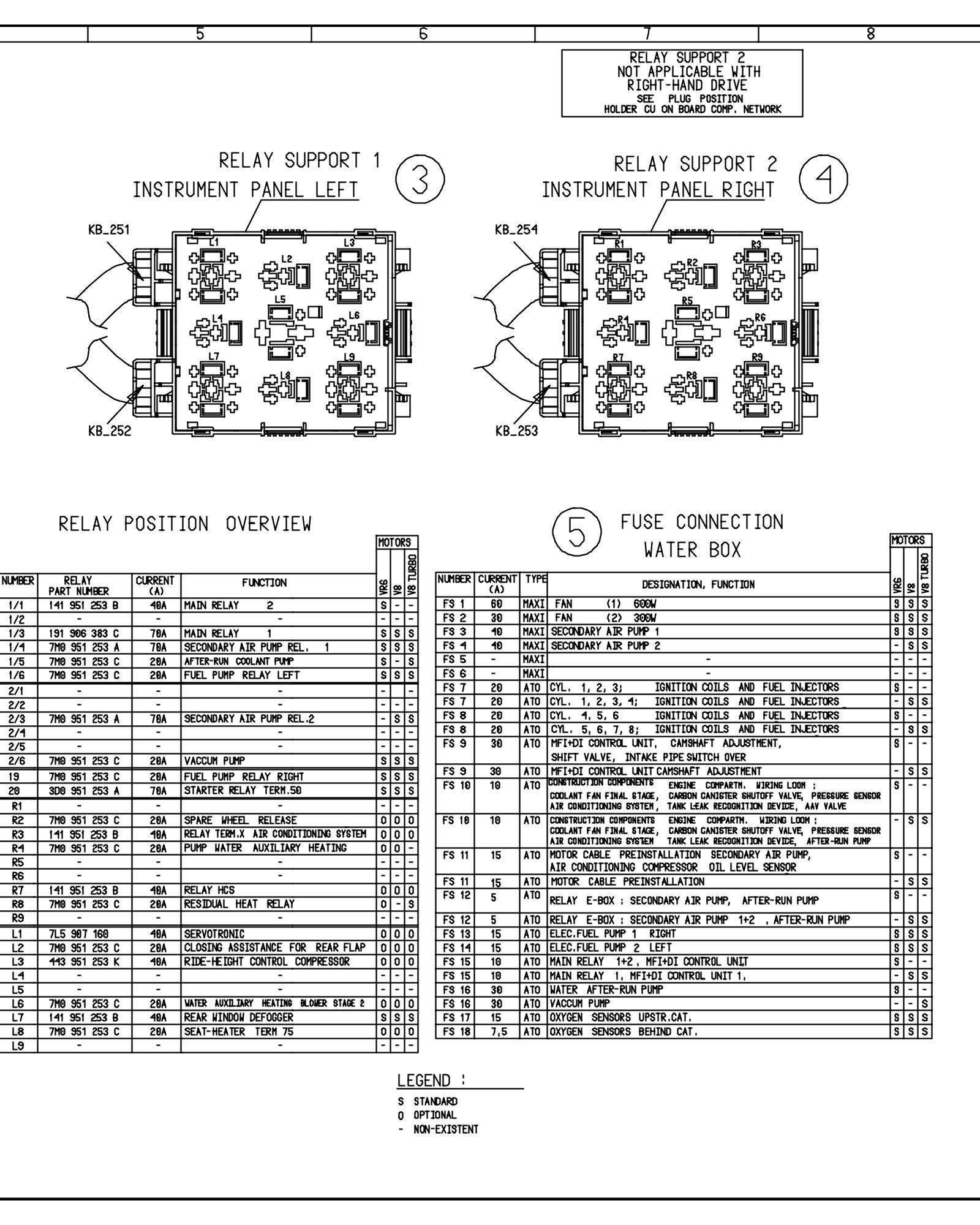

Relay Support / Fuses E-Box - Sheet 26 (Part 2):

Relay Support / Fuses E-Box - Sheet 26 (Part 3):

Diagrams: Other diagrams referred to by name and sheet number/coordinate (i.e. "Instrument Cluster 3/C5") within these diagrams can be found at the vehicle level under Diagrams By Name. Diagrams By Name
