System Specifications

Technical Data:

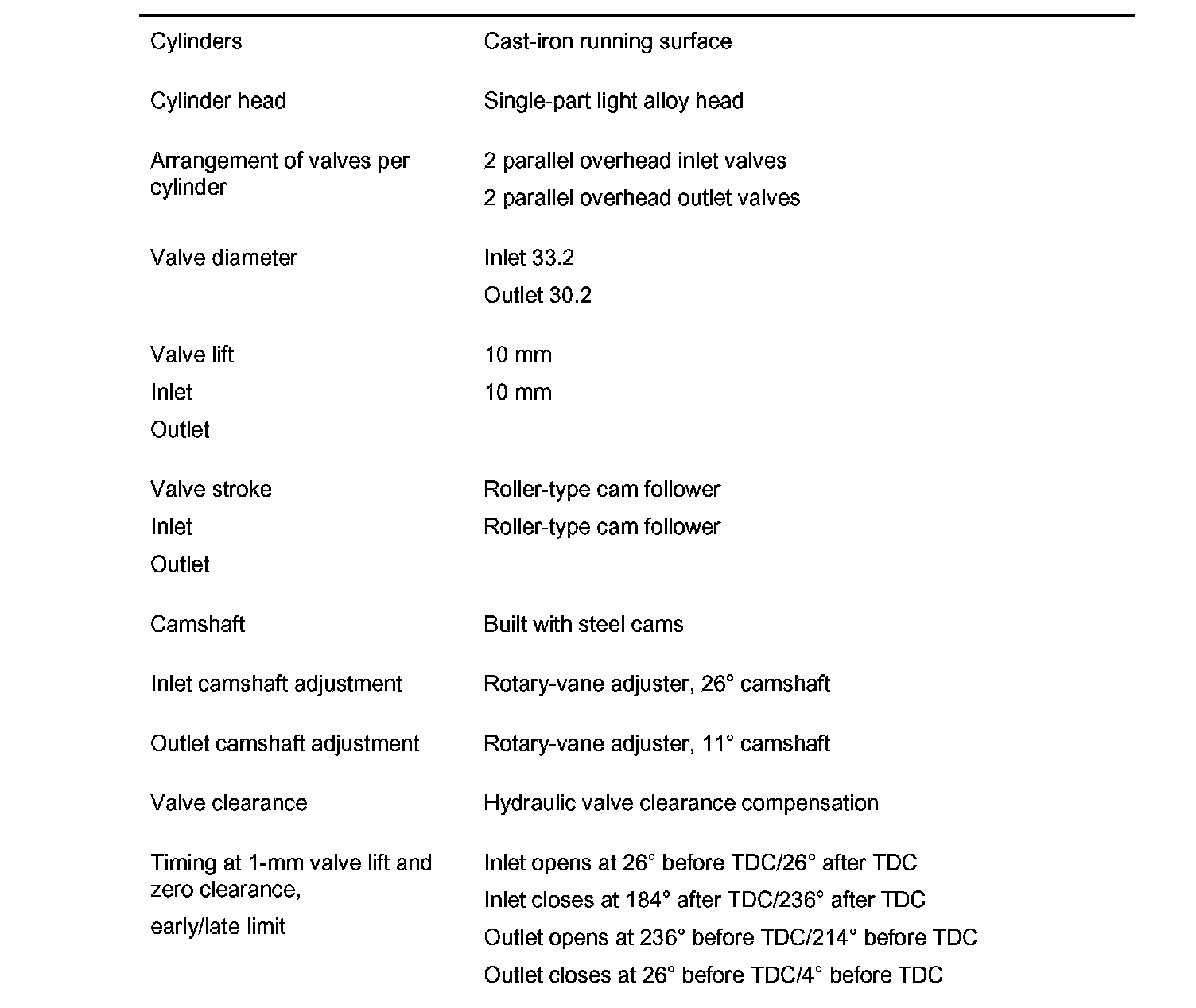

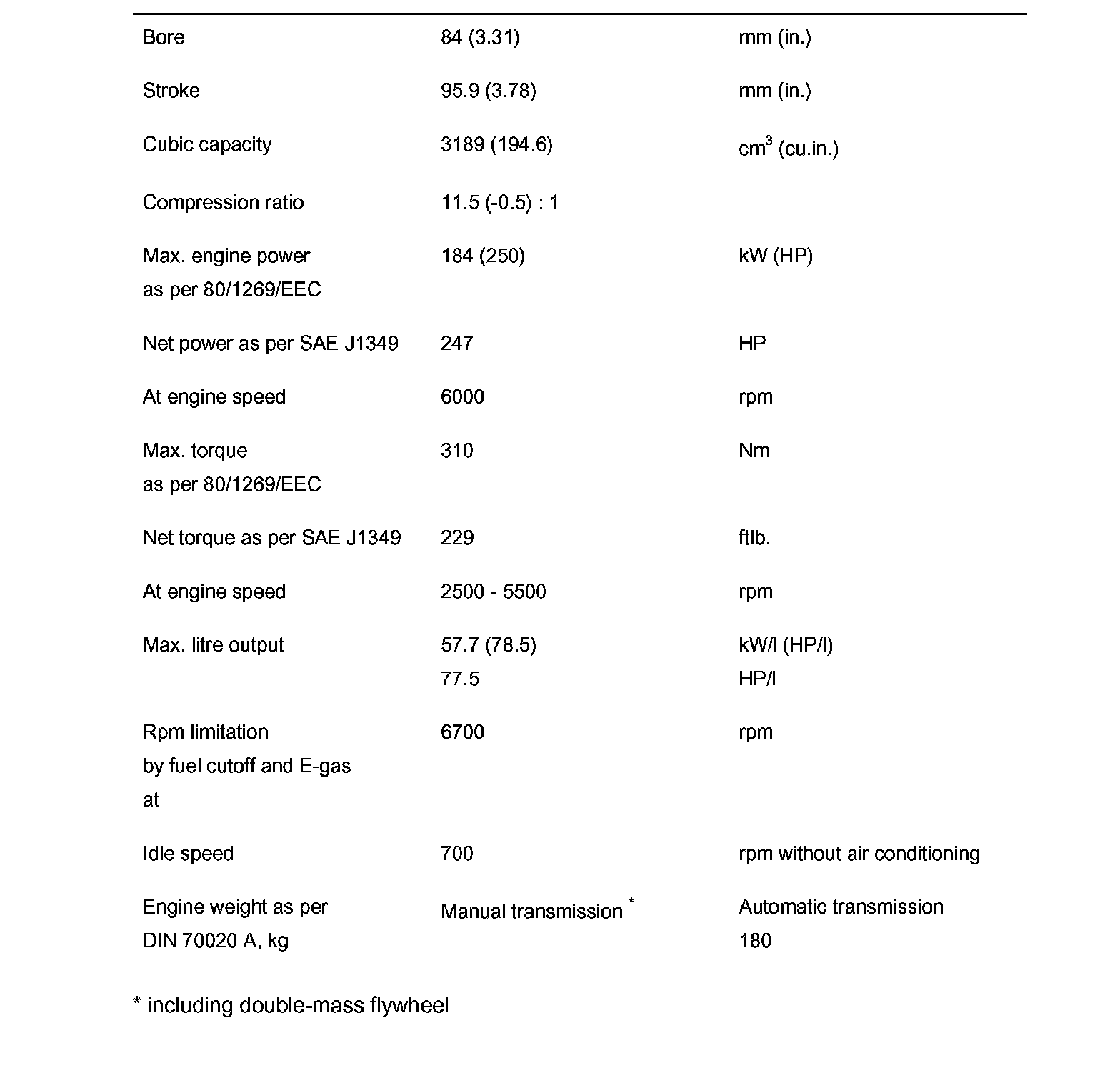

Technical data for BFD engine (Cayenne)

BFD engine

Engine design








Engine design

Engine








Engine
