Control Module: Diagrams

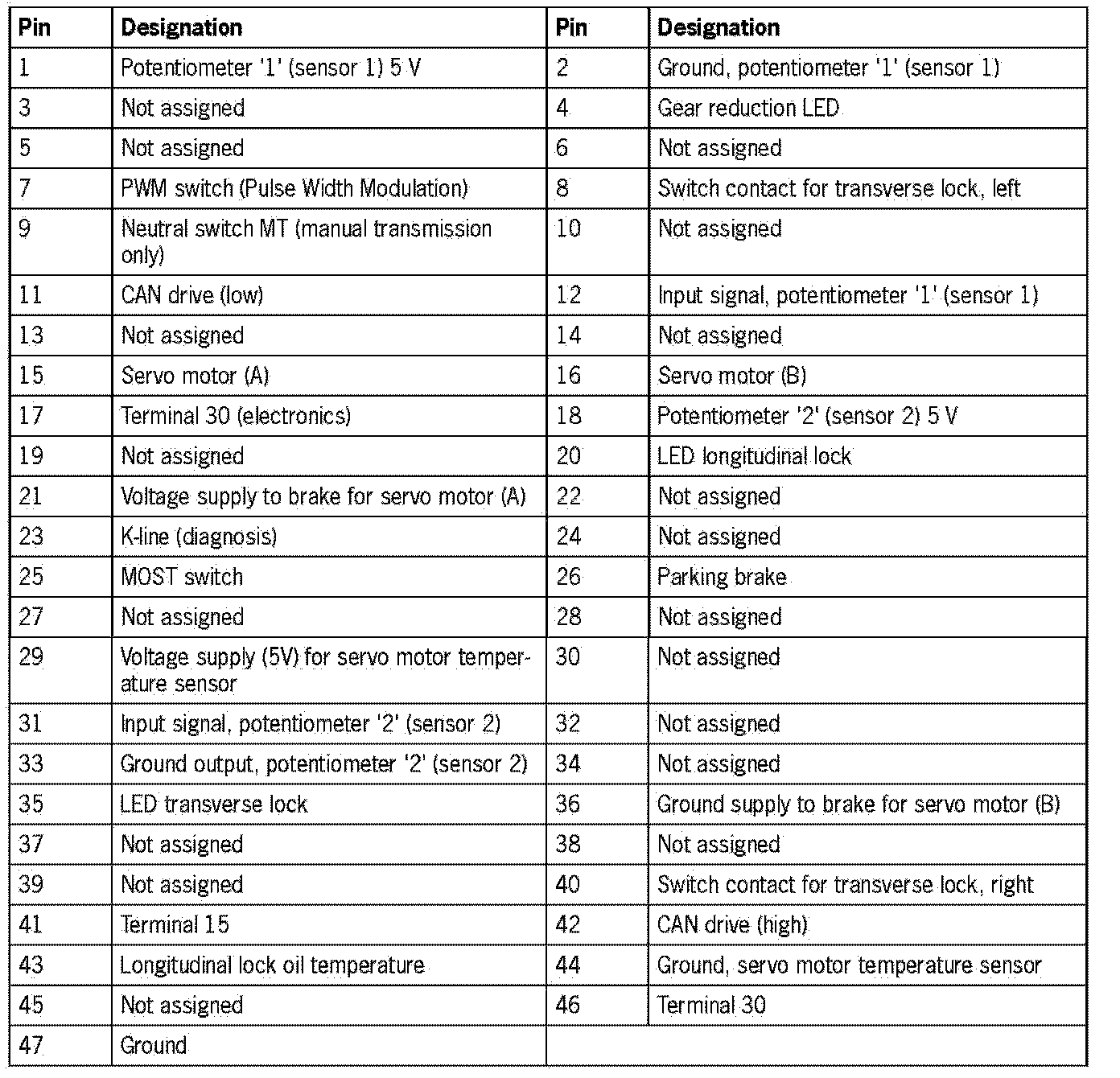

Connector assignment - transfer box control unit

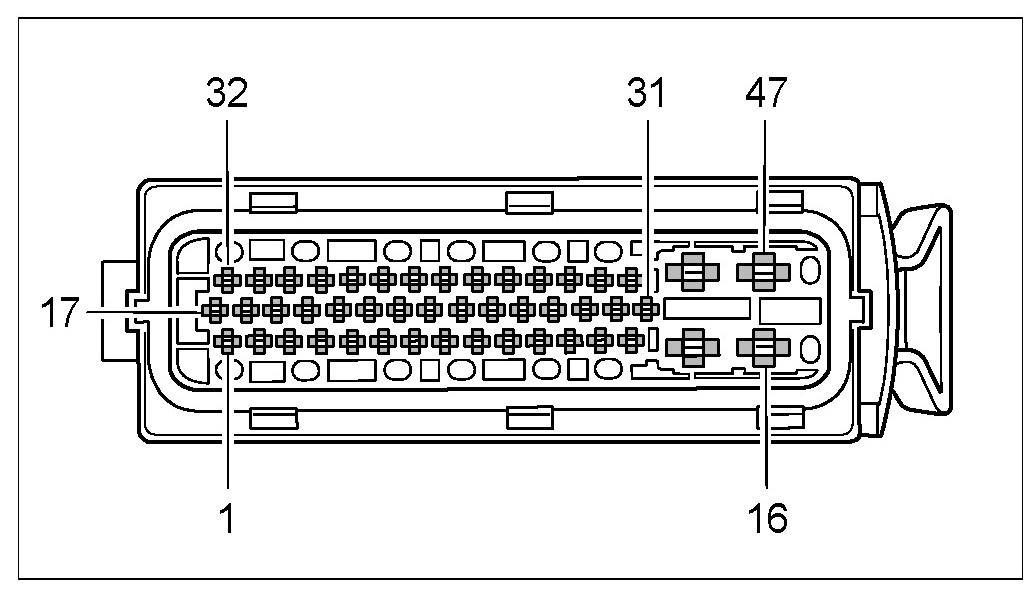

Plug '47-pin'

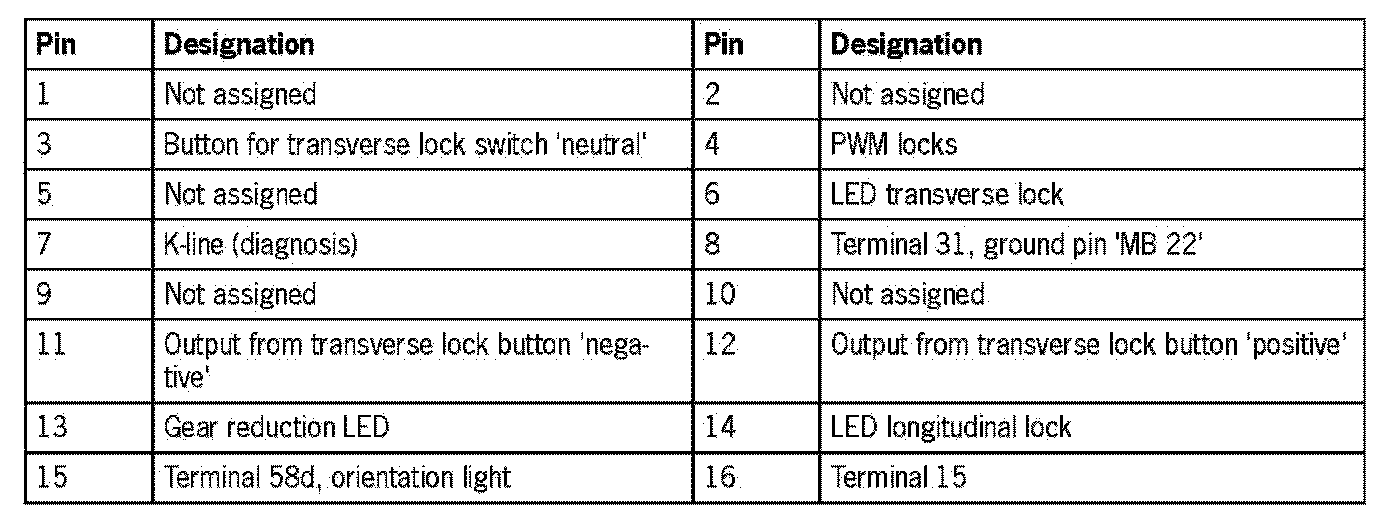

Gear selection switch connector assignment (running gear control module), '16-pin'

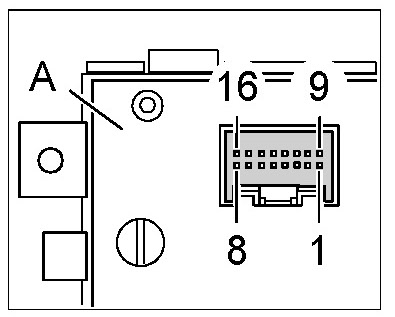

A - Plug connection for 'gear selection switch (running gear control module)' (at underside of housing)
