Component arrangement: Notes

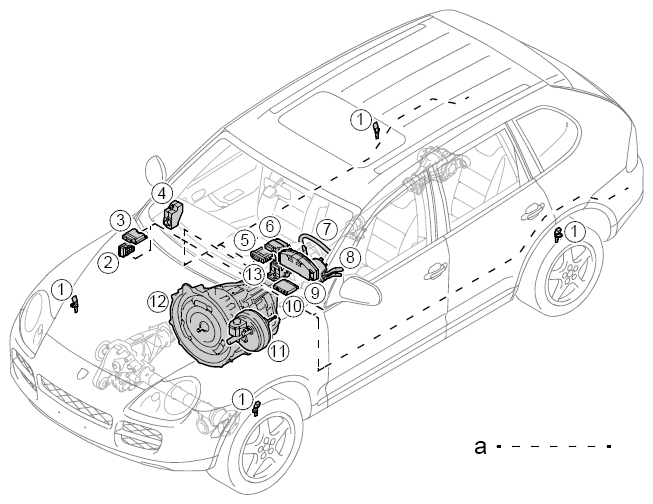

Fig 1: Identifying Component Arrangement Of Tiptronic

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. CAN drive (CAN-C)
   1. Rate-of-turn sensor (wheel)
      • front left
      • front right
      • rear left
      • rear right
   2. PSM control module
      • Located in right radiator tank with hydraulic unit screwed on, under DME control module
   3. DME control module
      • Located in right radiator tank, above hydraulic unit with PSM control module
   4. Fuse carrier at right of dashboard
      • Integrated into right side of dashboard
   5. Tiptronic control module
      • Located on vehicle floor under passenger's seat (front right)
   6. Transfer box control module
      • Located on vehicle floor under passenger's seat (front right)
   7. Steering wheel with Tiptronic rocker switch
   8. Steering column switch with electronic unit and steering-angle sensor
      • On the steering column under the steering wheel
   9. Instrument cluster (includes the gateway)
      • Integrated into dashboard
   10. Vehicle electrical system control module (connected to CAN comfort)
       • Located on right side of steering column near KESSY control module
   11. Pressure sensor (brake)
       • Located on the underside of the brake master cylinder. Brake master cylinder and active brake booster are integrated into radiator tank.
   12. Tiptronic transmission (automatic transmission)
       • Multi-function switch 'PRND' 'screwed to right side of housing'
       • Torque converter
       • Converter jumper clutch 'integrated into torque converter'
       • Hydraulic control unit
       • Sensors
       • Solenoid valves
   13. Selector lever module (in center console)

Component arrangement 'Item 12' Tiptronic transmission (automatic transmission)

Fig 2: Identifying Component Arrangement Of Tiptronic Transmission (Automatic Transmission)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

A  - Multi-function switch plug connection 'PRND', (existing transmission wiring)

B  - Sensor plug connection (existing transmission wiring)

C  - Solenoid valve plug connection (existing transmission wiring)

1  - Multi-function switch 'PRND'
